WOYO PL005 PRO Apply for Land R-over J-aguar Gear Shift Module GSM Tester/Rotary Gear Selector Bench Test Diagnostic Tester Repair Kit

Introduction:

The plastic fastener inside GSM of for L-androver J-aguar will breaken and damage easily,which cause the GSM being stuck or unusable to use.

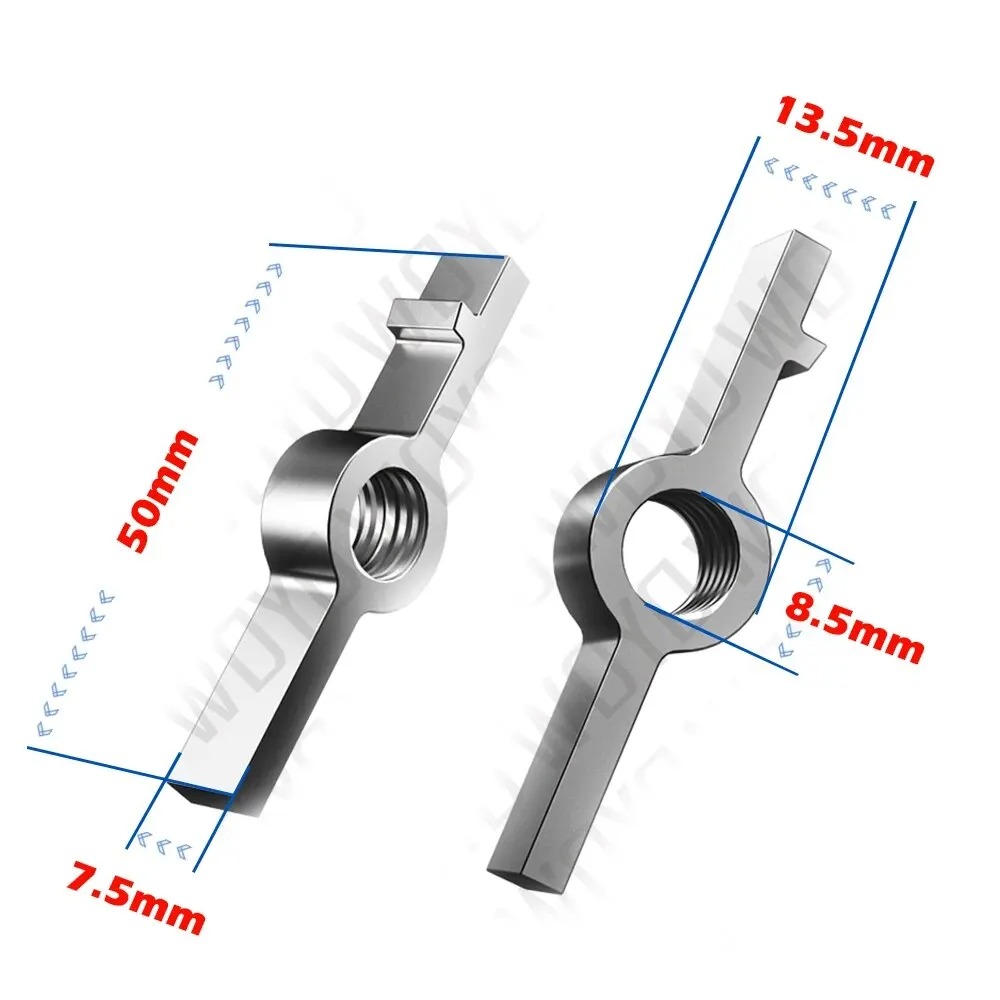

WOYO for L-androver J-aguar GSM tester kit includes metal fasteners for replacement.

After repair, use the tester to test GSM without assembling it to vehicle, Which avoids it unable to operate after assembling the vehicle, repeated disassembly, and waste time.

Common Failure Symptoms:

Gear selection dial will not rise or fall;

Unable to select/switch drive mode;

Gear selection dial will not rotate;

Common fault codes: P176C -11 - Transmission Range Selector Lock Control Error;

Function:
1. Control the GSM up and down when it doesn't assembly tovehicle;
2. Identify vehicle model automatically , saving the query time;

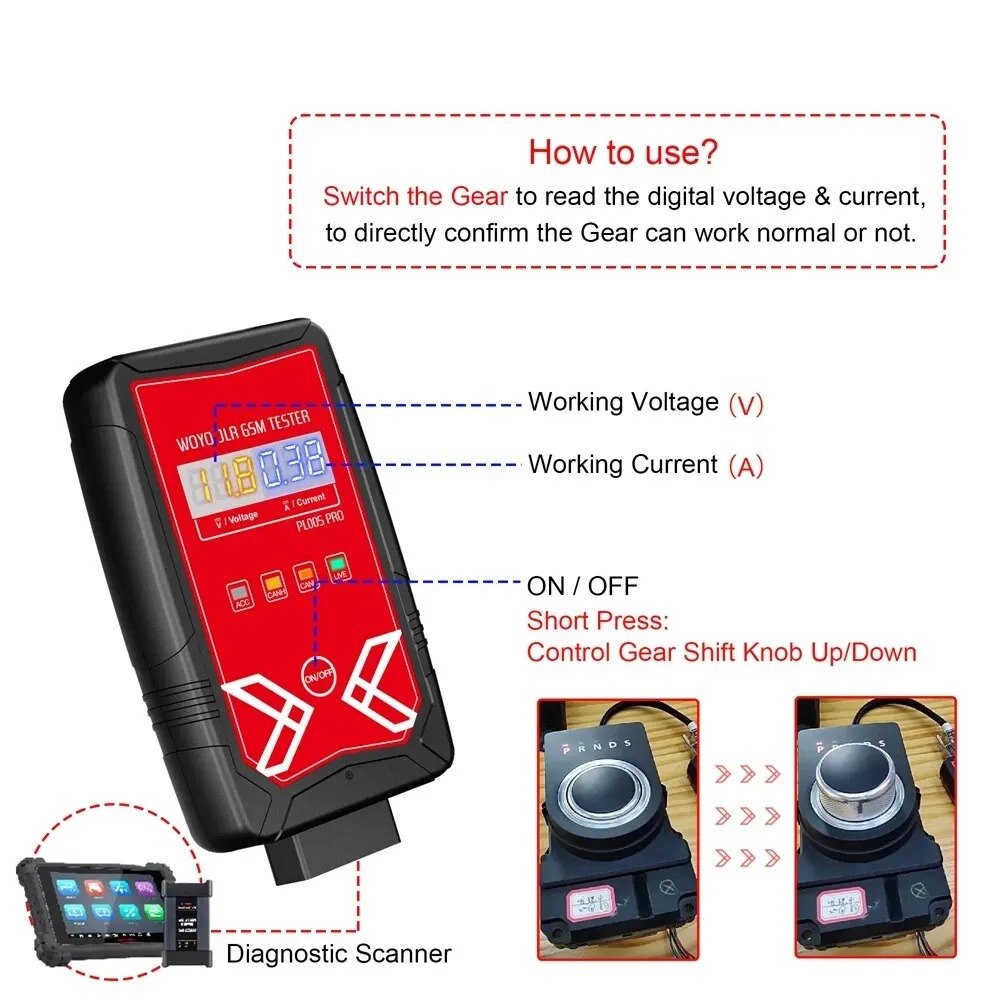

3. Simple operation, one button control of up and down, gear switching supported

Supported model list:

For L-androver:

Freelander,Freelander(New), Evoque 6 Speed,Evoque 9 Speed, Discoverer 3,Discoverer 4,Discoverer 4(Old),Discoverer 4(New),

Discoverer 5,Discoverer Sport,Defender,Defender(New),

Range Rover(Old),Range Rover,Range Rover(New),Range Rover Sport(Old),Range Rover Sport,Range Rover Sport(New),

Range Rover Evoque(New),Range Rover Evoque II,Range Rover Velar,

L319(EH22),L319(BH42),L405(CPLA),L405(DPLA),L405(EK52),L405(GK52),L405(HPLA),L462(HPLA),

L538(BJ32),L538(EJ32),L538(GJ32),L538(HJ32),L550(EJ32),L550(GJ32),L550(HJ32),L560(J8A2)；

For J-aguar:

S-TYPE, E-PACE,I-PACE, F-PACE(Old),F-PACE(New),F-TYPE,F-TYPE(New),F-PACE, XFL,XFL(Old),XFL(New),XJ,XJ(New),XJL,XJL(New),XK,XE,XE(Old),XE(New),XF,XF(XXX),XF(Old),XF(New),

X250(8X23),X250(DX23),X250(9X23),X260(HX73),X260(JX73),X260(GX73),X351(DW93),X351(GW93),X760(JX73),X760(GX73),X760(HX73),X761(HX73),X761(JX73)；

JLR HK62, JLR JK62, JLR J9C3, JLR KK62M JLR DPLA, JLR EX53

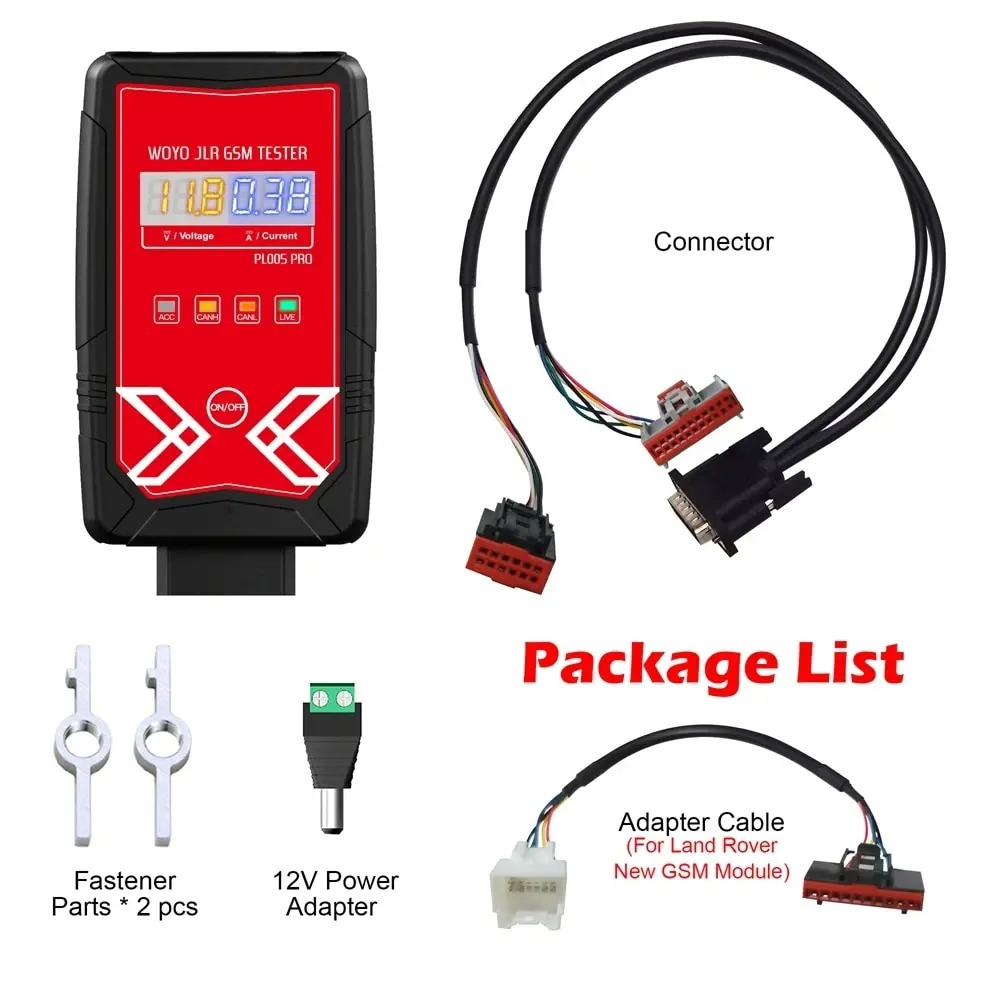

Pack List:

Main*1

10pin Cable*1

12&22pin Cable*1

Lifting Gear Lever*2
