UPA USB 1.3 Serial Programmer UPA USB Programmer with Adapters for UPA Programming EEPROM Programmer ECU Chip Tuning

UPA USB Programmer Description:

New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.

Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

UPA-USB Device Programmer V1.3 Update Info:

Added MC9S12HY64/HA32 support

Added Serial Flash memory support: A25L512/010/020/040/080/016/032, SST25VF512A/010A/020B/040B/080B/016B/032B, S25FL004A/008A/016A/032A/064A

Added 24C1024, 24C1025 support

Added Bulk erase data memory to PICs 16F913-7/946, 12F629/675

Added script function GetPage

Added script function AutoBaudRateDevice (hc08 devices only)

Added script function GetProgrammerFrameChildCtrl( AChildCtrlName: string): TControl

Added script function EnablePicMemoryAreas ( AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ): boolean;

Fixed bug with script functions ProgramDevice, ReadDevice ... when used with PICs

Fixed bug with SetHC08SecurityBytes (SecBytes: string) function

Fixed bug with 68hc11 reading if Oscillator is not set to Auto

Updated script example files

The software is digitally signed

USB driver upausb.sys is digitally signed

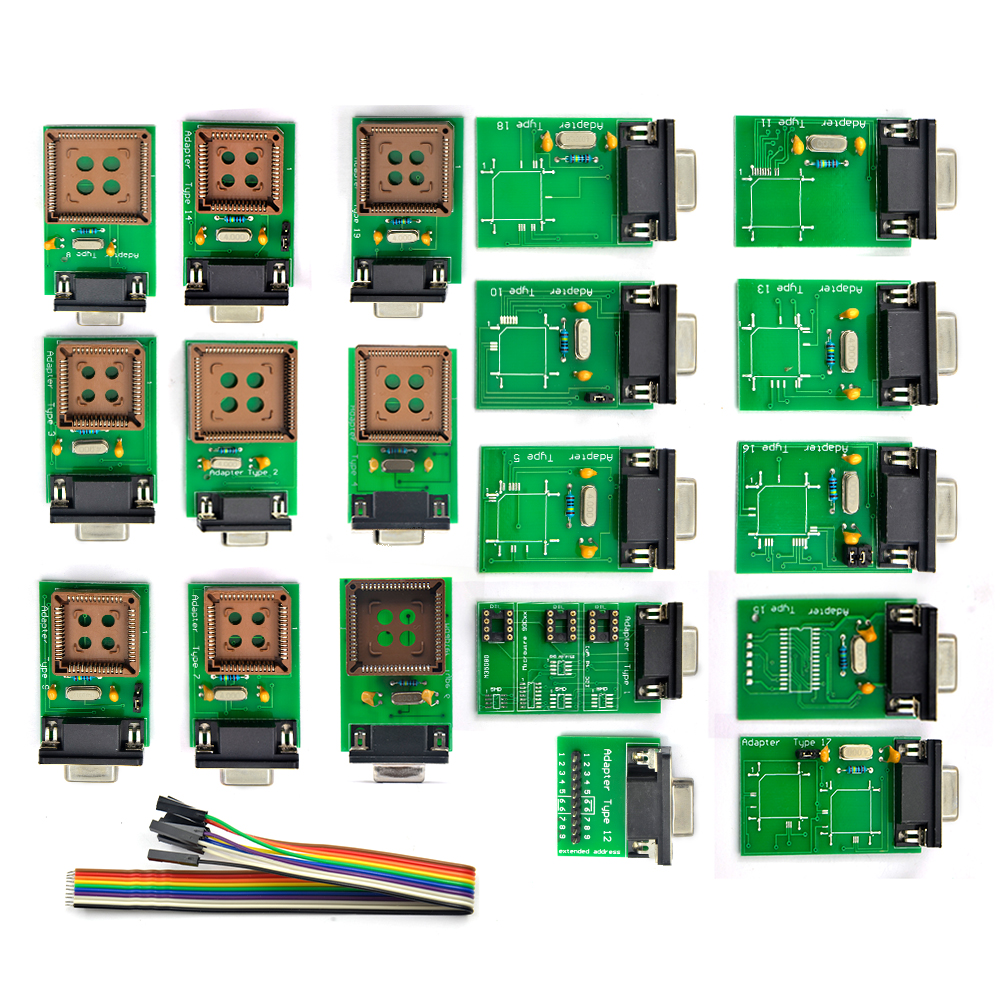

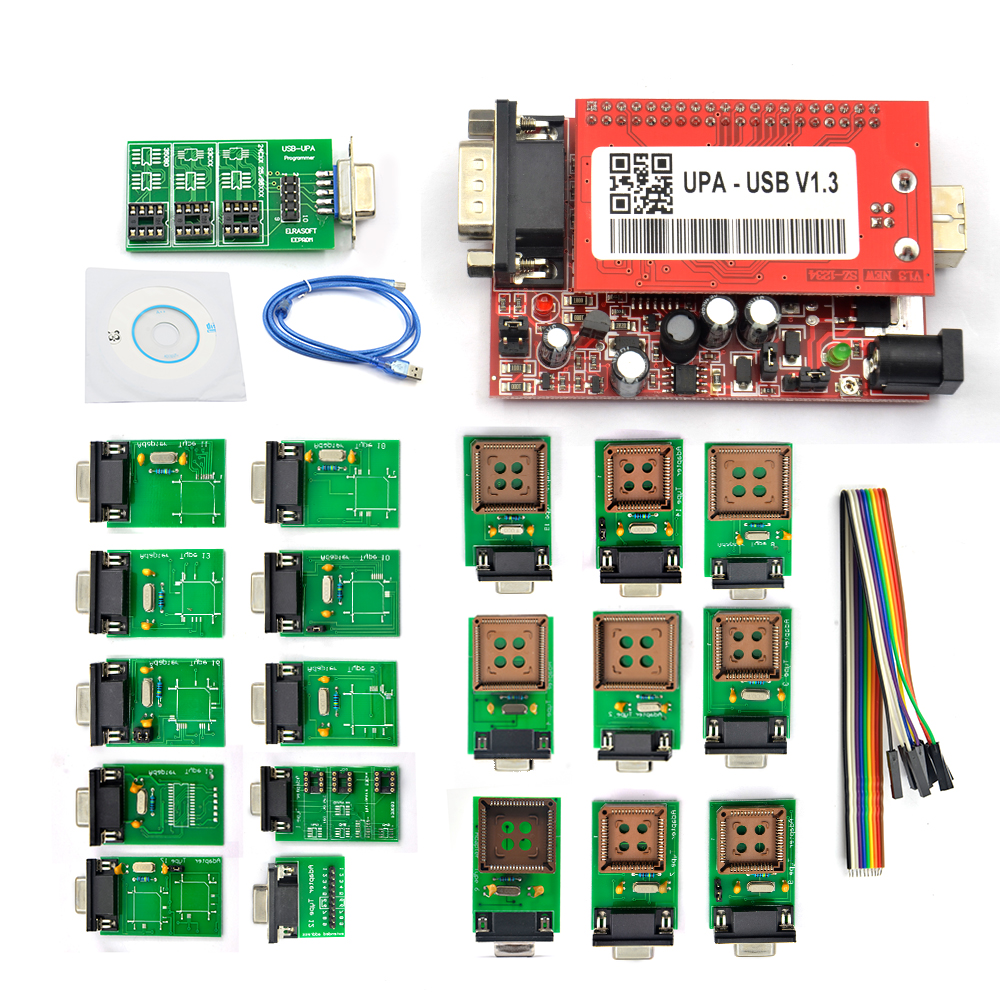

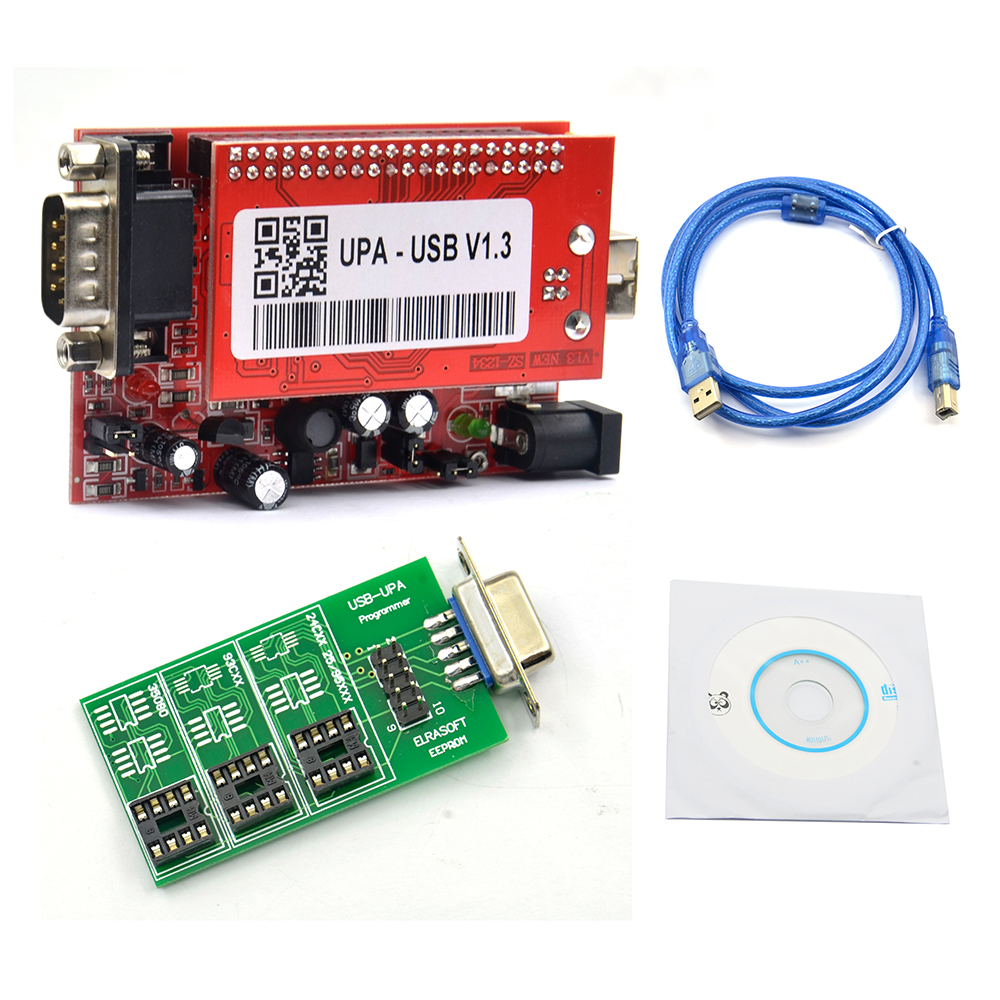

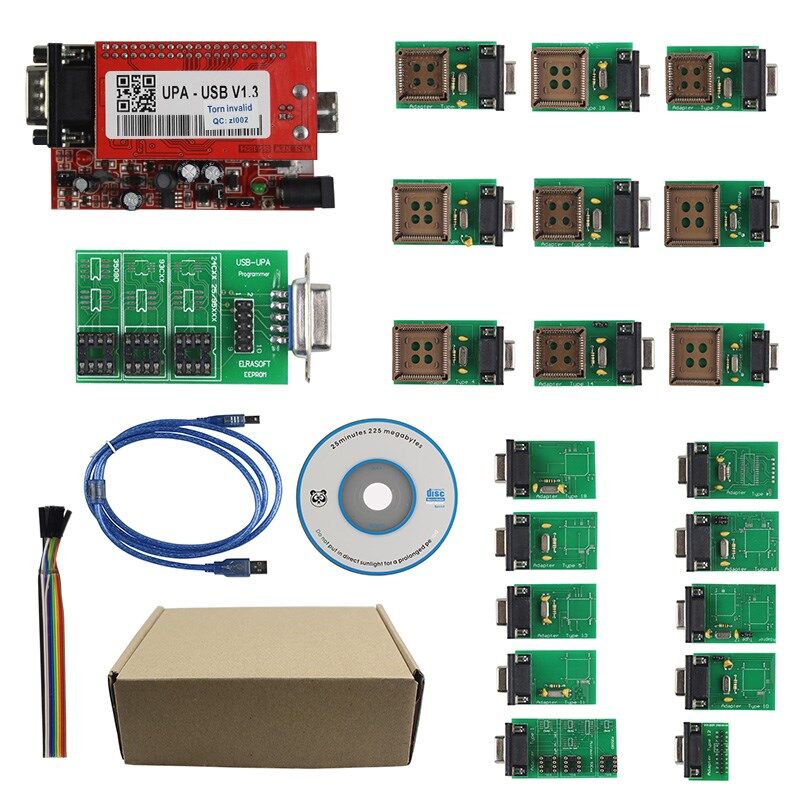

Package List:

1pc X Main unit

1pc X USB cable

1pc X CD

1pc X 5pin cable

1pc X Adapter Type1 Per eprom I2C,SPI, Microware e M35080

1pc X Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84

1pc X Adapter Type3 Motorola MC68HC08AS-PLCC52

1pc X Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68

1pc X Adapter Type5 Motorola MC68HC(9)08-QFP64

1pc X Adapter Type6 Motorola MC68HC11F1-PLCC68

1pc X Adapter Type7 Motorola MC68HC05H12-PLCC52

1pc X Adapter Type8 Motorola MC68HC11K-PLCC84

1pc X Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52

1pc X Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64

1pc X Adapter Type11 Motorola MC68HC11K-QFP80

1pc X Adapter Type12 Extended address

1pc X Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64

1pc X Adapter Type14 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52

1pc X Adapter Type15 Motorola MC68HC(7)05E6-SOIC28

1pc X Adapter Type16 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64

1pc X Adapter Type17 Motorola MC6
