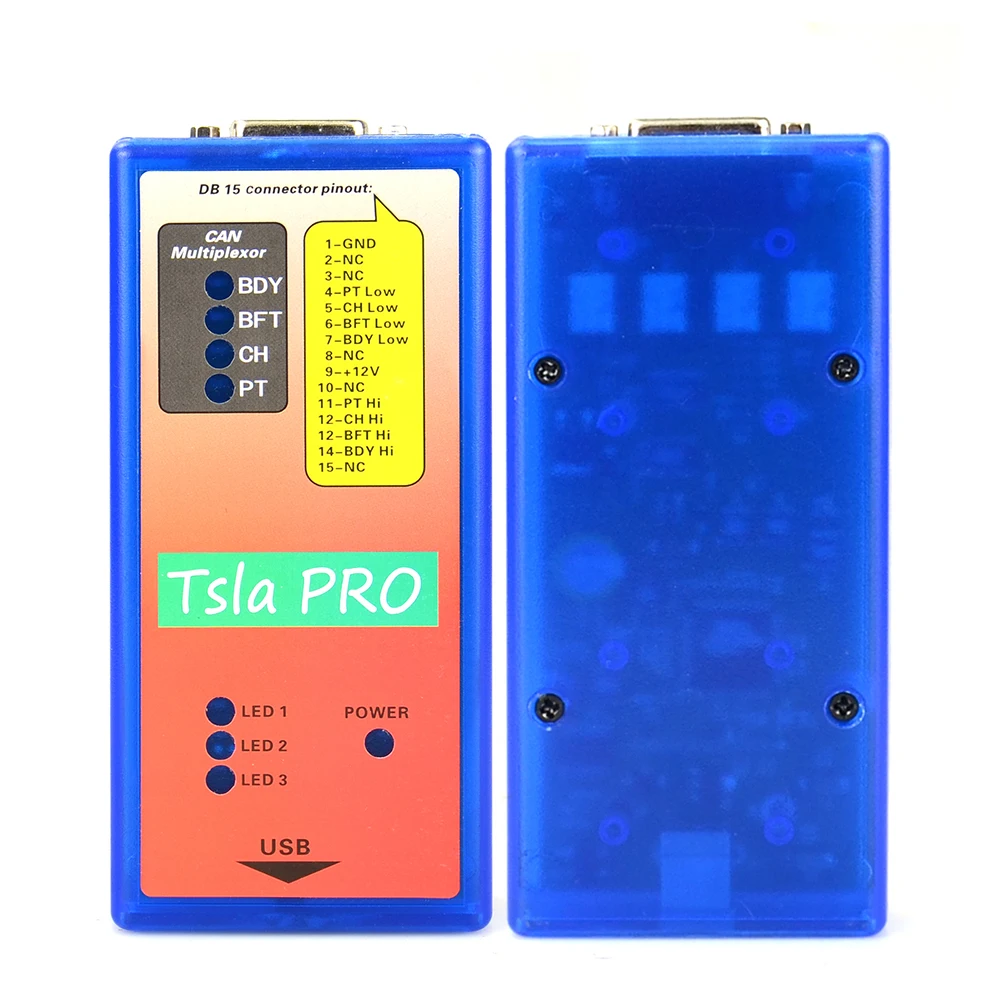

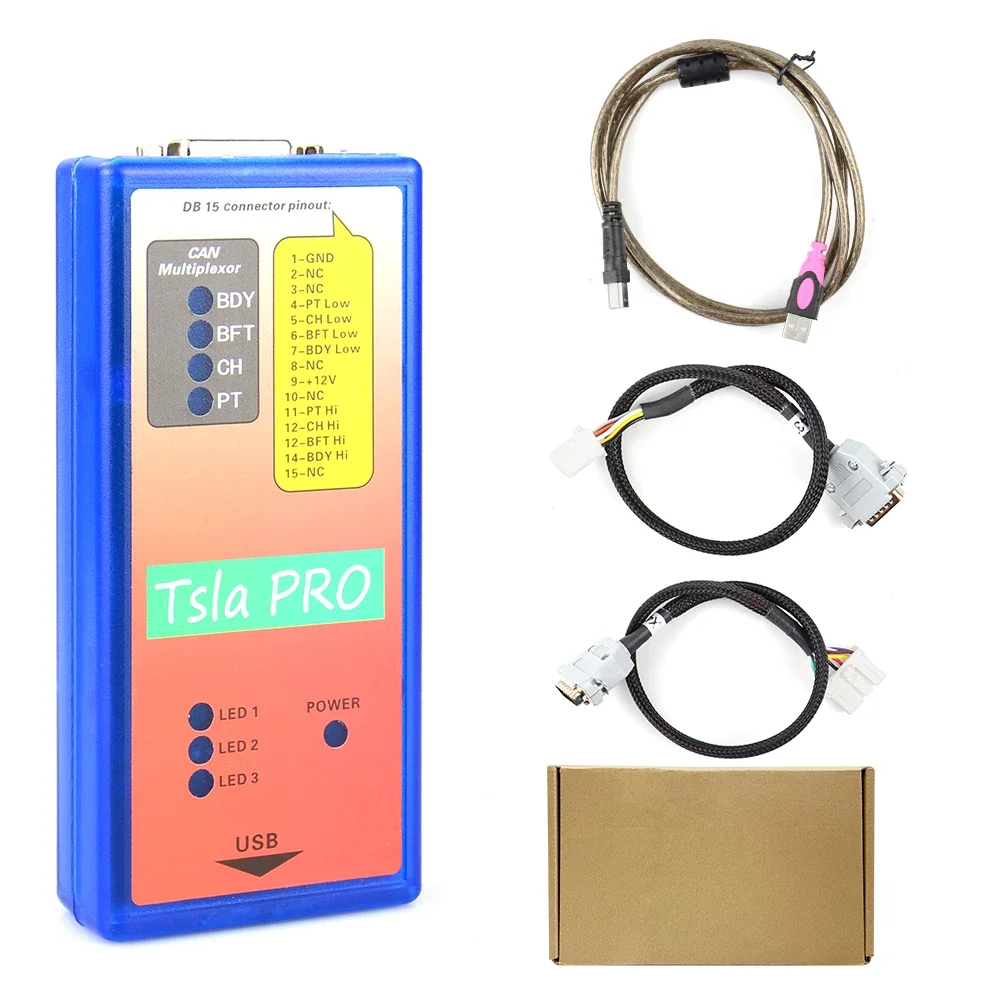

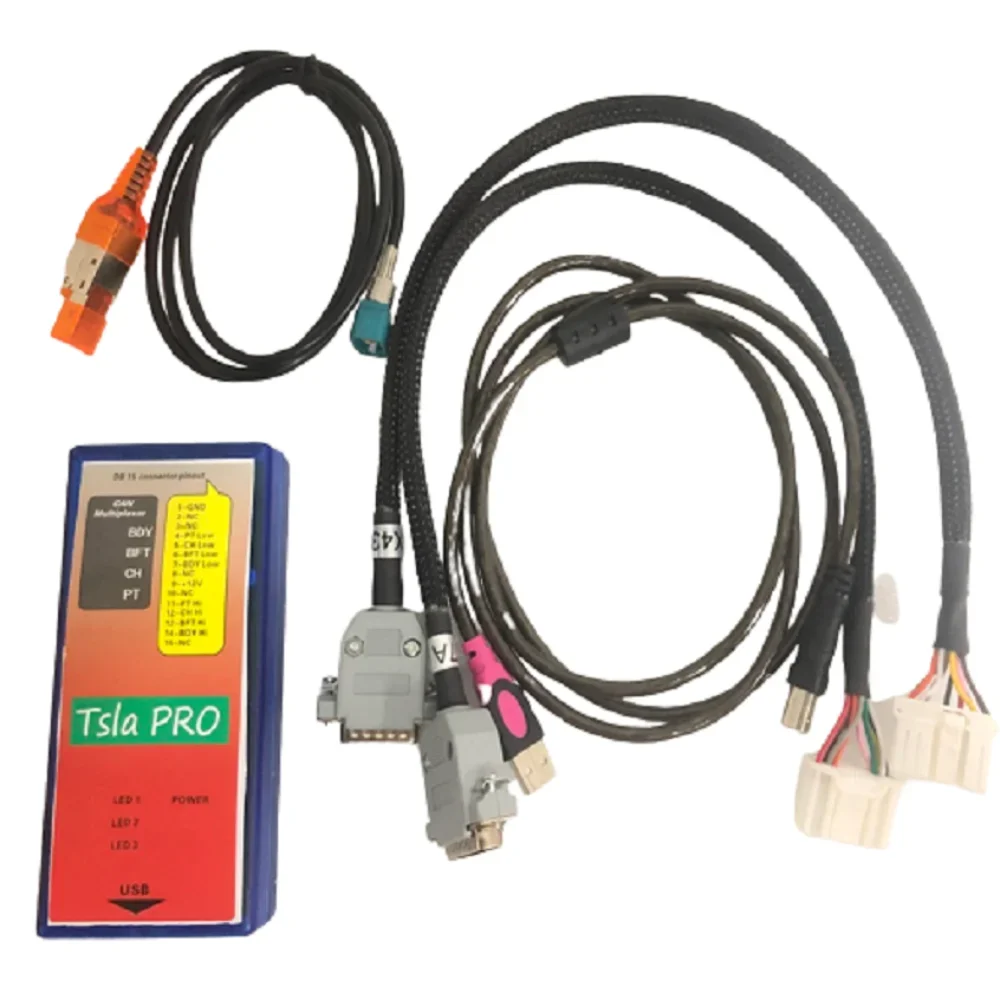

Tsla PRO ECU Wiring Digram For TESLA CAR MODEL S&X&3 Supports ECU Diganostic Programming Tool

For Tsla PRO is the first independent device on the market supporting diagnostics in for  model S, X and 3 so far.

You must be aware that the use of some for Tsla PRO functions in some countries may be prohibited and against the law.

First of all, what you need to know about the for Tsla PRO before work.

For Tsla PRO:

1.The tool is intended only for qualified personnel!

2.You must be aware of the risk of loss if something went wrong (learn keys or make adaptations of BMS controller or something else)

3.You must have electronic skills which allow you to make adapters , yourself and the connection between for Tsla PRO and the vehicle's CAN interface.

4.For Tsla PRO uses the CAN network to communicate with the ECU. Therefore, you will not have access to firmware, navigation update, configuration because it cannot be done via CAN. All mentioned things do by LAN on IC,CID not via CAN network.

5. System requirements:

Operating system: Win 7/10 (32/64 bit)

1 free USB port. 2 or 3.0
