PL Ship V3.0 Red NEC Relays Real 9241A Double PCB Board Bluetooth Multidiag Pro OBD2 Cars Truck Scanner 2021.11Free Keygen Truck Diagnostic Tool

Please Note:

1. If buyer CD damaged or need different version software, please contact us, we will send you welink to download

2. Not every car models can support all the function or for all system, Need test in real operation.

3. Not every car model under the car brand can be working.

Languages:

English, Cesky, Bulgarian,Dansk, Deutsch, Espanol, Francais, Greek,Hrvatski,Hollands, Hungarian, Italiano, Norsk, Polish, Romania, Russian, Srpski, Suomen kieli, Svenska, Turkish, Portugues.

Description:

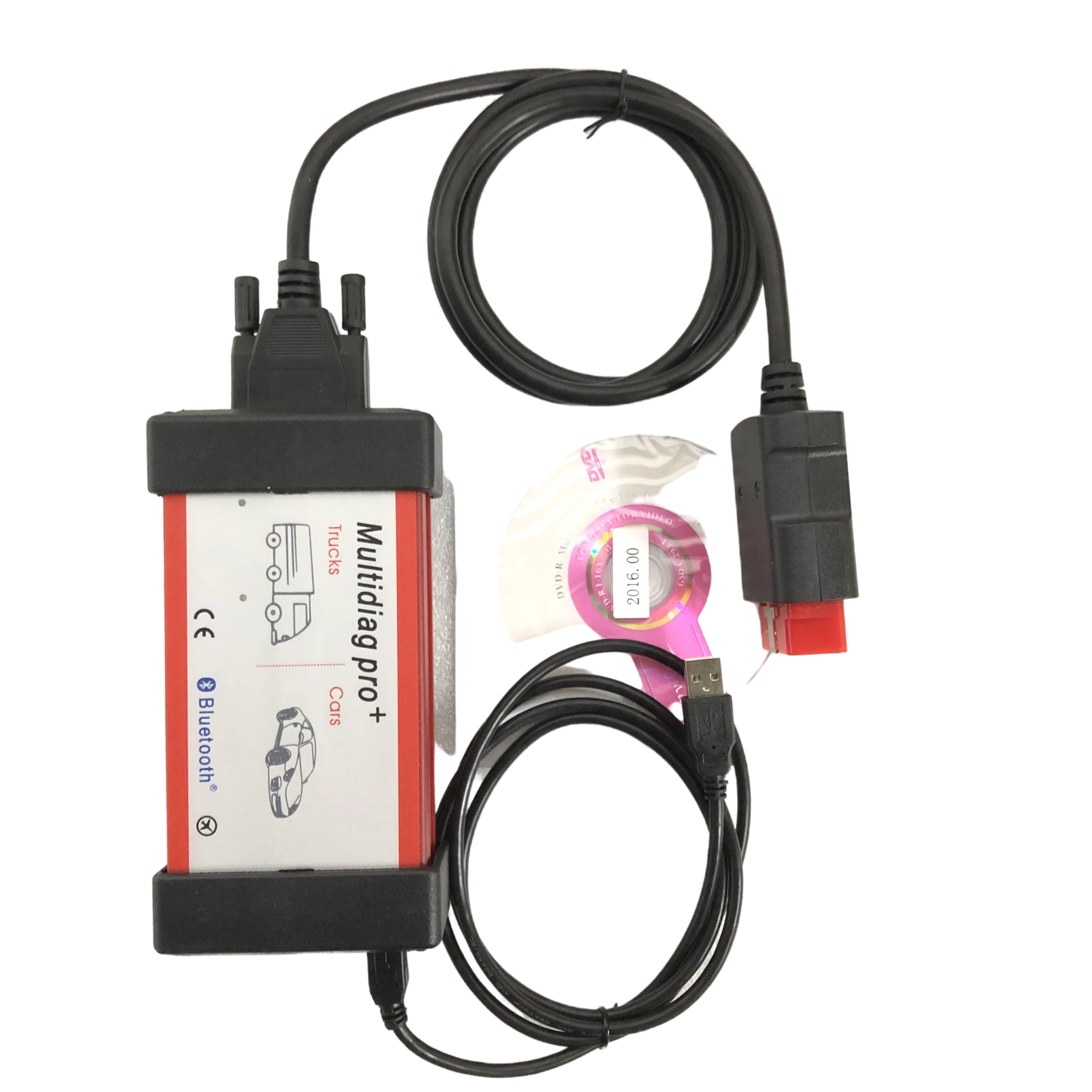

TCS PRO+ is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.

With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.

A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

Highlights:

Work for CAR + TRUCK + Generic 3 in 1

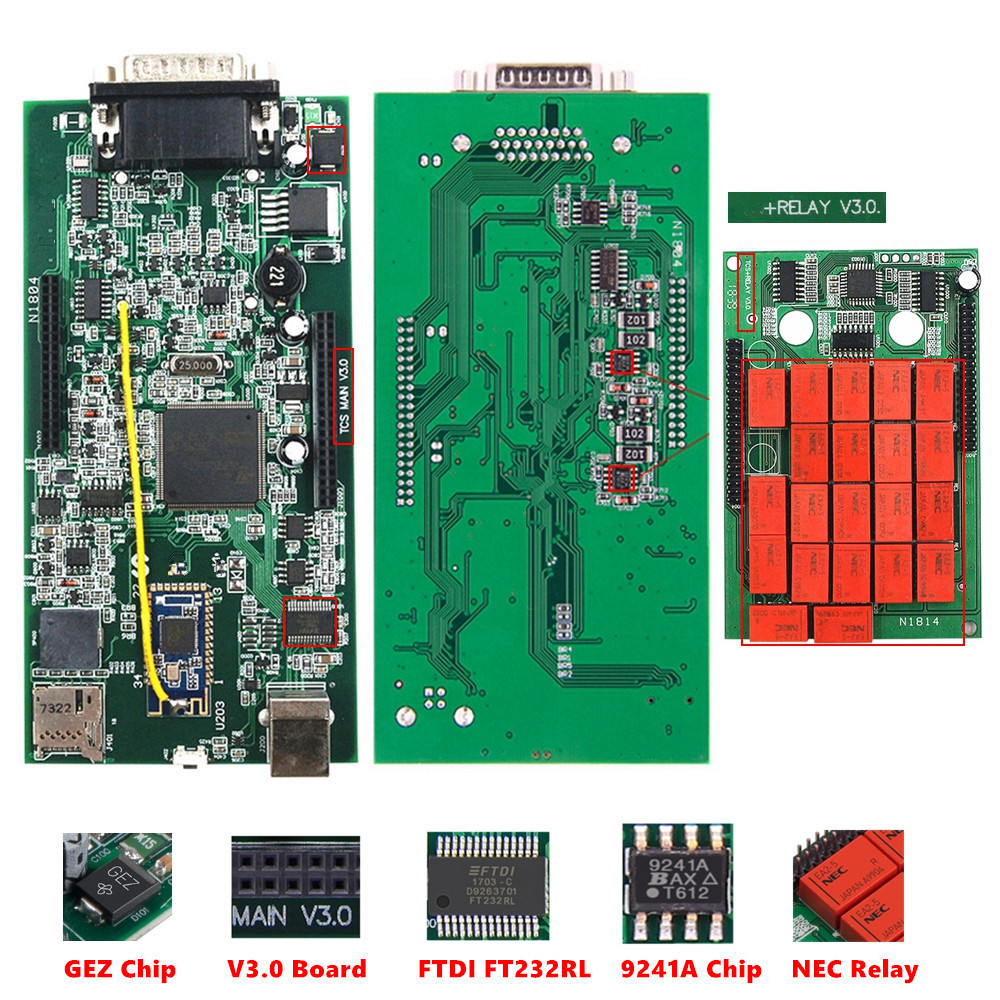

High Quality With green dual board with 9241 chips.

Support system :Win7 32bit/XP/Win10 32 bit.

Functions:

1. Manufacture specific serial diagnose ;

2. Scan function;

3. EOBD/OBDII communication;

4. Serial Systems ;

5. Engine ;

6. Ignition ;

7. ABS ;

8. Service reset ;

9. SRS ;

10.Immobilizer ;

11.Instrument ;

12.Comfort system ;

13.Gear-box etc

FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS Pro+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

VOLTAGE CHECK

When TCS PRO+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehiclersquos voltage level of 12 or 24 volts. If the voltage gets too high or too low, TCS PRO+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
