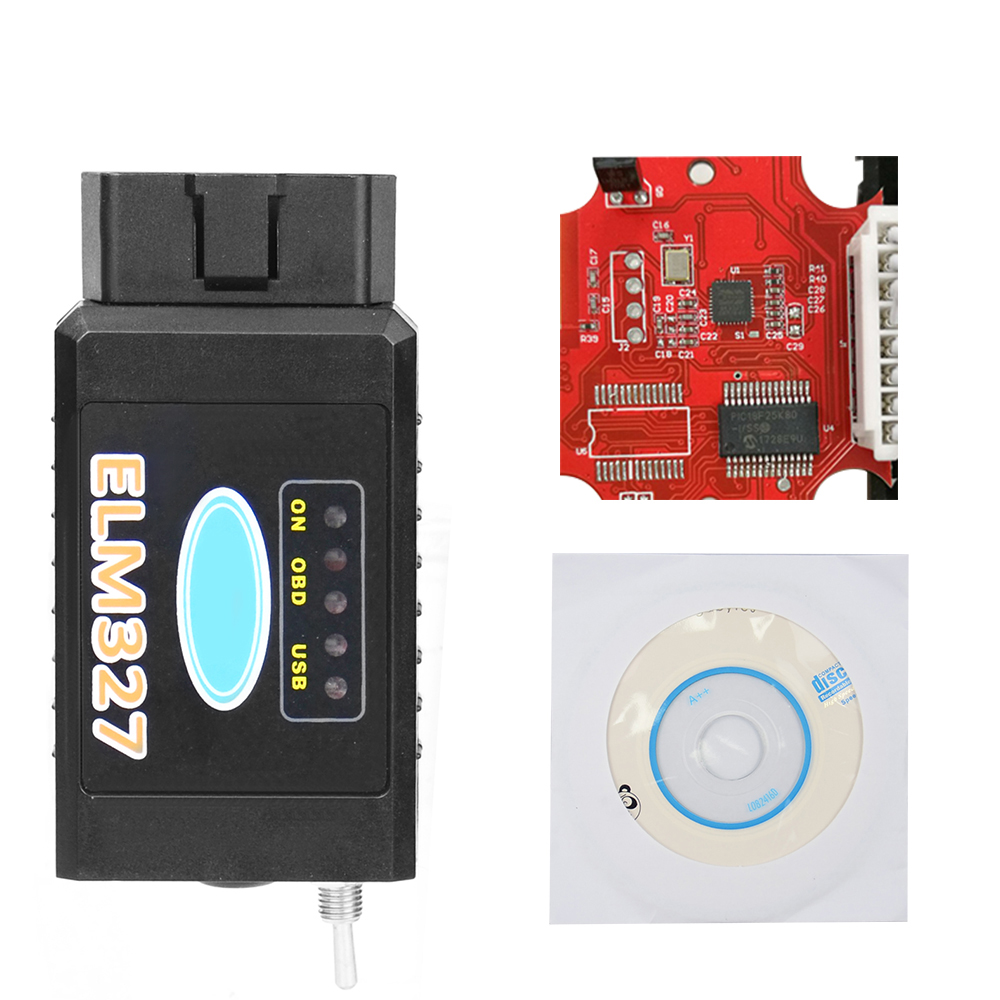

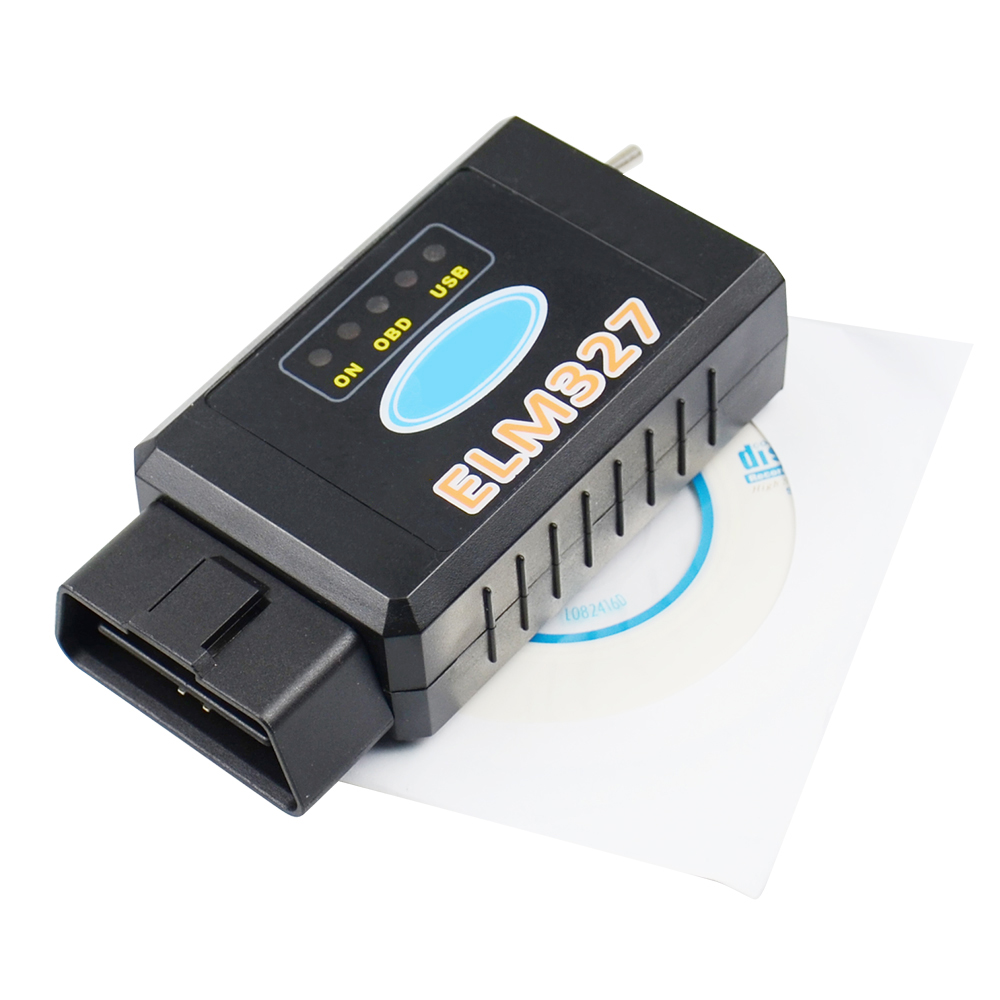

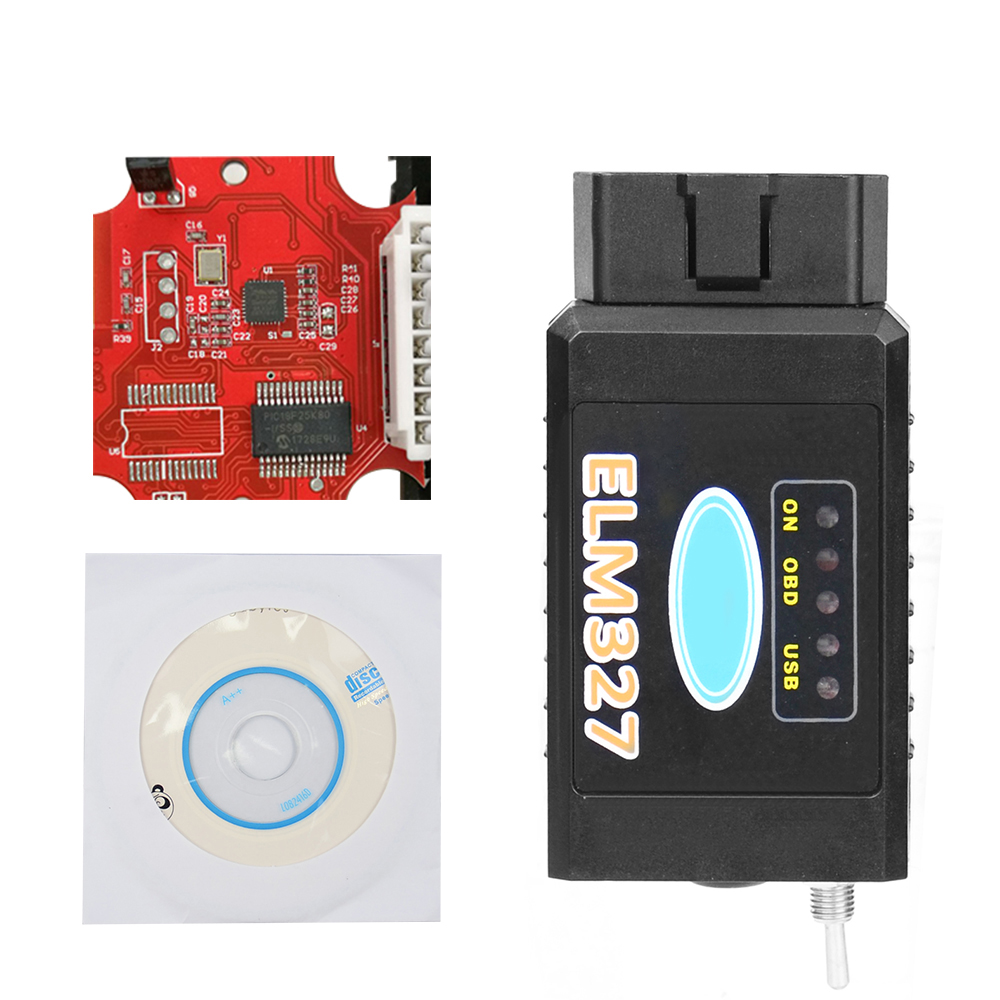

5Pcs/lot PL Ship ELM327 V1.5 Switch HS-CAN/MS-CAN for Ford FORScan OBD2 Diagnostic Scanner elm327 1.5 bluetooth ELM327 PIC18F25K80 Chip

Highlights:

1. Hardware V1.5

2. The chip of ELM327 Forscan is PICI8F25K80 chip

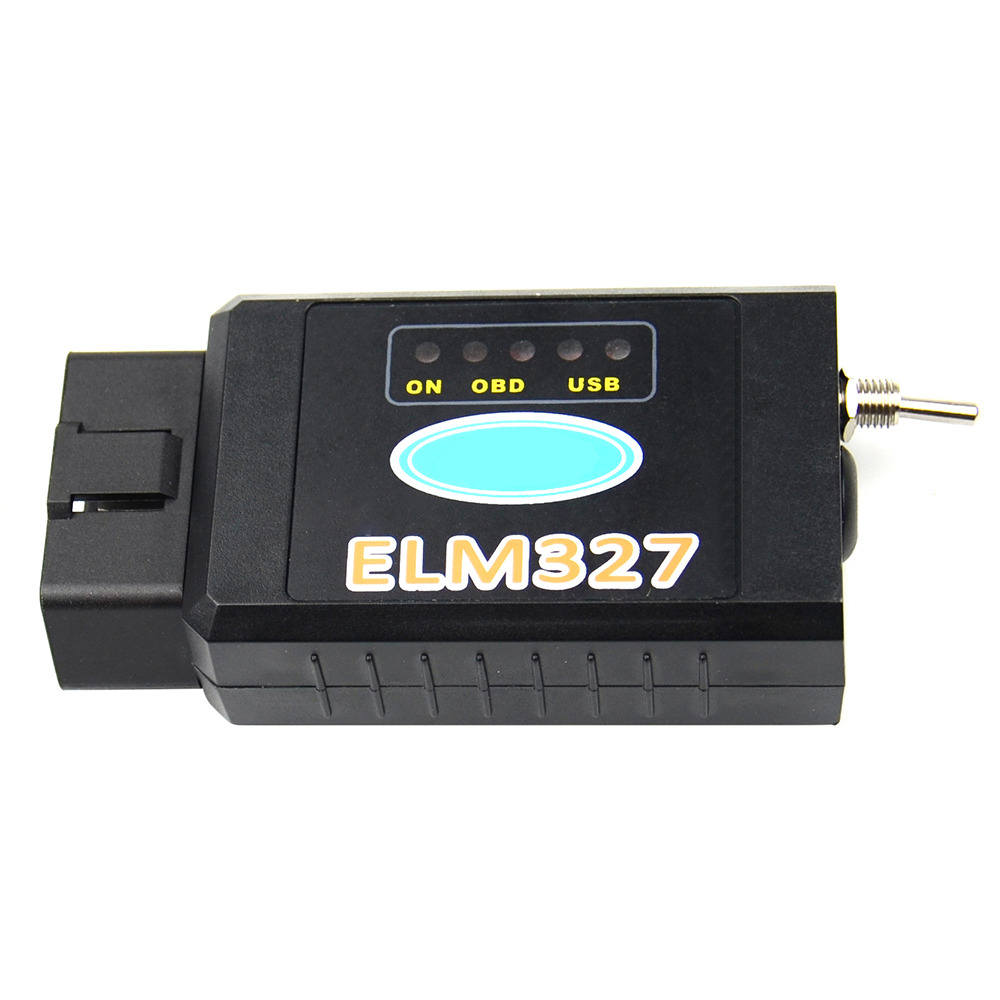

3. MS-CAN support via toggle switch(MS-CAN / HS-CAN).

Support MS CAN bus and HS CAN bus, easily switchable for different CAN speeds.

Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11

4. Support for FORD models open hidden function.

5.The newly developed wireless scan tool.

6.It supports all OBD-II protocols.

7.Wireless (Bluetooth) 5~10 meter

8. Beside added functionality, this device works as normal OBD2/EOBD code reader on all supported vehicels.

9. Computer System: Windows XP/Win7 32bits,close anti-virus program to install software.

 Multi-Language Available :

English , Czech , Danish , German , Spanish , French , Croatian , Hungarian , Italian , Polish , Serbian , Turkish

Functions:

1. Read diagnostic trouble codes,both generic and manufacturer-specific,and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data,including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...

Bluetooth Version Supported Protocols:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP (fast init,10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID,500 Kbaud)

7. ISO15765-4 CAN (29bit ID,500 Kbaud)

8. ISO15765-4 CAN (11bit ID,250 Kbaud)

9. ISO15765-4 CAN (29bit ID,250 Kbaud)

A.SAE J1939 CAN (29bit ID,250*Kbaud)

B.USER1 CAN (11*bit ID,125*Kbaud)

C.USER2 CAN (11*bit ID,50*kbaud)

 *default settings (user adjustable)

Packing List:

5pc × ELM327 switch

5pc × CD
