Orange5 Super Pro V1.38 Activate All Functions Orange 5 Programmer Full Adapter Add New License Renesas H8SX V850 UART/SPI

Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.

Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

EEPROM:
MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,for Mitsubishi,for Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,Seiko,for Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,for Renesas,for Samsung,SiLabs,ST,TI,for Motorola, for Freescale,MC68HC11,MC68HC12

Program with Adapter.
Licenses for M08V, TMS370, Renesas V850 are optional.
For detail chip type model list,pls contact us ,we will send you list link.

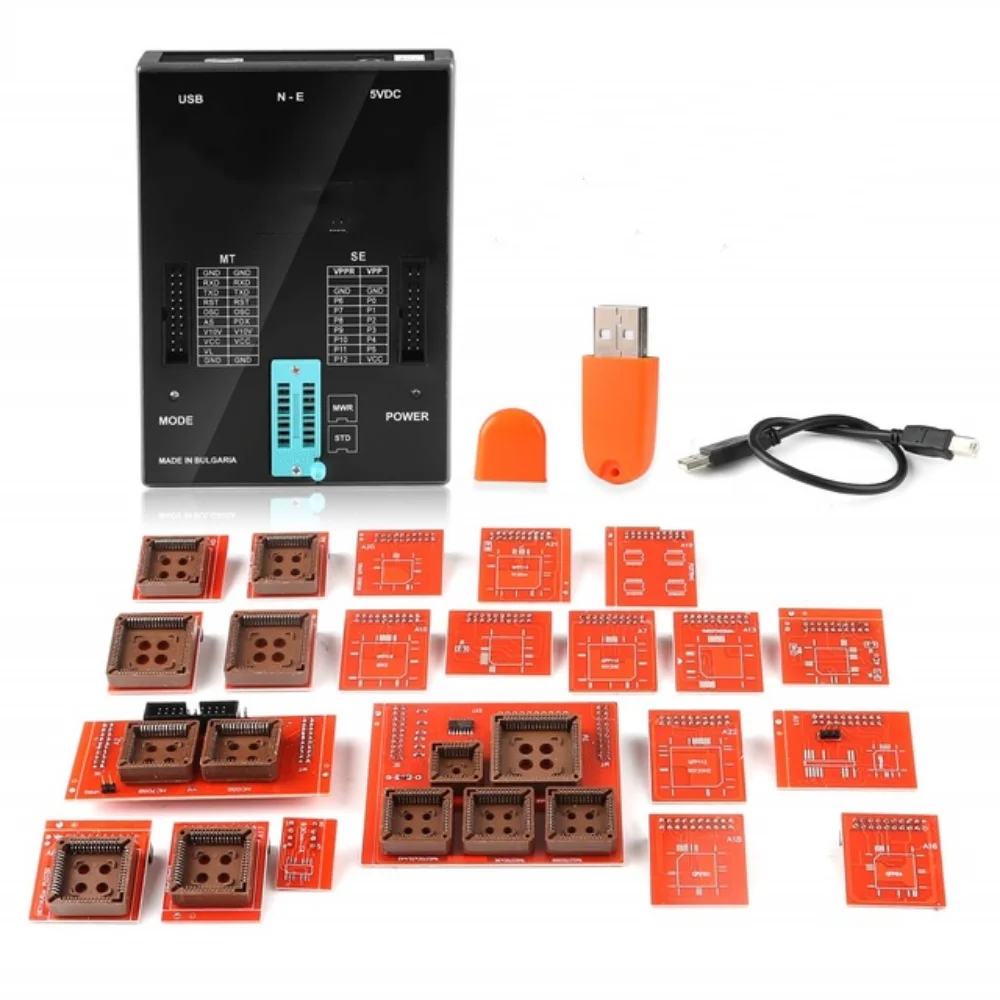

Package List:
1   x Orange 5 super pro Programmer
1   x TMS375C006/TMS370CX36/TMS370CX32/X42    A1
1   x HC05B/HC705B   A2
1   x Adapter 11EA9/PLCC52 A5
1   x Adapter 908AS60 PLCC52 A6
1   x Adapter QFP112/9S12XE  QFP80/9S12XE/9S12XS  A7
1   x HC11A/EXX PLCC52  A8
1   x Adapter HC11F1  A9
1   x Adapter 908AS60/AZ60 QFP64   A10
1   x 705E6/705P3/05P3 A11
1   x Adapter 68HC11L6 A12
1   x Adapter TMS374C003A A13
1   x Adapter 05B/X_705B/X QFP64 V2  A14
1   x Adapter QFP112/9S12 QFP80/9S12DXX A15
1   x Adapter QFP64   A16
1   x Adapter 68HC05H12  A17
1   x Adapter QFP64/QFP80 A18
1   x Adapter PCF7941 A19
1   x Adapter 912B32 QFP80 A20
1   x Adapter 912Dxx A21
1   x Adapter 9S12HZ/QFP80 1  9S12XHZ /QFP112 A22
1   x Adapter 93CXX-14
1    x USB cable
