OBDSTAR MS50 Motorcycle Scanner OBDSTAR MS50 Motorcycle Diagnostic Tool
$565.00$495.00

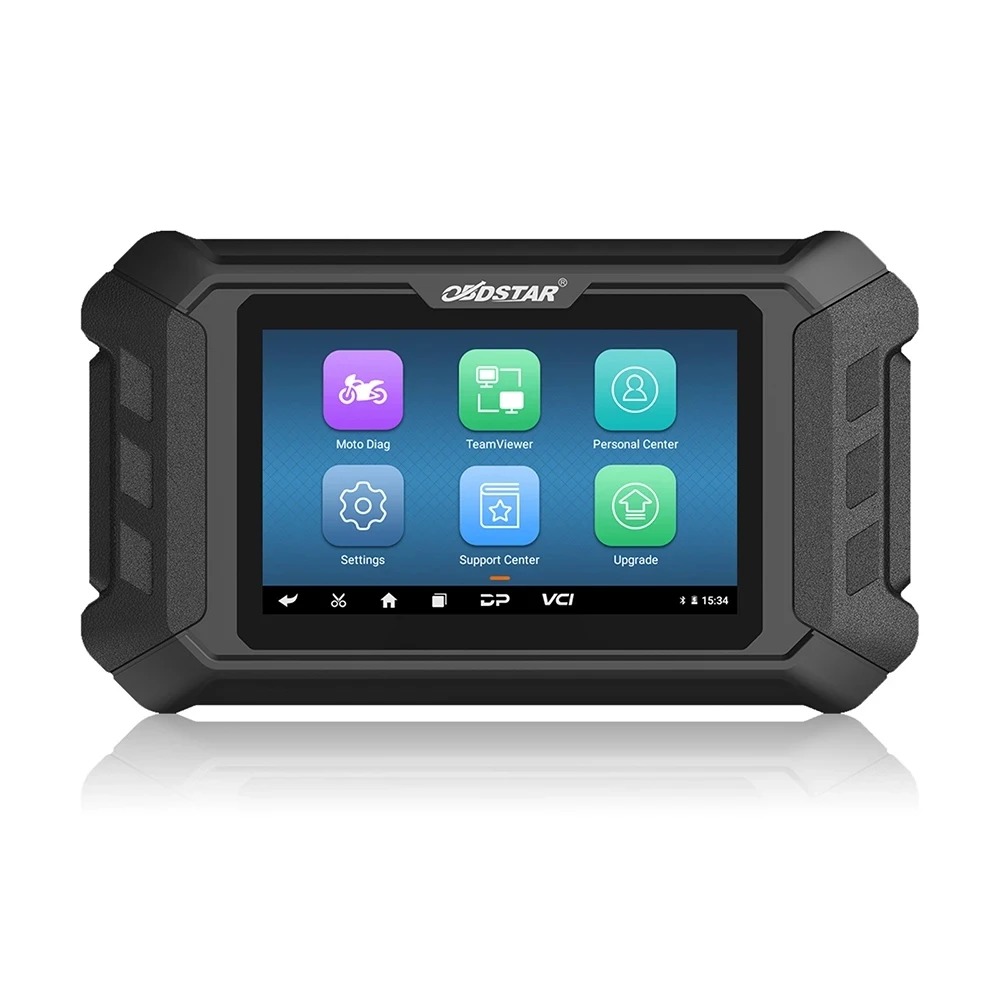

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, it is a new generation of intelligent motorcycle diagnostic equipment tailored for customers, and brings customer professional diagnosis experience.
OBDSTAR MS50 Highlights:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.
4. Menu Arbitrary selection is more convenient and quick
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults
6. Wi-Fi connection to the Internet, one-click software upgrade
7. One-Click remote function, OBDSTAR technical staff remote assistance

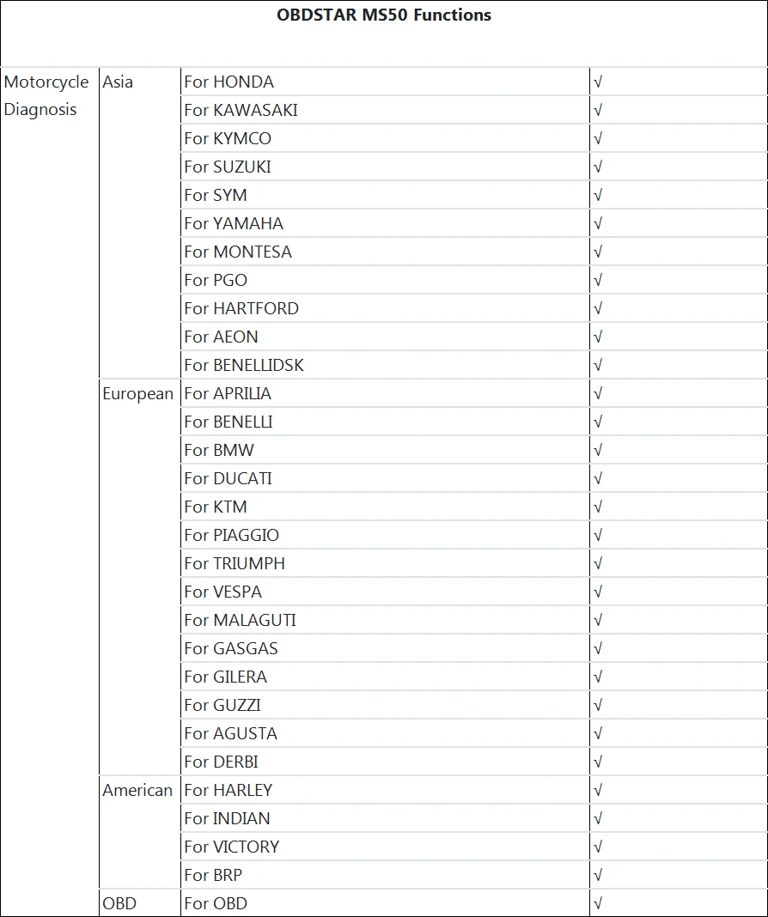

8. Support most of the Asia and Europe models
9. One Year Free Update
Advantage function:

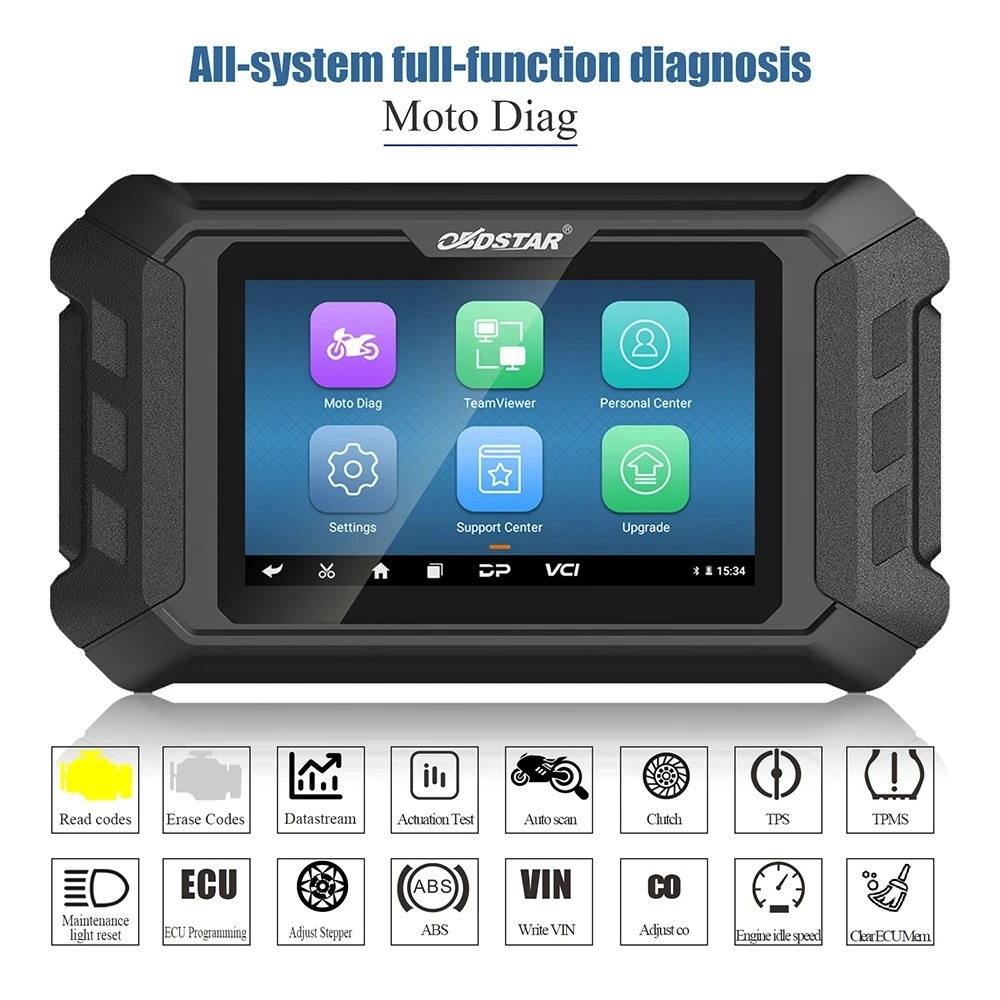

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Product Parameters:
Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 700g（Main Unit) Dimension: 140mm*89mm*18mm

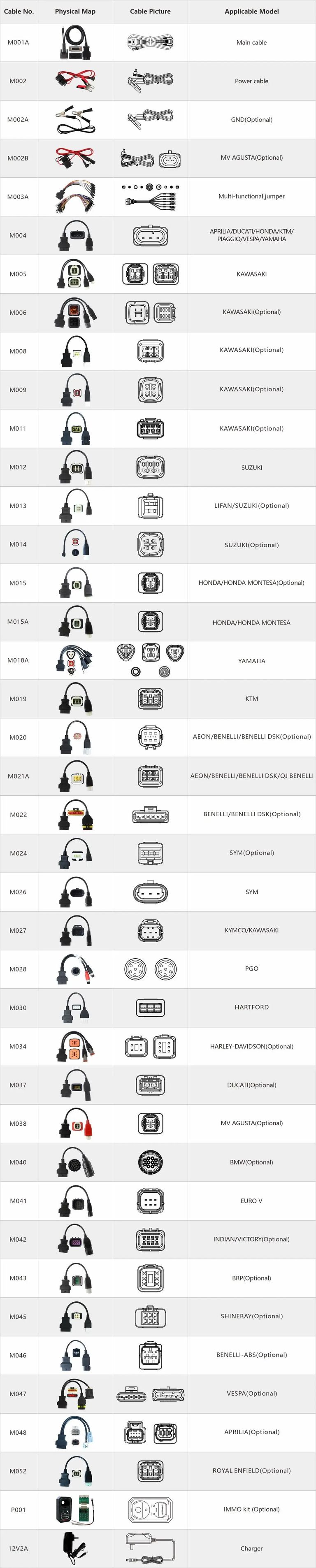

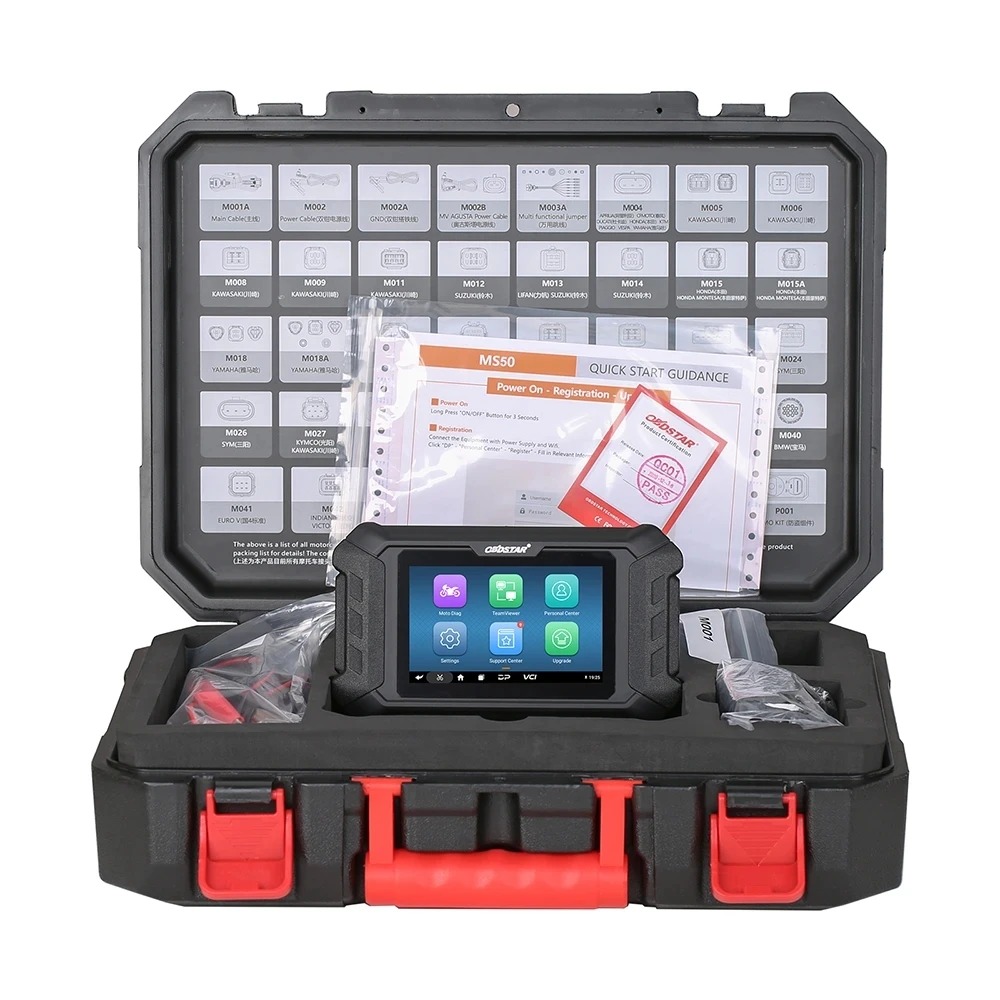

Package includes:
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER
