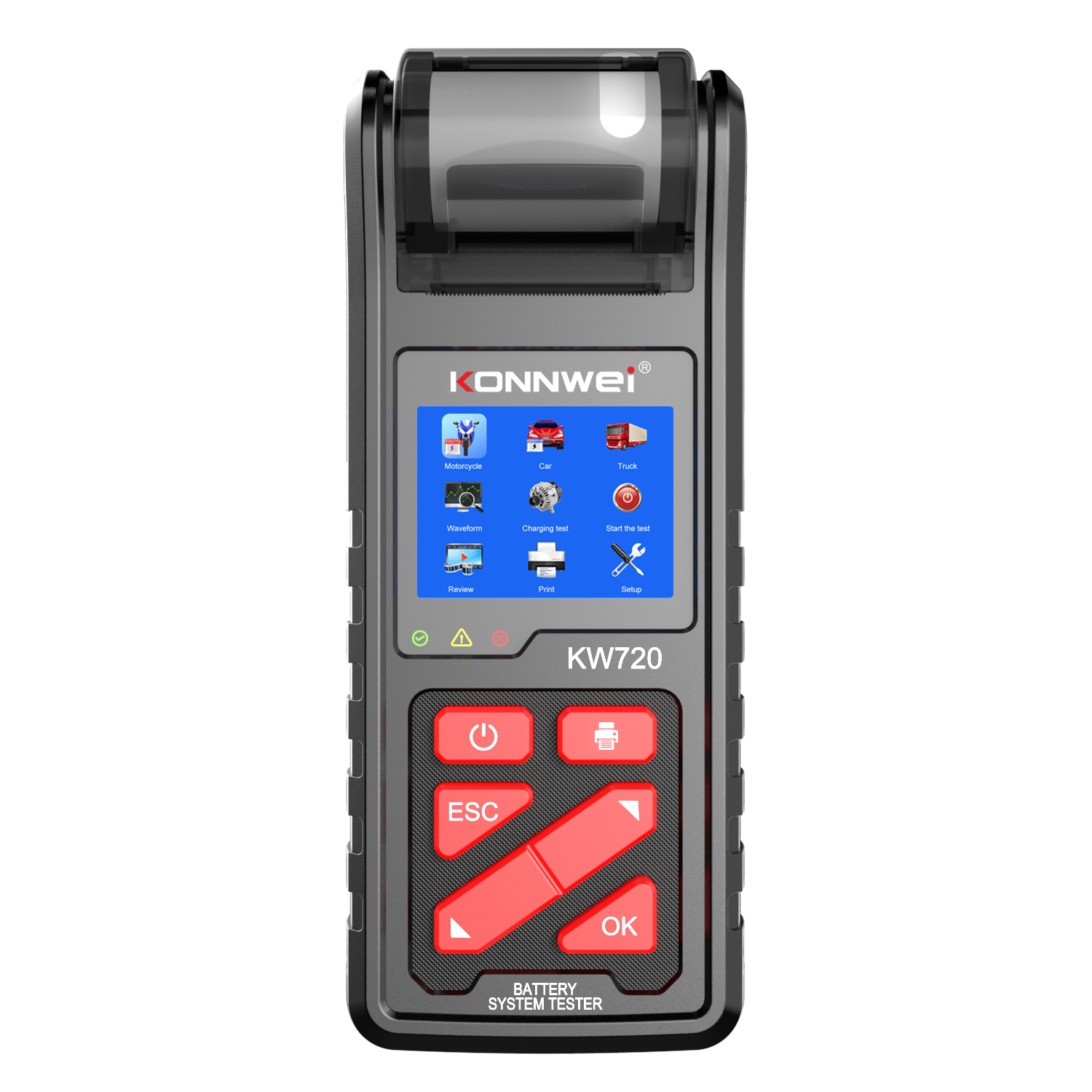

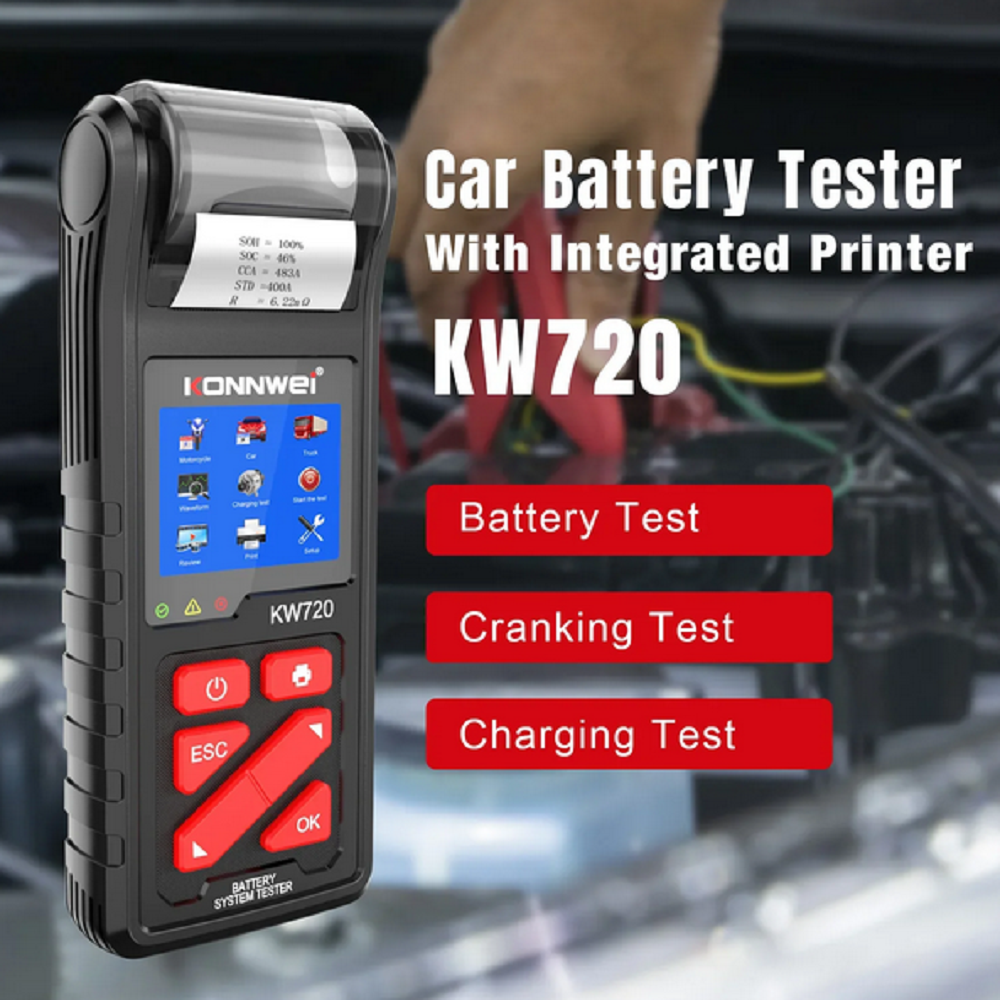

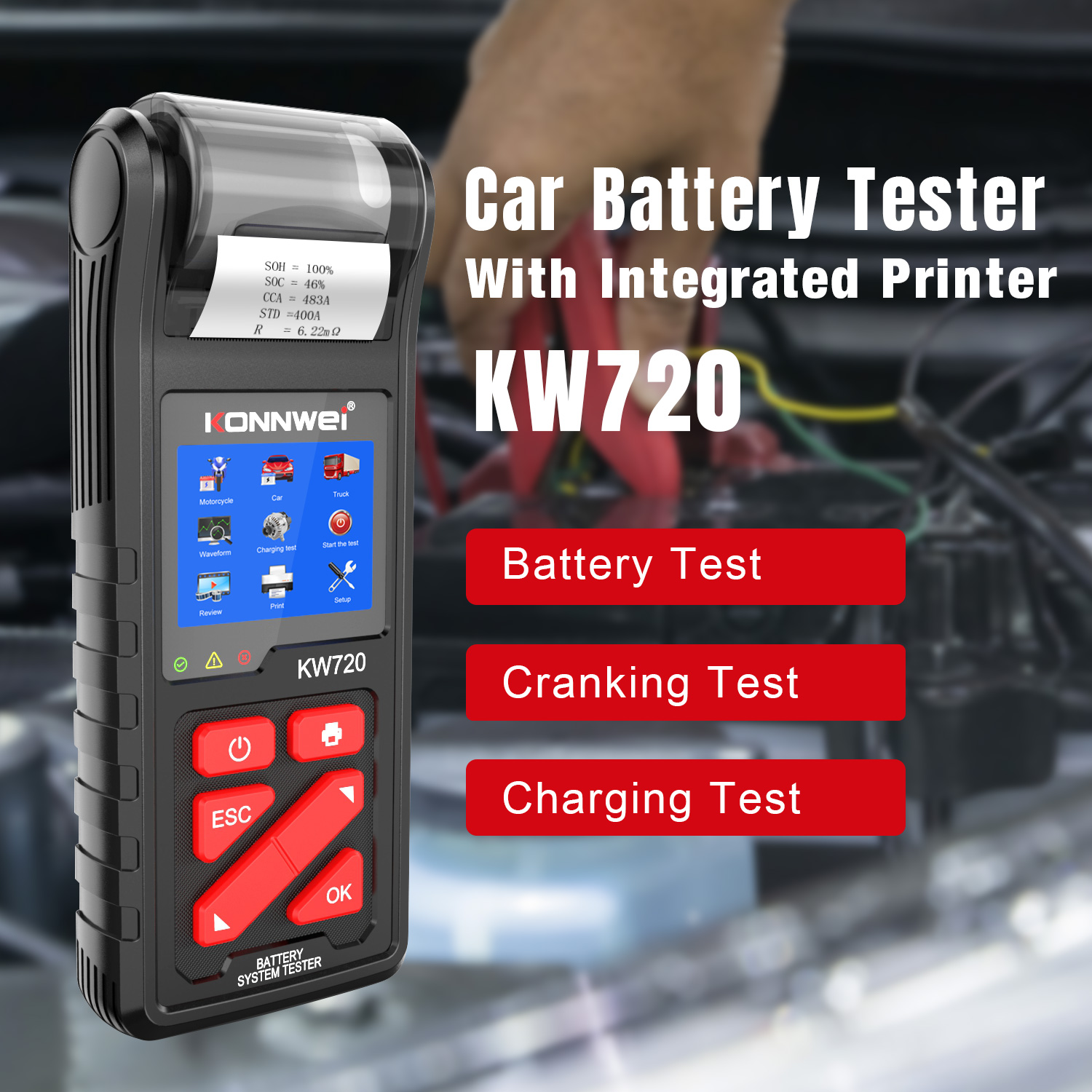

KONNWEI KW720 6V/12V/24V Motorcycle Car Truck Battery Tester Battery Analyzer Charging Cranking Test Tools with Built-in Printer
$205.99$185.99
Out of stock
Top reasons to choose KONNWEI KW720
1.Support 6V motorcycle, 12V car, 24V truck battery detection
2.Equip built-in thermal printer, print test result directly after test.
3.3.2 inch color screen, the resolution ratio is 320*240
4. The inspection speed is faster and more accurate
5. Check the battery capacity relative to the battery rating. Battery test, Cranking test, Charging test.
6. Graphical battery test results.
7. Support CCA value range 100-2000.
8. Support free upgrade and printing online through BTLINK.
9. Support 13 languages: Chinese, English, German, French, Japanese, Dutch, Russian, Spanish, Italian, Korean, Portuguese, Polish,Persian.
10. Support 9 battery standards: CCA, BCI，CA，MCA，JIS,DIN,IEC,EN,SAE.
11.Exceptionally polarity reverses connection protection.
12.Strong and sturdy Alligator Clips which make test result more accurate and safe operation.
KONNWEI KW720 Features
1.Professional advanced testing and measuring algorithm applied.
2. Hardware upgrades , more Insulation measures and high quality current amplifier to make the testing results more stable and reliable, professional.
3. Support 24V batteries testing , cranking and charging system test. support up to 36V (maximum designed to withstand 50V). also can cover 6V small lead-acid batteries testing.
4. KONNWEI patterned self-designed clamps, make it more adapted to vehicle's testing results and easily to clamp it on, also increasing the testing accuracy.
5. Support voltage waveform recording, playback, deep analysis on computer.
6. Easy one-click life-time free update directly though BTLINK
7. Multi-languages interfaces supported.
8. Large color screen and rugged keypad design.
KONNWEI KW720 support 9 battery standards:
1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9.SAE:100-2000
KONNWEI KW720 specifications:
Application: regular flooded, AGM flat plate, AGM spiral, GEL, and EFB
Systems voltage: 5-36v
Input voltage range: 6V/12V/24V
Display： 3.2 inch LED display
Voltage accuracy: ± 0.05V
Machine weight:0.55 kg
Package list:
1*KONNWEI KW720 battery tester
1*Adapter cable to connect the battery with device
1*Mini USB cable
1*User’s Manual

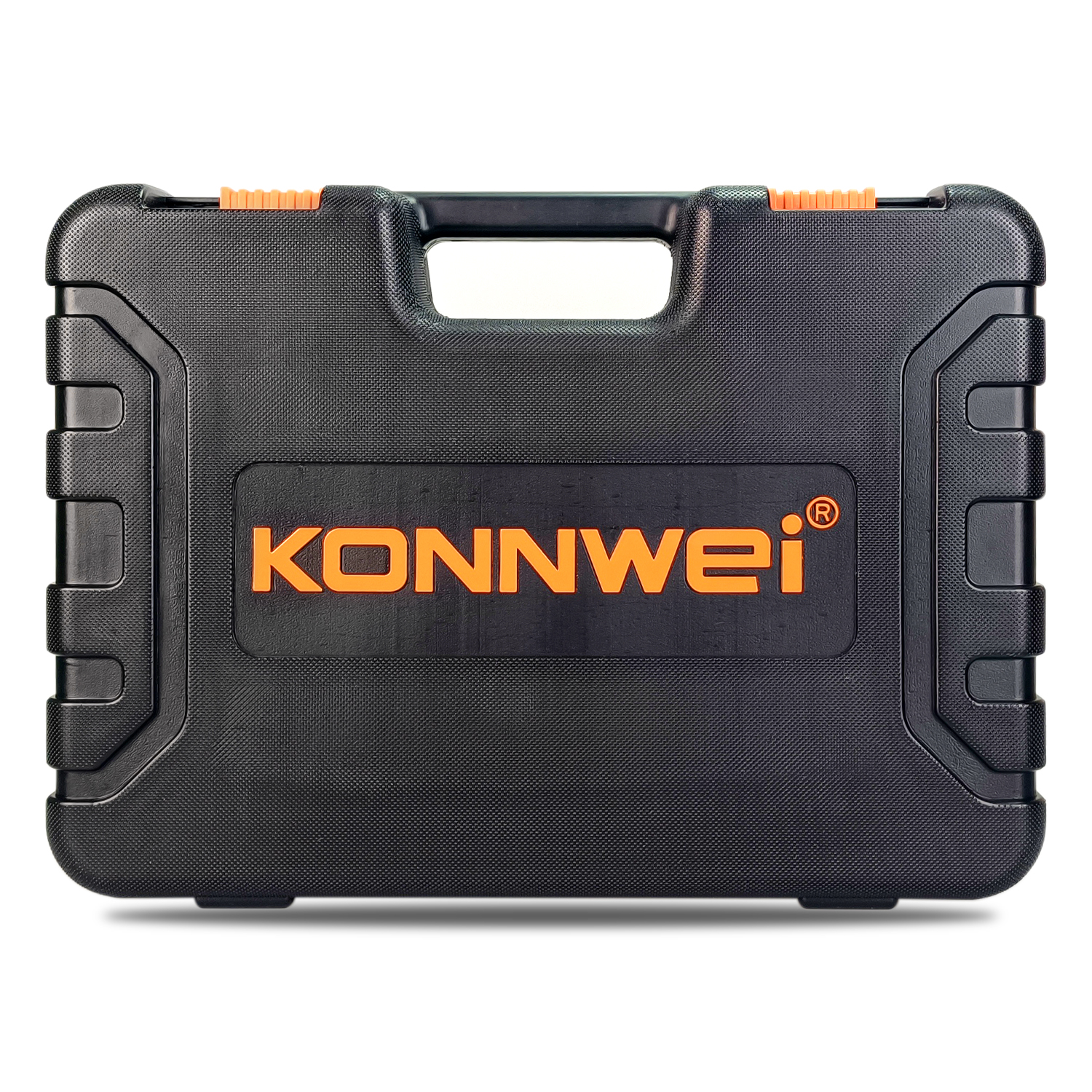

1* Black case
2*printer paper
