KONNWEI KW681 6V 12V Car Motorcycle Battery Tester Auto Diagnostic Tool 2 in 1 2000 CCA Auto OBD2 EOBD Code Reader Scanner

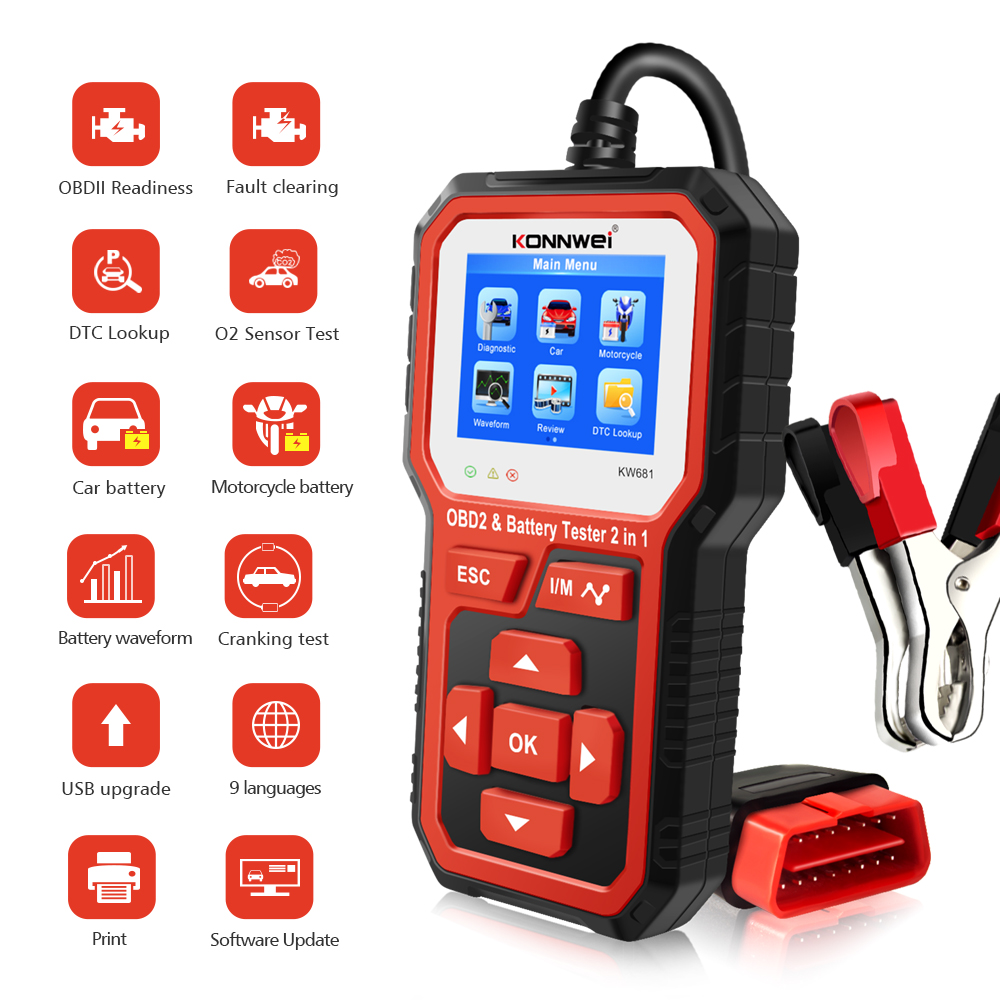

KONNWEI KW681 Car Battery Tester & Car OBD II Diagnostic Tool 2 in 1

KW681 works on all 12V gasoline and diesel car that are OBDII compliant, It can identify the cause of your CHECK ENGINE and perhaps fix it without going to see your dealer. It also assists you in easily passing annual emissions tests and SOMG CHECK, It covers full OBD II/EOBD diagnostic functions for engine system. O2 sensor test, EVAP systems test, and board monitoring test give you full control of your vehicles’ running status, while a graphical and numeric live data stream display will help you to find out the faulty sensor reading.

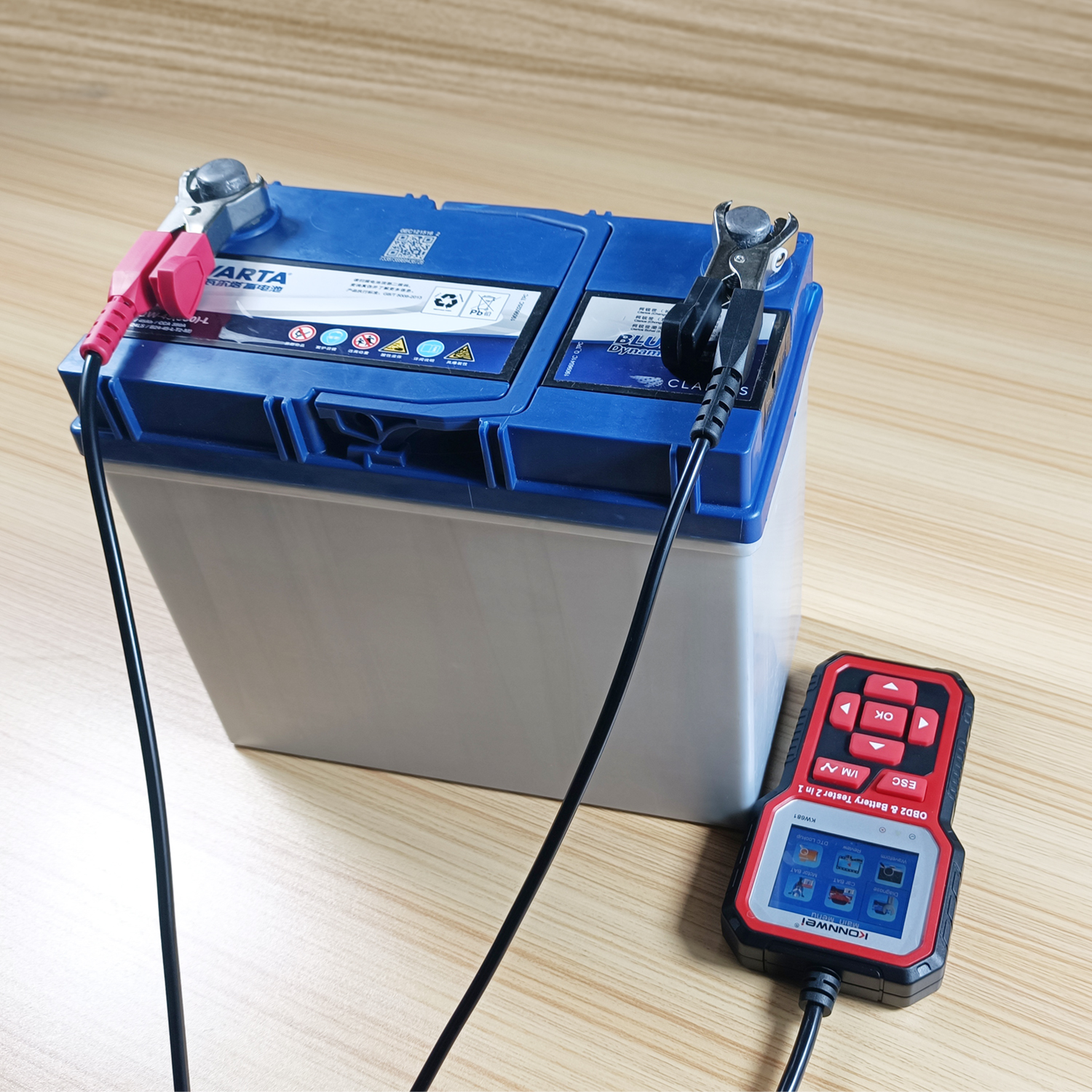

KW681 Battery Test can test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery,etc. It adopts the state-of -the-art conductance testing technology in the world to easily,quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.

It supports multiple languages

English, French, German, Dutch, Spanish, Russian, Portuguese, Italian, Polish.

Top reasons to choose KONNWEI KW681

1. Battery tester & car obd II diagnostic tool 2in 1

2. Support test wide range of 6V/12V batteries

3. Accurate results in milliseconds

4. Battery life analysis, health percentage

5.Add One-key entering battery voltage waveform analysis

6.Multi-function OBD2 Automotive Scanner with good price.

7. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

8. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.

9.Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.

10.Lifetime update free and print via PC.

Battery tester Functions:

1.System voltage: 6-12 Volts

2.Test Result: Good, Recharge or Replace

3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

4.Internal resistance value (mΩ)

5.Life in percentage (%)

6.Cranking system

7.Charging system

8.Voltage test in waveform

9.Record and re-play battery data, Life-time free update service

10.Battery test, cranking test, charging test and other additional functions.

Cover 9 Battery Measure Standards:

1.CCA:100-2000

2.BCI:100-2000

3.CA:100-2000

4.MCA:100-2000

5.JIS:26A17-24SH52

6.DIN:100-1400

7.IEC:100-1400

8.EN:100-2000

9.SAE:100-2000

OBD II diagnostic functions:

1. Works on all (OBDII & CAN) vehicles- domestic and import
2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes and resets monitors
7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data
12. EVAP System test data
13. Live sensor data in text mode and graph mode (1996 and newer vehicles)
14. Reads, stores and playbacks live sensor data
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Battery Voltage real time monitoring.
17. Built-in DTC look-up library and display definition.
18. Retrieves vehicle information (VIN, CIN and CVN)
19. Internet updateable and upgradeable
20. Prints data via PC

KONNWEI KW681 Support Full OBD II Protocols:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

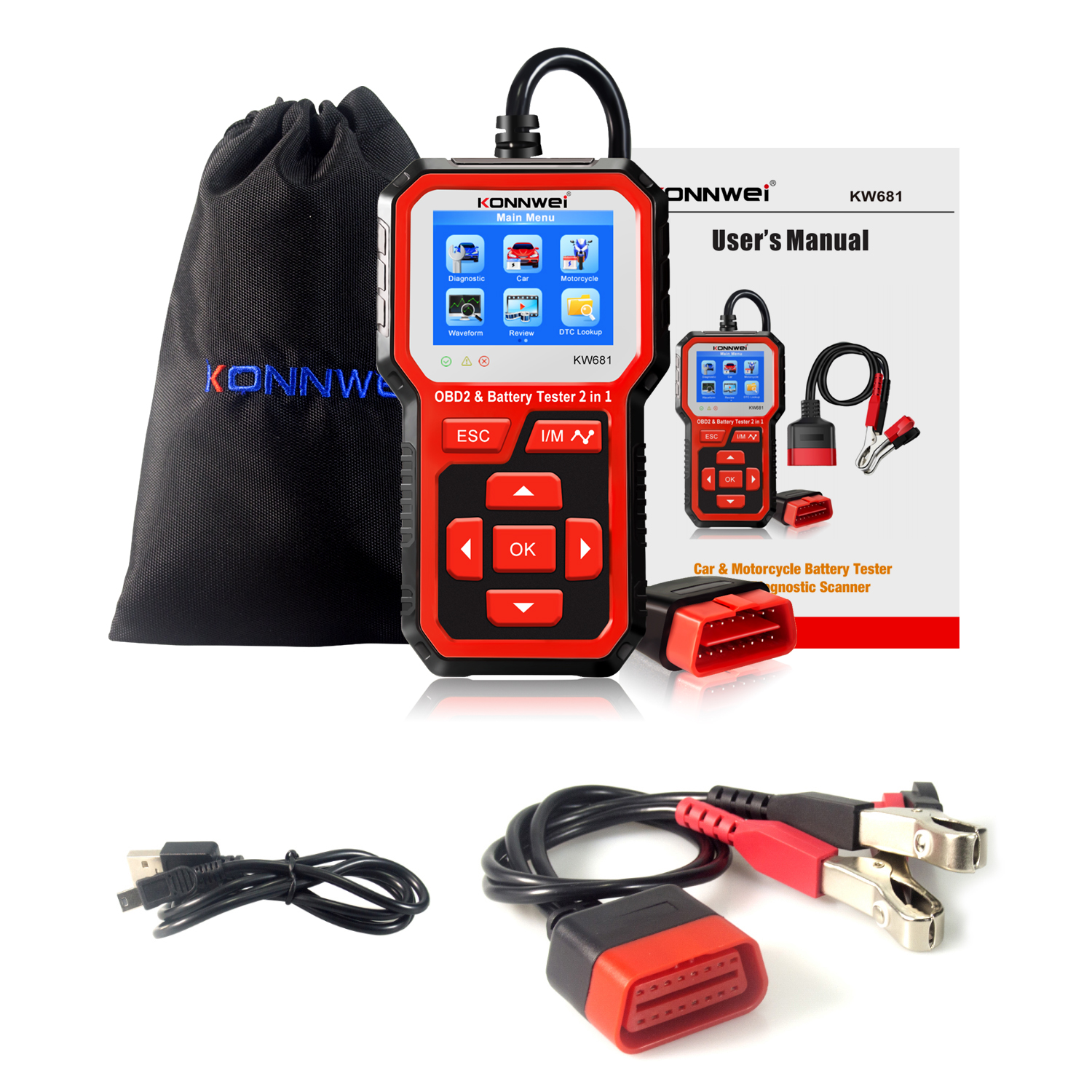

Package list:

1*KONNWEI KW681 battery test & OBD II scanner

1*User manual

1*Retail box

1* Nylon bag

1* Mini USB Cable for update and printing data

1*OBD2 Cable to 16pin obd2 port

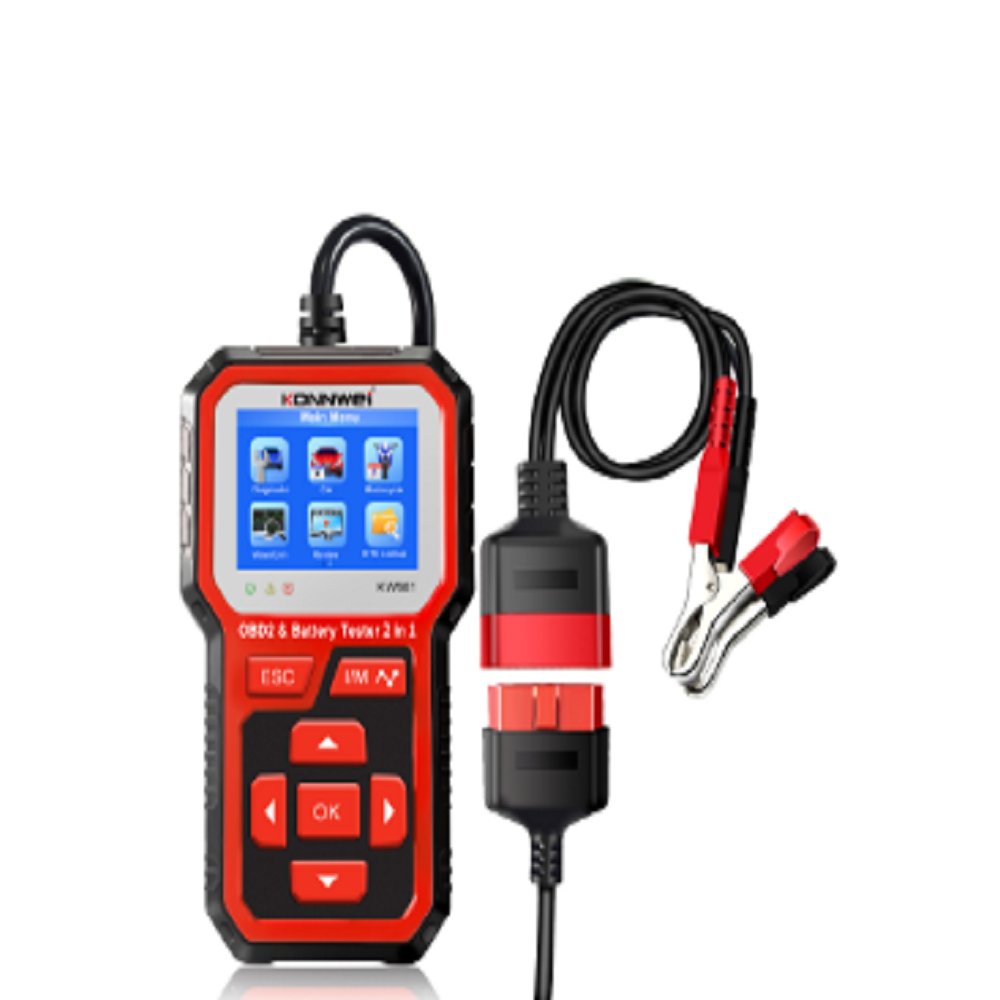

1*OBD cable to battery clip adapter
