JDiag TopDiag P200 Pro Automotive Electric Circuit Tester Power Probe Supports All Vehicle Electrical Systems

Features:

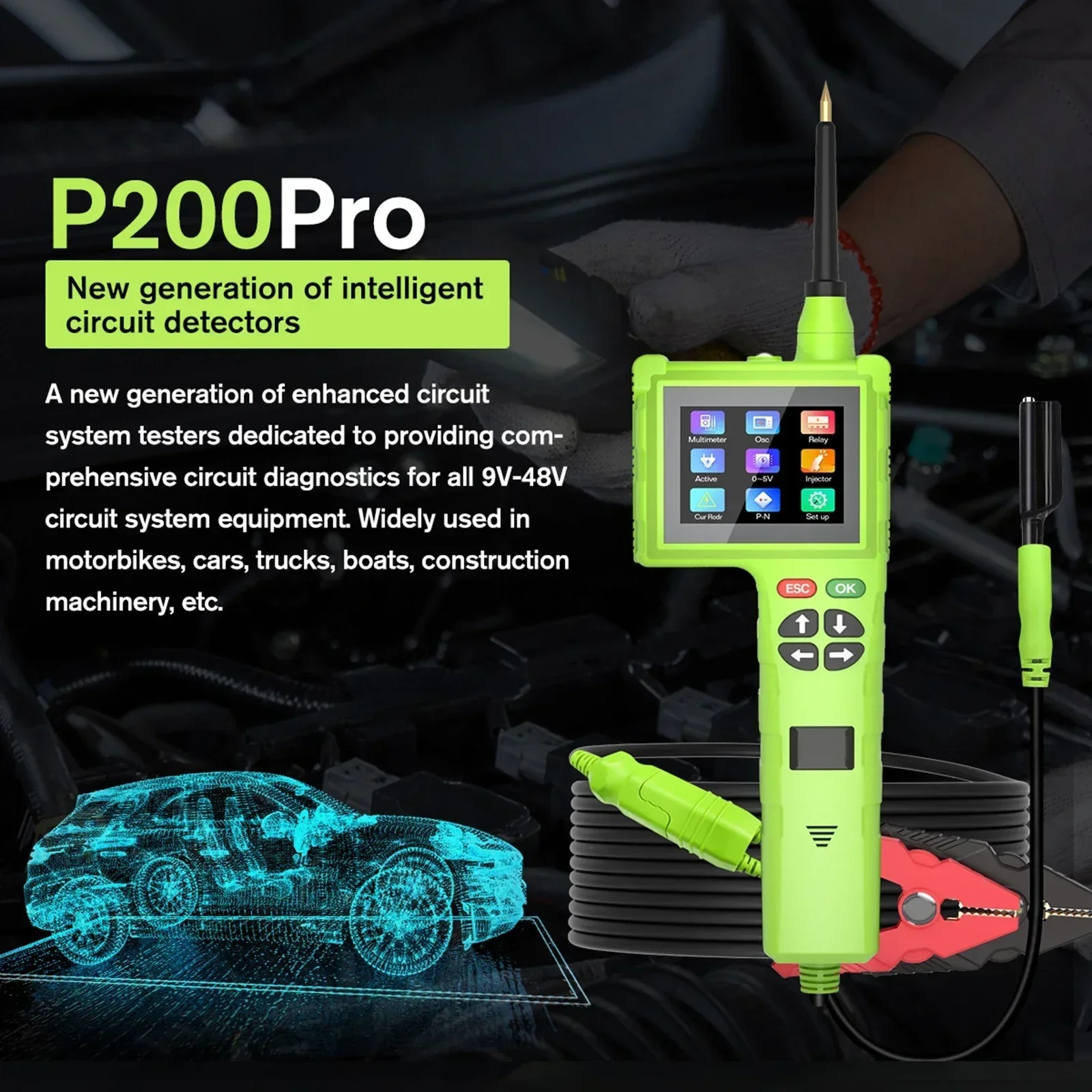

1.TopDiag P200 Pro Newest Smart Hook Master Edition: A new generation of enhanced circuit system testers dedicated to providing comprehensive circuit diagnostics for all 9V-48V circuit system equipment. Supports all vehicle electrical systems, widely used in motorbikes, cars, trucks, SUVS, motorbikes, boats, excavators, construction machinery, etc.

2.Leakage Test: Detects current magnitude and real-time current, plots current waveforms, and current waveforms can be recorded and saved.

3.Injector Testing/Clean: Support for injector nozzle signal analogue output, injector nozzle signal acquisition, injector nozzle cleaning, analysis of parameters to draw waveform signals.

4.Relay Test: Supports 5-terminal relay or 4-terminal relay detection. Easy, convenient and fast.

5.Enhanced Multimeter: DC voltage testing, Resistance test, Diode test, Current, Frequency test.

6.Component activation: Supports activation of high power components with instantaneous currents up to 100Amps. Components such as car bulbs, motors, gauges, etc.

7.Oscilloscope Features: For collecting changes in DC voltage signals in circuit systemse.g. pwm control signals, crank signals, fan speed regulation signals, etc.

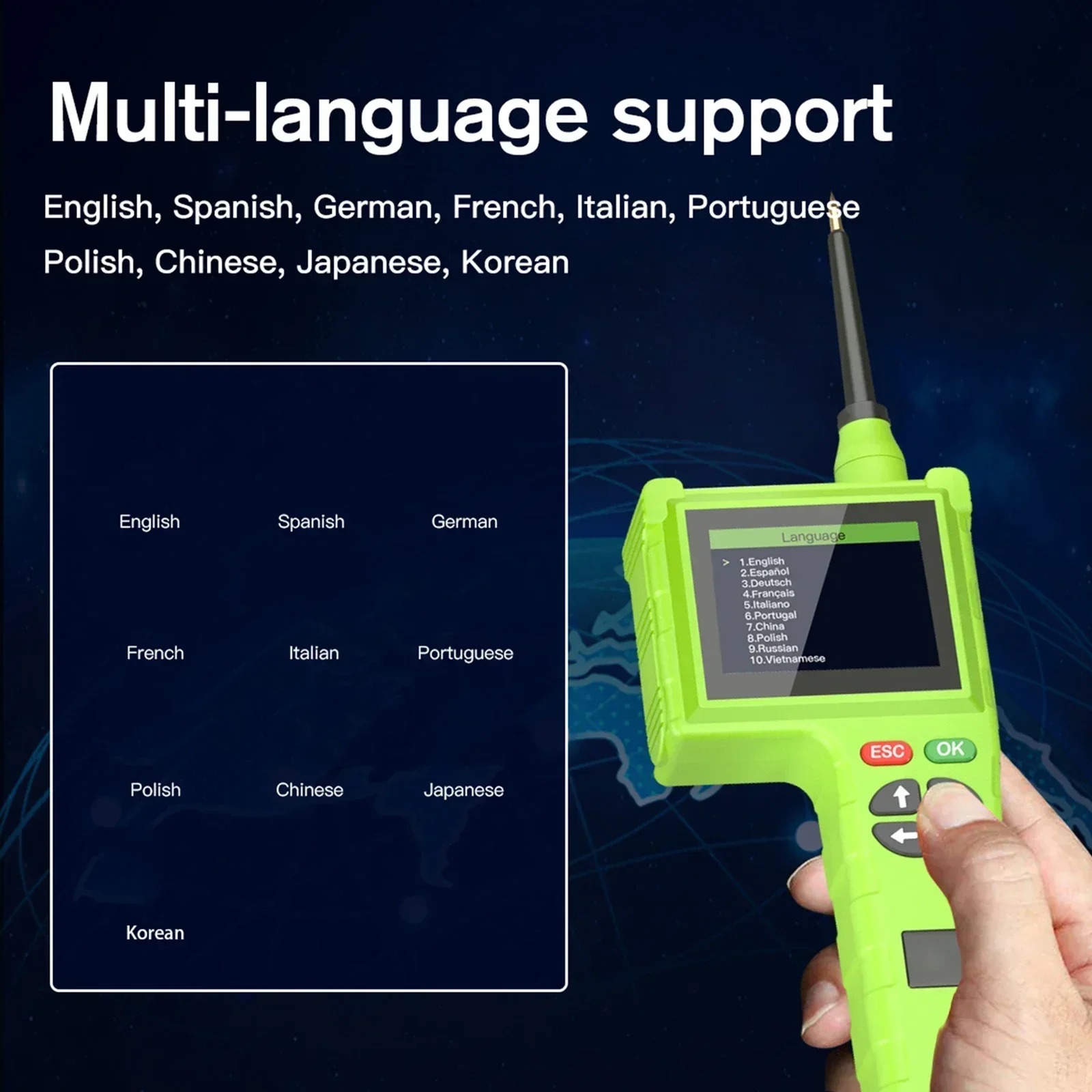

8.Multi-language support: English, Spanish, German, French, Italian, PortuguesePolish, Chinese, Japanese, Korean.

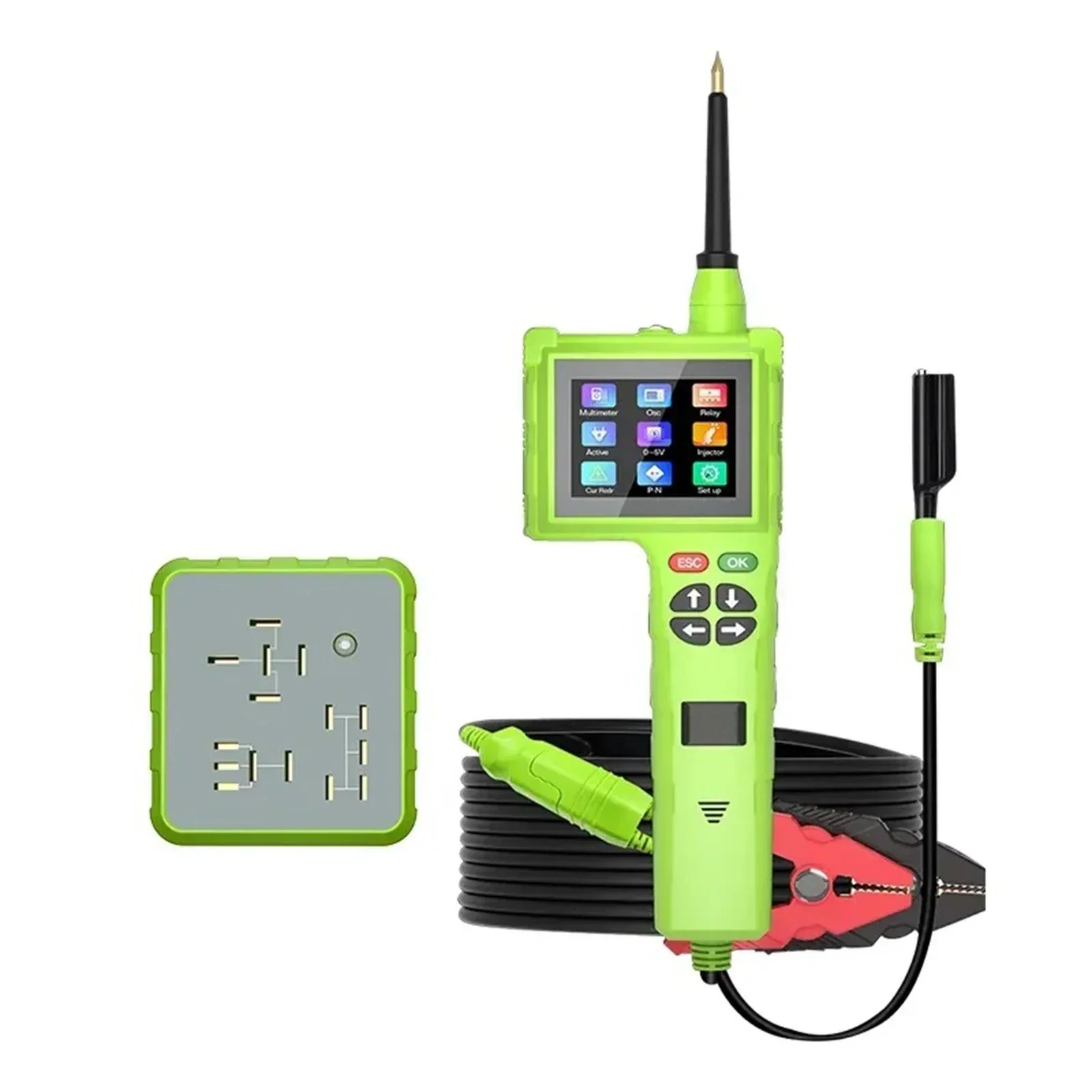

9.In The Box: 1*P200 Pro main unit (Includes main line 1.5M), 1*Large battery clips, 1*Extension connection cable(4.5M), 1*Test probe tip, 1*Small alligator clip, 1 Set Relay Accessories, 1User manual, 1*Storage bag.

Specifications:

Item name: Car Circuit Tester

Model number: Smart Hook Master Edition P200 Pro

Applicable models: universal, support 110+ cars brands

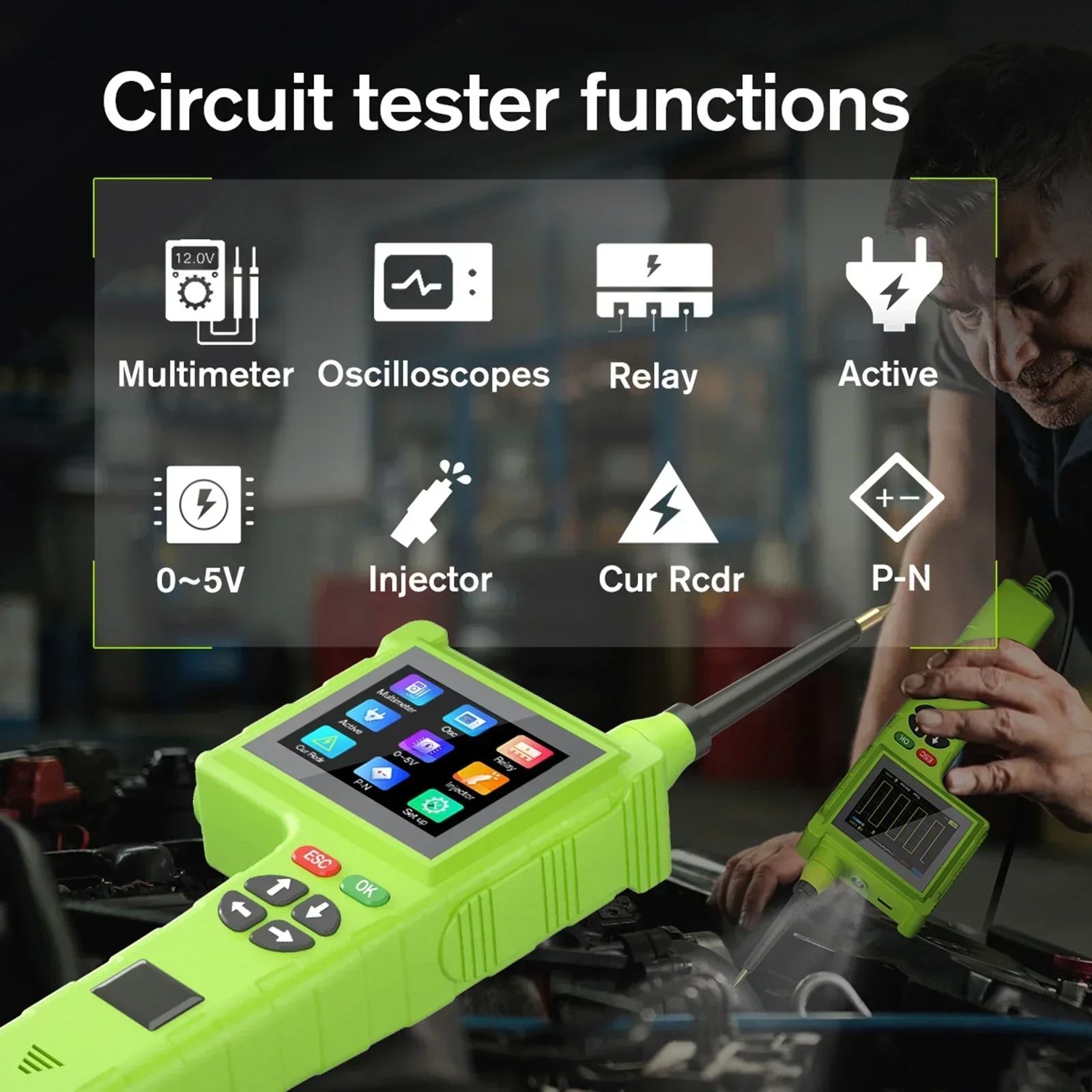

Function: Multimeter, Relay test, Oscilloscope, Leakage test, Injector test/clean, Component activation, etc.

LCD: 2.4 inch (320*240 DPI) TFT color display

External power supply: 12V or 24V Powered by battery

Operating voltage: 9V(Minimum)-48V(Maximum)

Operating current: 150mA

Measured voltage: 2mV(Minimum)--100V(Maximum)

Measured resistance: 10 milliohms--10 megohms

Component activation: 0A-25A continuously activated, 50A for 7S, 60A for 5S, maximum instantaneous current 120A.

Measurement frequency:10Hz -- 1MHz

Measurement of current: 3mA-25A

0-5V power supply: Support

Online update: Support free

Operating temperature: 0-60℃/32-140F

Storage temperature: -40°C-70°C/-40-185 F

Weight: 2kg/4.40lb

Dimensions: 304*233*108mm/11.96*9.17*4.25in

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
