JDiag P200 Car Circuit Tester Analyzer Power Tester Digital Test Full Electrical System Detector Multimeter

Features:

P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

1.Intelligent identification of voltage/resistance

2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)

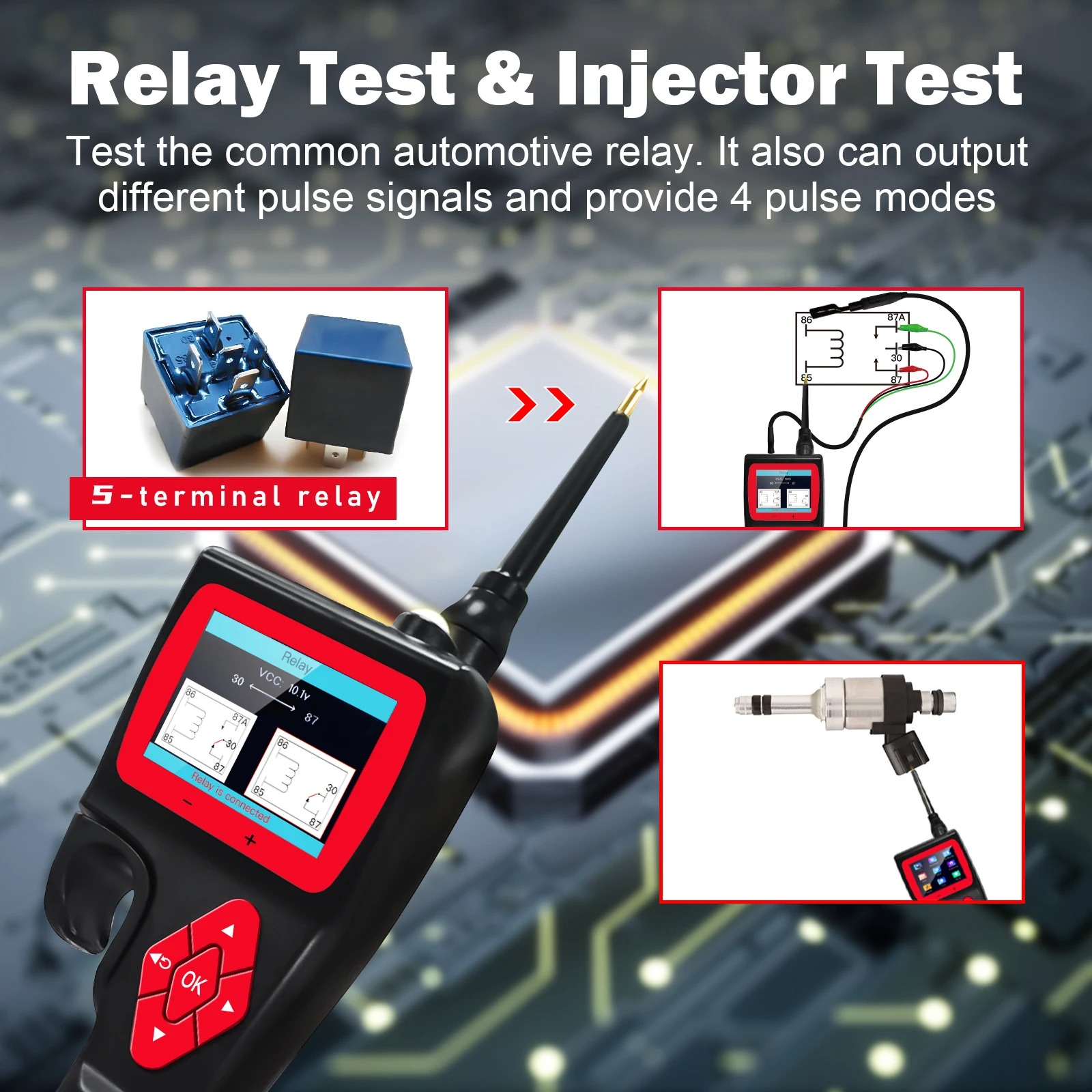

3.Relay test

4.Injector test

5.Diode test

6.Oscilloscope function

7.0-5V adjustable power supply

8. Activation of vehicle components

9.Positive and negative polarity test

10.Intelligent circuit breaker protection (adjustable overload)

11.Screen style background optional

12.Network online upgrade

13. Built-in Multi Lingual.

TOPDIAG P100 Pro Electrical Circuit System Tester for Cars and Trucks 0V - 70V :

1、Intelligent identification of voltage/resistance

2、Multimeter mode (measure voltage, resistance, diode, continuity )

3、Oscilloscope function

4、Activation of vehicle components

5、0-5V adjustable power supply

6、frequency

7、Network online free upgrade

8、Built in multiple languages

Specifications:

1.Display:............ (320*240 DPI) TFT true color display

2.Working temperature: ........... 0-60°C (32-140 F°)

3.Storage temperature:...........40-70°C (-40-185 F°)

4.External power supply: ... 12V or 24V powered by battery

5.Minimum working voltage:...9V

6.Maximum working voltage: 30V

7.Maximum measuring voltage: 150V

8.Minimum measuring voltage: .....................0.1V

9.Resistance measurement range:... 1 ohm~200K ohm

10.Current measuring range: ..................... 0~18A

11.Maximum continuous current: ..................... 18A

Professional Multimeter Function

Five Test Mode

1.Voltage Test

2.Resistance Test

3.Diode/Continuity Test

4.Current Amps Test

5.Frequency/Duty Cycle Test

Support Multiple Models

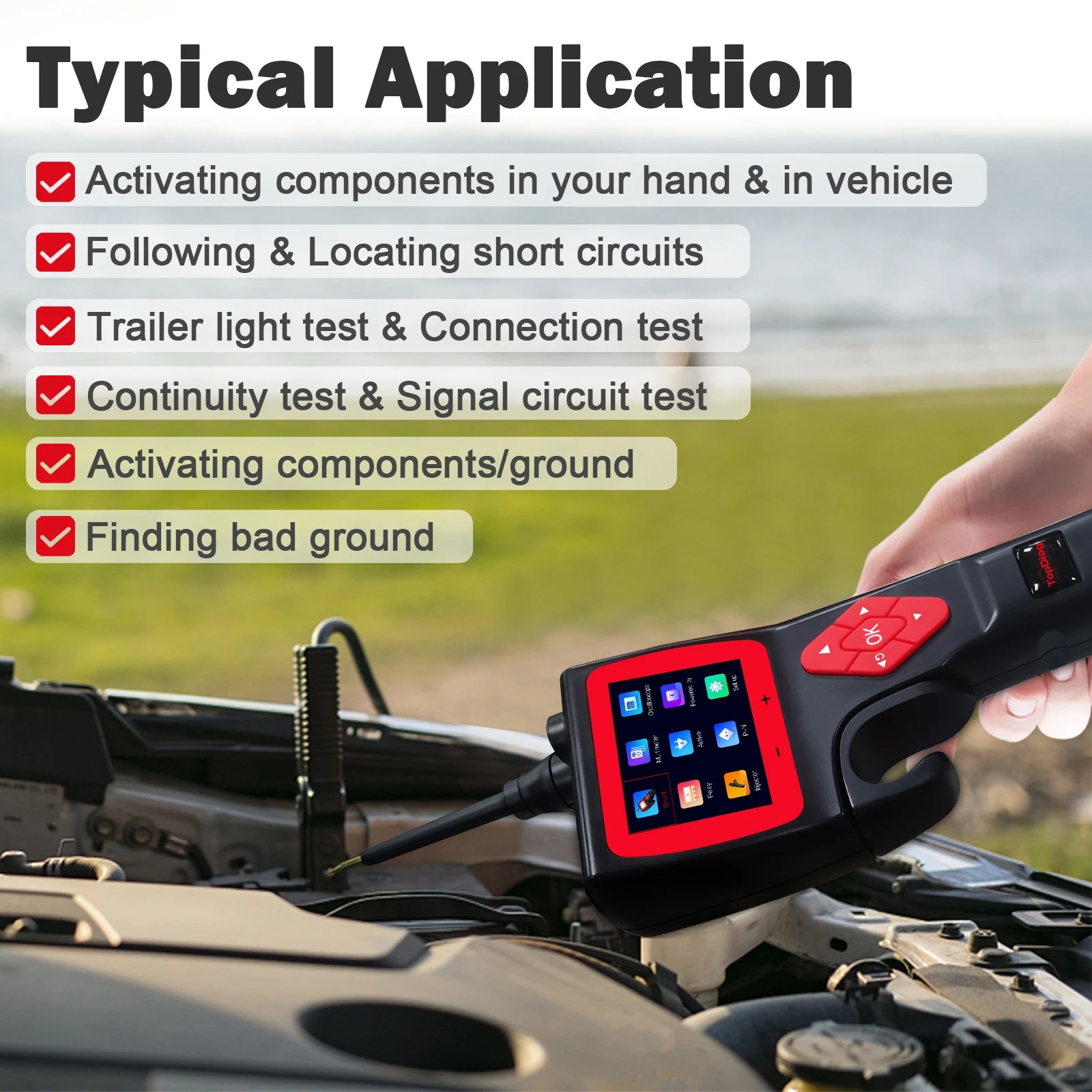

Smart Hook Circuit Tester with powerful working modes.support all vehicles electrical system, It is designed to diagnose circuit issues for cars,Trucks ,Motorcycles ,Boat,Excavator,Trailer.etc

SMART HOOK Product Functions

Relay Test

Diode Test

Oscilloscope Test

0-5V Power Supply

Component Activation

Positive&Negative Test

Multi - Languages

Online update

Screen Background Changeable

Smart Test - Auto Detect Volts and Ohms

Circuit Breaker Protection (Current Adjustable)

Multimeter Mode (Voltage，Resistance，Diode,Open&Short，Current,Frequency)

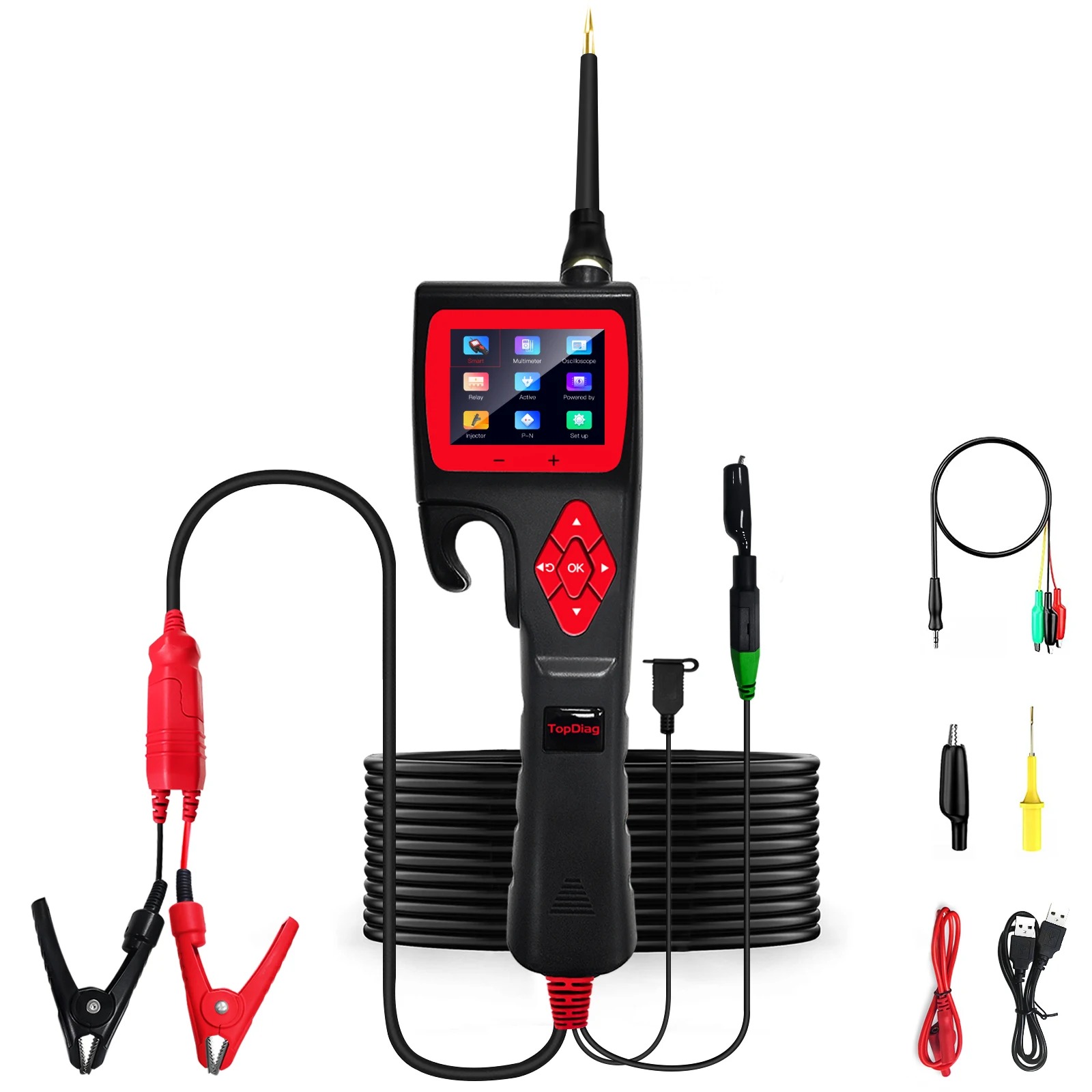

Product packing list:

1) Main unit

2) Solid copper test probe

3) Double pass test connection line

4) Alligator clip battery cable (Special Design)

5) Relay test line

6) Probe adapter

7) Operation manual

8) Packing Toolbox
