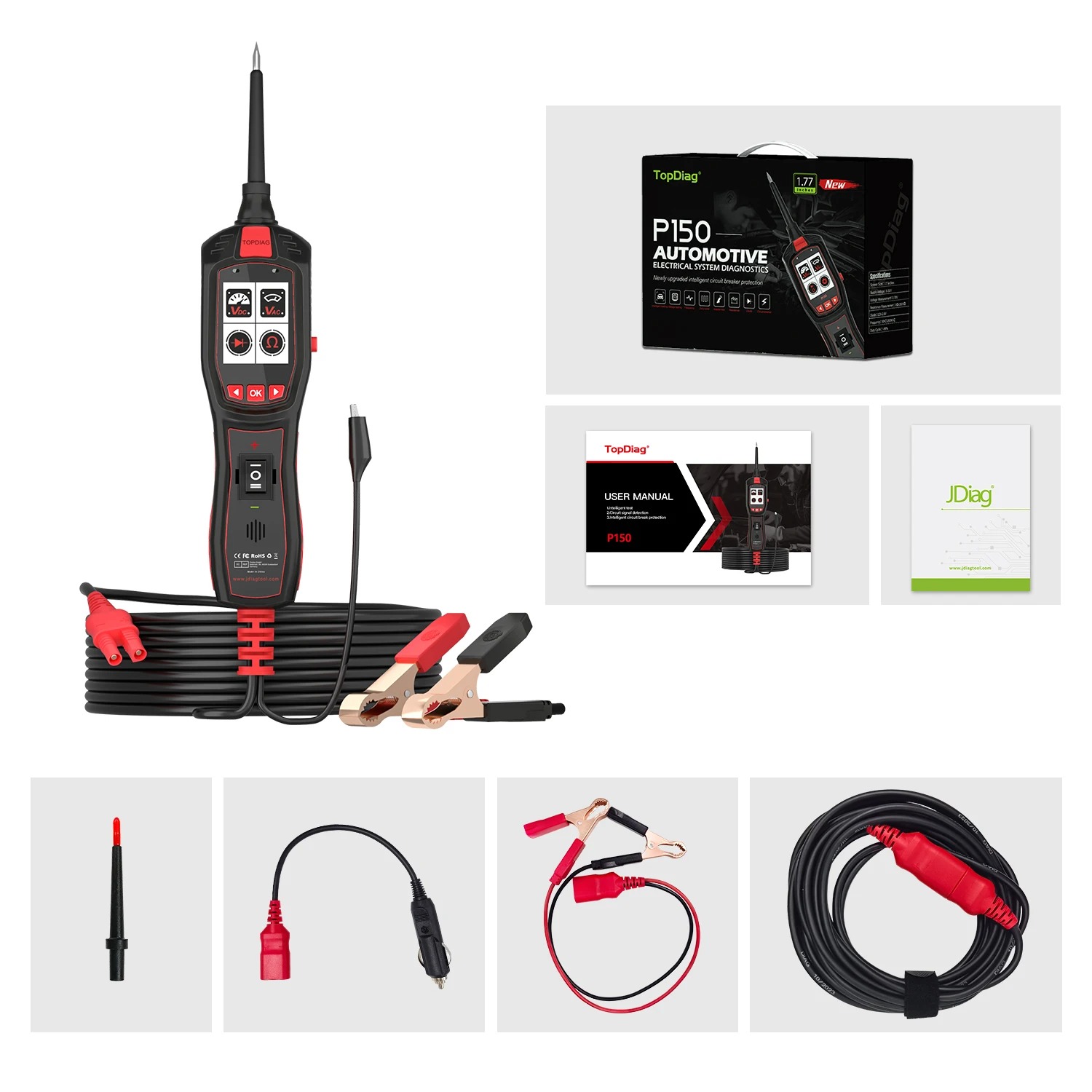

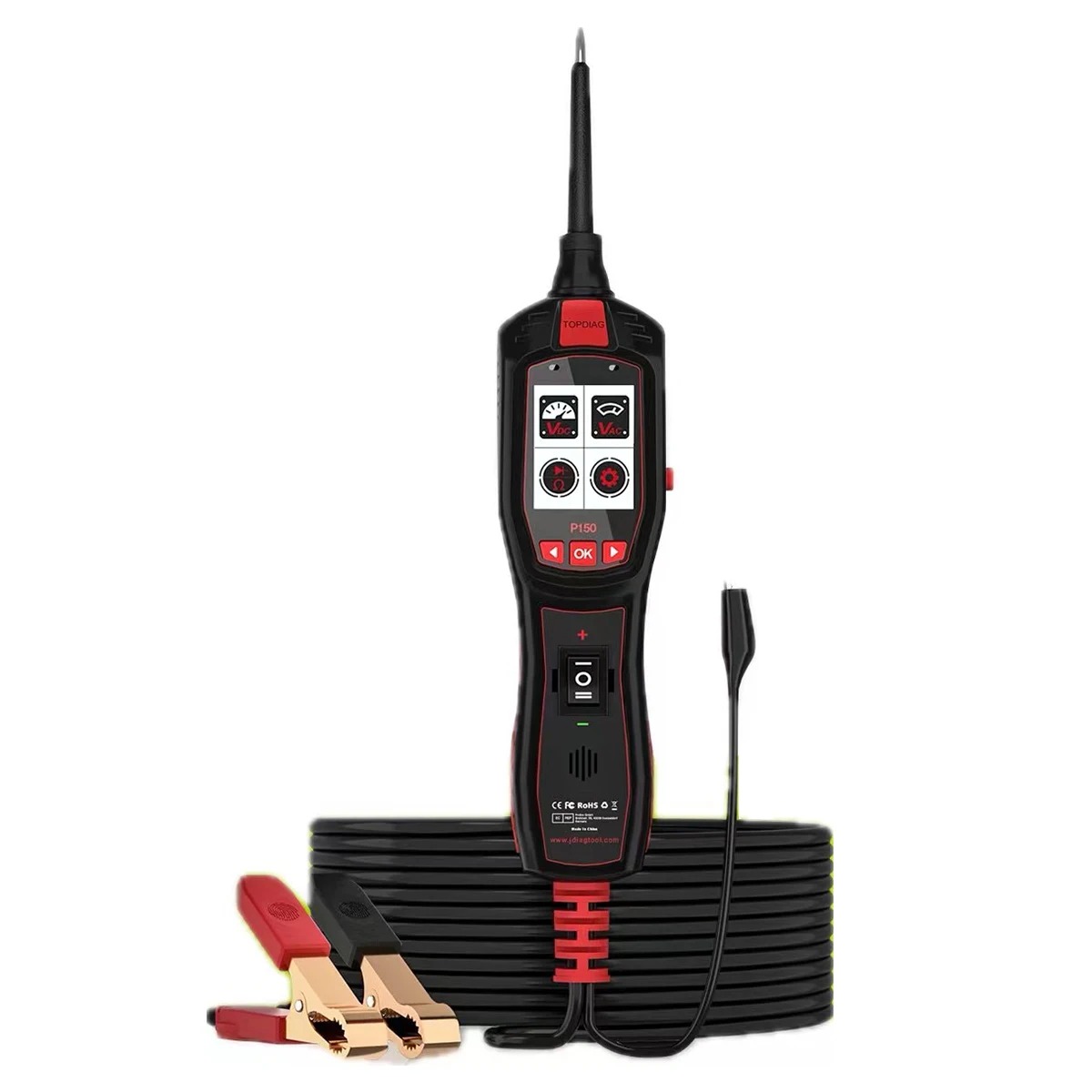

JDiag P150 Original Automotive Circuit Tester Power Circuit Probe Kit Built-in Flashlight Electrical System Diagnostic Tools

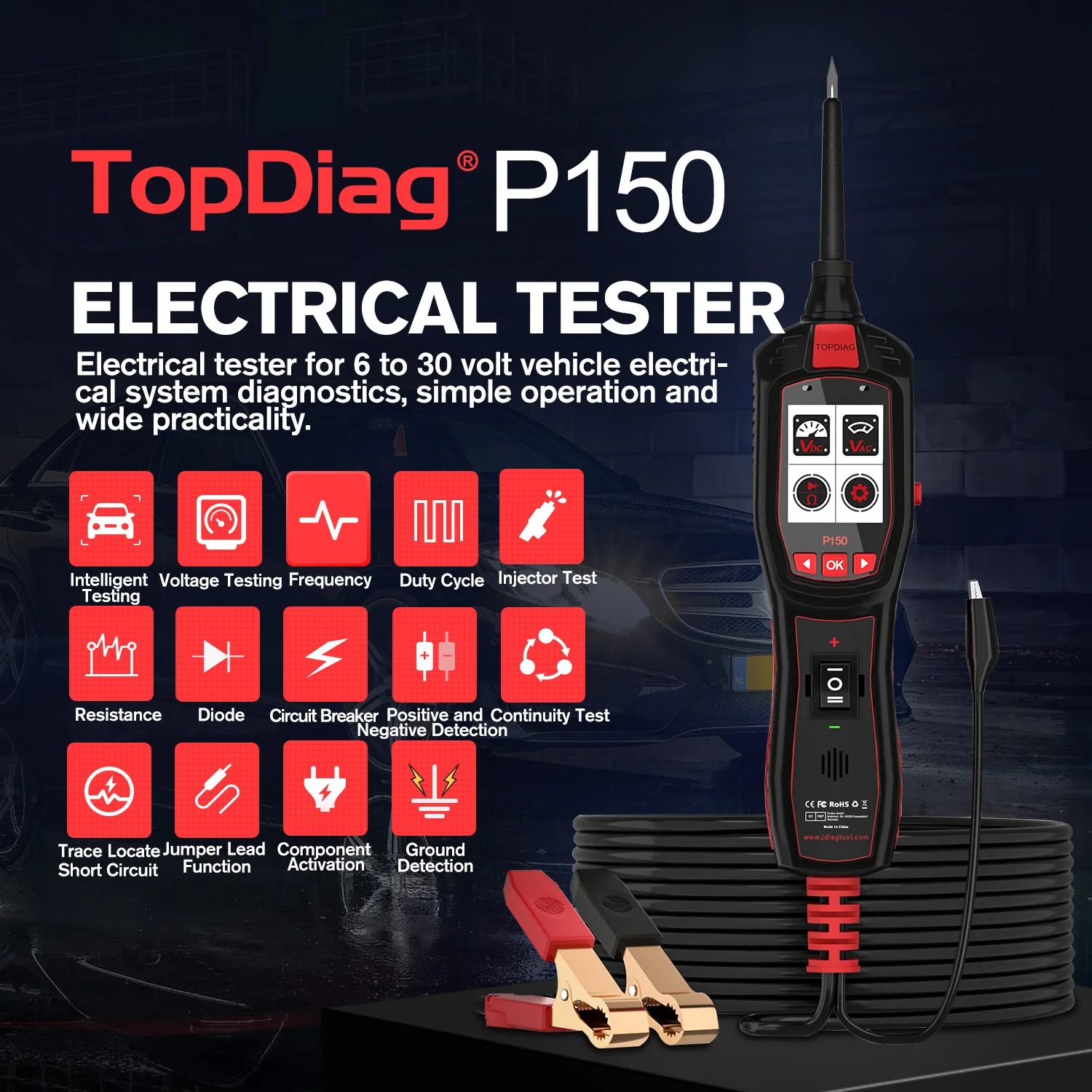

The P150 is an electrica tester for the diagnosis of electrical systems in vehicles from 6 to 30 volts. t is simple to operateand has a wide range of usefulness, after connecting the tool to the vehicle battery:

Quickly diagnose positive and negative circuits. Tests continuity using the built-in auxiliary ground lead. Presses the power switch and conducts positive or negative battery current to the probe tip to test the function of electrica components without the use of a iumper wire. To immediately tests for poor ground contact without voltage drop testing. Short circuit protection is also provided. Theinternal circuit breaker trips if overloaded. *Trace and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of thevehicle, eliminating the need to constantly search for a suitable vehicle ground.

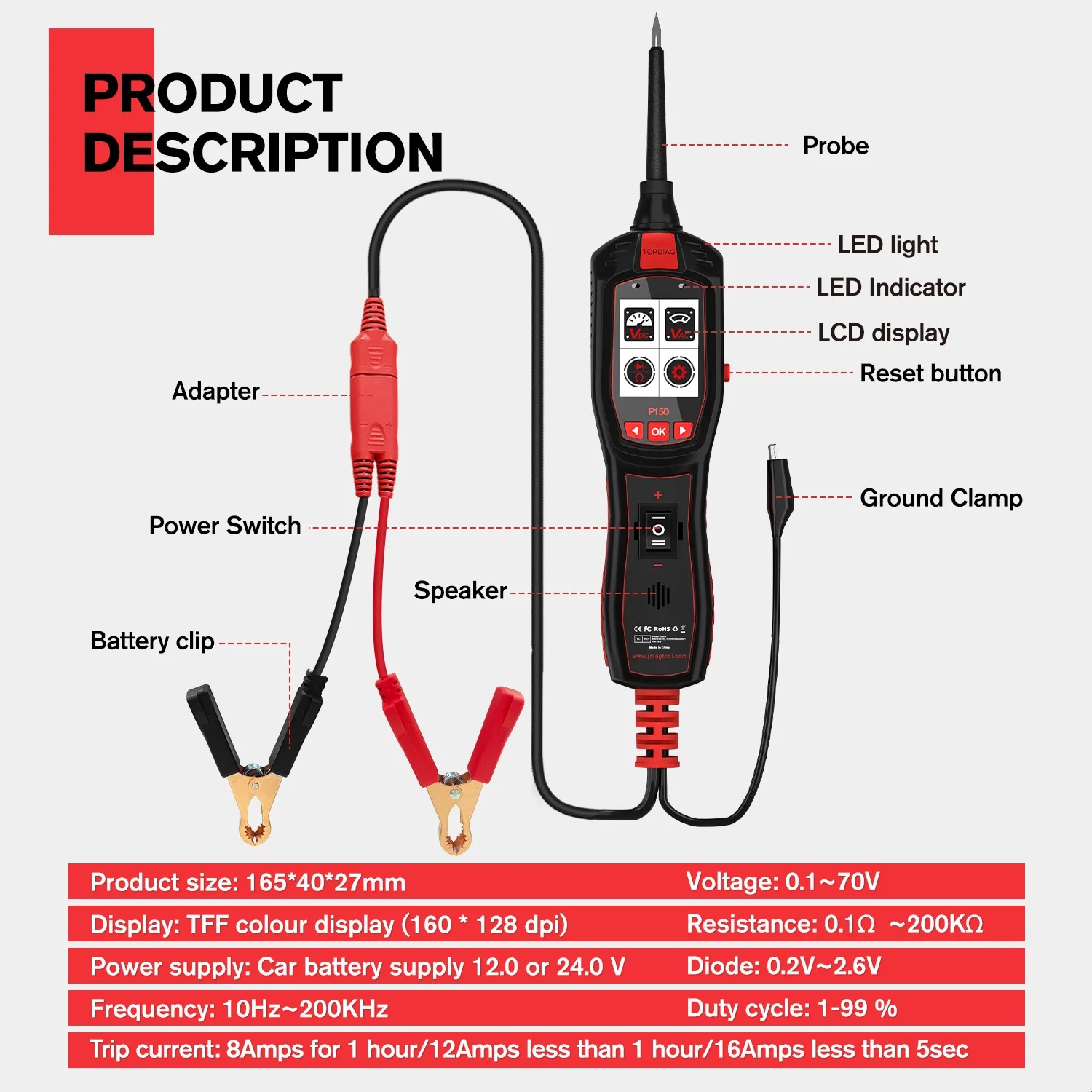

Product size:

165*40*27mm Display: TFF colour display (160 *128 DPI) Power supply: 12.0 or 24.0 V from car battery Operating temperature: 0 to 60C (32 to 140°F)Storage temperature: -40 to 70C (-40 to 158F) Voltage: 01-70V1% error Resistor: 0.1见~200KQ error 15% 100K or less other ranges 2Diode: 0.2V~2.6VFrequency:10HZ~200KHZDuty cycle: 1-99%

Trip current: 8Amps for 1 hour / 12Amps for less than 1 hour / 16Amps for less than 5sec.

Function:

1. Injector signal detection

2. Intelligent circuit breaker

3. Frequency

4.Duty cycle

5.DC voltage

6.AC voltage

7.Resistance

8. Diode

9.Flashlight

10. Intelligent testing

Working voltage: 6-30V

Display: TFF color display (160*128 DPI)
