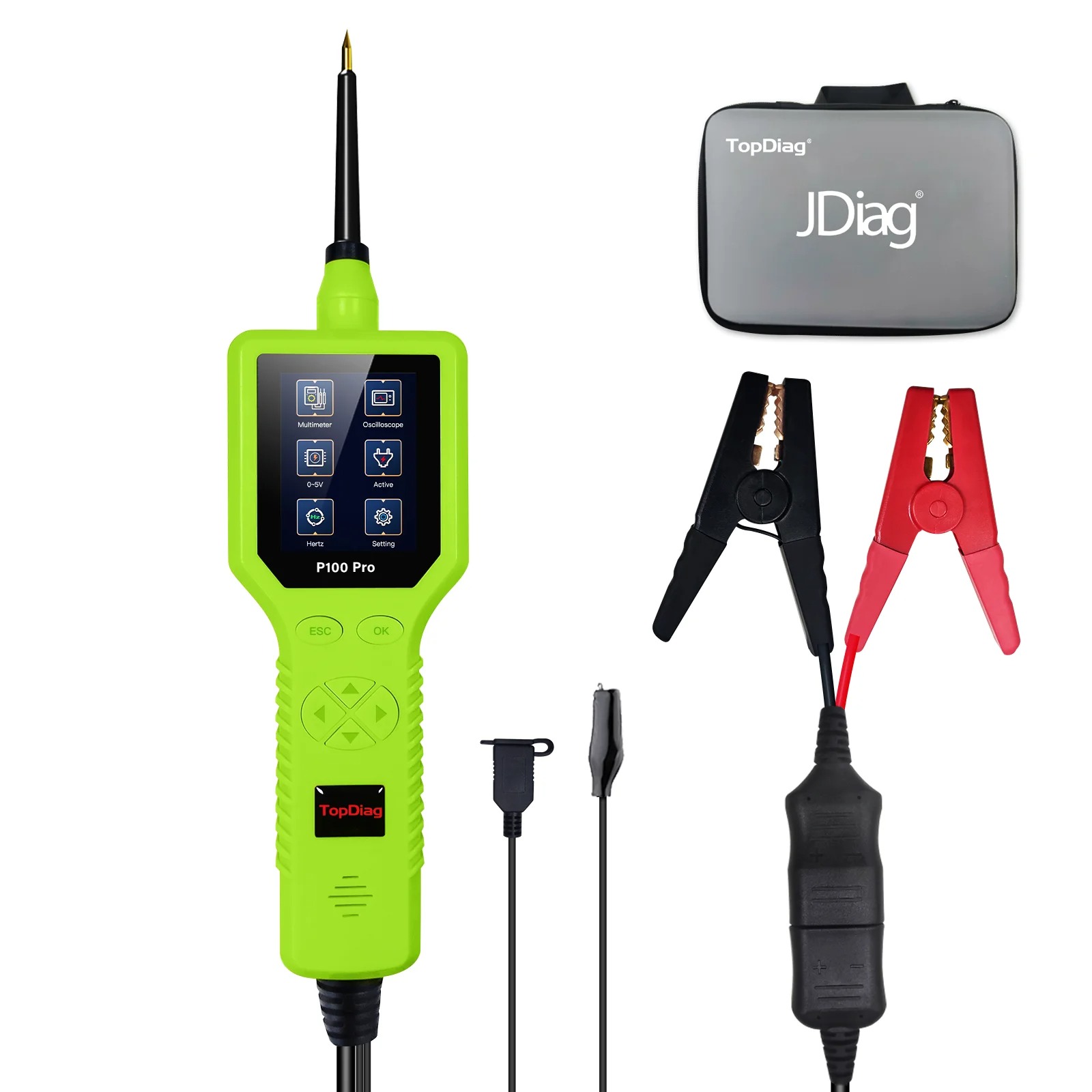

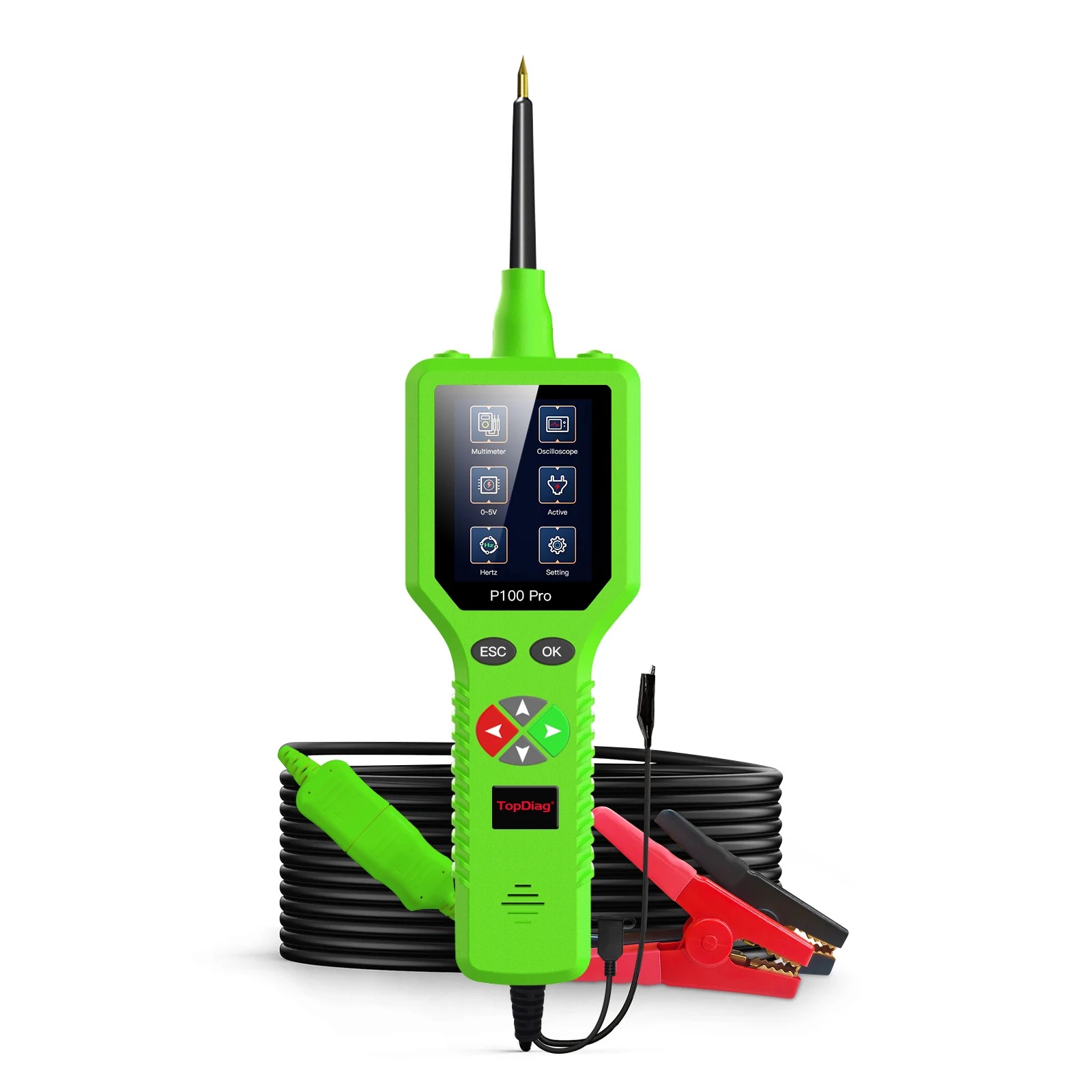

JDiag P100 Pro Power Circuit Probe Kit - Automotive Digital Multimeter Tester Oscilloscope, and Circuit Breaker Finder

1.The P100 Pro is the newest generation intelligent Electrical System Circuit Tester with 2.4 inch large size LCD screen display. It is dedicated to test all 9V-30V vehicle electrical systems.
 2.There are two LED lights at the front end, which is more convenient for testing performs every type of service including power injection,measurement,ground testing. polarty checks,continuity testing and components activation.
 3.There is a set point voltage alarm , in case the circuit connected to the probe tip will force the voltage to be higher or lower than the set point voltage to 0.5 volts . the device will sound an alarm to know that the output voltage is different from the set voltage . It can be disconnected and check for short circuit or other faults.

Function

1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity)
3.Oscilloscope function
4.Frequency
5.Activation of vehicle components
6.0-5V adjustable power supply
7.Network online upgrade
8.Built in multiple languages

Languages：

English， Spanish， German ，French， Portuguese， Italian ，Polish ，Vietnamese， Russian， Thailand Indonesian， Malaysian Filipino， Arabic.

Specifications and Parameters：

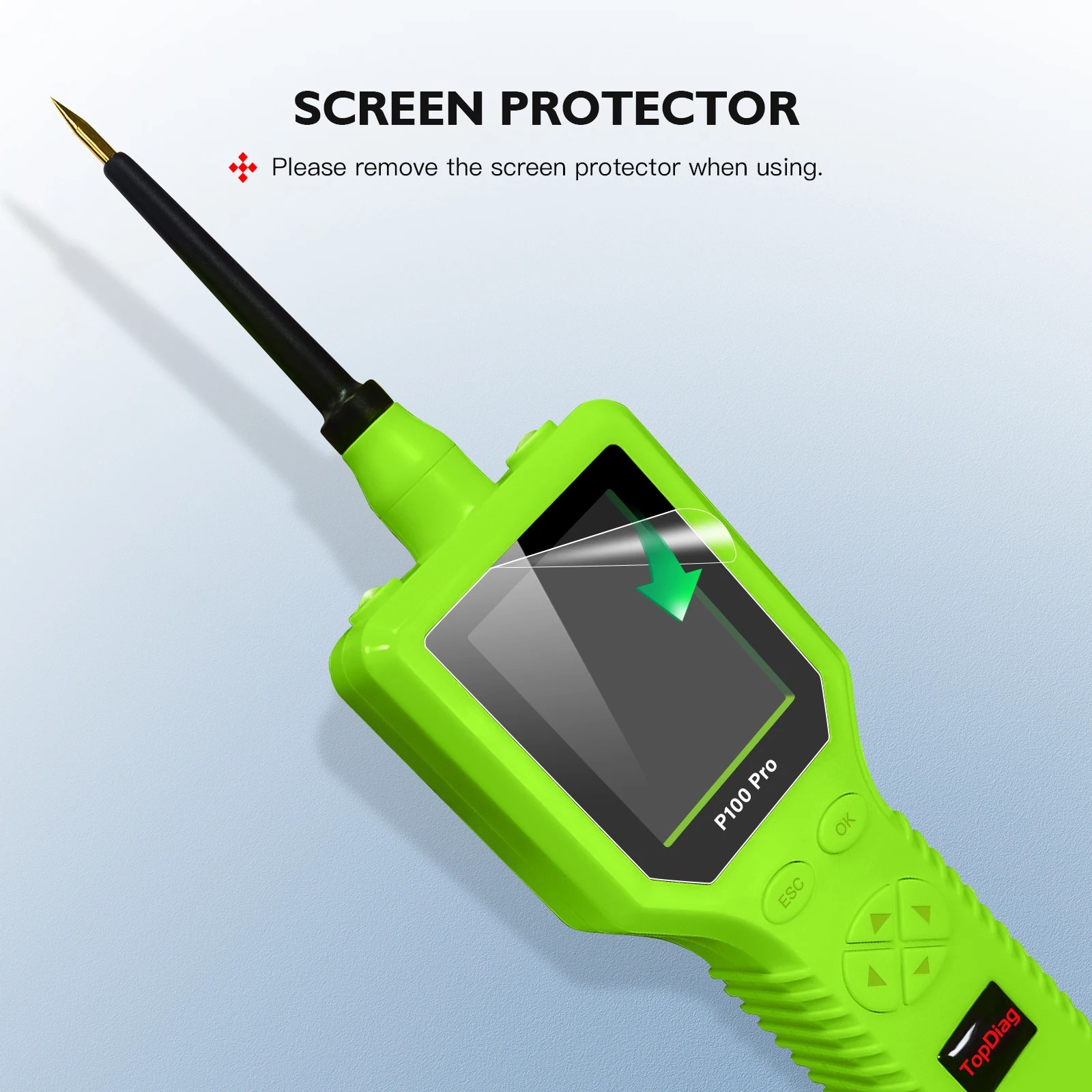

1、Display: 2.4 inches (320*240 DPI) TFT true color display

2、Working temperature: 0-60°C (32-140 F°)

3、Storage temperature: 40-70°C (-40-185 F°)

4、External power supply: 12V or 24V powered by battery

5、Minimum working voltage: 9V

6、Maximum working voltage: 30V

7、Maximum measuring voltage: 100V

8、Minimum measuring voltage: 0.1V

9、Resistance measurement range:1 ohm~200K ohm

10、Active Current measuring range: 0~18A

11、Maximum continuous current: 18A

12、Color: black red orange yellow green blue
