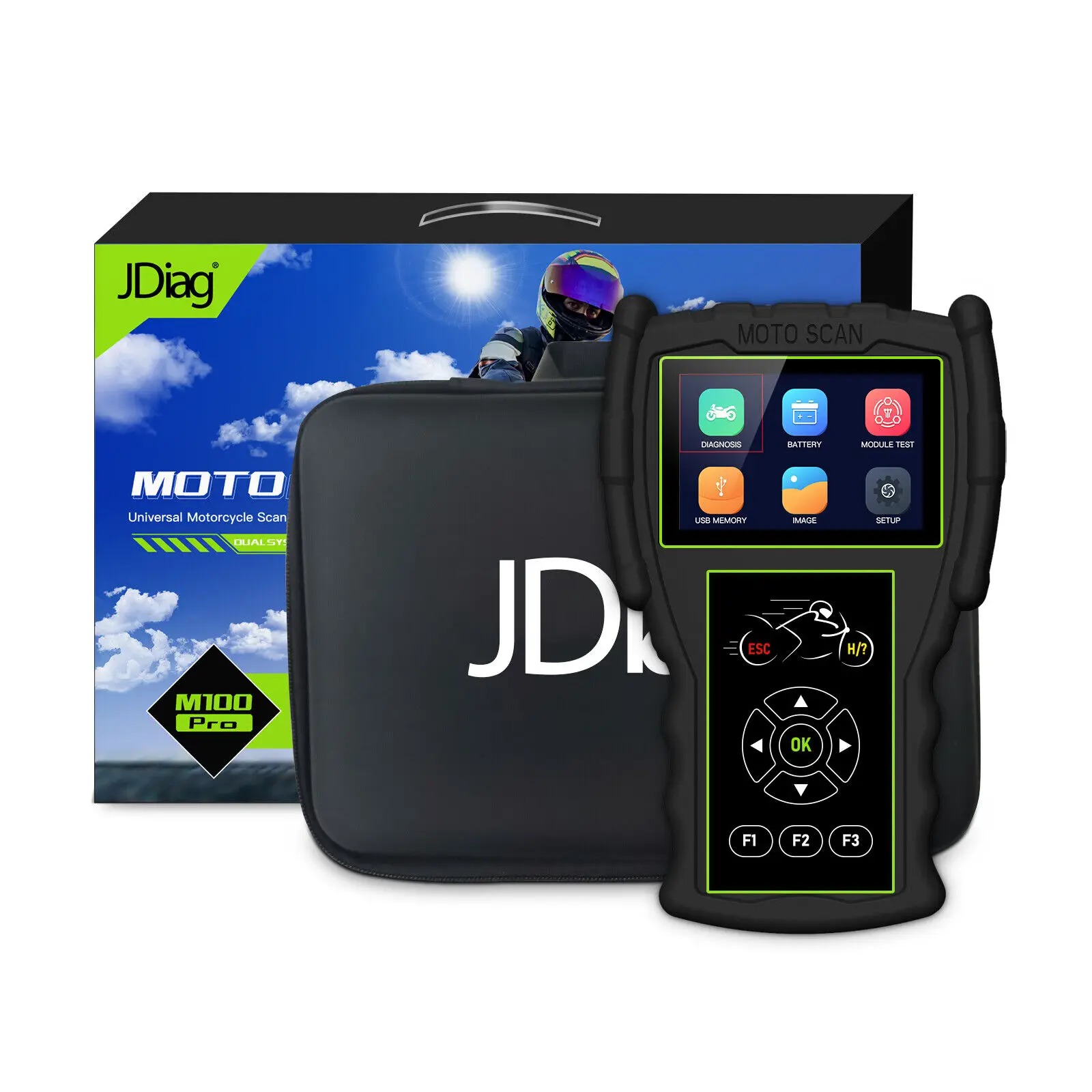

JDiag M100 Pro Full Cables Motorcycle Scanner D87 D88 Function Diagnostic Tool Diagnosis Scanner for Motorcycle

Product description

    JDiag M100 Pro Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

    It allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.
    The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features

1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. Actuators test
8. ABS system test
9. Trouble shooting guidance
10. Tire pressure system test
11. Anti-theft system test

Special function

1.Re-set service light
2. Unlock immobilizer
3. Configuringimmobilizer alarm
4. Adjust COTrimmer
5. Adjust TPS
6. Re-setauto adaptive parameters
7. Adjust CO idle speed
User can also test: injectors, ignition, coils, fuel pump, etc.

M100 Battery Tester System Functions(Dual system: diagnostic system + battery test system)

1.Battery Tester- Quick Tester and Standard Test
2.Cranking Test
3.Charging Test
4.Wave Test
5.Test result printing

Support Motorcycle list

For Hartford, ForAeon, ForHonda, ForSYM, ForYamaha, ForSuzuki, ForKymco, ForKawasaki, ForPiaggio, ForPGO, ForKT-M, etc

Specifications

Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port
