Jdiag M100 Motorcycle Tester Diagnostic Tool Encoding Keys TPS ABS Anti-theft Test Multi-Language for Kawasaki Ya-maha Suzuki

Jdiag M100 Motorcycle Tester Handheld Motorcycle Diagnostic Tool Multi-Language General Motorcycle Scanning Tool.

      M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
      It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.
      The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features:

1, Handheld operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades,
3, Reserved CAN bus interface
4, 3.2-inch color screen, clear display.
5, Dynamic data with numerical and waveform.

Support 13 Multi Languages:

English,Traditional Chinese,Spanish,French,Thai,Turkish,Vietnamese,Indonesian,Portuguese, Japanese,Korean,German,Cambodian, switch at any time according to your needs.

Functions:

1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. Actuators test
8. ABS system test
9. Trouble shooting guidance
10. Tire pressure system test
11. Anti-theft system test

Support models：

ADIVA

AEON

APRILIA

ARCTIC CAT

BAJAJ

BENELLI

BRIXTON

BOMBARDIER

CFMOTO

HARTFORD

HONDA

HYOSUNG

HERO

INDIAN

KAWASAKI

KTM

KYMCO

MODENAS

PGO

PIAGGIO

ENFIELD

SUZUKI

SYM

TVS

TRIUMPH

VESPA

YAMAHA

YIBEN

Specifications:

Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

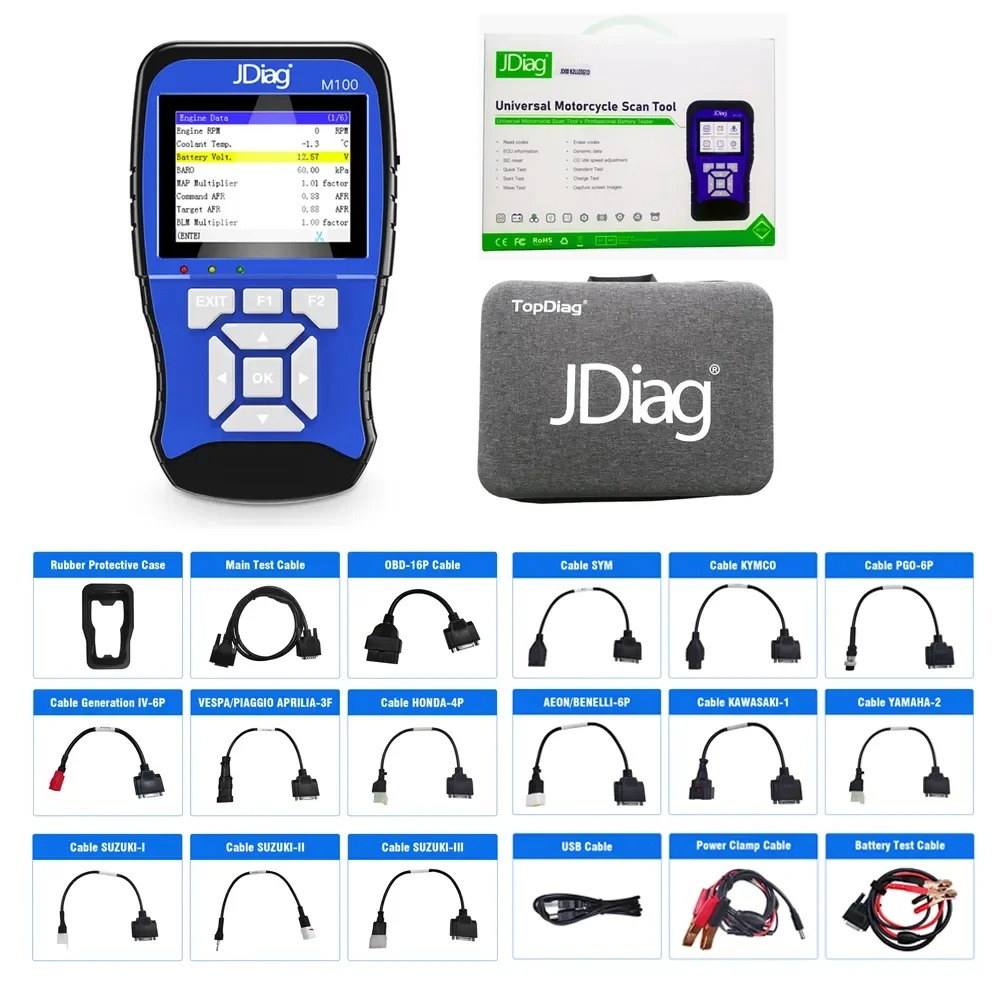

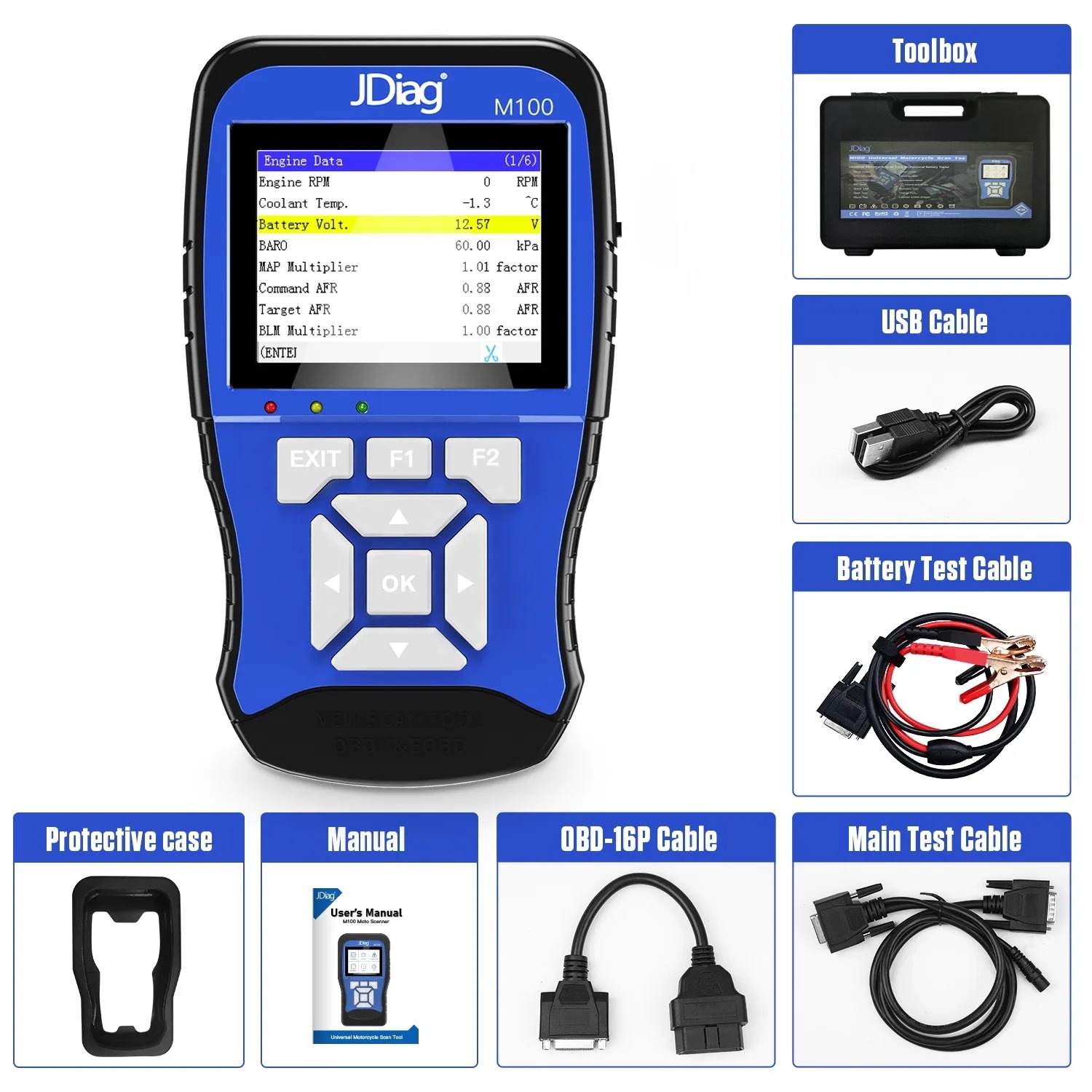

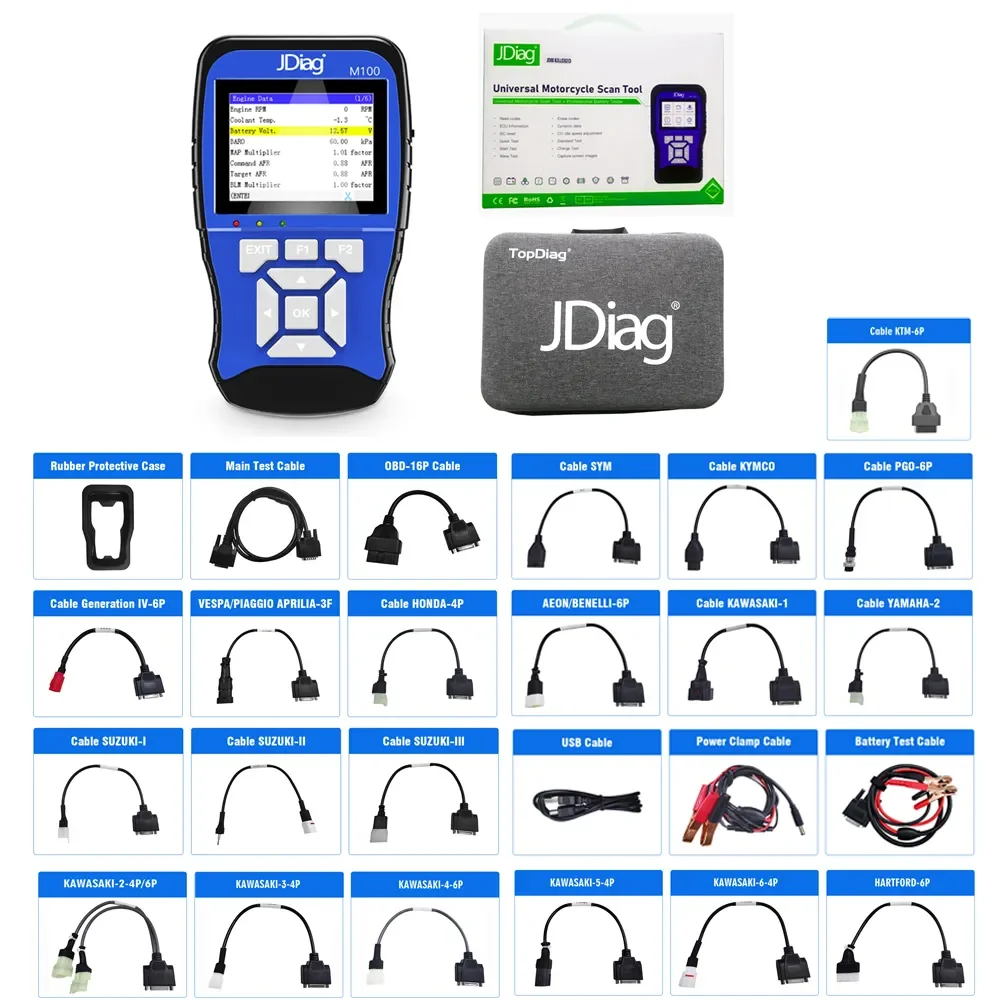

Package List:

1. Scan tool main unit
2. Main Test cables
3. USB cable
4. OBD 16p cable
5. Battery test cable
6. User manual
7. Protective storage box
