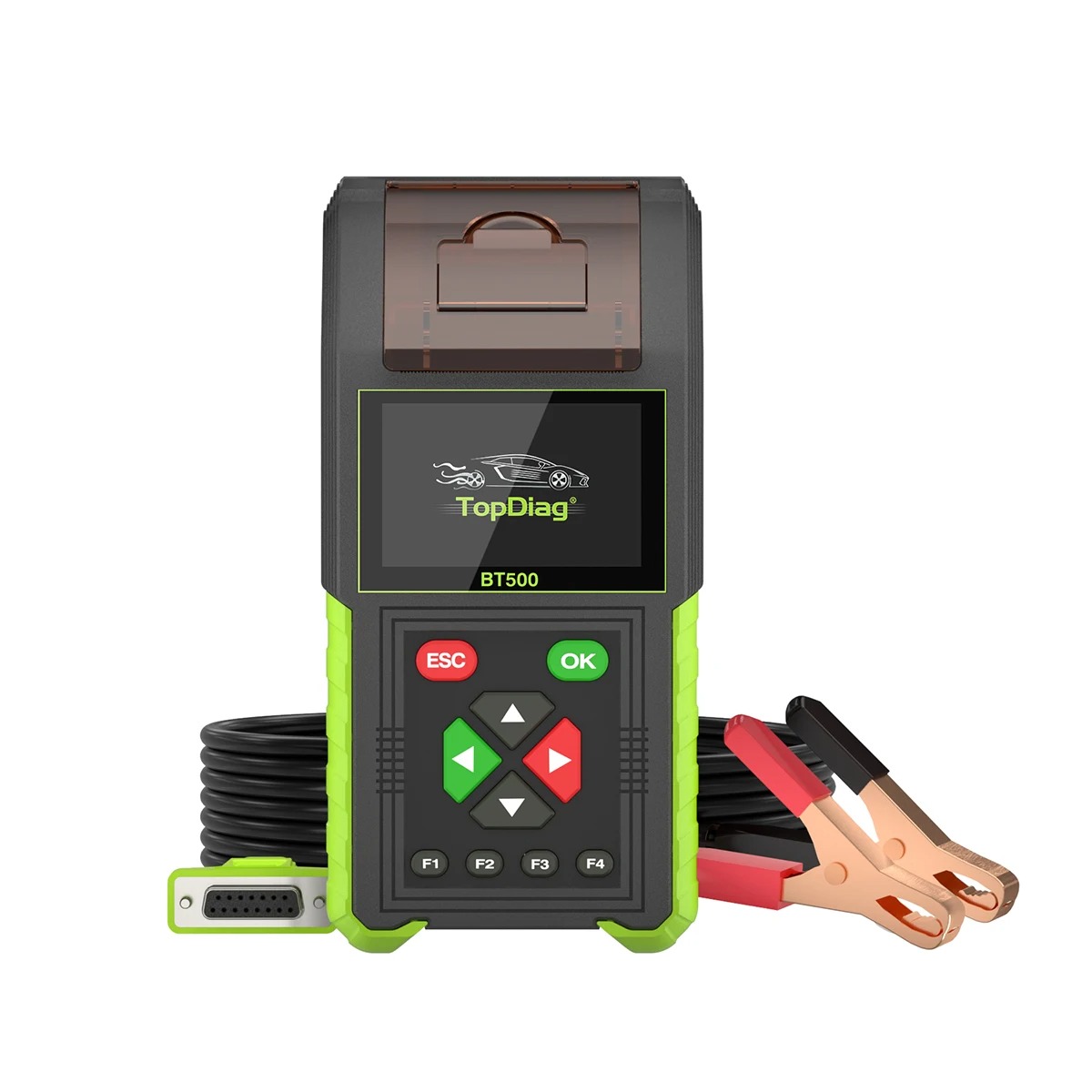

JDIAG BT500 Car Battery Tester 20-2000CCA 12V 24V Leakage Detect Load Relay Test Auto Battery Analyzer Battery Tool

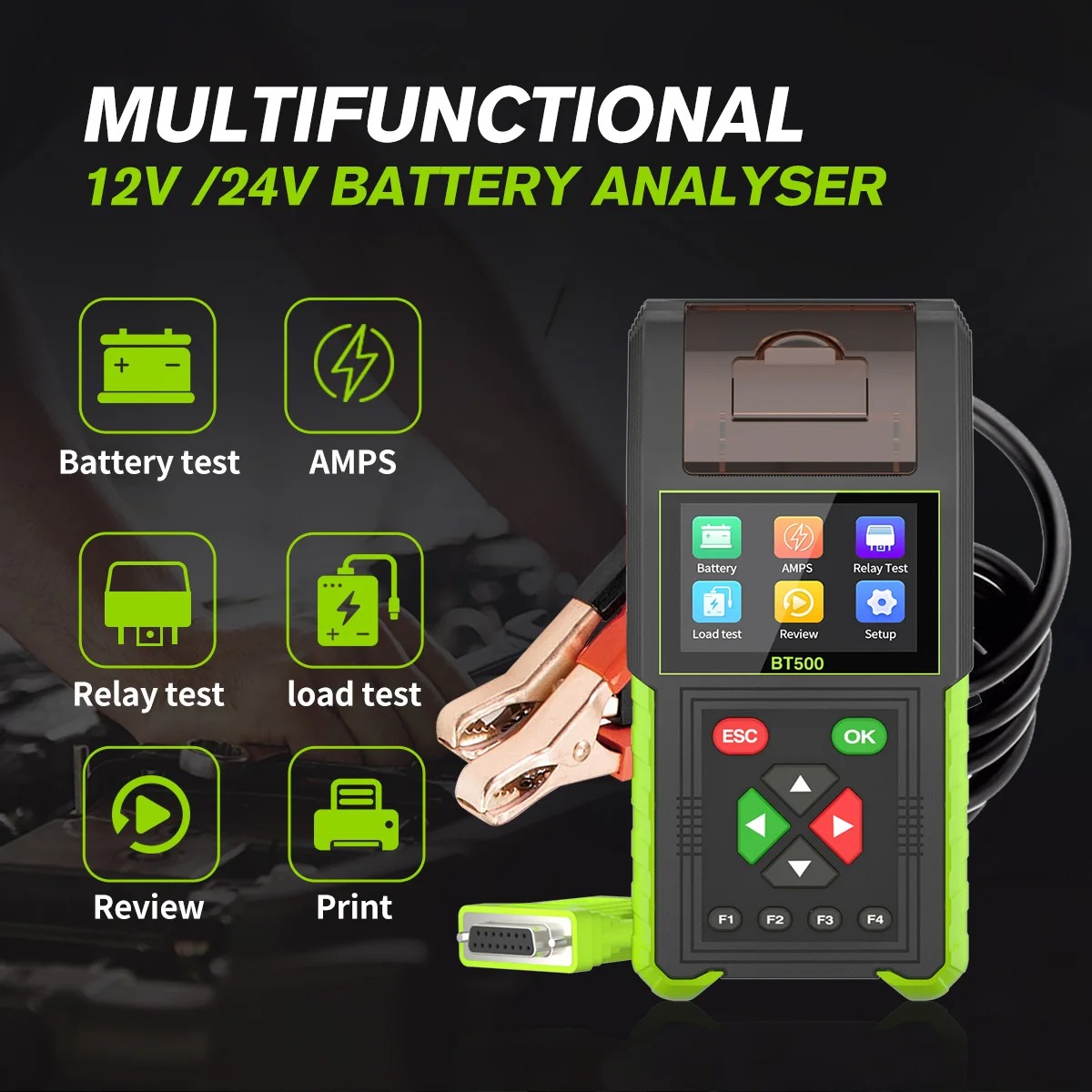

Multifunctional Battery Analyzer

BT500 is a new generation of multifunctional battery analyzer with high-end appearance and more comprehensive functions. The 3.5-inch large screen display is clearer. The built-in temperature sensor detects the current ambient temperature in real time to provide more accurate detection results. It also has a new data printing function. Leakage detection, relay test, load test, charging system and start-up test and other functions, support for language switching power clip line interface, leakage detection line

Product functions:

battery detection, charging test, relay test, start-up test, load test, leakage detection, printer function, playback record

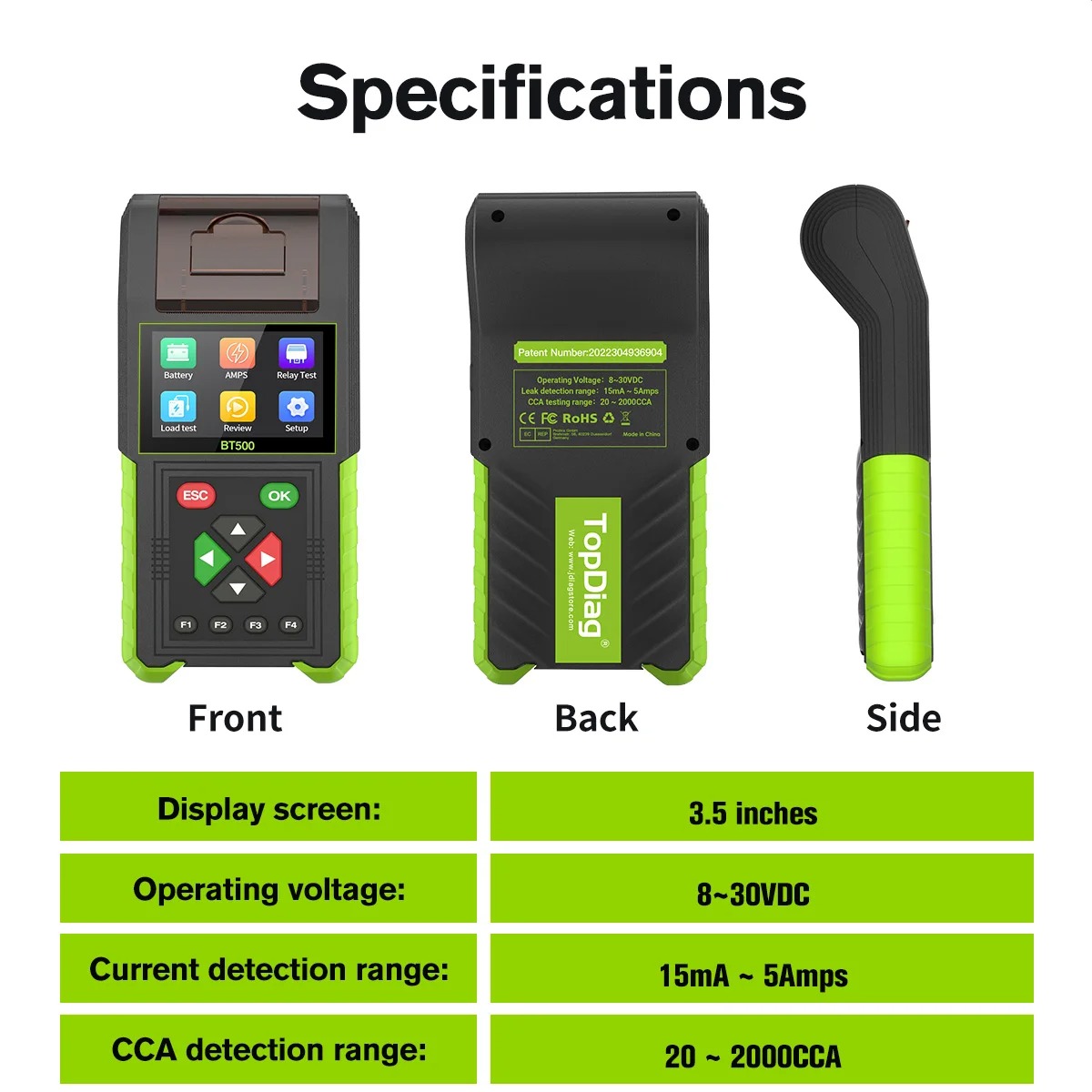

Working voltage: 8-30VDC

Leakage current detection range: 15mA ~ 5Amps

Battery CCA detection range: 20 ~ 2000CCA

Support multiple specifications: CCA, JIS, GB, SAE, MCA, CA, DIN,

IEC, EN, BCI.

Supports the measurement of 12V and 24V batteries.

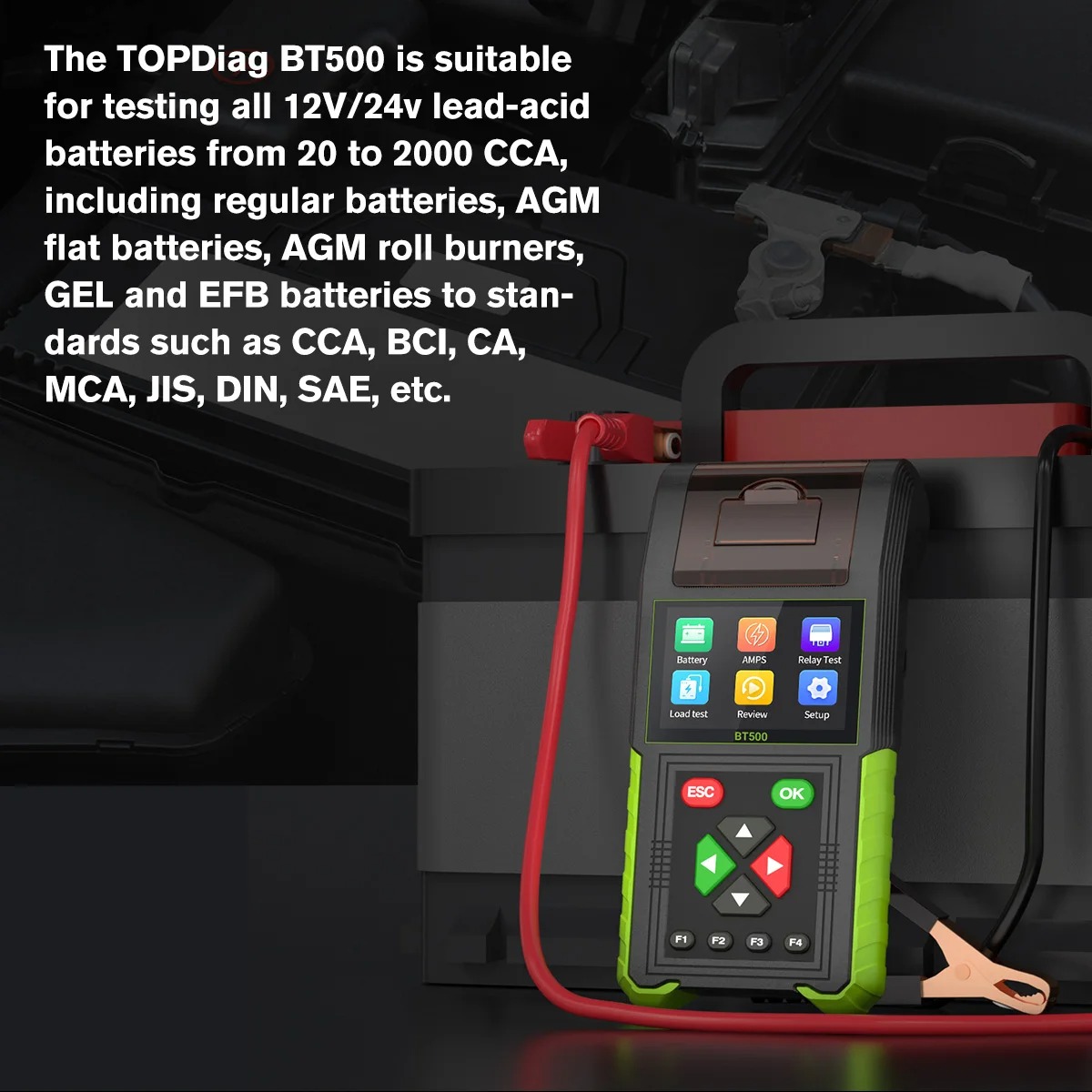

Compatible with all 12V/24V lead-acid batteries

20-2000CCA can be tested

Battery Testing

Red clip for positive terminal,black clip for negative terminal

Built-in temperature sensor,

real-time temperature monitoring functionCan accurately determine the degree ofinfluence of temperature on battery performance

please replace

Built-in self-recovery cut-off, cut-off current: 5Amps, if input current>5Amps

The internal limit is within 5Amps

Clip the battery clip connected to the spare battery, the negativeterminal of the car connected to the battery is disconnected,using the special clip for leakage testing, select the negativebus connected to the car, the leakage current of the car can bemonitored and recorded in real time.

Load test:

Real-time recording of voltage fluctuations as the car starts and shutsoff the load Accurately determine the health of the battery

15 Languages Supported:

English

Spanish

German

French

Simplified Chinese

Italian

Portuguese

Traditional Chinese

Polish

Japanese

Korean

Malaysian

Indonesian

Russian

Filipino
