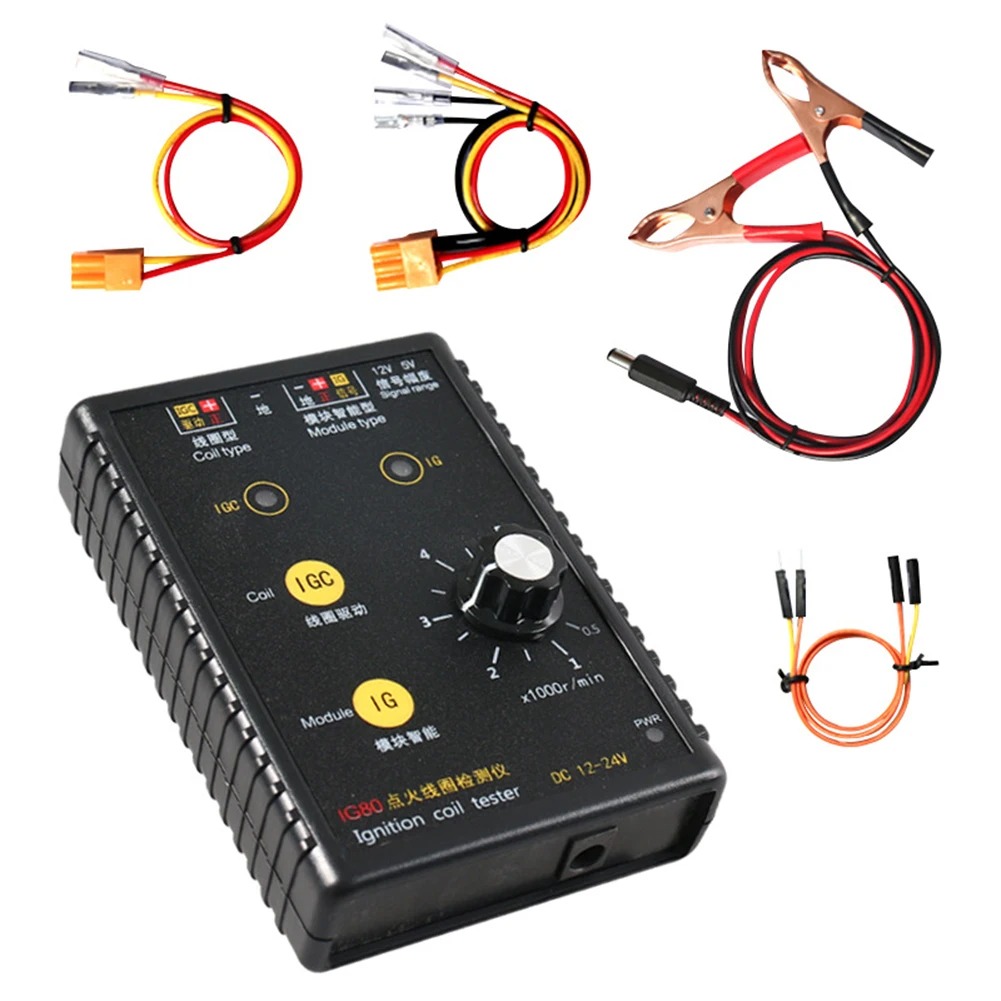

IG80 Automotive ignition coil tester for automotive natural gas 12V-24V gasoline 12V coil ignition test module, automotive diagnostic tool+FD-10 ignition coil discharge device used in combination

IG80 Automobile Ignition Coil Detector Natural Gas Gasoline Car Engine Ignition Coil Tester Vehicle Diagnostic Tools
Feature:
This product is an automobile ignition coil detector made of high-quality materials. It has scientific design and practical functions.
It is an excellent natural gas ignition coil detection tool and a special tool for car repairers.
It is made with craftsmanship, durable, convenient, worry-free, efficient and practical, and will bring you a good experience.
It can effectively help you complete the detection of car ignition coils and effectively prevent potential safety hazards.
The engine speeds adjustment button can provide you with a simpler and easier detection method.
The design of the product is reasonable, with non-slip design, can better serve you.
This is a very practical ignition coil tester, which can bring you more convenience.

Specification:
Colour: Black
Material: ABS + copper + rubber
Size: about 11.00x7.50x3.00cm/4.32x2.95x1.18in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

FD-10 Ignition Coil Discharger

Sockets 1/2/3 are all ignition coil high voltage positive sockets
Socket No.1, flashover voltage 25KV-30KV (old style ignition coil)
Socket No.2, flashover voltage 30KV-35KV (currently mainstream ignition coil)
Socket No.3, flashover voltage 35KV-40KV (high energy ignition coil)

Ignition coil insulation leakage test method:
1. Connect the arrester and ignition coil according to the wiring method. The arrester will flash normally.
2. Connect the negative electrode clamp to the ground socket, move the negative electrode clamp close to the ignition coil insulating rubber sleeve
3. If the negative electrode clip flashes and the discharger stops flashing at the same time, it means there is insulation leakage here.
Colour:Black
Material:Plastic

Package Contents:
1 * Ignition arrester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
