Full Chip DOIP C4 Multiplexer SSD 2023.09 MB Star C4 Sd Connect For MB Car Truck Support 12V & 24V WiFi Auto Diagnostic-Tool

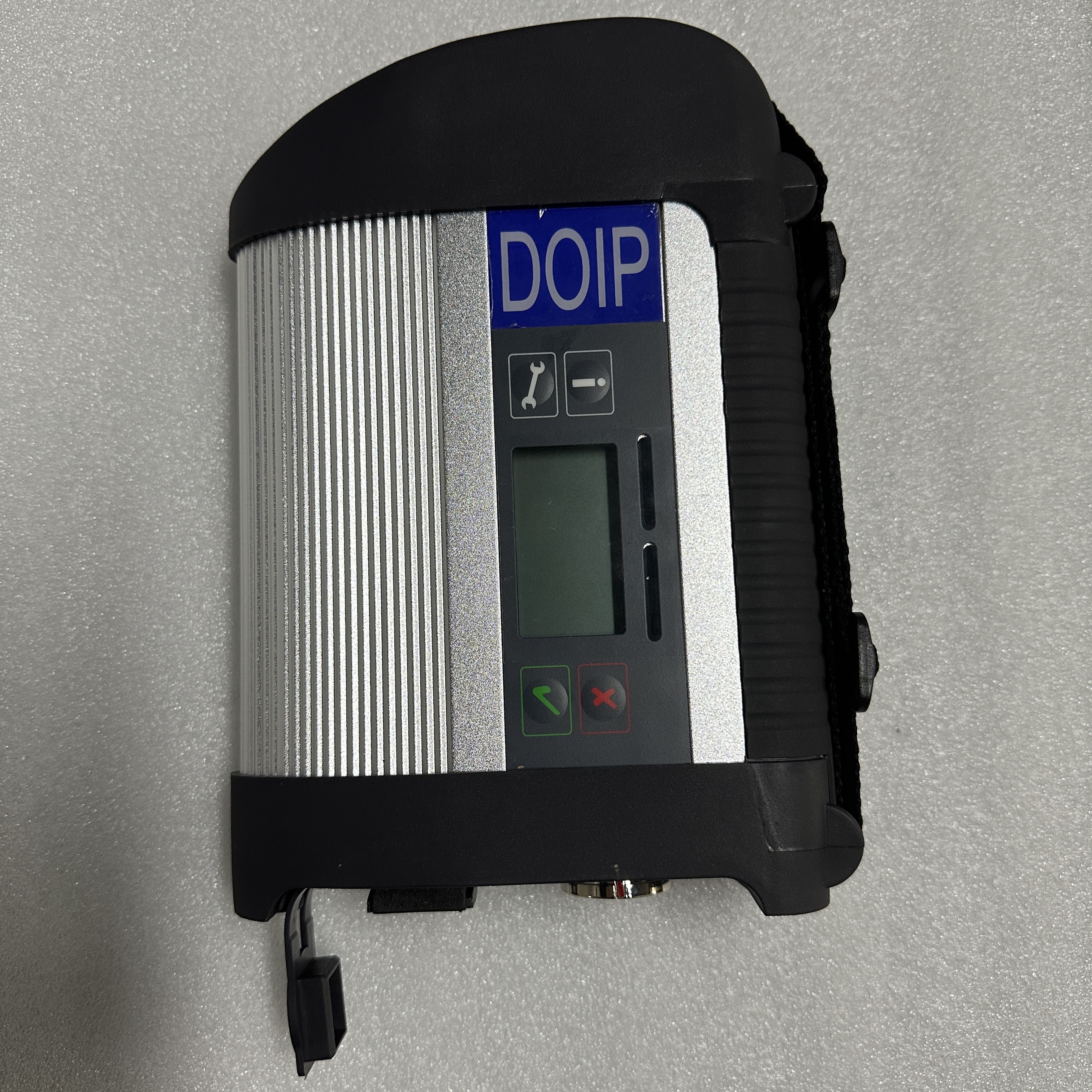

SD Connect C4 Features

1. New for MB SD Connect Compact 4 Star Diagnosis support wireless diagnose;

2. New for MB SD Connect Compact 4 Star Diagnosis not only support K line

diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR

C4 main board do not have UDS chip, so old MB STAR C4 can not support it;

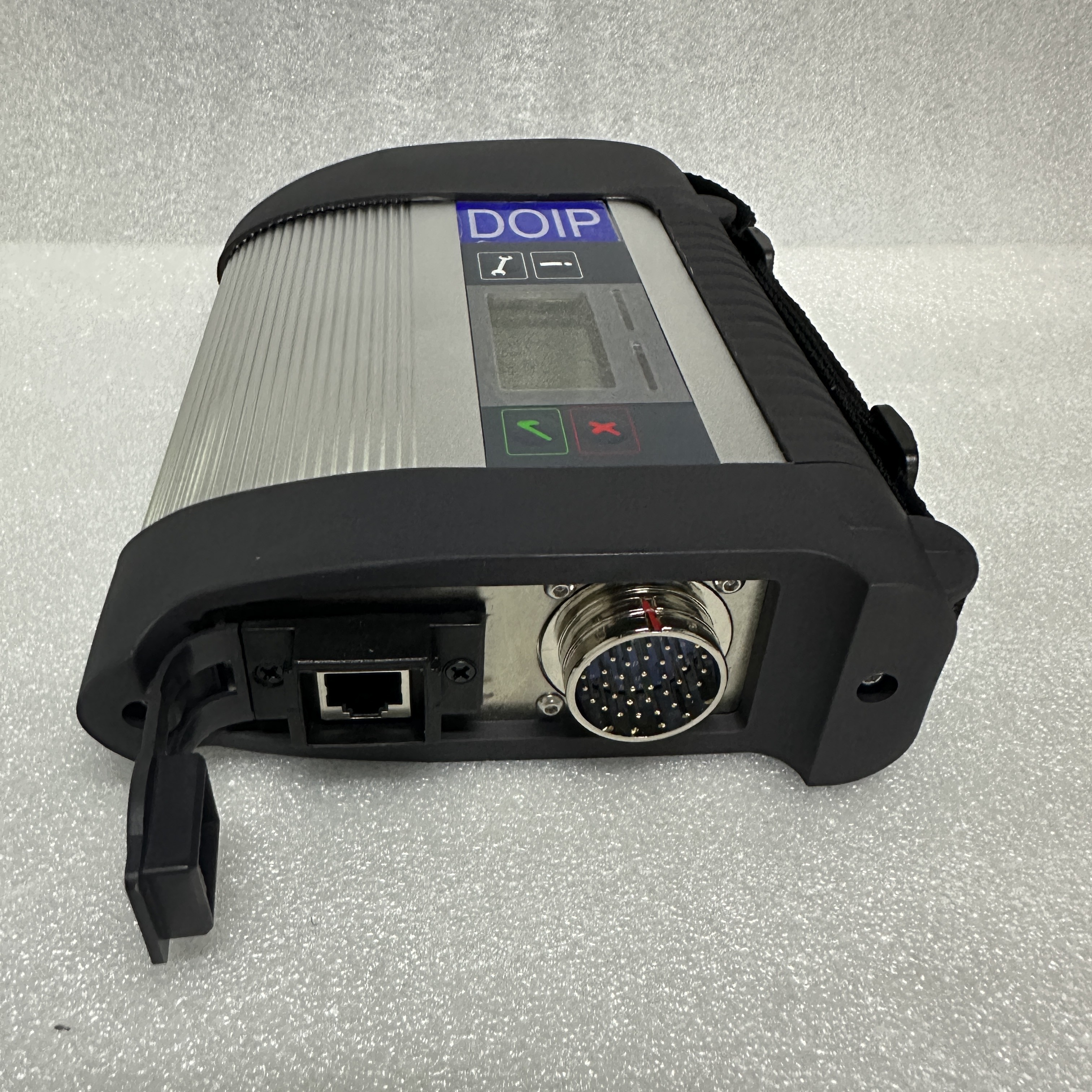

3. Multiplexer now use Lan cable to connect, can fit most laptops, but don't use HP..

4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;

5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

Support DOIP

DOIP is ISO 13400 diagnostic protocol

ISO 13400-1:2011 describes the general use cases and communication scenarios which are covered by an Internet Protocol-based vehicle communication standard.

Each use case drives specific communication capabilities of the vehicle communication interface, for instance in order to be interoperable in an existing computer network.

The diagnostic communication over Internet Protocol (DoIP) protocol supports the standardized service primitive interface as specified in ISO 14229-2.

The descriptions in ISO 13400-1:2011 cover different application layer implementations, such as:

enhanced vehicle diagnostics (system diagnostics beyond legislated functionality, non-emissions-related system diagnostics);

W-W-H-OBD (World-Wide Harmonized On-Board Diagnostics) as specified in ISO 27145-2 and ISO 27145-3.

The me-c-des Land Rover JLR all use this new Diagnostic Protocol now.

Where need DOIP device

when we test merc edes new car like w222 w205

In Audio\Comand section you can find DoIP test page.

If cable is DoIP you will see green mark that cable is Ok.

Xe-ty will prompt you that proper cable must carry yellow marks.

Softwares list:

1) DAS: the automatically Diagnosis Assistance System

2) Xe-ty: New software released by for B-z Company after 04/2009 by diagnosis new cars.

3) WIS.net: Workshop Information System

4) EPC.net: Electronic Parts Catalog

5) ST Finder 2020: Part location finder

6) STARUTILITIES : the movement management system and self-test

7) SD Media : Video and PDF lessons

8) PL 76: Price List to find out how much price by input the parts number

9) Smart TAN Code: Opened special function in DAS program with Smart cars 450/451/452/454

10) Developer model: M-B engineer mode, remove limitations and open more functions.

11) for B-z Disassembly system: Video lessons to teach you how to remove each

12) part from for B-z cars with details order steps.C4.

Available cars For Reference

Passenger car support list:

A(176),
A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202),
190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220),
S(140), S(126), E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230),
SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(463), G(461),
E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140),
CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140),
SLK(172), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164),
M(163), G(460), GL(164), GLK(204), R(251)

Van support list:

MB
100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan,
Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

Truck support list:

Actros963/4,
Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego
Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model
series

Unimogs support list:

U20, UGN, UHN

Busses support list:

TRAVEGO,
INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO,
O404, O405-O408, Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500,
O500/OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES

Super sports cars support list:

SLR(199)

Industrial major assemblies support list:

OM904/924,
OM906/926, OM457/460, OM501/502, GROVE5095, GROVE5110, GROVE5130-3,
GROVE5130-1, GROVE4100, GROVE5100, TerexAC60, TerexAC100, LTM 1030-2.1,
LTM 1040-2.1, LTC 1045-3.1, MTU 4R1000, MTU6R1000, MTU6R1100, MTU6R1300,
MTU6R1500

Specification

Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems

Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s

Drive Authorisation System

Engines (All Gasoline & Diesel Systems)

Transmissions and Electronic Selector Modules

Airmatic and Active Body Control Suspension Systems

Sam (Signal Acquisition) Modules

Electronic Ignition System (EIS)

Pneumatic System Equipment and ATA functions

Air Conditioning / climate control Systems

Instrument Cluster

Tyre Pressure Control

Parktronic System

Keyless Go

D2b Command & Audio Gateway (D2B and MOST networks)

TV Tuner

M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)

Assyst & ASSYST + systems

Headlamp Range Adjustment

Seat Electronics

Rvc, RST & Vario Roof modules

Automatic Clutch System ACS

Multi-Languages:

English, Chinese,Czech, Danish, German, Greek, Spainsh, Finnish, French, Hungarian, Italian, Japanese, Korean,Dutch,Polish,Portuguese,Romanian,Russian,Serbo,Slovak,Slovenian,Swedish, Turkish

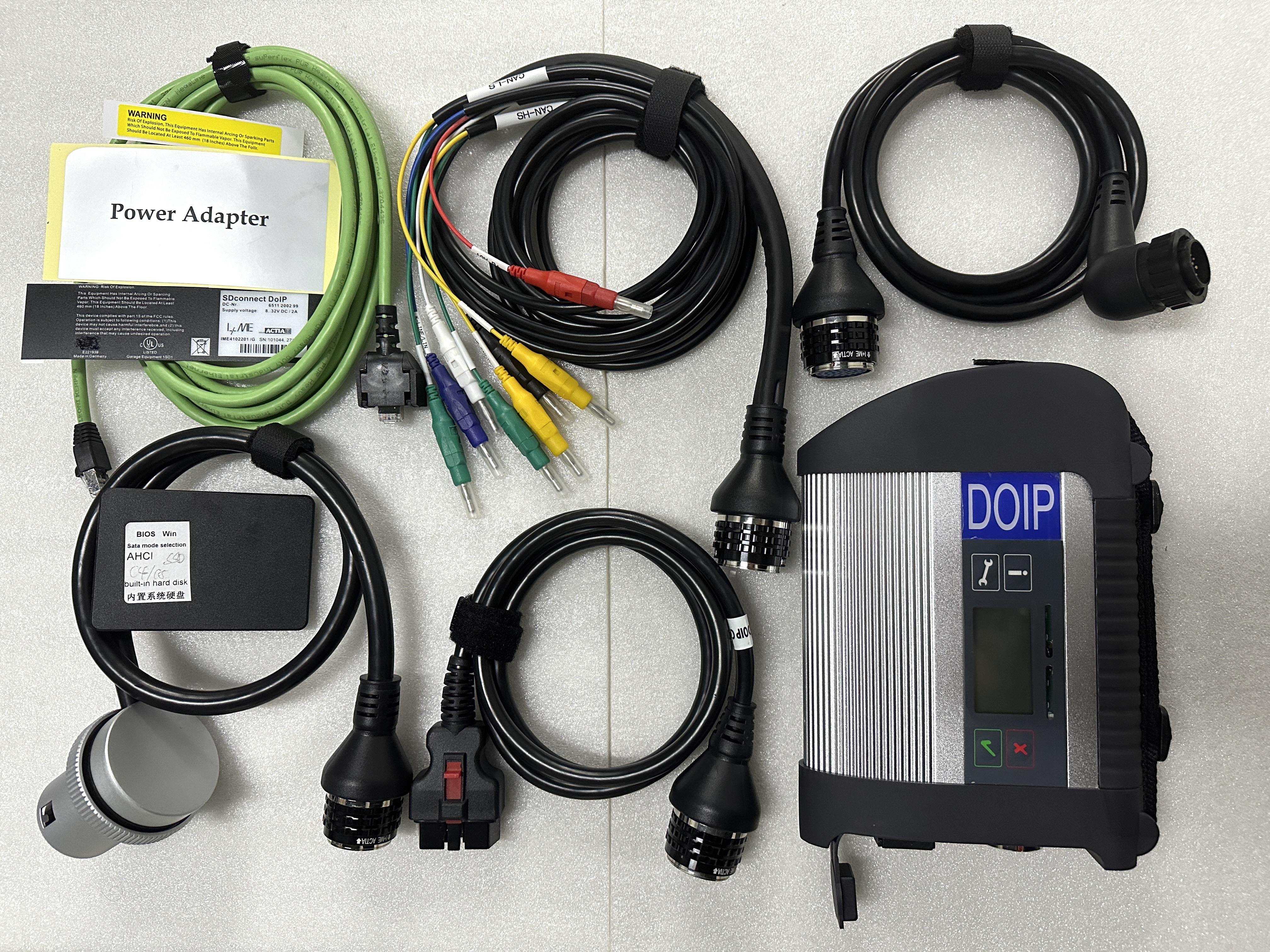

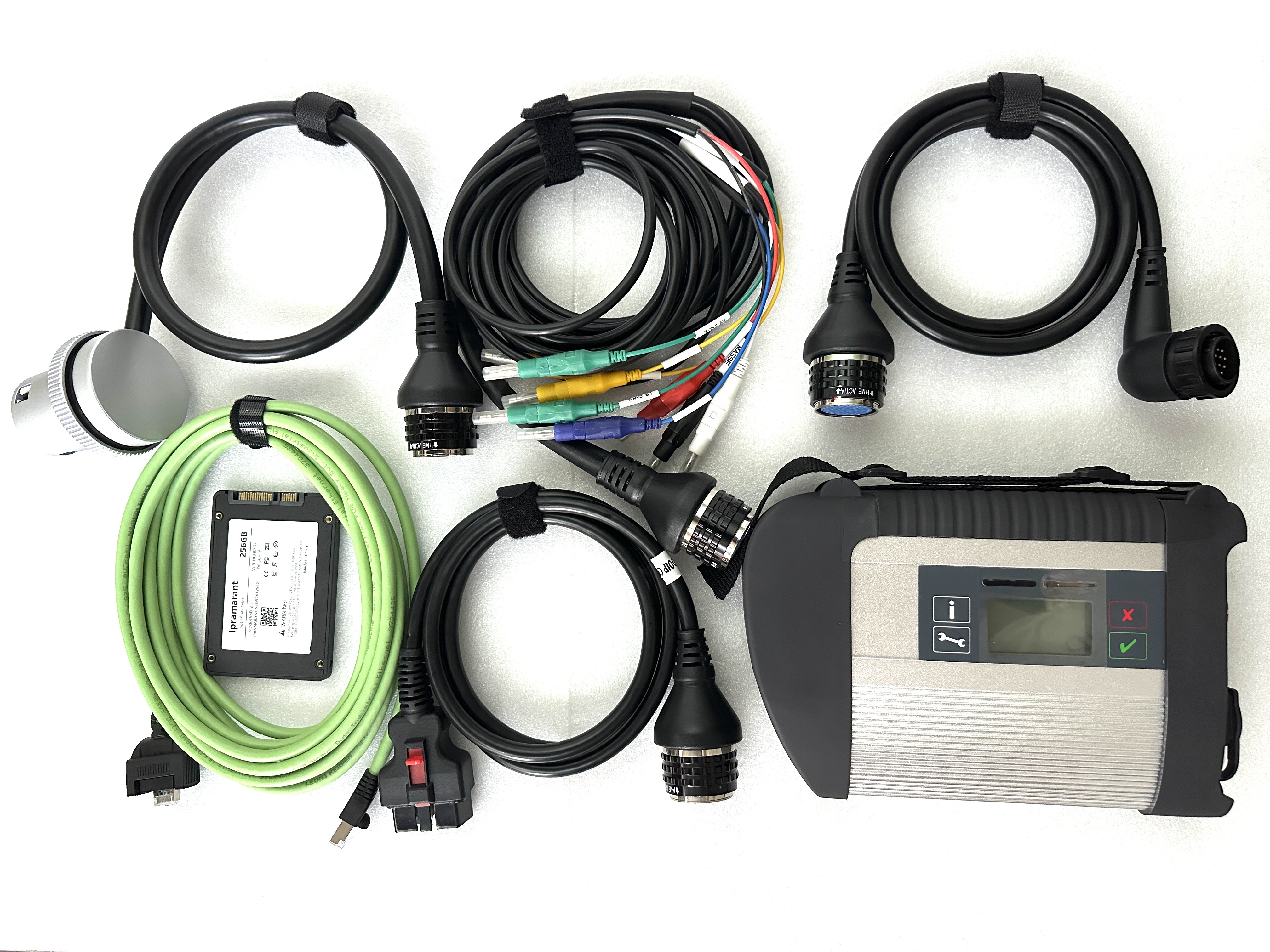

Product included:

1pc x mb star c4 Multiplexer

1pc x OBDII 16PIN Cable

1pc x 38PIN Cable

1pc x 14PIN Cable

1pc x 4PIN Cable

1pc x Lan Cable

1pc x SSD with software
