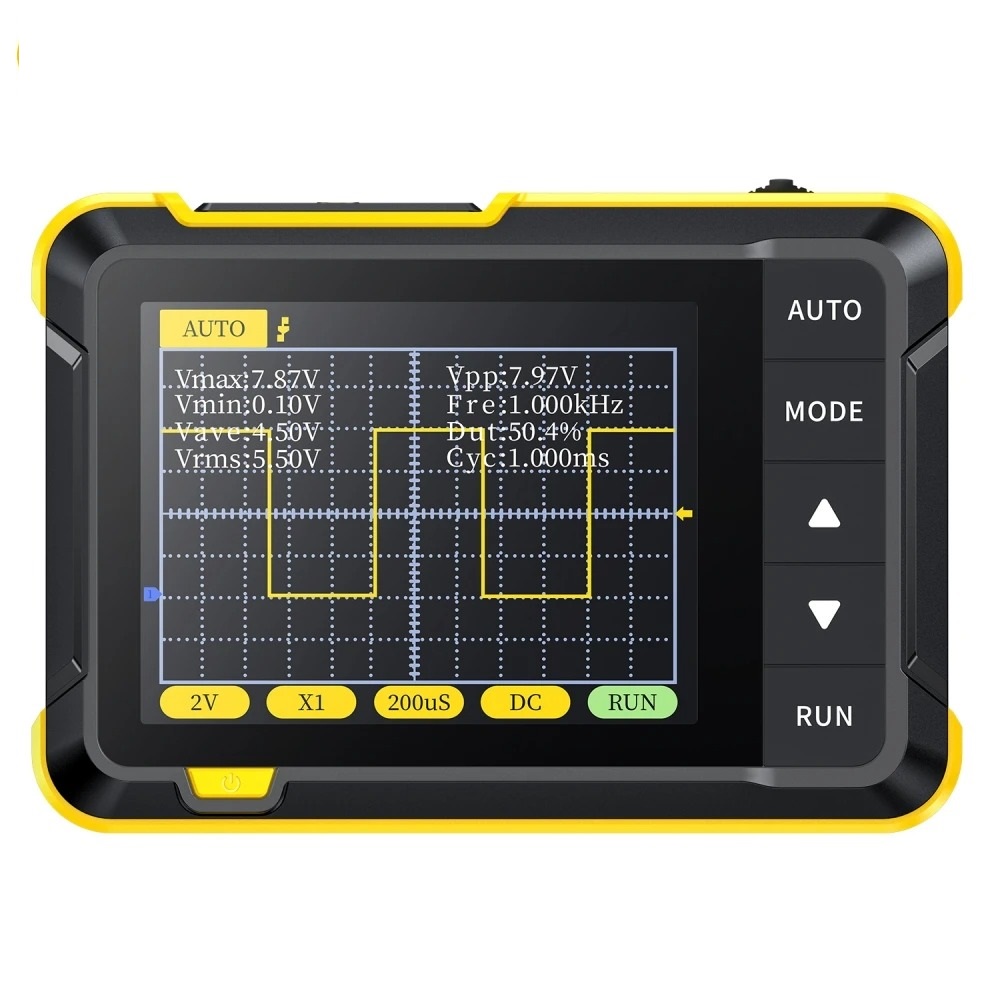

FNIRSI DSO152 Mini Handheld Digital Oscilloscope 2.5MSa/s 200KHz Analog Bandwidth 800VPP Support Firmware Upgrade PWM Output
$82.99$62.99
Out of stock
Describe
"DSO152" is a highly practical and cost-effective handheld oscilloscope launched by our company, which is aimed at the maintenance industry and the research education industry. The oscilloscope has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V. Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen. Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.
Sampling rate：2.5MS/s
Bandwidth：200K
Vertical sensitivity：10mV/Div-20V/Div(Progress according to the 1-2-5 way)
Time base range：10μs/Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range：X1:40V (Vpp:80V) X10: 400V (Vpp :800V)
Trigger method：Auto/Normal/Single
Coupling method：AC/DC
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Square wave calibration：Frequency: 1K Duty cycle: 50%
Size：99x68.3x19.5mm

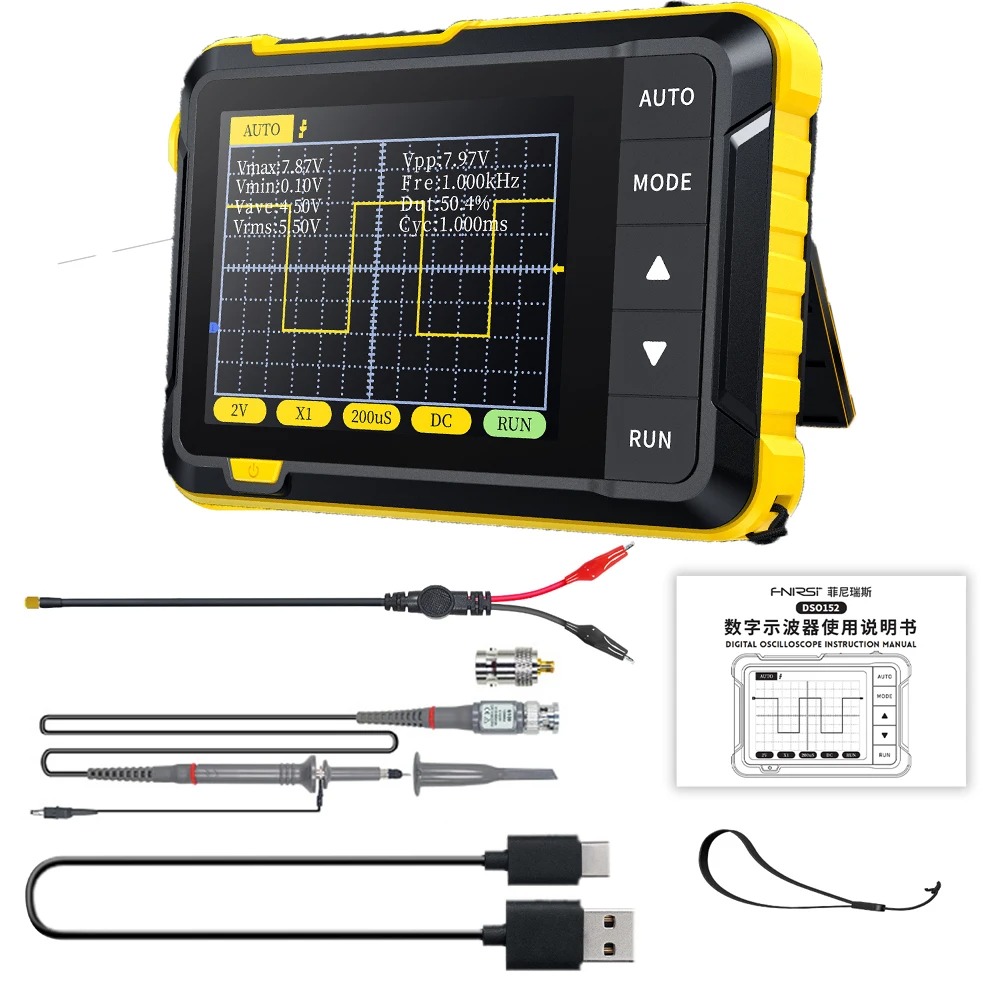

package：
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
