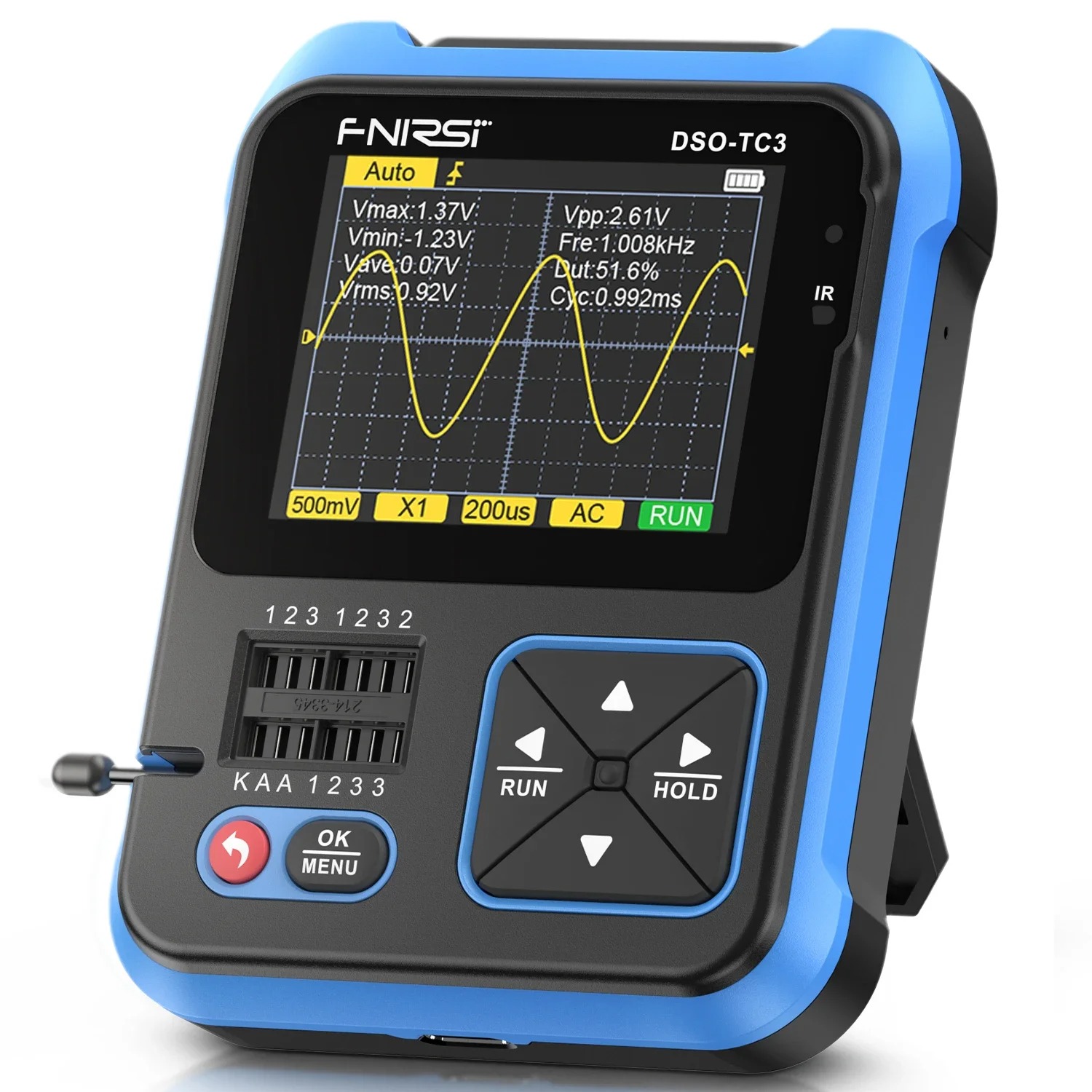

FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1 Multifunction Electronic Component Tester

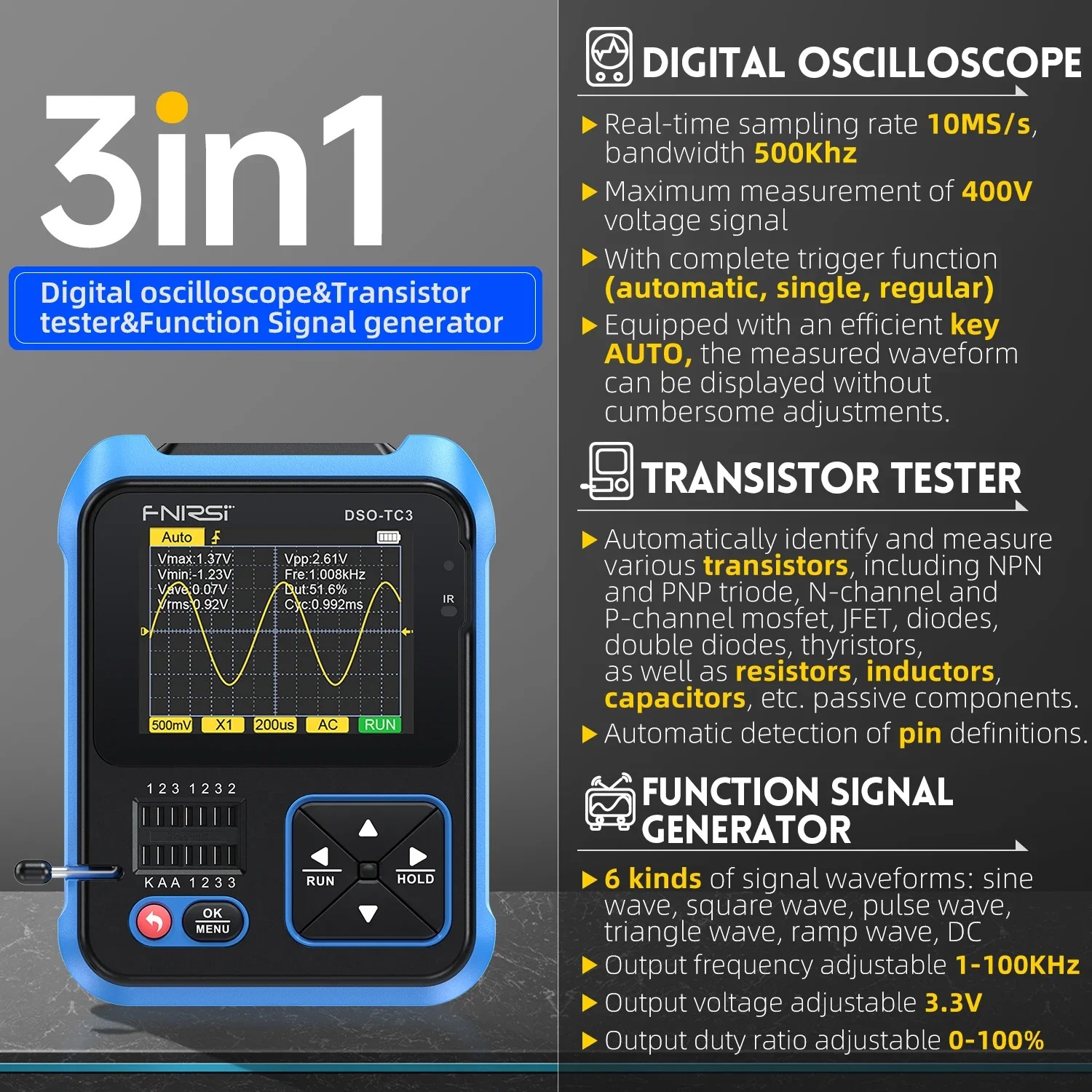

Oscillograph

Real-time sample rate：10MSa/s

Analog Bandwidth：500Khz

Input resistance：1MΩ

Coupling method：AC/DC

Test voltage range：400V

Vertical Sensitivity (x1)：10mV-10V

Horizontal time base range：1us-10s

Trigger mode：Auto / Normal / Single

Trigger type：Rising edge / Falling edge

Waveform Freeze：Yes

Automatic measurement：Yes

Transistor tester

Triodes：β is greater than 10 and less than 600

Diodes：Forward voltage drop <4.5V

Reglulated diode：0.01~32V

MOSFET：JFET，IGBT，MOSFET

SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA

TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor：25pF~100mF

Resistor：0.01Ω~50MΩ

Inductor：10uH~1000mH

Battery：0.1~4.5V

Input voltage：0~40V

DS18B20：0-85℃

DHT11：0-60℃/5-95%

Infrared remote decoding：NEC protocol infrared cod

NOTE：

①Ices, Iceo, Uf are only displayed when they are valid.

② Junction capacitance and reverse leakage current are only displayed when they are valid.

③The turn-on or turn-off voltage of the FET must be less than 5V.

④ Displayed only when there is a protection of diode.

⑤Vloss is only displayed when it is valid.

⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.

Function Signal Generator

sine wavel：1-100KHz/0-3.3V/50%

Square wave：1-100KHz/3.3V/50%

Pulse wave：1-100KHz/3.3V/0-100%

Triangle wave：1-100KHz/0-3.3V/50%

Ramp：1-100KHz/0-3.3V/0-100%

DC：0-3.3V

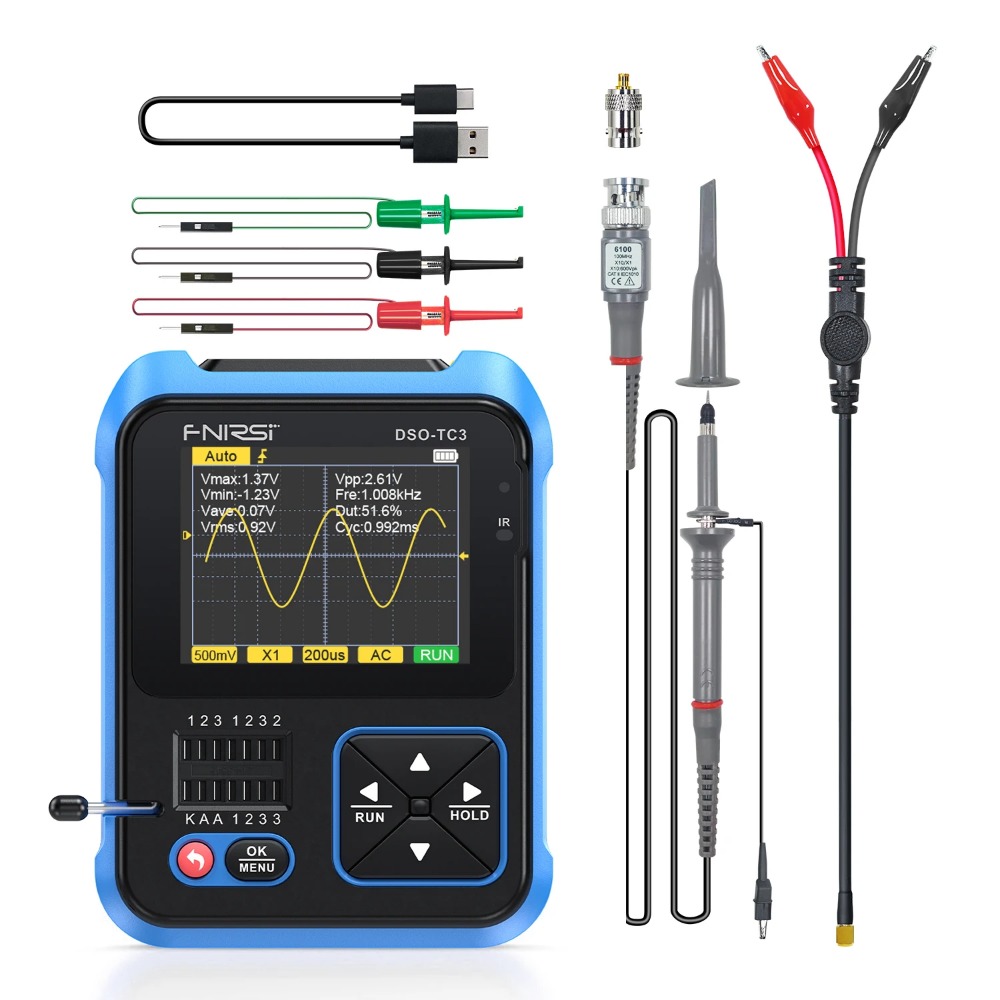

package：

DSO-TC3 *1

Ordinary probe*1

Test hook*3

Type-C charging cable*1

Packing box*1

Manual*1
