FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter + Function Signal Generator 3IN1 Dual Channel 10MHZ*2 50MS/s

Description:

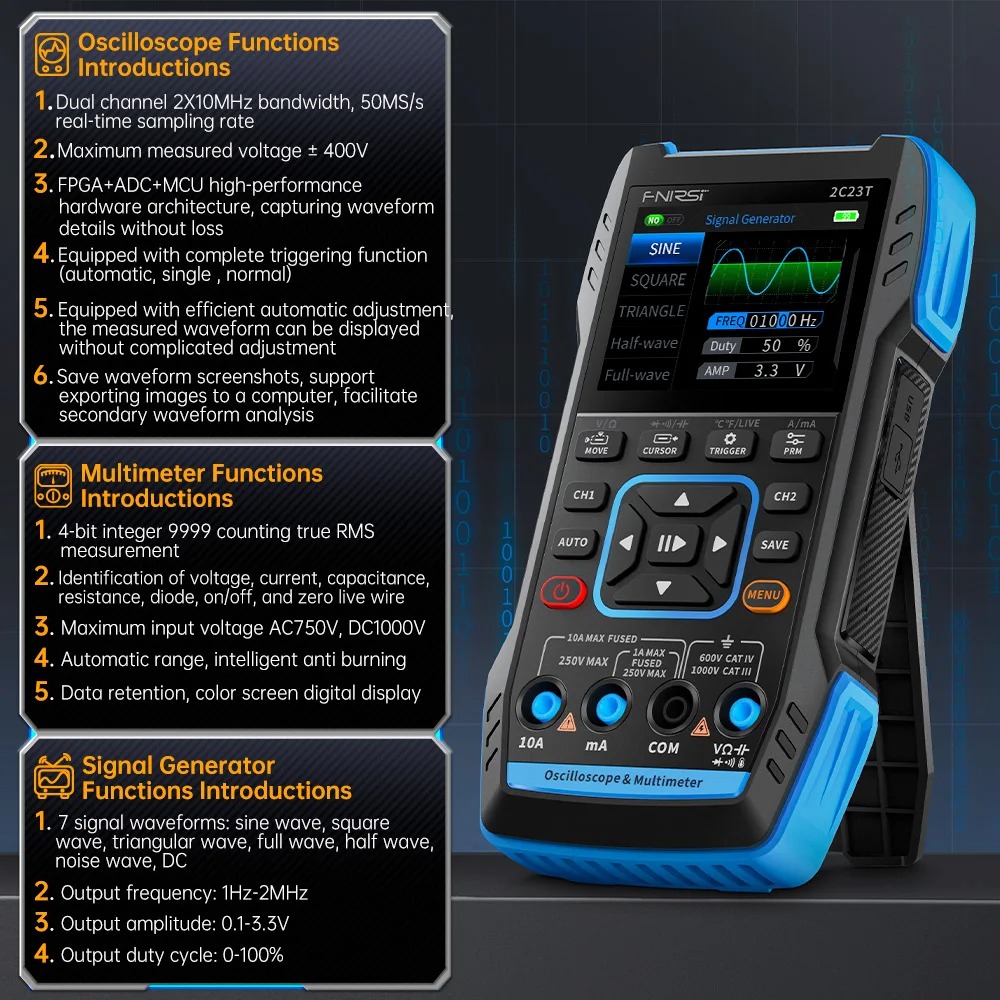

FNIRSI-2C23T is a fully functional, highly practical, three-in-one channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI.

This device is equipped with three main functions oscilloscope, multimeter, and signal generator.

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;

Support for saving and viewing waveform screenshots for analysis. The multimeter has a 4-digit 10000-point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off, and other measurement functions.

Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

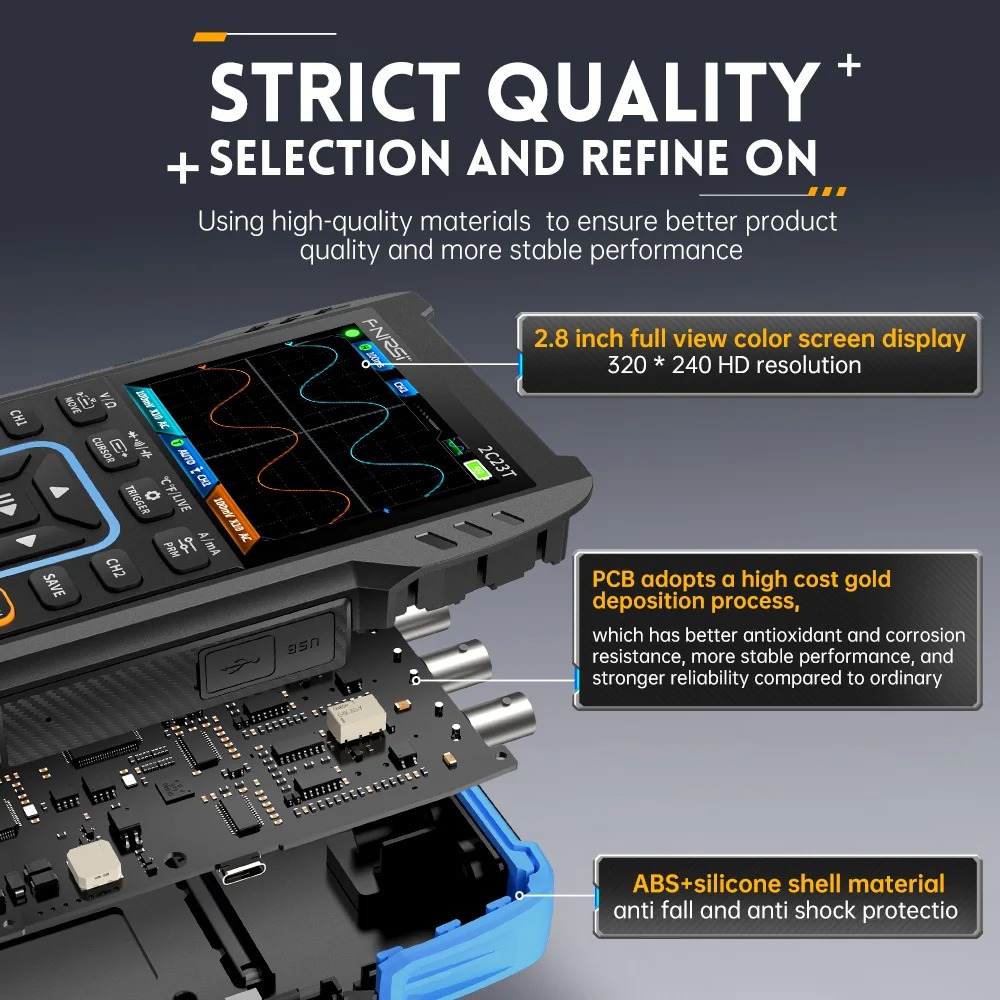

Using a 2.8 inch 320 * 240 resolution high-definition LCD screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provides users with more and stronger practical functions in a compact size, while also having good portability.

Oscilloscope

Channel：Dual channel

Sample rate：50M

Analog bandwidth：10M(dual channel independent 10M)

Storage depth：32kb

Impedance：1MΩ

Time Base Range：50ns-10s

Vertical sensitivity：20mV/div-10V/div（X1）

Maximum measured voltage：±400V

Trigger mode：AUTO/Normal/Single

Trigger type：Rising edge, Falling edge

Display mode：YT/Scroll

Coupling method：AC/DC

Save waveform screenshot：Yes

Export waveform images：Yes

Multimeter

DC Voltage：9.999V~999.9V

AC voltage：9.999V~750.0V

DC current：9999uA~9.999A

AC current：9999uA~9.999A

Resistance：999.9Ω~99.99MΩ

Capacitance：9.999nF 99.99mF

Temperature：(-55~1300℃)/(-67~2372℉)

Diode：Yes

Continuity test：Yes

Live line detection：Yes

Function Signal Generator

Channel：Single channel

Frequency：1Hz-2MHz

Amplitude：0.1-3.3V

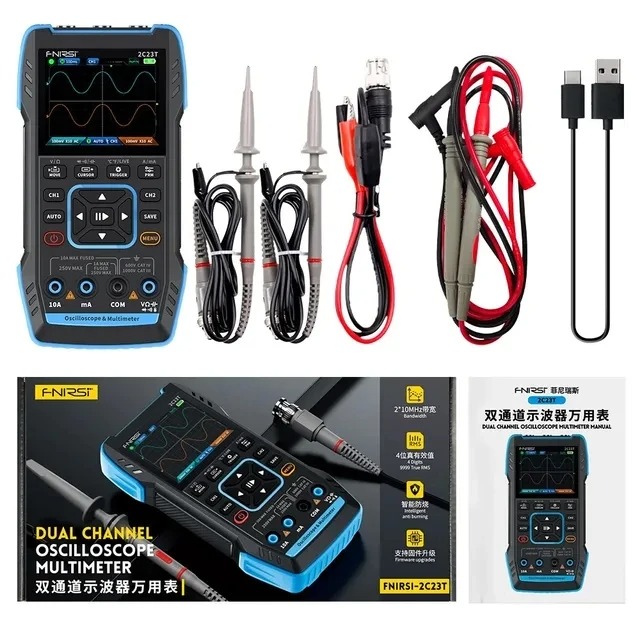

The packaging includes:

2C23T *1

P6100 Probe *1

Crocodile clip probe *1

Multimeter Probe *1

Charging cable *1

User Manual *1

Packaging box *
