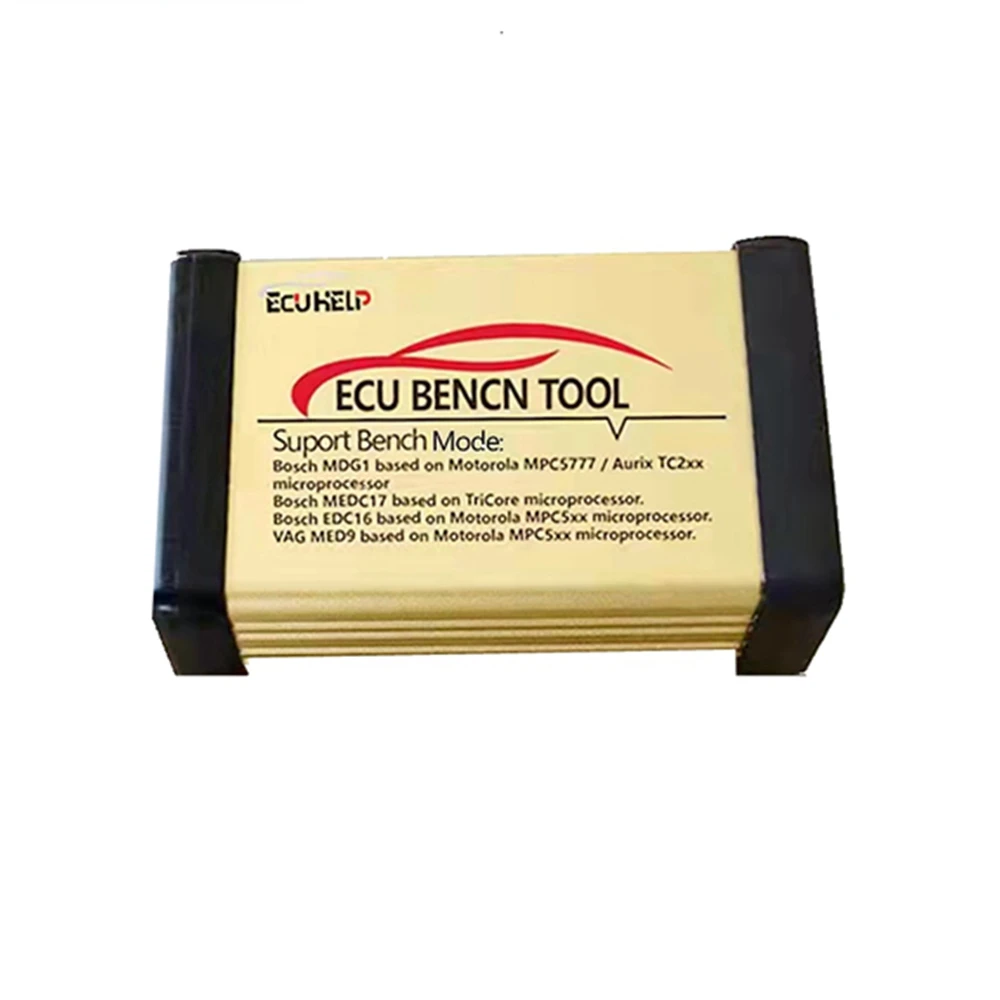

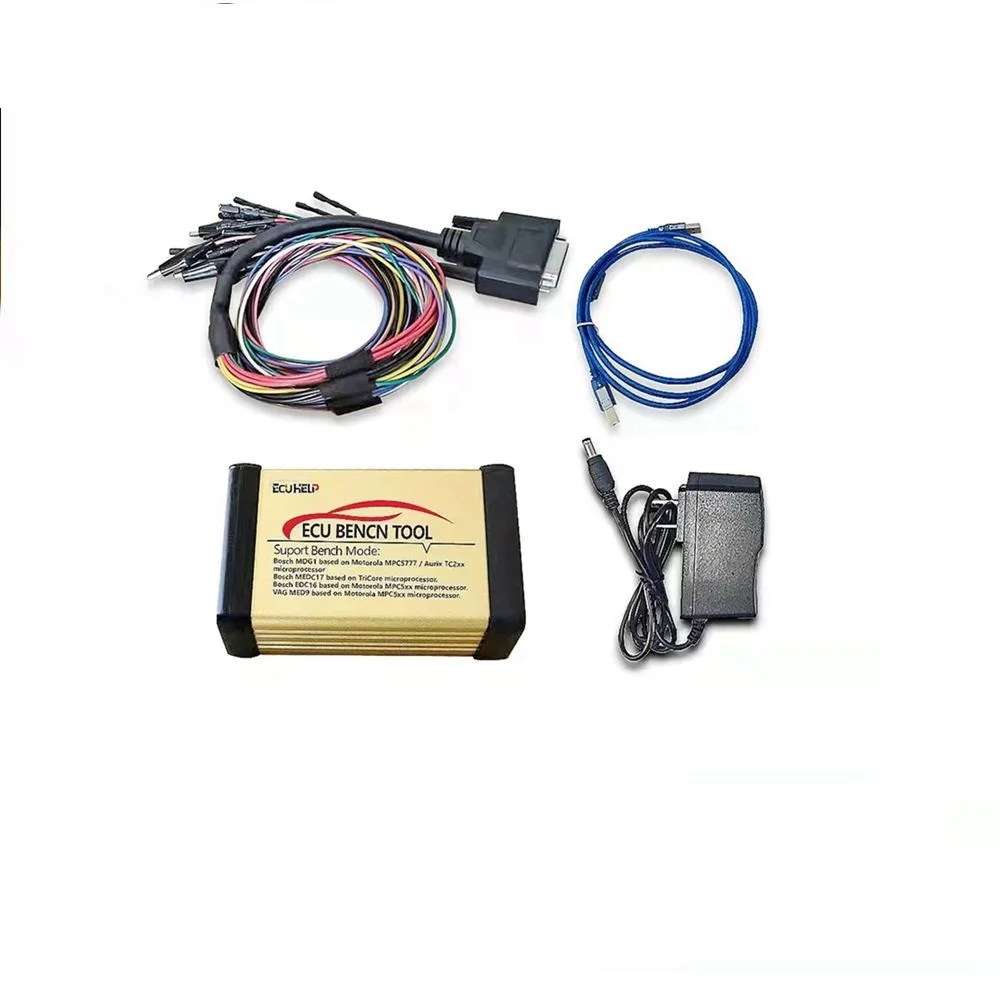

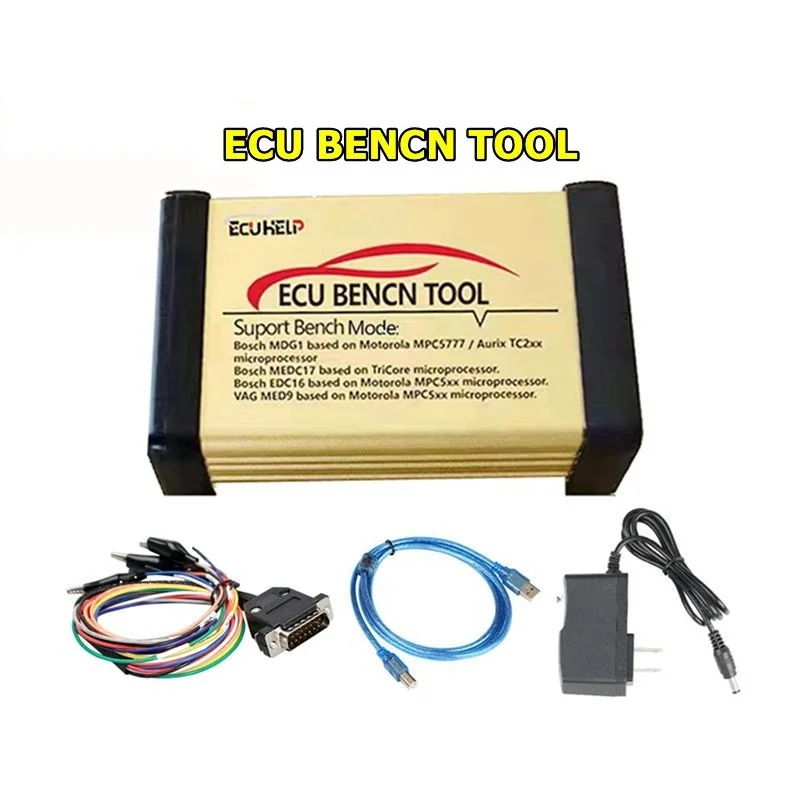

ECU Bench Tool ECUHELP Full Version Read & Write ECU Flash Checksums Support Bosch MEDC17/MDG1/EDC16 and For VAG/VOLVO MED9

Description:

ECU Bench Tool is a universal bench service tool.The software automatically detects the ecu and memory types, which simplifies the process for the user. Access to the available memories is then granted, the software allows you to individually read / write the desired data.

ECU Bench Tool allows to read/write Bosch EDC ECU's using the TriCore processor on bench without actually opening the lid - which also includes access to the full flash areas (IROM/XROM and EEPROM).

Thus, this will make a lot easier for engine controllers for which OBD programming protocols are not yet available, it will speed up the task of working with such vehicles no end.

Note!!

This tool is available as a master only. Flash checksums are included!

Allows network connection.

Bench mode and boot mode operation.

Functions:

Ecu Bench Tool Currently Supports (KTM FLASH 67IN1 does not supports those):

Bench mode: Bosch MEDC17 based on TriCore microprocessor.

Bench mode: Bosch MDG1 based on Motorola MPC5777 / Aurix TC2xx microprocessor

Bench mode: Bosch EDC16 based on Motorola MPC5xx microprocessor.

Bench mode: VAG/VOLVO MED9 based on Motorola MPC5xx microprocessor (Other brands using ME(D)9 are currently not supported, will be added in future)

ECU BENCH TOOL Software V1.2:

AMT BENCH Service Tool ,Read and Write ECU

ECUHelp 2.0 Free Use, check wiring diagram, download VR file and tuning file .Free Update Online

ECUHelp 2.0 Function:

Wiring picture: to search and download wiring diagram

Virtual file: download virtual files

Tuning file: download ecu tuning file

ECU Service: DPF EGR REMOVE, DTC OFF
