DUOYI DY4200 Digital 3-Terminal Earth Resistance Tester Digital Earth Ground Resistance Tester Multimeter Meter Electrical Instrument 0.01 - 2000 ohm

DUOYI DY4200 Digital Earth Ground Resistance Tester AC Voltage of Power Electrical Lightning Protection Equipment Tool
Digital earth resistance tester DY4200 is a new generation tester for electrician practice which is developed by DUOYI in recent years. The circuit, structure and technique of traditional earth resistance tester have been improved and the new design is both fine-looking and practical. This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.
It can test earth resistance of various earth systems including power systems, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.
Ground resistance measurements from 0.01Ω to 2000Ω with 0.01Ω resolution.
Complete with test leads, auxiliary earth bars, (not include battery)

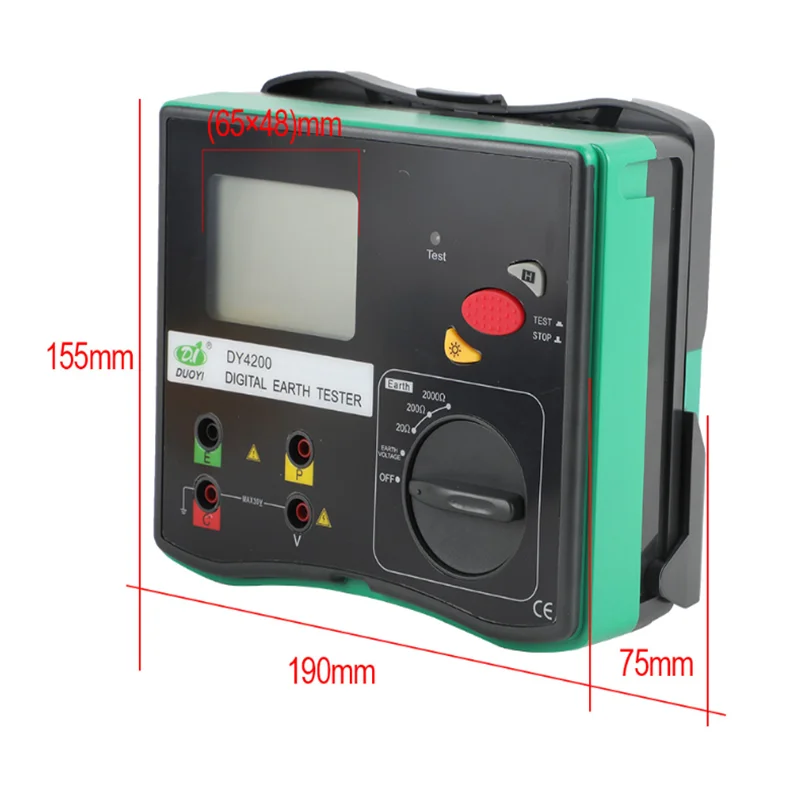

DUOYI DY4200

Earth ground resistance measurements from 0.01 ohm to 2000 ohms with 0.01 ohm resolution

Data hold, low battery warning

Complete with test wires, auxiliary earth bars, heavy duty oxford fabric bag and six 1.5V AA batteries

Feature:

1.Backlight display

2.Low battery reminder

3.Data hold

4.Low energy consumption

5.0-2000Ω

6.Automatic zero calibration

7.Insulation resistance

8.AC voltage

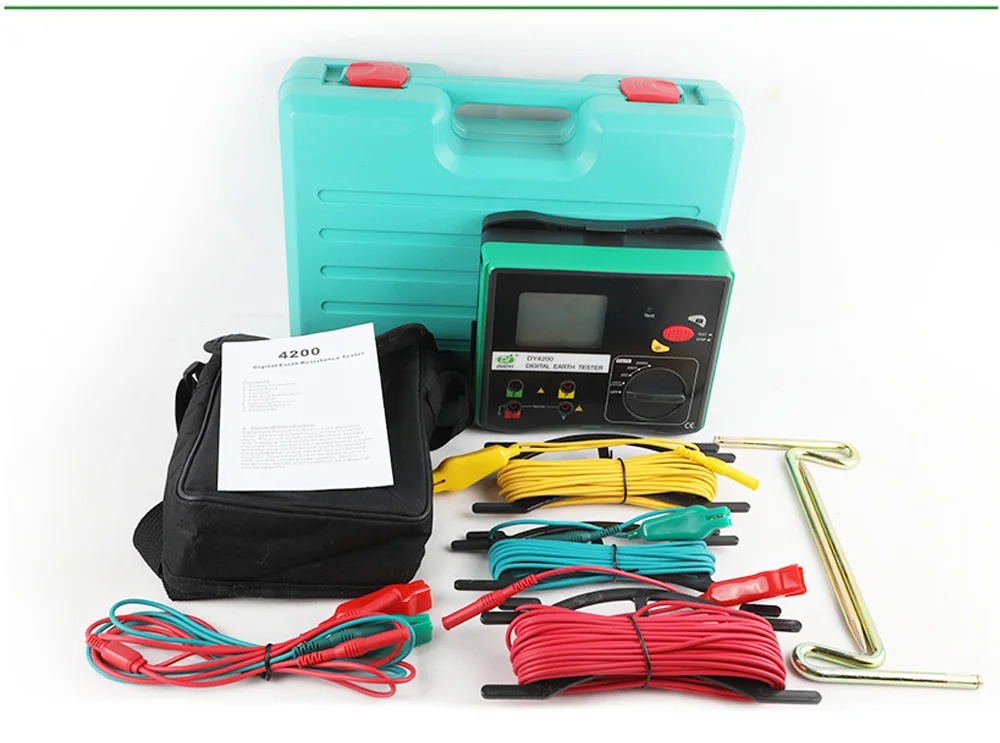

Packing list
1) auxiliary earth spike* 2
2) testing wire
(red 15-meter testing wire*1/
yellow 10-meter testing wire*1/
green 5-meter testing wire*1)
3) simple testing wire
(red 1.6-meter testing wire*1/
green 1.6-meter testing wire*1)
4) 1. 5V AA battery* 8（Not included）
5) instruction manual 1
6) tool bag 1
7) carrying case* 1
