DUOYI DY260 Automotive Current Detector Fuse Current Meter Automotive Current Tester Circuit Inspection Instrument Current Clamp

DUOYI DY260 Automotive Current Detector Fuse Current Meter Automotive Current Tester Circuit Inspection Instrument Current Clamp

Automatic conversion and manual switching of AC/DC are both available by latest digit-integrated technology. It features one auto-zero button instead of rotating zero knob. Advantages including non-contact measurement, high accuracy, strong anti-interference, auto range and portability benefit users operate measurement fast, safely and reliably.

It is most available for automotive repair industry and power related industry.

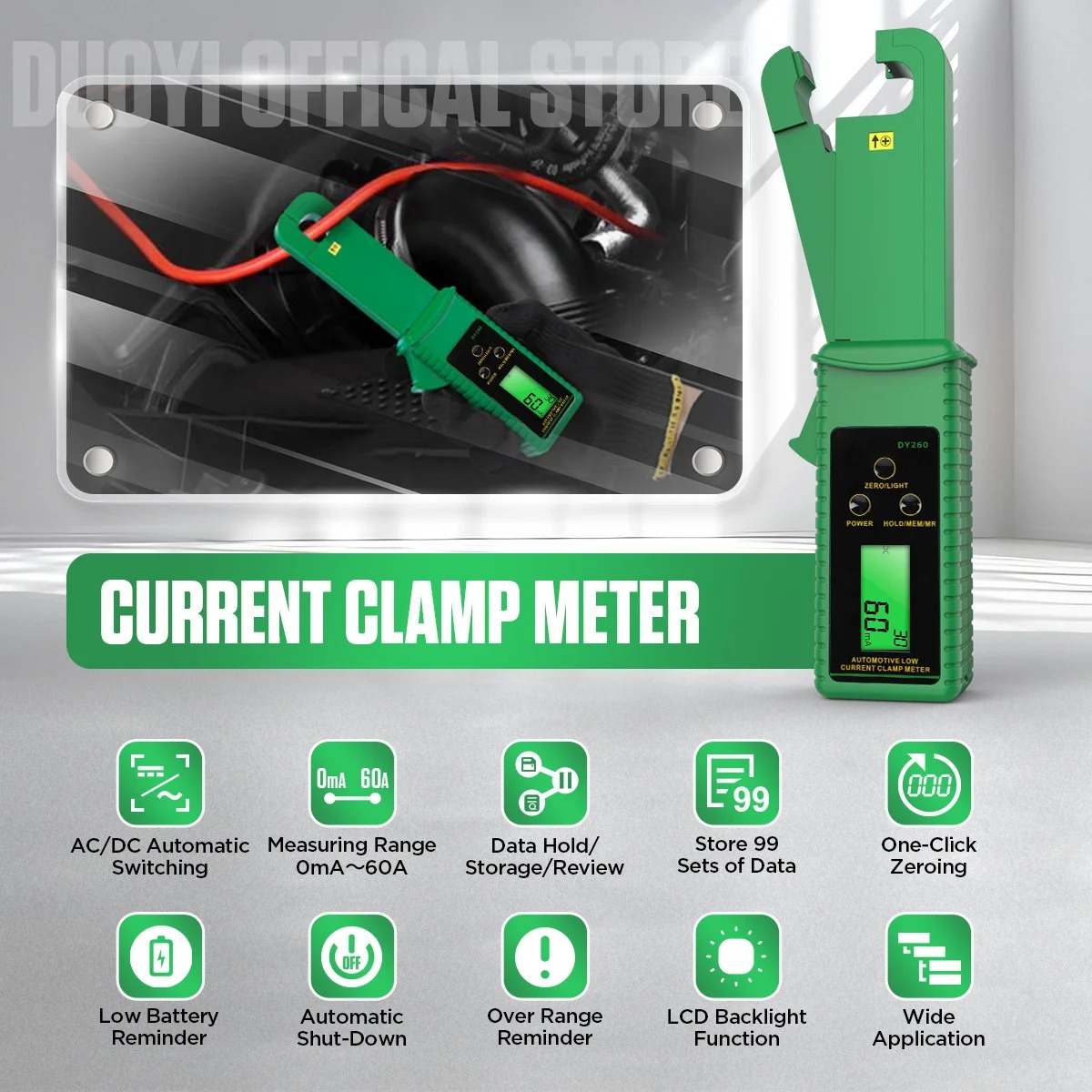

Automotive Repair Industry

This meter is specially designed for measuring automotive leak current , consumption current, motor starting current and engine charging current.

Power Related Industry

This meter rapidly check out problems such as cracked wire leak current, electric leak current, wire-iron contact, which matches needs of power maintenance industry.

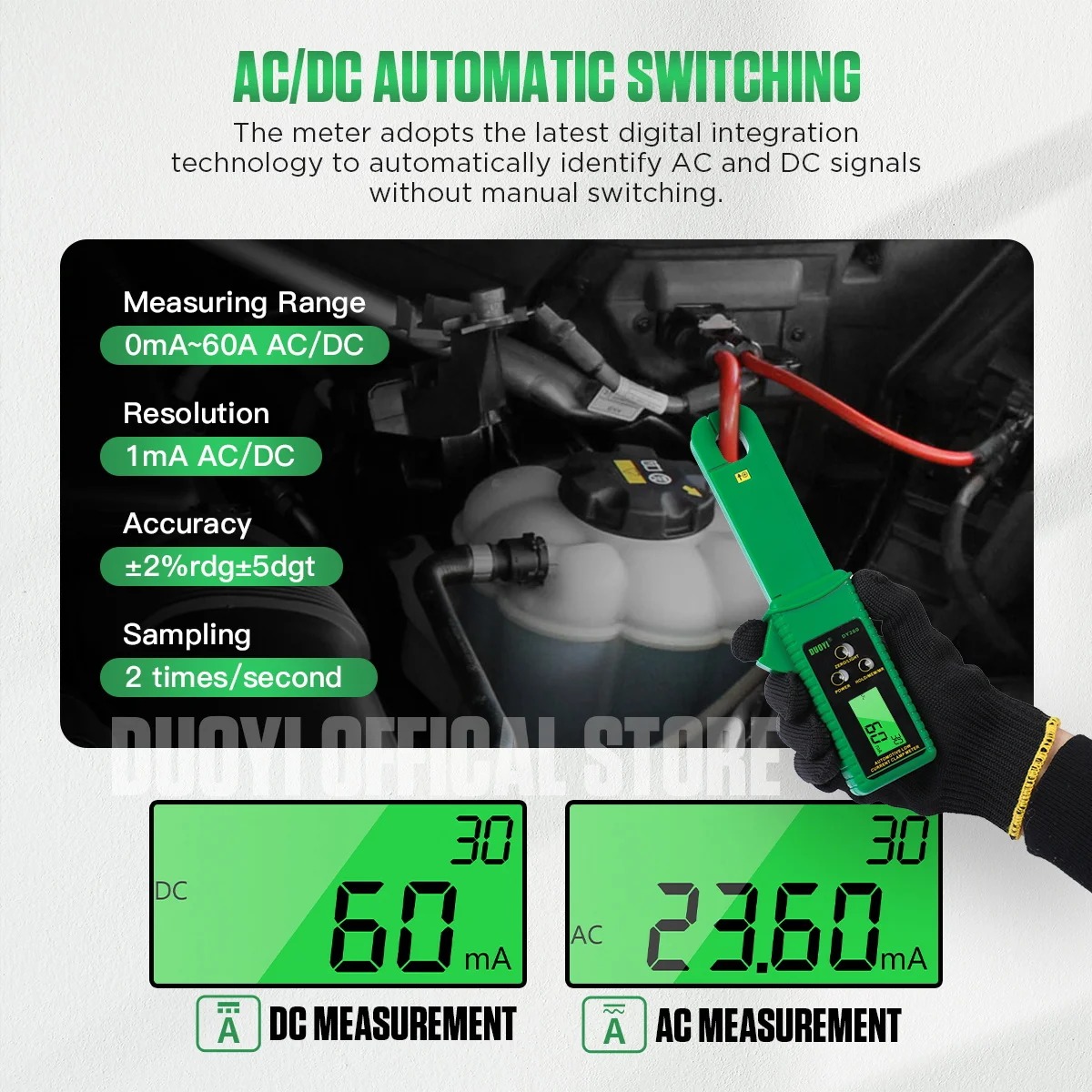

AC/DC AUTOMATIC SWITCHING

The meter adopts the latest digital integration technology to automatically identify AC and DC signals without manual switching.

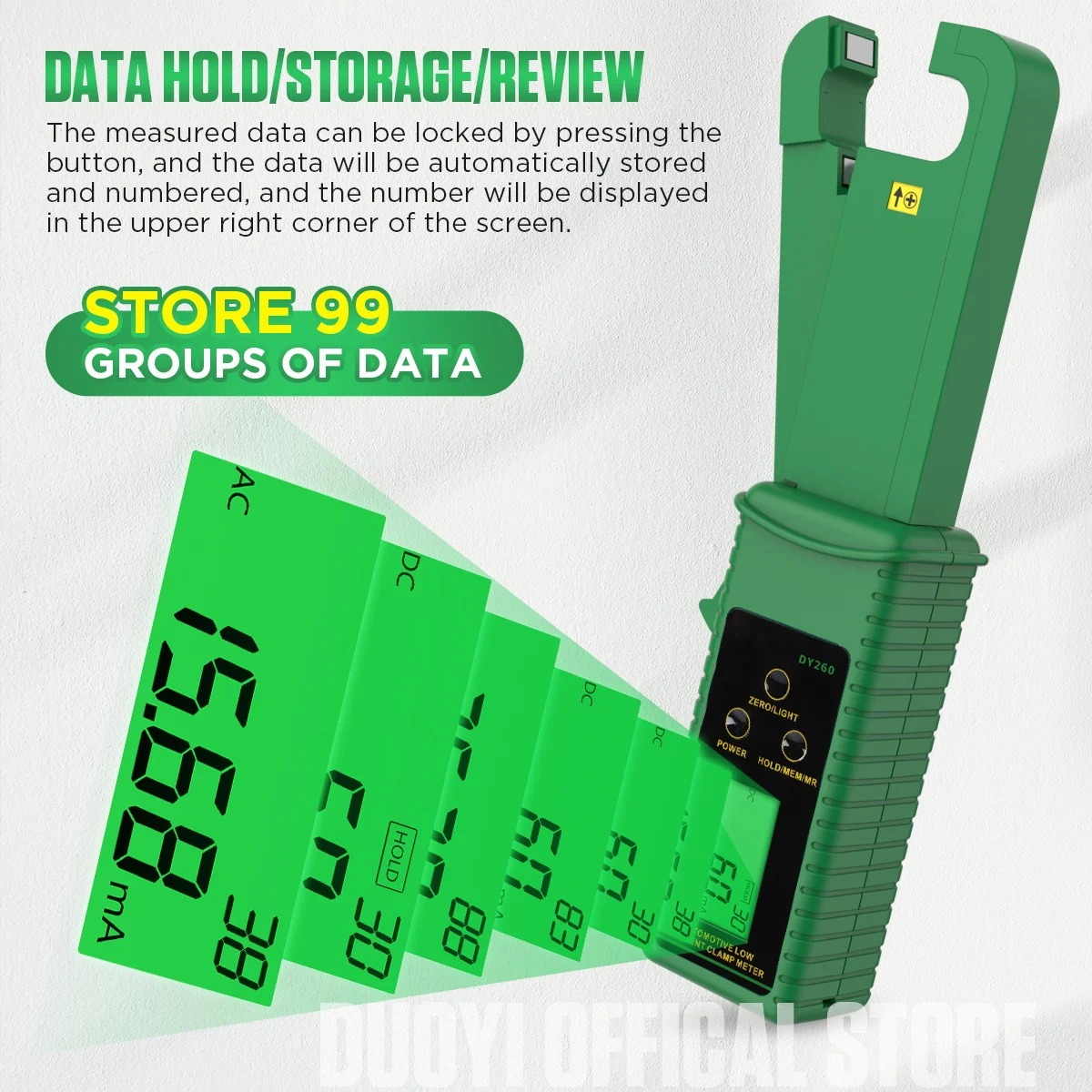

DATA HOLD/STORAGE/REVIEW

The measured data can be locked by pressing the button, and the data will be automatically stored and numbered, and the number will be displayed in the upper right corner of the screen.

AUTOMATIC SHUT-DOWN

When the battery voltage is too low, the screen will display a battery symbol to remind you to replace the battery.

If the meter does not perform any operation within 5 minutes, the screen will flash for 30 seconds and then automatically shut down.

WIDE APPLICATION

It can quickly measure automobile leakage current, power consumption current, motor starting current, engine charging current, telecommunications room current, etc.

ONE-CLICK ZEROING

Before measuring, please press the "Zero" button to perform automatic zero adjustment.

LCD Backlight Function

Even in low light or dark conditions, the test results can be clearly seen.

Specification

AC/DC conversion：AC/DC automatic recognition works when powered on. If need to switch to manual mode , long press POWER button after powered on.

Auto zero：Pressing ZERO/LIGHT button instead of rotating zero knob manually.

Backlight：4-digit LCD with backlight , good for using in darkness. Long press ZERO/LIGHT button to turn on/off backlight.

Measure Principle：Non-contact clamp on measurement.

Range：0mA～60A AC/DC .

Resolution：1mA AC/DC.

Data Memory：99 sets，press HOLD/MEM/MR button to storage and number data for reviewing conveniently.

Data Hold：press HOLD/MEM/MR button to hold data.

Data Review：Long press HOLD/MEM/MR button to enter data review, use ZERO/LIGHT and HOLD/MEM/MR button to page up or down for reviewing data. Long press HOLD/MEM/MR button to opt out.

Over Range：OL displays.

Auto Off：LCD screen flashes if no operation carried out in 5 minutes. Press POWER button to retain test status, otherwise the meter will be off in 30 seconds.

Low Battery：Low battery will affect test accuracy. Please replace batteries if low battery sign displays.

Limiting Temperature Error：-10℃～0℃ & 40℃～50℃.

max increased error 2%rdg.

Accuracy：±2%rdg±5dgt (23℃±5℃,<75%rh).

Sampling：2 time/second.

Frequency：AC: 45Hz～400 Hz.

Clamp Size：16mmΧ18mm.

LCD Size：35mmΧ21.5mm.

Meter Size：215mmΧ61mmΧ32mm.

Auto Switch：Auto Switch.

Voltage：600V or below.

Weight：220g(including batteries).

Current：Max 20mA.

Temperature：-10℃～50℃.

Humidity：<80%rh.

Insulation：AC 3700V/rms.

Structure of Meter

1. Clamp.

2. Trigger.

3. ZERO/LIGHT BUTTON.

4. HOLD/MEM/MR BUTTON.

5. POWER.

6. LCD SCREEN.

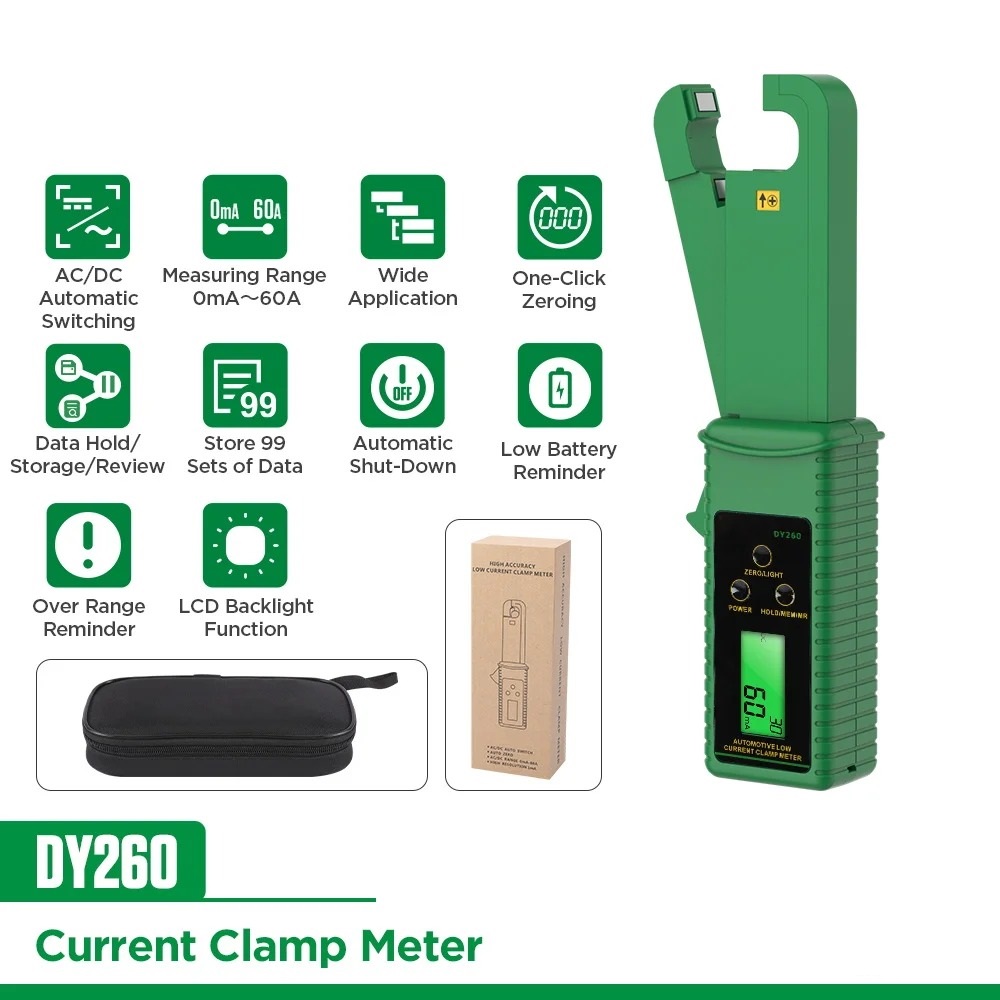

Packing List：

High Accuracy Low Current Clamp Meter *1

Tool Bag *1

Packing Box *1
