DUOYI DY25 Automotive Open and Short Circuit Finder Detector 42V DC Automotive Testers Short Circuit Open Wire Repair Tool Locate Tracker Instrument Scan Car Truck Cable

Automotive Short Cable Tracker & Open Wire Finder Less Than 42V DC Find Car Short Circuit Wire Automotive Short Open Circuit Finder Tester Car Trucks Cable Tracker Open Short DC Circuit Tester

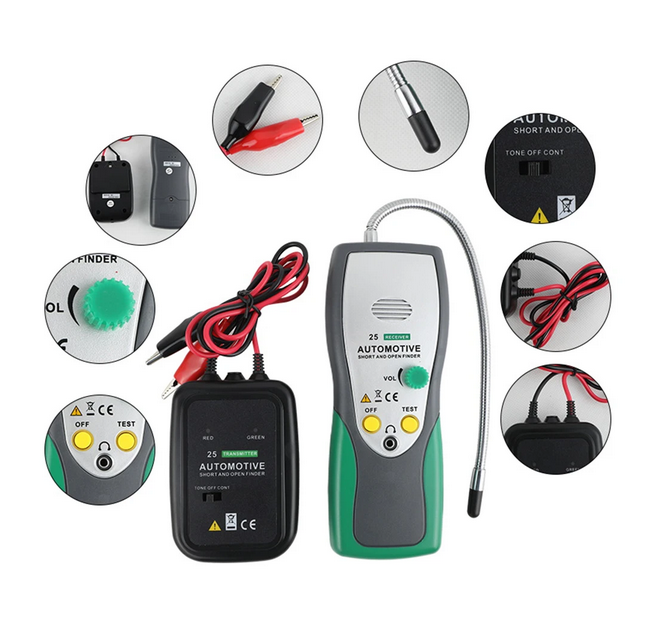

This instrument is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuit and locating open circuit and so on. There are a Transmitter and a Receiver included in the instrument.

Features:

1. With a 3.5mm wired headphone jack, you can use headphones more accurately in noisy environments.

2. Probe hose included for easier handling.

3. Does not damage insulation.

4. Adjustable sensitivity.

Precautions for operation：

1. Use at DC voltage only, never connect to a test environment greater than 42 volts.

2. Do not use in ac voltage environment.

3.Do not connect directly or indirectly to an AC line or any AC power supply line.

4. Do not use with any components or circuits of the ignition system.

5. Do not use with any ignition system components or circuits.

6. Do not use with any components or circuits of the ignition system.

7. Before using the instrument, please check the electrical wiring of the car and disconnect any parts or subsystems that are sensitive to voltage and current pulses, such as air pockets and electricity.

Specification
1.Wire Tracing
2.Checking for short circuit
3.locating open circuit
4.Wire identification

Function

* Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

* Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector,in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot.

* 42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems.

* Operates on DC voltages from 6 to 42 volts.

* Internally protected against power surges and overloads.

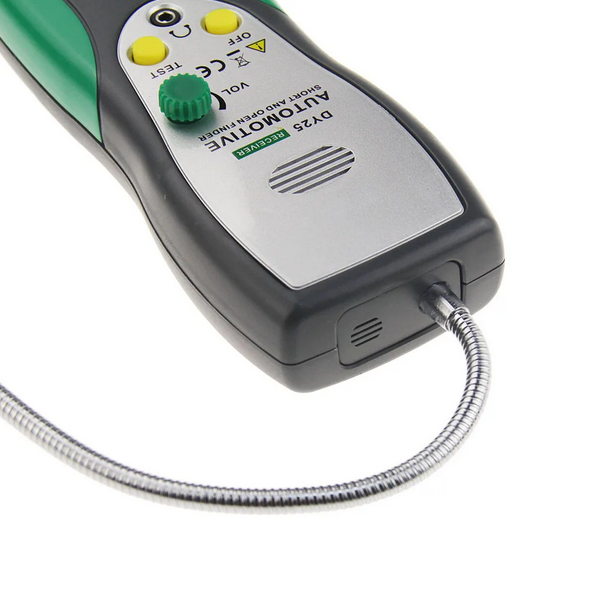

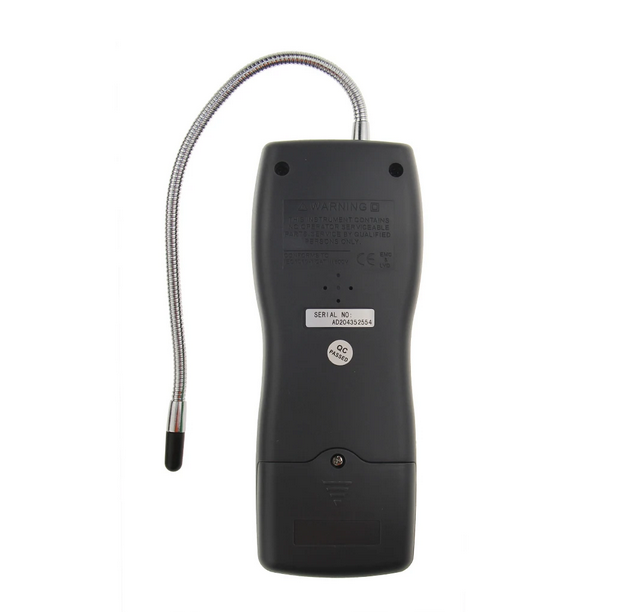

* 7" flexible probe allows reaching wires in congested places.

* Transmitter and Receiver LEDs show open or short circuit conditions.

* Adjustable sensitivity for all tracing situations.

* No wire piercing required, non-contact technology!

One of the top 20 tools in China automotive after market
Quickly and easily locate short circuits
Save your times and increase your income
Judge continuty of the cables or wires.
Track the cables or wires, and diagnose the break point
Receive the tone signal on the cables or wires(telephone line)
Indentify the state in the working telephone line (clear, ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires.

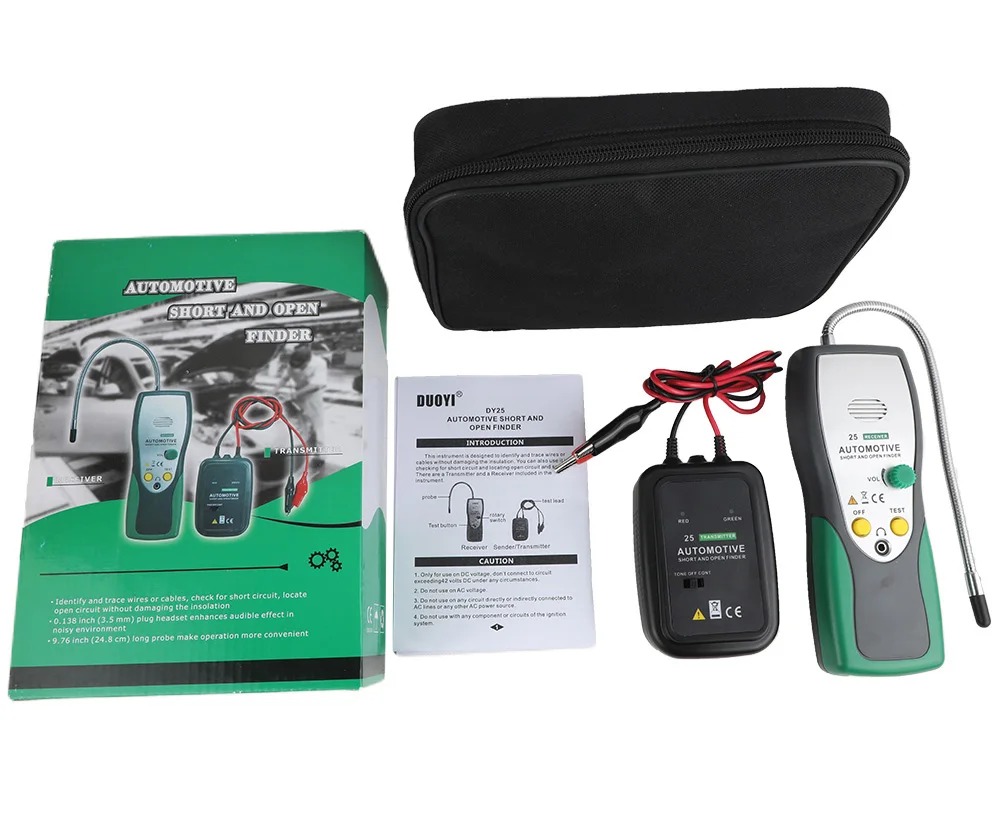

PACKING LIST：

DY25 Sender 1 pcs

DY25 Receiver 1 pcs

User manual 1 pcs（in English）

Oxford handbag 1 pcs
