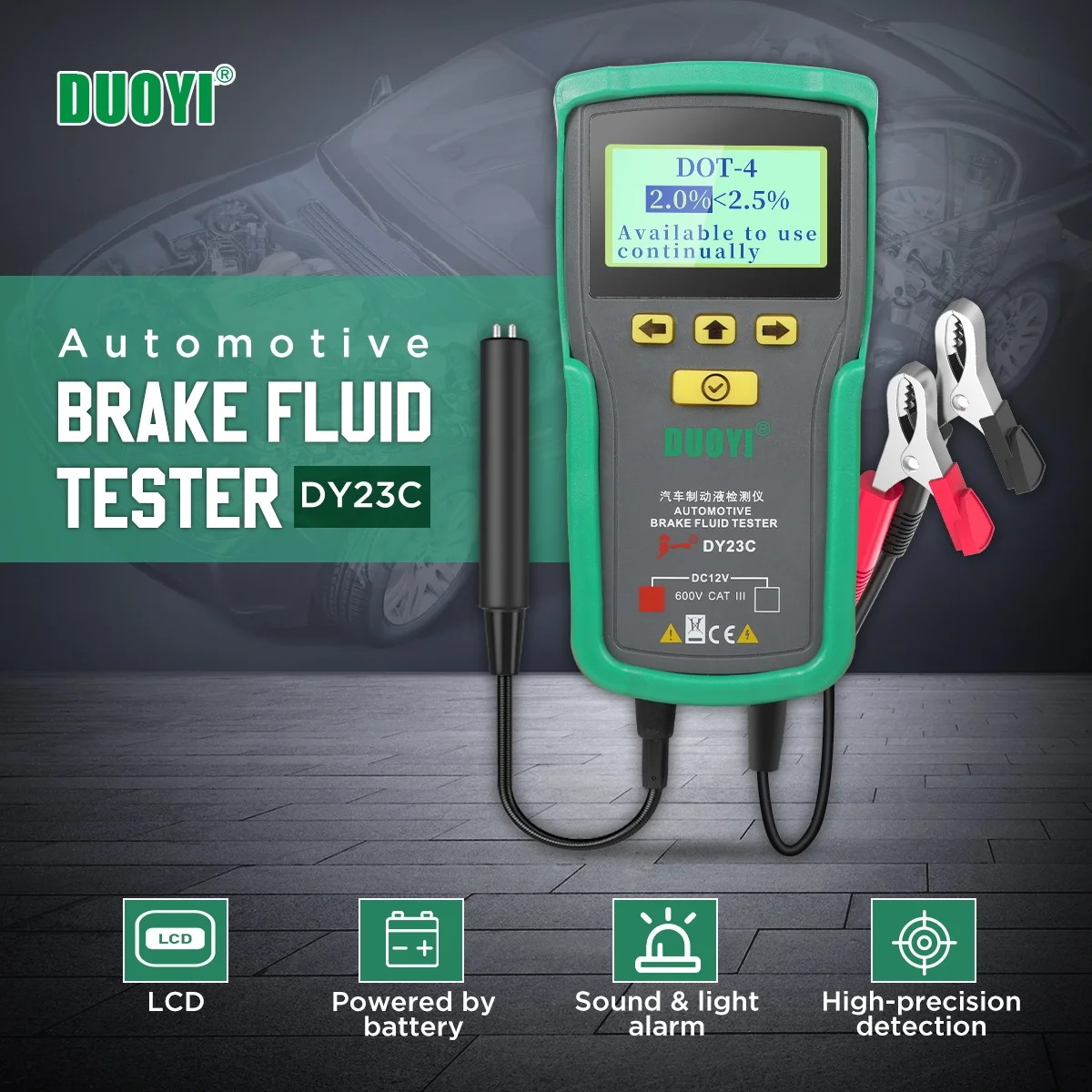

DUOYI DY23C Car Brake Fluid Tester Accurate Test Automotive Brake Fluid Water Content Check Universal Oil Quality DOT 3/4/5.1

Product Description

DUOYI DY23D This is a car brake fluid tester. It tests the water content of the brake fluid to determine if it needs to be changed. Applicable to DOT3/DOT4/DOT5.1, the data will appear on the screen accurately, which is convenient for technicians to know the brake fluid status in detail from the car owner.

FEATURES

-Available for DOT3 / DOT4 / DOT5.1.

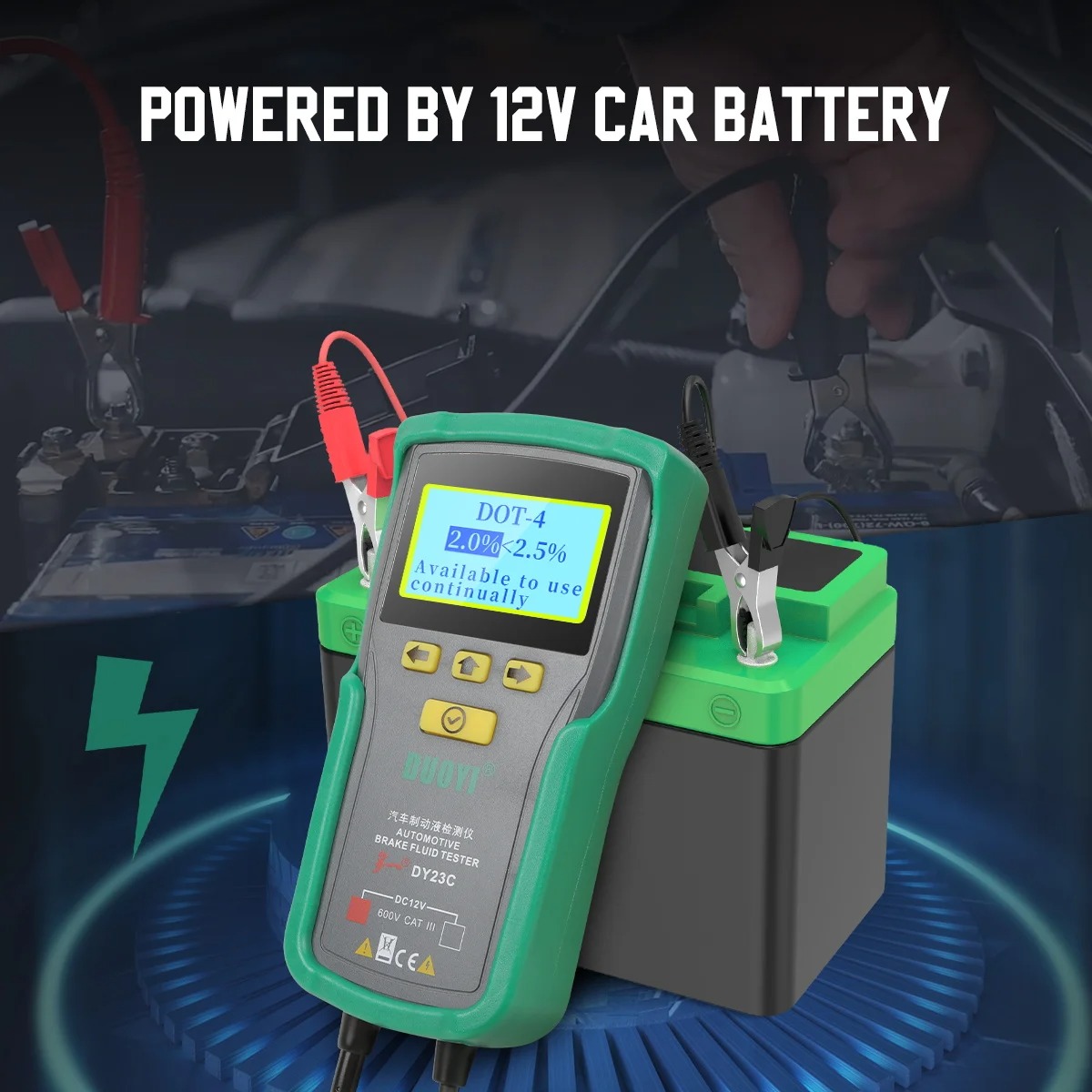

-12V Automotive Battery Power Supply.

-Build-in High Precision Probe.

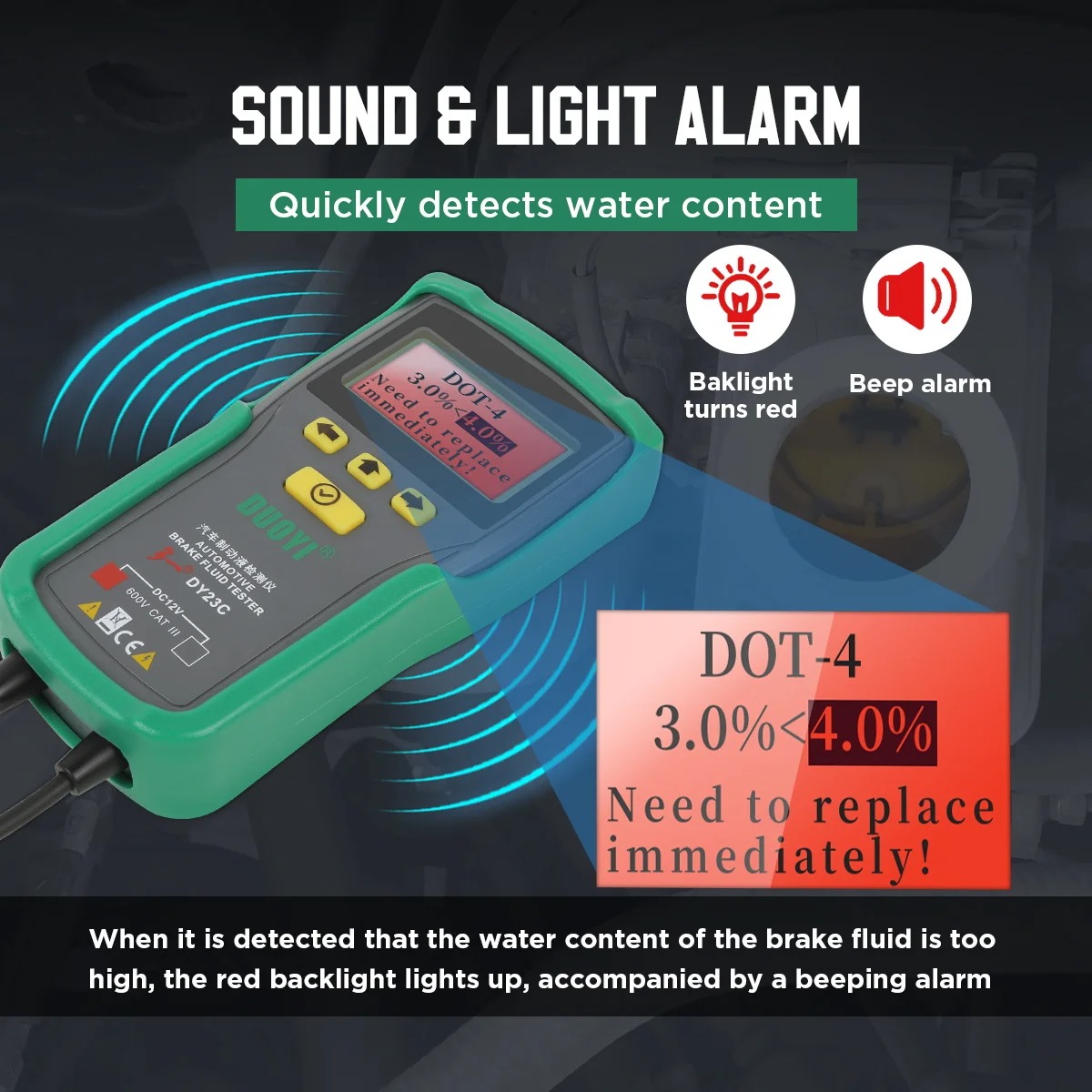

-Audible and Visual Alarm.

This automotive high-end technology brake fluid tester is equipped with a high-precision probe and is easy to operate. It is an essential tool in the automotive maintenance industry.

HIGHLY SENSITIVE PROBE：

Adopt high precision sensor with a 240mm stainless steel bendable tube,which makes the detection more worry-free.

SPECIFICATIONS

Brake Fluid Type: DOT3 / DOT4 / DOT5.1 .

Power Supply：DC 9V - 24V .

Operation Temperature：0 ℃ ~ 5 0 ℃ 32 ℉ ~ 122 ℉.

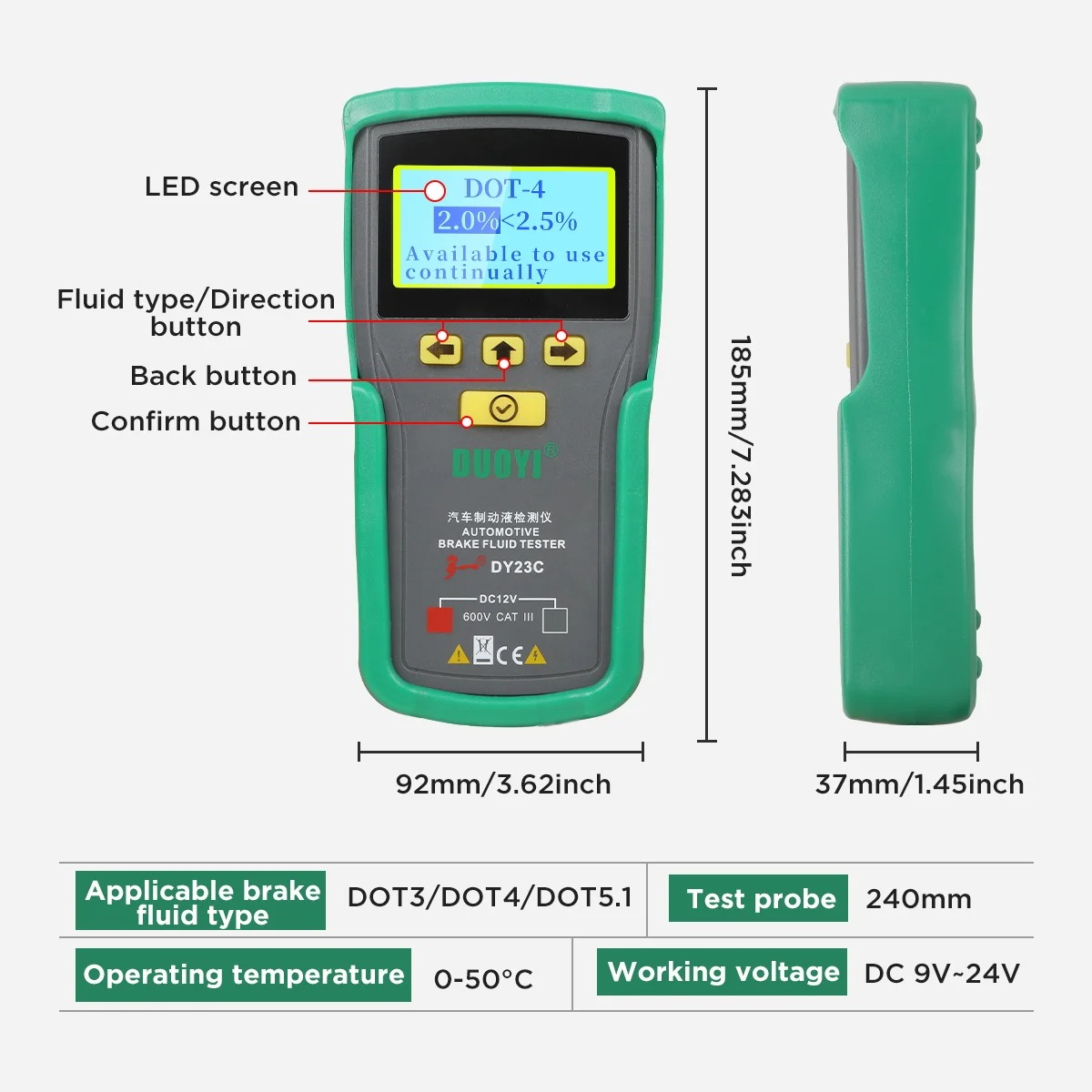

ABOUT PRODUCT

① LCD Display.

② Left Button：brake fluid selection / cursor left move / numeral decrease.

③ Right Button：brake fluid selection / cursor right move / numeral increase.

④ UP Button：interface return.

⑤ Confirm Buttonb：ake fluid confirmation / printing confirmation / numeral confirmation.

⑥ Test Probe.

⑦ Clamps.

red clamp: connect to positive terminal of battery.

black clamp: connect to negative terminal of battery.

HOW TO OPERATION

Step 1：Connect red and black clamps to positive and negative terminals of automotive battery respectively to power on tester.

Step 2：Press Left Button and Right Button to select tested brake fluid , then press Confirm Button to confirm.

Step 3：Immerse test probe into brake fluid and press Confirm Button to test.

Step 4：Test result will be seen in LCD Display. Different result refers to different display as figures below.

Step 5：Press Confirm button to enter printing interface. Date and VIN number ( last 4 digits ) setting are available. Press Left Button or Right Button for numeral decreasing or increasing. Pressing Confirm Button is required after every digit confirmed and let cursor move to nest position, and so on. After all set, press Confirm Button to print out test result.

Packing List

1*Protective cover

1*Main unit

1*Probe

1*Alligator clip
