DUOYI DY2201D LCD Digital Automotive Multimeter with Speed Conversion Sensor Non-contact RPM Dwell Angle Frequency Temperature Tester

DY2201D Multimeter For Car Maintenance Automotive Multimeter

1. Low power consumption CMOS A/D convert integrate circuit, automatic zero adjustment and polarity display, data hold, warning of low battery voltage and over range exceeding.

2. 32 optional ranges

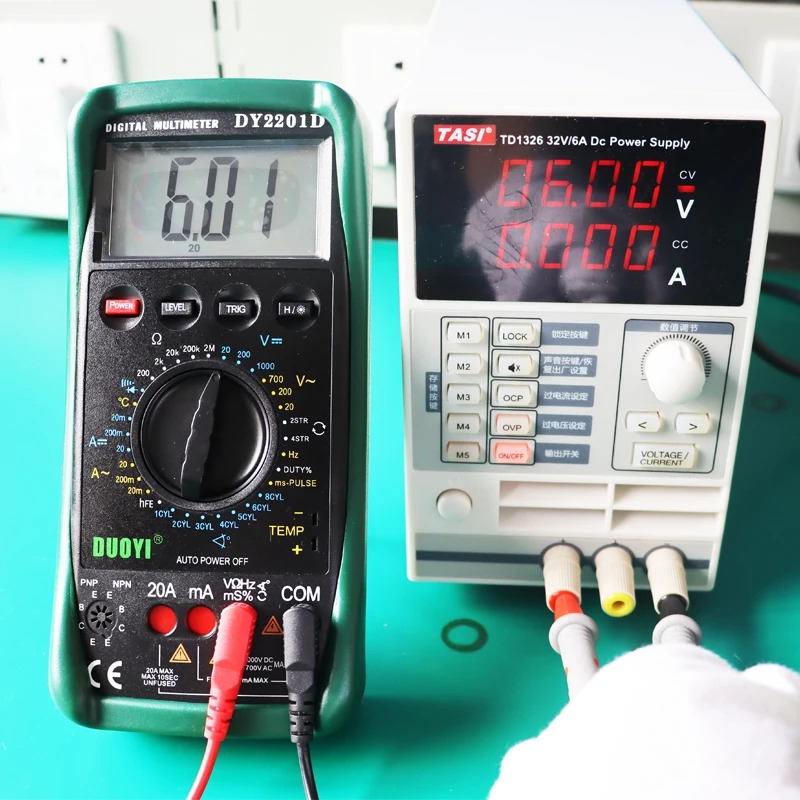

3. Basic DC voltage accuracy: ±0.5%

4. Measuring of motor dwell angle: 0.1 -360° (1/2/3/4/5/6/8 cylinder)

5. Measuring of motor speed:300RPM-19999RPM (2 Stroke) / 600RPM-19999RPM (4 Stroke)

6. Non contact type ( without the line failure ) of engine speed measurement ( clamp test ).

7. Impulse time measurement:0.1mS - 1000 mS

8. Measuring temperature: -40 -1000 Celsius

9. Frequency measurement:2-20kHz.

10. The input end mechanical protection function, to prevent the wrong operation.

11. Full range overload protection function

12. Automatic power off functi on. The power will be shut down automatically after the meter is 15 minutes avoid forgetting powering off after using the meter.

13. Maximum display:1999 (31/2 digit,AC and DC voltage, current, resistance) / 19999(Speed, frequency, pulse duration, Dwell)

14. Liquid crystal display: 70 x 48mm big screen, high contrast, 28mm character height, clear and pleasing.

15. LCD back light function, convenient in dark environment operation.

16. Power supply: a 9V battery (NEDA1604, 6F22 or equivalent) (not included in the package)

17. Dimensions: 192x 88x 42mm;

18. Weight: Approx 600g (Including battery and holster)

19. Environment:

Working temperature: 0 -40 Celsius Relative humidity<80%

Storage temperature: -10 -50 Celsius Relative humidity<85%

Features

Patented mis-operation prevention: terminal shutter interlock mechanism, patent code: ZL01 2015021.5

TACH, DWELL, RPM, ms pulse width and ignition frequency measurement

Feature rich design DMM with up to 11 functions

Heavy duty rubber holster

Data hold, auto power off

Description :

       The DY2201D Multi-functional Automobile Tester, the sophisticated design, convenient operation, accurate readings, complete functions, the use of new protective sleeve and large screen liquid crystal display, Jack in the input end is connected with the PTC thermistor element to the instrument core components, function / range switch protection especially for fully, in order to further prevent error operation,

       DY2201D on the current measurement Jack adopts mechanical protection device, only in the selection of current measurement, corresponding to the " mA " or " 20A " Jack will be open, otherwise is blocked by the baffle plate, effectively avoid the wrong one, greatly improving the safety of the products and service life.

      The product is suitable for professional auto detection and repair, engineering design, testing, production test, is your ideal portable automobile repair and maintenance tools.

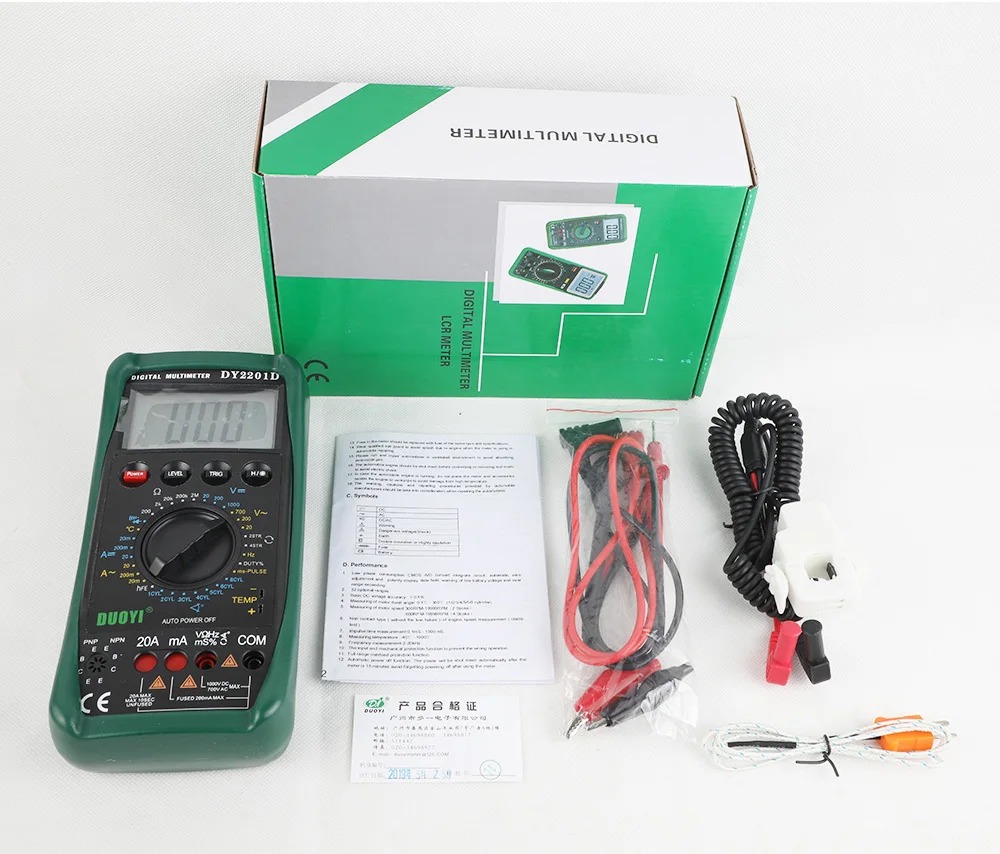

Package Contents:

1 * DY2201D automotive tester

1 * Pair Test Leads

1 * TP01 K temperature measuring probe (250 Celsius)

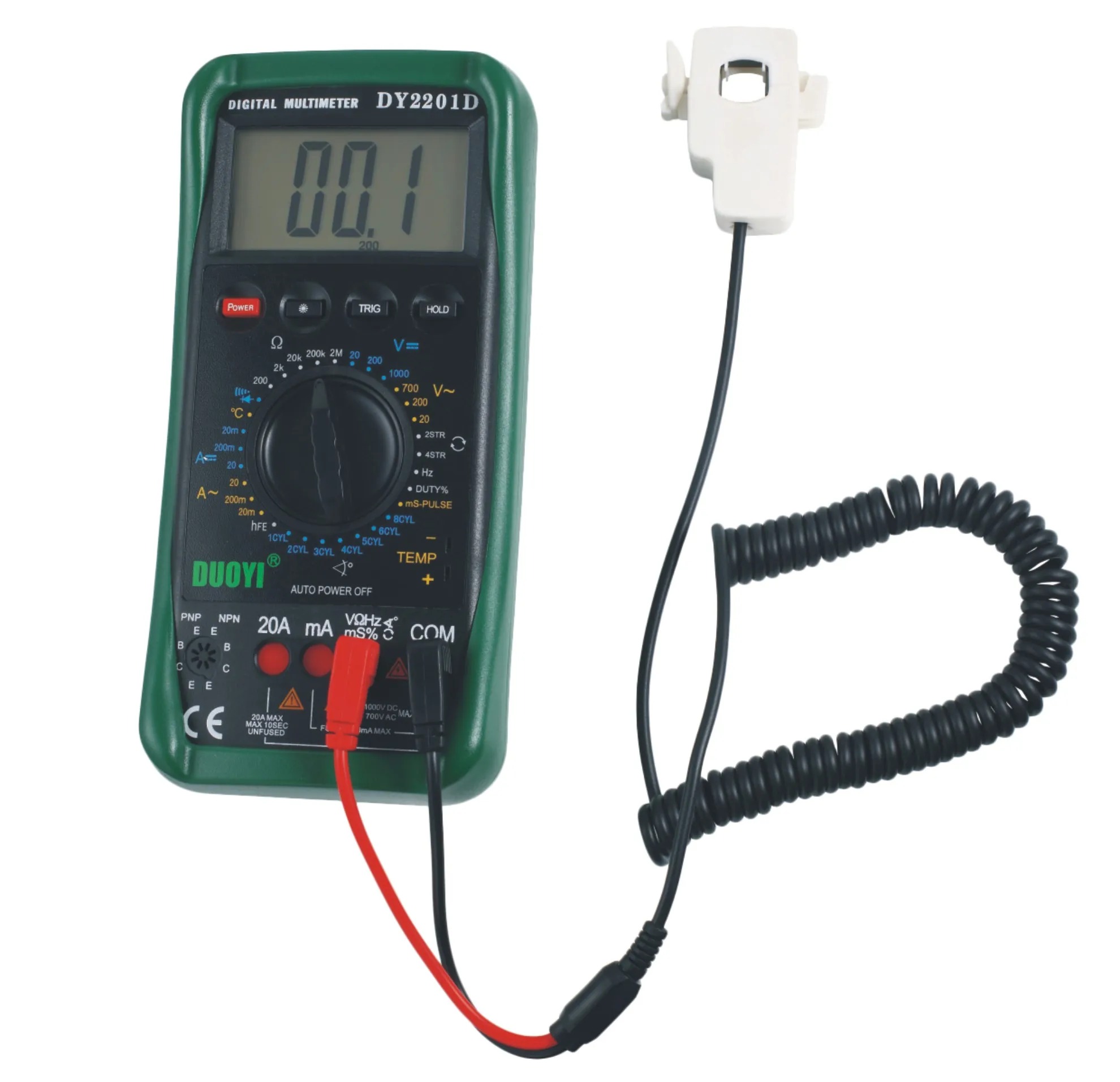

1 * Speed conversion sensor ( speed test clamp head )

2 * Alligator clip
