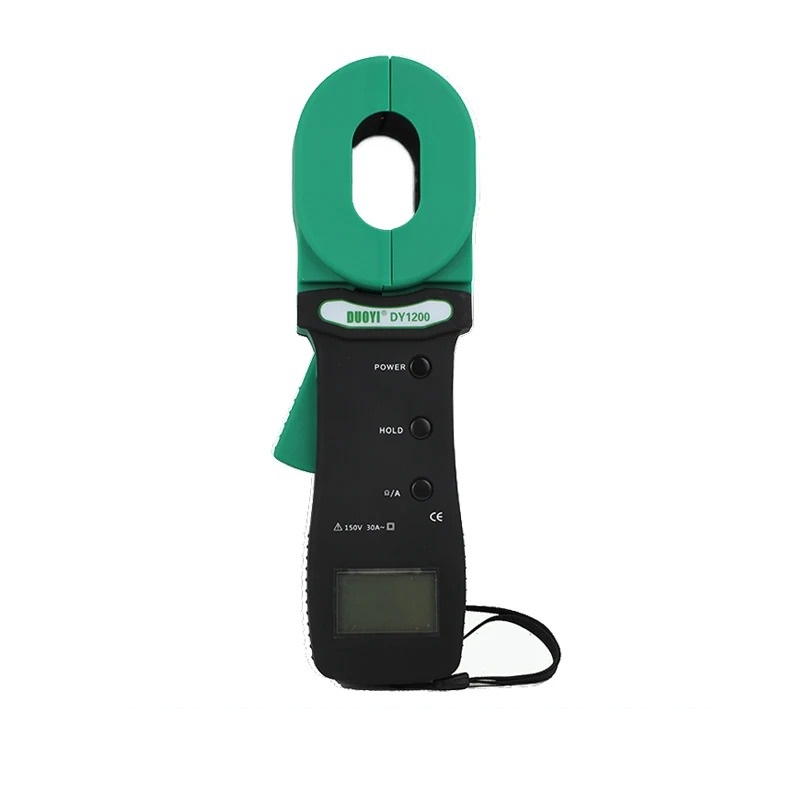

DUOYI DY1200 Clamp-on Ground Resistance and Leakage Current Tester Meter 32mm 0.01 to 1000 ohm Leakage Current Test Meter 45-65HZ
$276.99$256.99
Out of stock
DUOYI DY1200 Digital Ground Clamp Earth Resistance Tester 32mm 0.01 to 1000 ohm 45-65HZLeakage Current Test Meter
Clamp earth ground resistance tester DY1200 is a major breakthrough in traditional grounding resistance measurement. It is widely used in the grounding resistance measurement of the power,telecommunications,meteorology, oilfield, construction and the industrial and electrical equipment.
Clamp earth resistance tester DY1200, in the measurement of a grounding system with loop, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple.
Clamp on ground resistance tester DY1200 is equipped with a long jaw sized 55mmX 32mm, particularly suitable for the grounding with the flat steel.
Besides, DY1200 can measure leakage current and zero-sequence current with sensitive clamp. It is significant when there is noise signals and harmonic waves in grounding network to measure.
Main Features:
55*32mm jaw size for larger ground rods
Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.01Ohm resolution
AC Leakage current range of 10mA to 30.00A with 50µA resolution
Configurable alarm value for resistance and current to support your measurement
Ergonomic mold, full rubber coating for slip proof
Simplifies ground resistance measurements on multiple point ground systems
Verification resistor confirm accuracy of meter
Datalogging with 99 data points

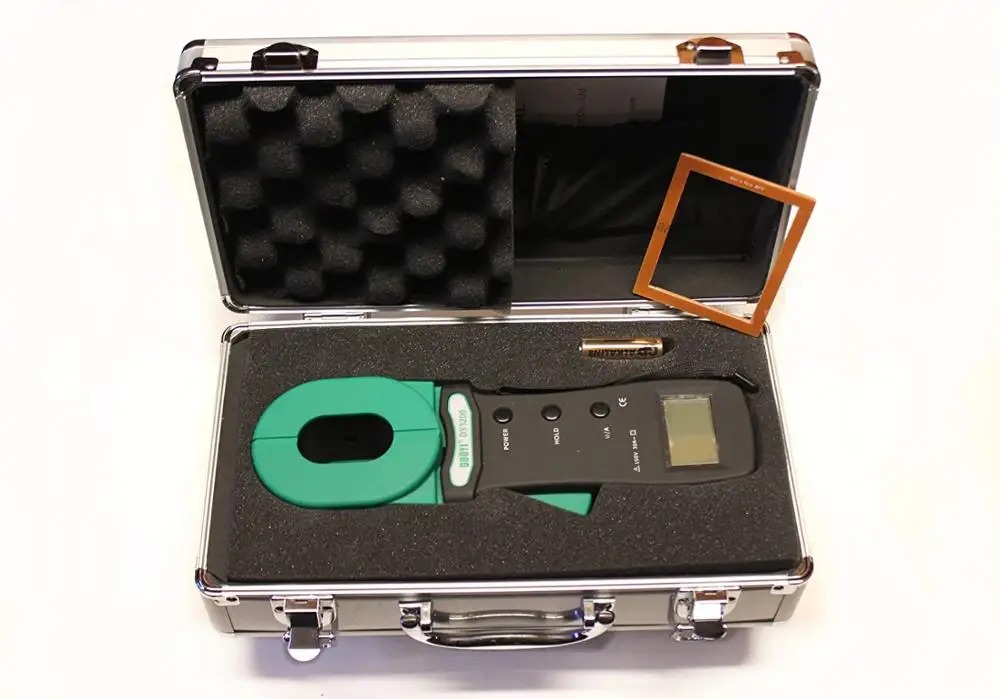

Complete with heavy duty case and verification resistor
Memory 99 data points
General Characteristics:
Power: AA1.5x4 (Not included battery)

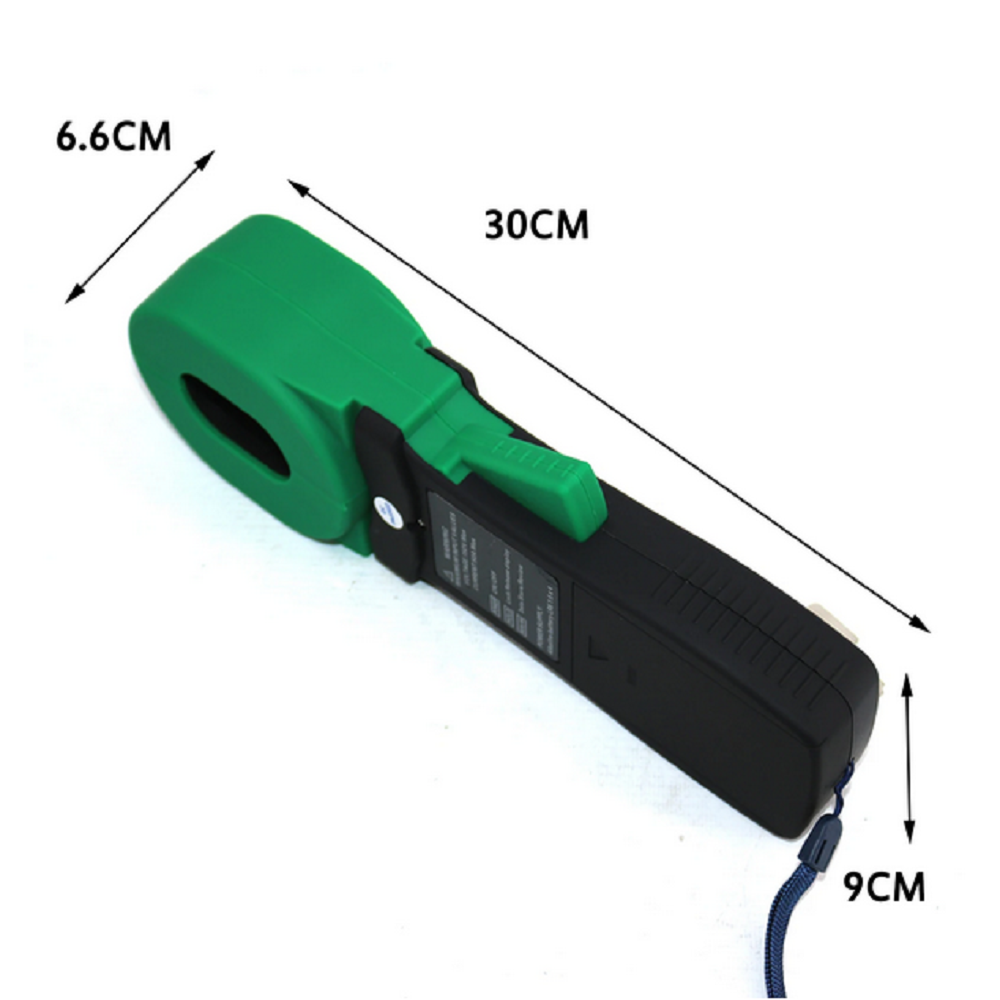

Product Size: 285*90*60 mm
Product Net Weight: 1285g (Not including battery)
Standard Accessories: Verification resistor, carry case
Standard Individual packing: carry case

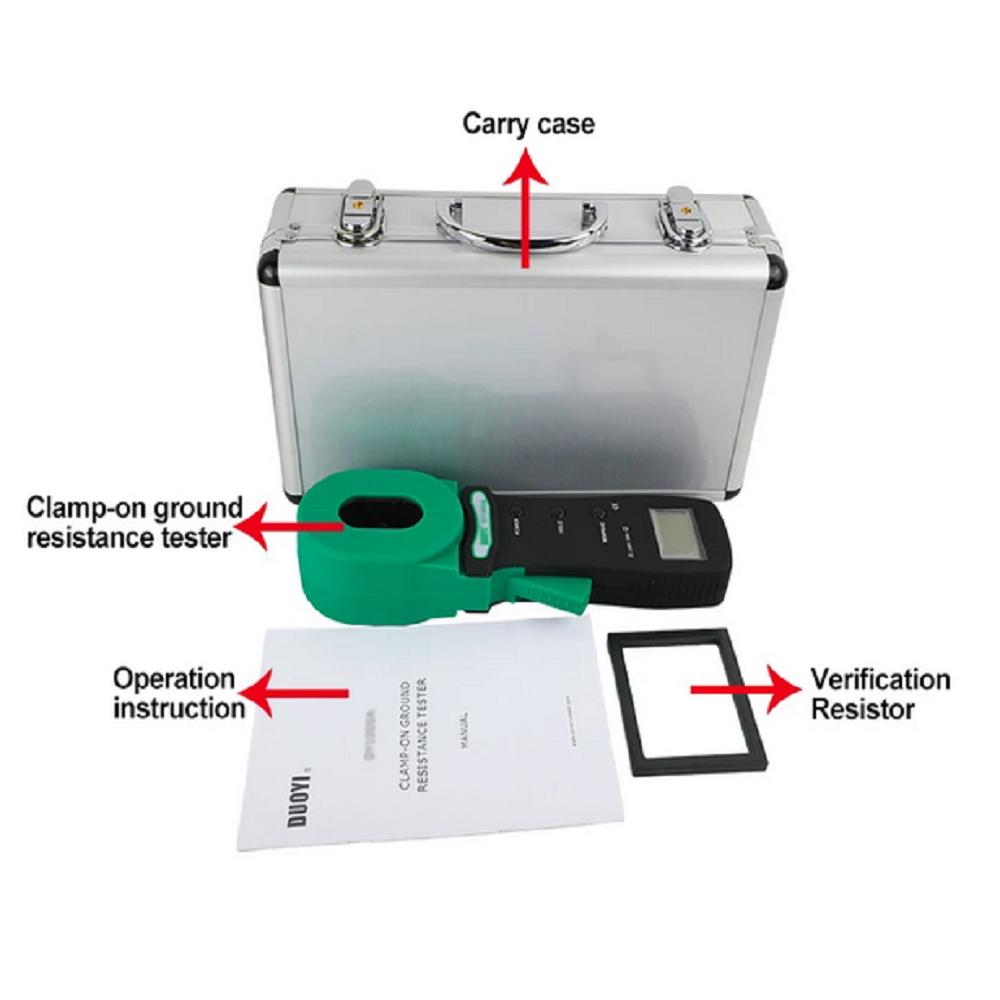

Package list
1 x clamp earth resistance tester
1 x Test Ring
1 x carry case
1 x User Manual
