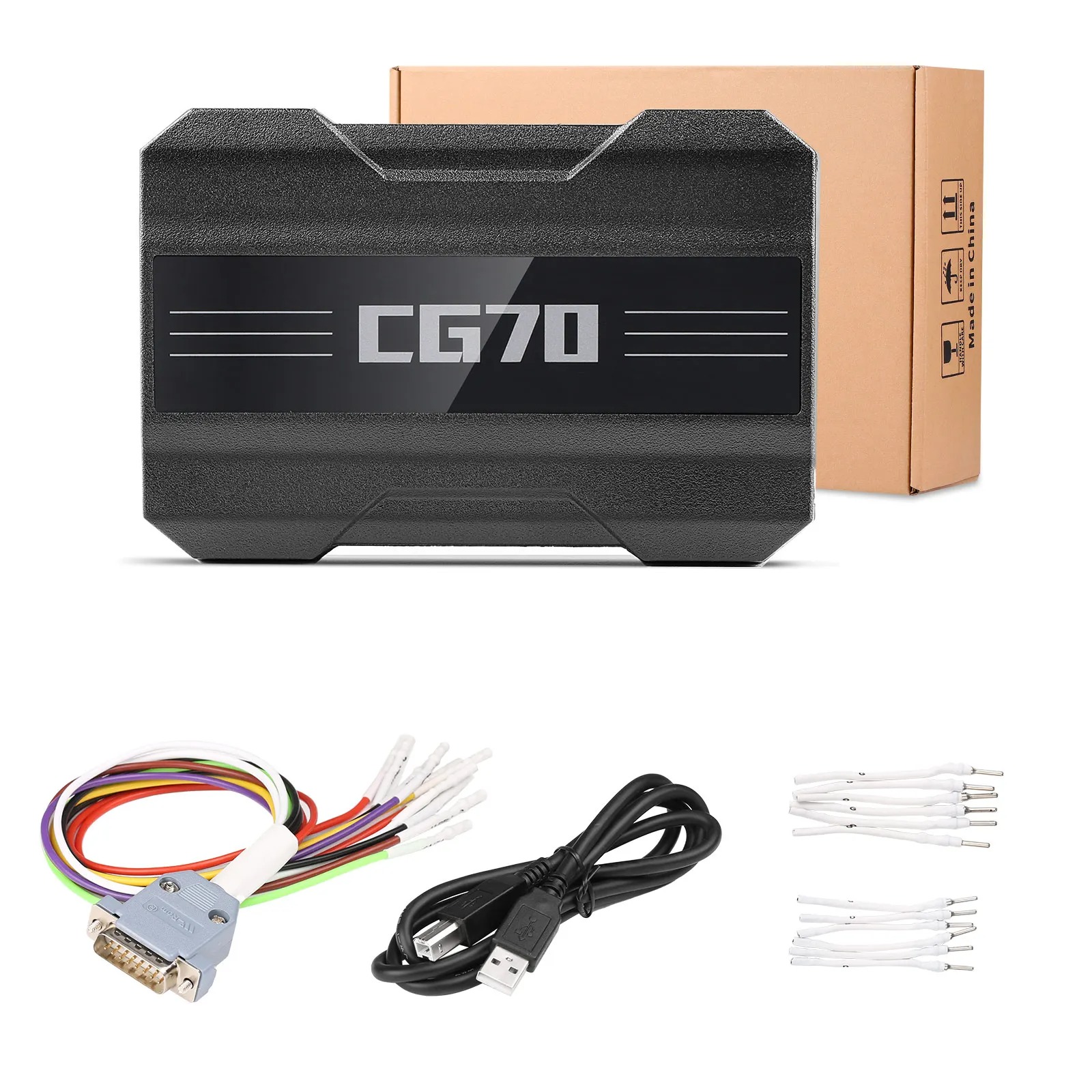

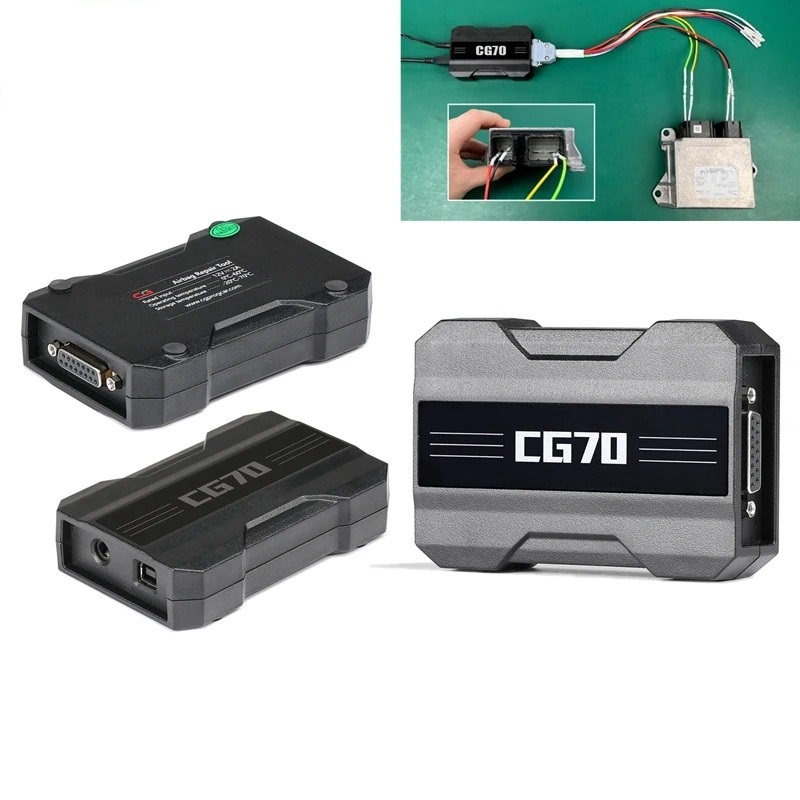

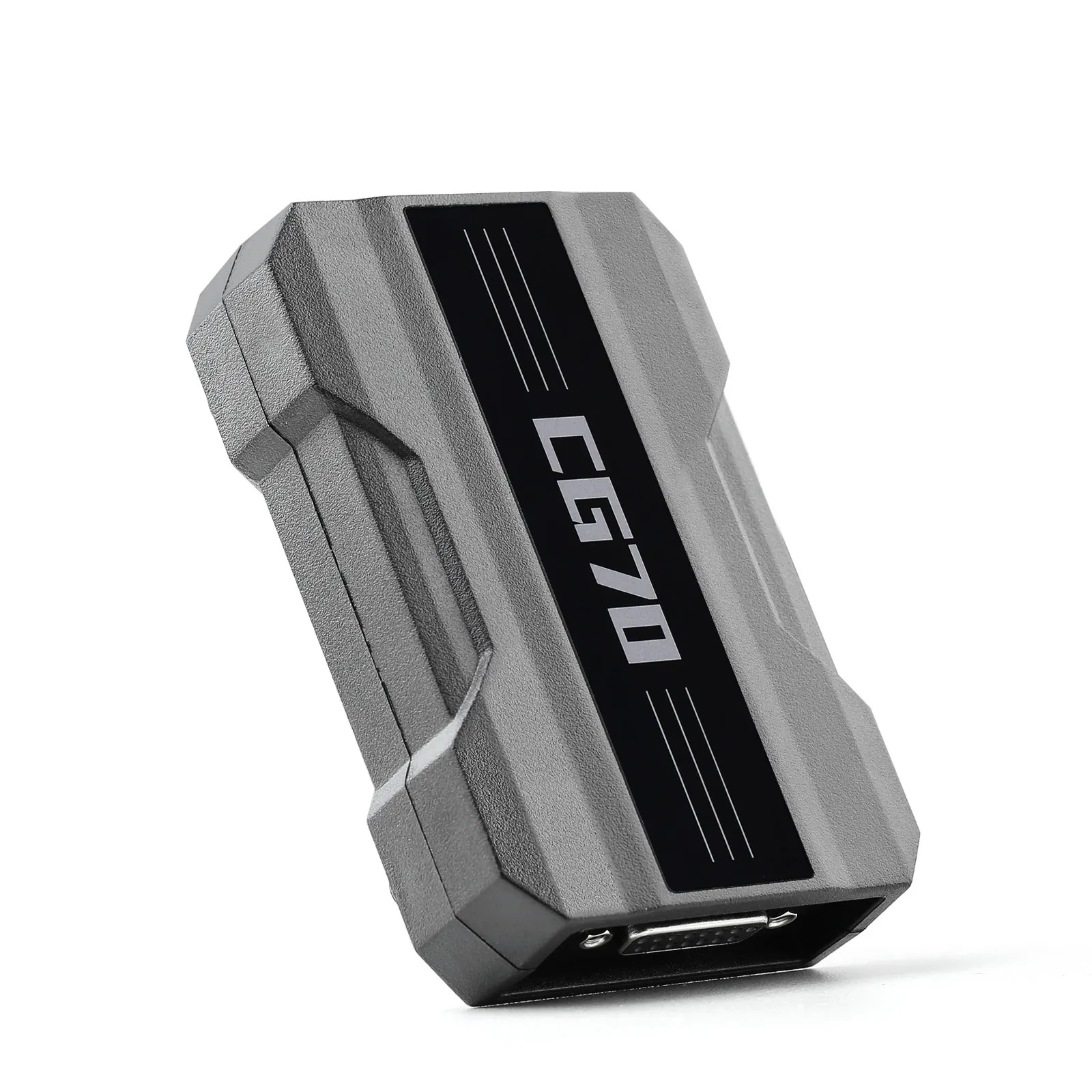

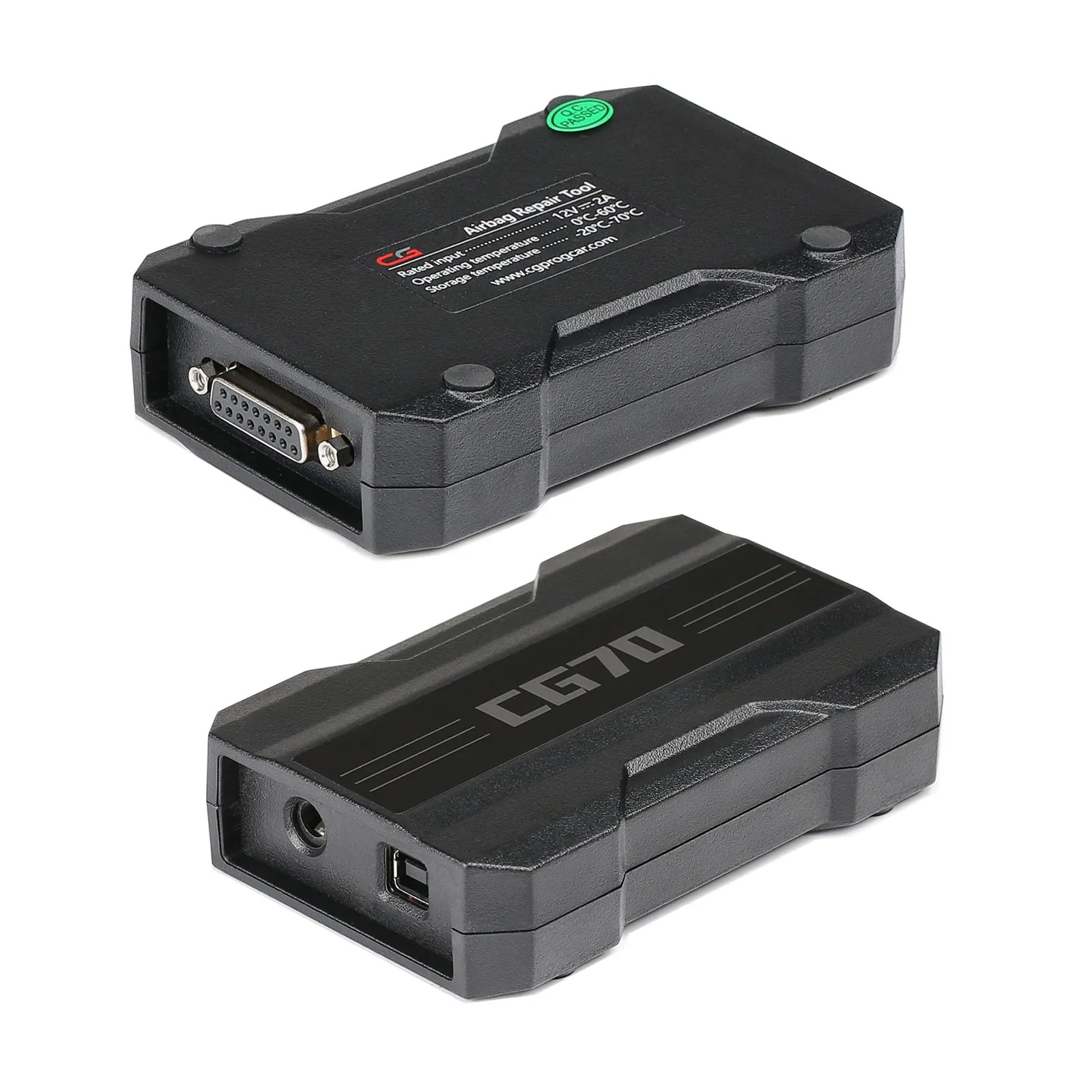

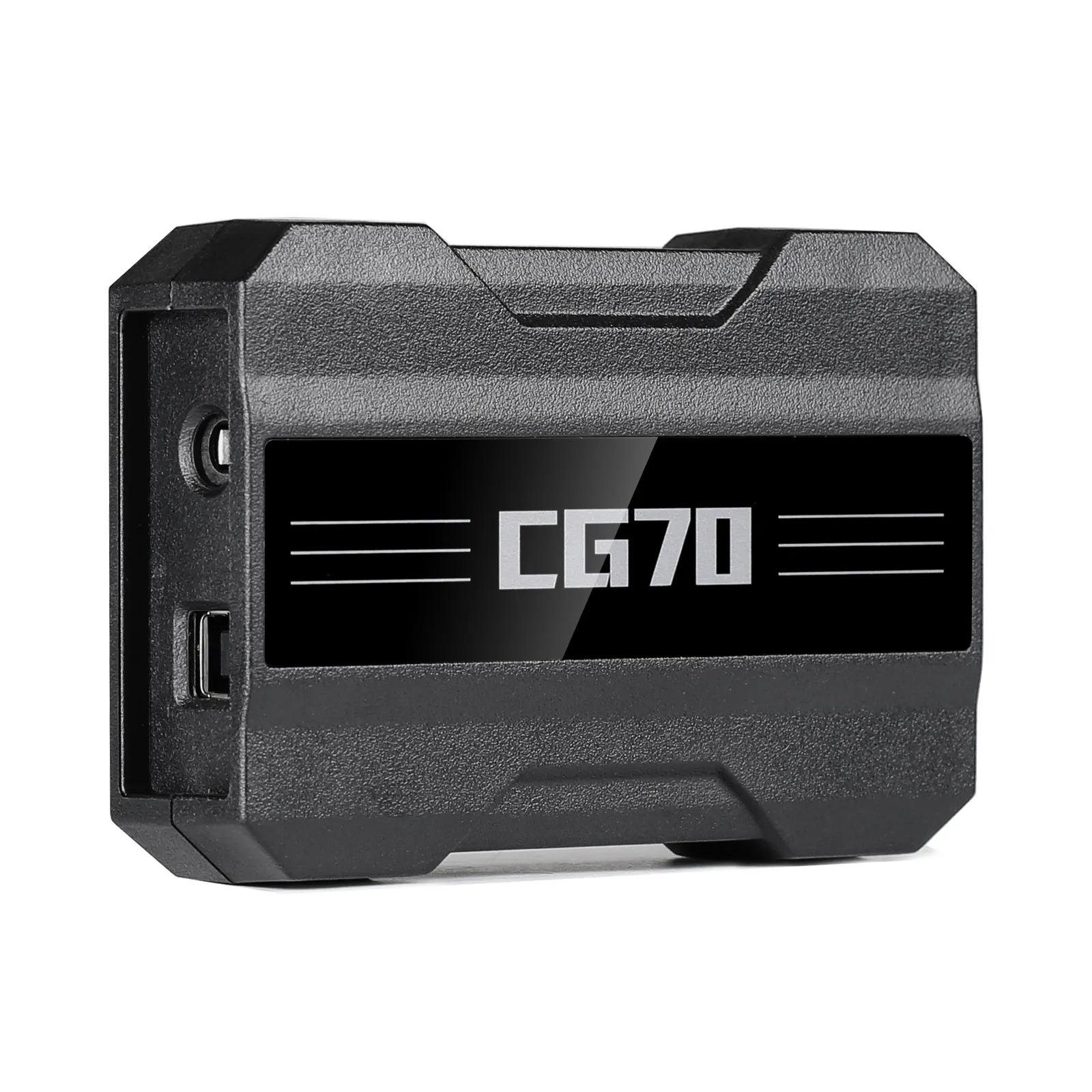

V1.1.7.0 CGDI CG70 Airbag Repair Tool Clear Fault Codes One Key No Welding No Disassembly Airbag Reset Tool

Highlights of CG70 Airbag Reset Tool

1. No dismantling, no welding, non-destructive repair.

Simulate the principle of car communication, connect the pin port, you can read/clear the fault code of the airbag module with one key. Abandon the traditional wire welding/chip removal mode, and use pin diagnosis to avoid operational risks caused by electric soldering irons/hot air guns.

2. Intelligent diagnosis, clear fault codes

Support multiple diagnostic protocols, CAN protocol, K/L protocol, SWCAN protocol and J1850 protocol, compatible with different car models and airbag modules.

3. Specific function, fast retrieval.

Specialized in airbag module repair. The entire software is designed according to the model number. It is simple and clear, with clear directories, and the built-in search function can help us quickly find the operation interface.

4. The wiring is clear and the pins are clearly defined.

The software has a built-in clear wiring diagram, and the position of the

Supported Vehicle Brands:

For Buick, for Chevrolet, for Ford, for Great Wall, for Hyundai, for Infiniti, for Jaguar, for Kia, for Land Rover, for Lincoln, for Mazda, for Nissan, for Opel, for Renault, for Suzuki...

CG70 Software Update Notice:

V1.0.1.0 NEW (2022.12.30)

1. Software interface optimization, added prompt information.

2. 813 new airbag models were added.

3. Other known problems fixed.

CG70 Airbag Reset Tool Software Update Notice:

V1.1.7.0 NEW (2025.04.18)

1.Added 783 additional airbag models.

2.Some known problems fixed.

Airbag repair added the following models:

brand model chip

Acura 77960-TK4-X710-M4(KLine) 95640

Acura 77960-TX4-K011-M4 SPC560P50

Acura 77960-TX6-A010-M4(KLine) 95640

Acura 77960-TYA-A130-M2 R7F701686

Acura 77960-TYB-X020-M2 R7F701686

Alfa Romeo 50545333 95320

Audi 8D0959655D 11KA4

BAIC J3858170 95320

BAIC J3858417 95320

BAIC J3858487 95320

Chrysler 68316753AB 95128

Citroen 550893100 95080

Citroen 600237600 95080

Citroen 602327400 95080

Citroen 9637176880 95080

Citroen 9640822580 95080

Citroen 9642927780 AJ 95080

Citroen 9642927780 AM 95080

Citroen 9642927780 AO 95080

Citroen 9642927880 95080

Citroen 9645883980 AE 95080

Citroen 9646469080 AF 95080

Citroen 9646469080 AG 95080

Citroen 9646469180 95080

Citroen 9646469180 AF 95080

Citroen 9646469180 AG 95080

Citroen 9646469180 AI 95080

Citroen 9646757180 95080

Citroen 9646757580 AO 95080

Citroen 9648938880 95080

Citroen 9650137080 95080

Citroen 9652246980 95080

Citroen 9652276980 95080

Citroen 9652276980 AJ 95080

Citroen 9652276980 AK 95080

Citroen 9653190880 95080

Citroen 9653190980 95080

Citroen 9659111980 95080

Citroen 9660349980 95080

Citroen 9661872980 95080

Citroen 9666411980(609974000) 95320

Citroen 9673654880(609973800) 95320

Citroen 9828499880(643963200) 95320

Citroen J3858031 95080

Citroen J3858032 95080

Citroen J3858078 95080

Citroen J3858079 95080

Citroen J3858152 95080

Citroen J3858153 95080

Citroen ZQ00731180 5WK43855 95080

Citroen ZQ00731280 5WK43856 95080

Citroen ZQ00811180 5WK44152 95080

Citroen ZQ00811280 5WK44153 95080

Citroen ZQ00885680 5WK44325 95080

Citroen ZQ00885780 95080

Dacia 285556510R R7F701018

Dacia 285556642R R7F701018

Dacia 285557419R R7F701018

Dacia 985100179R R7F701018

Dodge 68303223AA 95256

Dodge 68303227AA 95256

Dodge 68346752AB 95256

Dodge 68399783AC 95256

Dodge 68399789AE 95256

Dodge 68415361AB 95256

Dodge 68428500AA 95256

Dodge 68428501AA 95256

Dodge 68428609AA 95256

Dodge 68517037AA 95128

DongFeng 28556 W6600(J3858122) 95080

DongFeng A13-5824010(J3858265) 95320

DongFeng A13-5824020(J3858264) 95320

DongFeng A13-5824020(J3858265) 95320

DongFeng B-5824050 95080

DongFeng B-5824150 95080

DongFeng B-5824160 95080

DongFeng J3858084 95080

DongFeng J3858285 SPC560P40L1

DongFeng J3858335 SPC560P40L1

DongFeng J3858338 SPC560P40L1

DongFeng J3858339 SPC560P40L1

DongFeng U410010J-B0100(J3858054) 95080

DongFeng U410010J-B0101(J3858055) 95080

DongFeng U410010J-B0102(J3858098) 95320

DongFeng U410010J-B0102(J3858298) 95320

DongFeng U410010J-B0103(J3858261) 95320

DongFeng U410010J-B0106(J3858278) 95080

DongFeng U410010J-B0107(J3858295) 95080

DongFeng U410010J-B0108(J3858296) 95080

DongFeng U410010J-B0111(J3858355) 95320

FAW 1BA5-57K30 R7F701A033

Ferrari 335121 0285014255 95640

Ferrari 913498 0285015416 95640

Ferrari 958244 95640

Ford 2S6T-14B056-BK(K-line) 95160

Ford AG13-14B321-BB XC2361A

Ford BC3T-14B321-NA XC2361A

Ford DS7T-14B321-EA 95640

Ford MB3T-14B321-DB TC22xx-16F

Ford RK9T-14B321-XC R7F701064

Geely 620432200B 95xxx

Geely 620432400B 95xxx

Great Wall 3658101XKG10A R7F701018

Honda 77960-30A-H860-M2 TC23xx-32F

Honda 77960-31A-E010-M2 TC23xx-32F

Honda 77960-31A-G010-M2 TC23xx-32F

Honda 77960-31V-P860-M2 TC23xx-32F

Honda 77960-31W-H860-M2 TC23xx-32F

Honda 77960-33F-N420-M2 R7F701760

Honda 77960-3A0-F620-M2 R7F701686

Honda 77960-3C1-P220-M2 R7F701686

Honda 77960-3E7-G710-M2 R7F701686

Honda 77960-3E7-H710-M2 R7F701686

Honda 77960-3F5-H710-M2 R7F701686

Honda 77960-3K6-K920-M2 R7F701686

Honda 77960-3M0-J210-M1 TC23xx-32F

Honda 77960-3M0-Z840-M1 TC23xx-32F

Honda 77960-3N0-N130-M1 TC23xx-32F

Honda 77960-3N1-T820-M1 TC23xx-32F

Honda 77960-3N1-Z910-M1 TC23xx-32F

Honda 77960-3S5-X920-M2 R7F701686

Honda 77960-3V0-K620-M2 TC23xx-32F

Honda 77960-3V0-M610-M2 R7F701686

Honda 77960-3V0-Q720-M1 TC23xx-32F

Honda 77960-3Y1-E730-M1 R7F701686

Honda 77960-3Y1-G730-M1 R7F701686

Honda 77960-3Y1-P620-M1 R7F701686

Honda 77960-S9V-X512-C1(KLine) 95320

Honda 77960-SFY-J112-M1(KLine) 95320

Honda 77960-SKN-E012-M1(KLine) 95640

Honda 77960-SKN-E014-M1(KLine) 95640

Honda 77960-SKN-G012-M1(KLine) 95640

Honda 77960-SKN-G013-M1(KLine) 95640

Honda 77960-SKN-G811-M1(KLine) 95320

Honda 77960-SKN-G812-M1(KLine) 95320

Honda 77960-SLE-J622-M3(KLine) MPC5604

Honda 77960-SNA-X030-M1(KLine) 95640

Honda 77960-SNB-J814-M1(KLine) 95640

Honda 77960-SNB-J815-M1(KLine) 95640

Honda 77960-SWA-F211-M4(KLine) 95640

Honda 77960-SWA-F230-M4(KLine) 95640

Honda 77960-SWA-Q812-M4(KLine) 95640

Honda 77960-SZT-H810-M2(KLine) H8SX

Honda 77960-T03-Z620-M2 R7F701686

Honda 77960-T0A-Z410-M3(KLine) MPC5604

Honda 77960-T0P-U911-M4(KLine) 95640

Honda 77960-T0R-Z910-M4(KLine) 95640

Honda 77960-T2A-H712-M1 95640

Honda 77960-T2A-S710-M1 95640

Honda 77960-T2A-Z912-M1 95640

Honda 77960-T2A-Z921-M1 95640

Honda 77960-T2M-W010-M4 SPC560P50

Honda 77960-T3L-X012-M1 95640

Honda 77960-T3V-J011-M4 SPC560P50

Honda 77960-T4Z-T410-M2 R5F2154

Honda 77960-T50-G010-M1 TC23xx-32F

Honda 77960-T50-N740-M1 TC23xx-32F

Honda 77960-T54-Z120-M1 TC23xx-32F

Honda 77960-T5A-E010-M1 95640

Honda 77960-T5A-F611-M1 95640

Honda 77960-T5A-H611-M1 95640

Honda 77960-T5A-H620-M1 95640

Honda 77960-T5A-P410-M2 R5F2154

Honda 77960-T5A-T210-M2 R5F2154

Honda 77960-T5A-X410-M1 95640

Honda 77960-T5L-Z510-M1 95640

Honda 77960-T5S-T210-M2 R5F2154

Honda 77960-T5W-T311-M2 R5F2154

Honda 77960-T60-G830-M1 TC23xx-32F

Honda 77960-T60-H830-M1 TC23xx-32F

Honda 77960-T60-Q830-M1 TC23xx-32F

Honda 77960-T61-A920-M1 TC23xx-32F

Honda 77960-T65-A920-M1 TC23xx-32F

Honda 77960-T6A-J220-M2 H8SX1725

Honda 77960-T6G-J411-M2 R5F2154

Honda 77960-T7S-P410-M2 H8SX1725

Honda 77960-T7S-Z410-M2 H8SX1725

Honda 77960-T9A-Q810-M1 95640

Honda 77960-T9A-Q812-M1 95640

Honda 77960-T9A-Z413-M2 R5F2154

Honda 77960-TAA-Z112-M4 SPC560P50

Honda 77960-TEA-P510-M4 SPC56AP54

Honda 77960-TEA-Y910-M4 SPC56AP54

Honda 77960-TEG-J320-M4 SPC56AP54

Honda 77960-TF0-H621-M3(KLine) MPC5604

Honda 77960-TF0-Q813-M3(KLine) MPC5604

Honda 77960-TG2-W510-M2 R5F2154

Honda 77960-TGH-J110-M4 SPC56AP54

Honda 77960-TGZ-A110-M2 R7F701686

Honda 77960-THG-Z011-M1 95640

Honda 77960-THR-A320-M2 R7F701A223

Honda 77960-TL0-L011-M1(KLine) 95640

Honda 77960-TLA-P040-M4 SPC56AP54

Honda 77960-TM8-Q810-M2(KLine) H8SX

Honda 77960-TR0-P622-M1(KLine) 95320

Honda 77960-TS4-U811-M2(KLine) H8SX

Honda 77960-TSC-W110-M2 R5F2154

Honda 77960-TSN-X010-M2 R5F2154

Honda 77960-TV0-G920-M4(KLine) 95640

Honda 77960-TXK-T310-M2 R5F2154

Honda 77960-TY3-J320-M4 95640

Hyundai 95910-BC300 95512

Hyundai 95910-BY300 R7F701042

Hyundai 95910-BY550 R7F701042

Hyundai 95910-C1060 95256

Hyundai 95910-C1600 95256

Hyundai 95910-CH630 R7F701580

Hyundai 95910-CW500 R7F701580

Hyundai 95910-DB400 95256

Hyundai 95910-G9560 TC23xx-32F

Hyundai 95910-G9870 TC23xx-32F

Hyundai 95910-K6200 TC23xx-32F

Hyundai 95910-K6400 TC23xx-32F

Hyundai 95910-K7750 TC23xx-32F

Hyundai 95910-L2510 95512

Hyundai 95910-L2700 95512

Hyundai 95910-MB000 95512

Jeep 68490916AC 52194162 95512

Jeep 68503581AC 95512

Jeep 68526675AA 95512

Jeep 68526685AA 95512

Jeep 68600125AF 95512

Jeep 68621937AG 95512

KIA 95910-1W310 95128

KIA 95910-4D100 95640

KIA 95910-AA550 R7F701019

KIA 95910-BU600 95512

KIA 95910-CC120 R7F701042

KIA 95910-CC350 R7F701042

KIA 95910-G6530 95512

KIA 95910-G6540 95512

KIA 95910-H8610 R7F701019

KIA 95910-IB150 R7F701042

KIA 95910-J7600 R7F701042

KIA 95910-K0200 95512

KIA 95910-K2450 95512

KIA 95910-M7500 R7F701042

KIA 95910-N9320 R7F701580

KIA 95910-P1650 R7F701580

KIA 95910-Q0500 R7F701042

KIA 95910-R2620 R7F701580

LEAPMOTOR 5723100-BA01(J38580868) R7F701010

LEAPMOTOR 5723100-CB01(J38580836) R7F701010

LEAPMOTOR 5723100-CJ01(J38580893) R7F701010

Lexus 89170-33J60 R7F701A223

Lexus 89170-33P20 R7F701A223

Lexus 89170-33P31 R7F701A223

Lexus 89170-33T10 R7F701A223

Lexus 89170-33T90 R7F701A223

Lexus 89170-48D40 R7F701A223

Lexus 89170-50K30 R7F701A223

Lexus 89170-F6030 R7F7016443

Maserati 670036909 0285013574 95640

Maserati 670101610 0285013606 95640

Maserati 670105421 0285014801 95640

Mazda DGS9-57K30-C TC23xx-16F

Mercedes A1179001700 A1179011700 95256

Mercedes A1779005513 A2479018801(0285020644) R7F701064

Mercedes A1779009515 A2479013703(0285020950) R7F701330

Mercedes A2059004851 A2059012322 SPC560P50

Mercedes A2078203326 95640

Mercedes A2139019302 SPC560P50

Mercedes A2168206426 0285010011 95640

Mercedes A6364460042 95320

Mercedes A6369000400 95640

Mitsubishi 8635A310 DPBK 95080

Mitsubishi 8635A513 3SR832 95160

Mitsubishi 98820-A014P TC22xx-16F

Mitsubishi 98820-A016P TC22xx-16F

Mitsubishi 98820-W028P TC22xx-16F

Nissan 28556-5TA0A 95128

Nissan 28556-ZP61A 93C66

Nissan 98820-1A58D TC22xx-16F

Nissan 98820-1A60C TC22xx-16F

Nissan 98820-1EE0B 95640

Nissan 98820-4DB0B TC22xx-16F

Nissan 98820-4KE0A 95128

Nissan 98820-4MT0D TC22xx-16F

Nissan 98820-5MB2A 95128

Nissan 98820-5MR0D TC22xx-16F

Nissan 98820-5MR0E TC22xx-16F

Nissan 98820-5MR1A TC22xx-16F

Nissan 98820-5MS0B TC22xx-16F

Nissan 98820-5MT0C TC22xx-16F

Nissan 98820-5MV0D TC22xx-16F

Nissan 98820-5MX0B TC22xx-16F

Nissan 98820-5R30C 95128

Nissan 98820-5RF0B 95640

Nissan 98820-5SY0A 95128

Nissan 98820-6GR0C TC22xx-16F

Nissan 98820-6HW0B XC2336B

Nissan 98820-6MN0A XC2336B

Nissan 98820-6UR0B TC22xx-16F

Nissan 98820-6XV0A TC22xx-16F

Nissan 98820-9EY0A 95128

Peugeot 1367508080 611134500C 95320

Peugeot 9840991480 XC2336B-40F

Peugeot 9848542280 SPC560P50

Peugeot 9850073180 XC2336B-40F

Renault 285550178R 0285020584 95128

Renault 285551053R 95128

Renault 285551086R 95128

Renault 285552993R 95128

Renault 285553526R 95128

Renault 285553887R R7F701042

Renault 285554729R 0285015857 95128

Renault 285554928R 682493800B TC22xx-16F

Renault 285556337R R7F701042

Renault 285556739R R7F701042

Renault 285556781R 95128

Renault 285557417R 95128

Renault 285558271R R7F701042

Renault 285558515R 95128

Renault 285559462R 95128

Renault 285559924R 95128

Renault 285580055R(610901700) 95640

Renault 285A40190R 95128

Renault 285A41707R 0285015299 95128

Renault 8200443187 95160

Renault 985100244R 681157200C TC22xx-16F

Renault 985100872R 0285015100 95128

Renault 985102332R R7F701042

Renault 985102865R 681727700E TC22xx-16F

Renault 985103499R 95128

Renault 985104729R 95128

Renault 985105866R 0285015296 95128

Renault 985105888R R7F701042

Renault 985108019R 0285015832 95128

Renault 985109380R 0285015297 95128

Roewe 11435525-00 TC22xx-16F

Roewe 11531370-01 TC22xx-16F

Roewe 11536289-01 TC22xx-16F

Seat 5QF959655AE VW22 TC22xx-16F

Seat 5QF959655AJ VW22 TC22xx-16F

Seat 5QF959655BG VW22 TC22xx-16F

Seat 5QF959655BN VW22 TC22xx-16F

Seat 5QF959655BQ VW22 TC22xx-16F

Subaru 98221AG000(KLine) 93C56

Subaru 98221AG030(KLine) 93C56

Subaru 98221AG04A(KLine) 93C56

Subaru 98221AG060(KLine) 93C56

Subaru 98221AG08A(KLine) 93C56

Subaru 98221AJ000(KLine) H8SX

Subaru 98221AJ010(KLine) H8SX

Subaru 98221AJ100(KLine) H8SX

Subaru 98221AJ180(KLine) H8SX

Subaru 98221FG020(KLine) 93C56

Subaru 98221FJ250(Need RES 10K) H8SX1725

Subaru 98221SA040(KLine) 93C56

Subaru 98221SC010(KLine) 93C56

Subaru 98221SC020(KLine) 93C56

Subaru 98221SJ450 R7F701064

Subaru 98221SJ520 R7F701064

Subaru 98221SJ580 R7F701064

Suzuki 38910-80SB0 R7F701012

Suzuki 3F900-59S10 H8SX1725

Suzuki 3F900-64R20 SPC560P50

Suzuki 3F900-80T00 R7F701012

Suzuki 3F900-86R40 R7F701018

Toyota 89170-02W62 R7F7016443

Toyota 89170-08260 R7F7016443

Toyota 89170-0C662 R7F7016443

Toyota 89170-0C702 R7F7016443

Toyota 89170-0DG10 R7F7016843

Toyota 89170-0E710 R7F7016443

Toyota 89170-0H250 R7F7016843

Toyota 89170-0KE90 H8SX1797

Toyota 89170-0KJ00 H8SX1797

Toyota 89170-0KJ20 H8SX1797

Toyota 89170-0R480 R7F7016443

Toyota 89170-12G12 R7F7016443

Toyota 89170-24120 H8SX1797

Toyota 89170-24360 H8SX1797

Toyota 89170-26840 H8SX172x

Toyota 89170-30B80 H8SX172x

Toyota 89170-30C20 H8SX172x

Toyota 89170-30C50 H8SX1797

Toyota 89170-30D50 H8SX1797

Toyota 89170-30E00 H8SX1797

Toyota 89170-30K30 R7F7016443

Toyota 89170-30K40 R7F7016443

Toyota 89170-30K50 R7F7016443

Toyota 89170-33E50 H8SX172x

Toyota 89170-33K70 R7F7016443

Toyota 89170-33Y00 R7F7016443

Toyota 89170-33Y10 R7F7016443

Toyota 89170-42B60 R7F7016443

Toyota 89170-42B80 R7F7016843

Toyota 89170-47701 H8SX1797

Toyota 89170-50M31 R7F7016843

Toyota 89170-50N10 R7F7016443

Toyota 89170-52F50(Need RES 10K) H8SX172x

Toyota 89170-52J10(Need RES 10K) H8SX172x

Toyota 89170-52K90 H8SX172x

Toyota 89170-52P90 R7F7016843

Toyota 89170-60870 H8SX172x

Toyota 89170-60A11 H8SX172x

Toyota 89170-60E40 H8SX1797

Toyota 89170-60G50 R7F7016443

Toyota 89170-76820 R7F7016443

Toyota 89170-78360 R7F7016843

Toyota 89170-K0050 R7F7016843

VW 3Q0959655T MPC5604

VW 5QD959655AH SPC560P50

...

Package Includes:

1pc x CGDI CG70 Host

1pc x Jumper

1pc x USB Cable

6pcs x G-type Adapter Cable

6pcs x D-type Adapter Cable

Wechat: 18098983455
Whatsapp: +86-18098983455
