Autel MaxiTPMS ITS600E TPMS Relearn Tools MX-Sensor Programming Scanner OBD2 TPMS Diagnostic Scan Tool Oil Reset, BMS, SAS, EPB

MaxiTPMS ITS600(E):

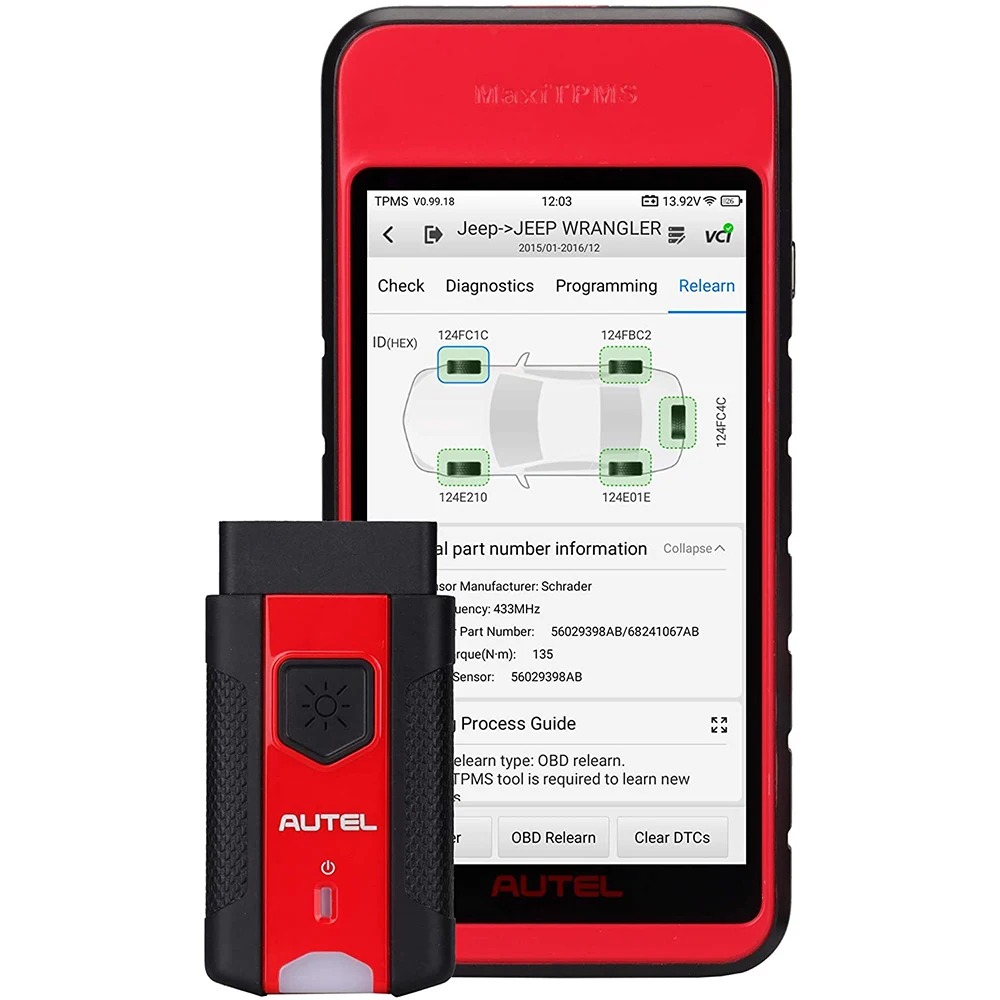

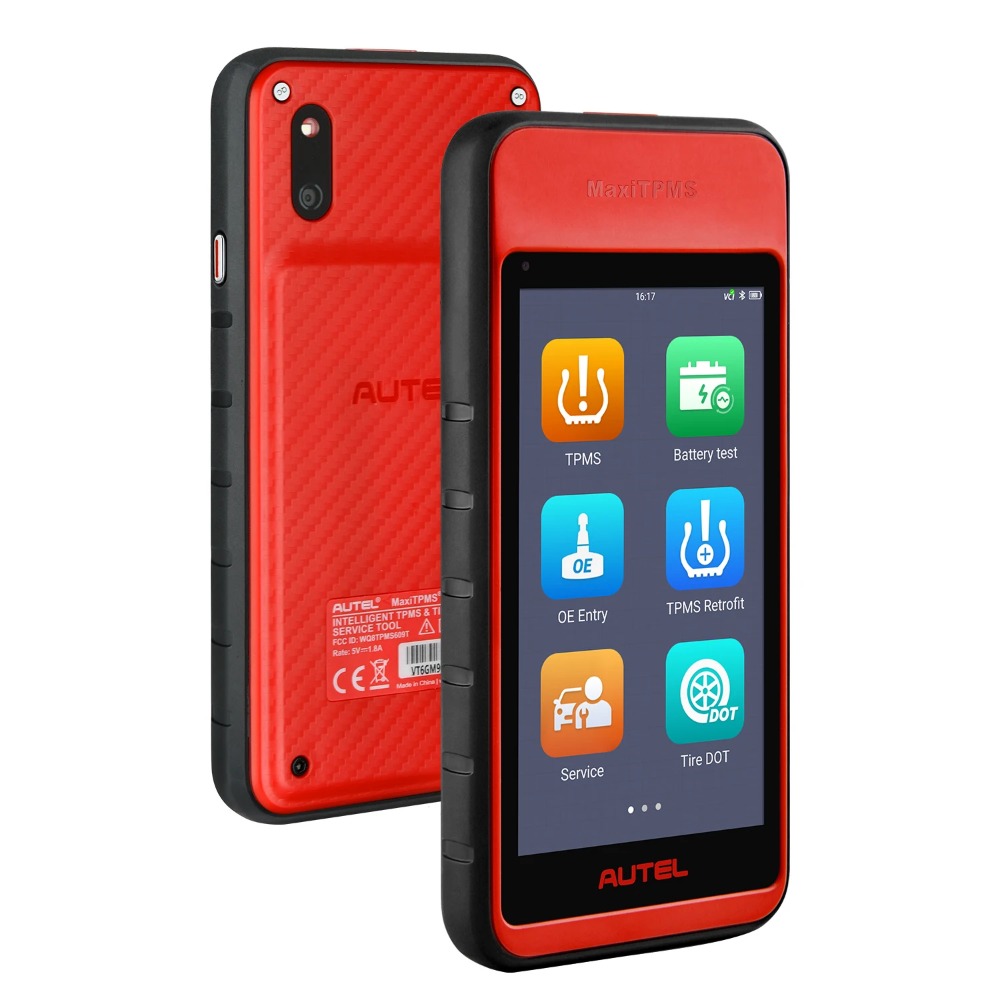

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI).

Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles.

The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup.

The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.

ITS600(E) Functional Advantage：

● Powerful tire pressure learning and matching function, covering more than 99% of model years in Asia, Europe, America, and China

● Activates all known 315/433MHz tire pressure sensors

● Programmable all-channel universal tire pressure sensor, suitable for all supported models

Real-time detection data can be read, including tire pressure, temperature, battery status, etc.

● Up to 20 tire pressure sensors can be wirelessly programmed at the same time, with strong flexibility and high programming efficiency

● Support activation copy, OBD copy, manual input, etc. to quickly clone the original car sensor

Device ID value, improve maintenance efficiency

● Support tire pressure system diagnosis function, including code reading, code clearing, reading and writing ID, tire pressure reference value. Setting (applicable to tire modification), reading data stream, action test, etc.

● Support OEM tire pressure of Benz, BMW, Nissan, Hyundai, Ford and other car series retrofit function

● Support common vehicle maintenance functions, including maintenance light reset, electronic parking brake, battery matching, steering angle learning

● Support TPMS toolbox, such as: key frequency detection, REDI sensor unlocking and sleep/parking mode switching, etc.

Main functions:

EVERYTHING TPMS SOLUTIONS:

• Activates, reads and relearns all known sensors

• Enhanced, at-a-glance diagnostics status screen

• Fast OBDII relearn for most vehicles

• Program MX-Sensors to replace 99% of OE sensors

• Copy By OBD sensor programming for faster service

• Four MX-Sensor program modes; batch program up to 20 MX-Sensors

• Includes wireless Bluetooth vehicle communication interface (VCI)

• Tire pressure placard value reset

• Read/Clear TPMS system codes & view live data

• Free Wi-Fi software updates for the life of the tool

QUICK VEHICLE ID TECHNOLOGY:

• Rapid VIN acquisition via optical VINScan

• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input

• Identify MMY and sensor OE part number via VIN decoding

DIAGNOSTICS & SERVICE:

• Oil light reset

• Electronic brake service

• Battery registration

• Steering angle reset

• Included service function updates are free for the life of the tool

• All systems diagnostics and maintenance services software available with Pro Upgrade purchase

EXPANDED TIRE SERVICE:

• Quick & Easy Tire DOT Number Scan

• Tire Expiration Notice

• Tire Recall Lookup

• Tread Depth & Brake Disc Wear

• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200

• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

The Great Autel ITS600(E) Tool:

MaxiTPMS ITS600 is a newly released TPMS scan tool. ITS600 programming tool upgrades of TS408/TS501/TS508/TS601, integrates their superior features, and adds TPMS retrofitting and 4 diagnostic functions. Based on Android OS and 1.5 GHz quad-core processor, ITS600 reset tool provides quick and easy-to-operating TPMS diagnostics and TPMS services.

Sensor Programming for Autel MX-Sensor:

The Programming function allows users to program the sensor data to the MX-Sensor to replace existing sensors with low battery life and ones that are no longer functioning. ITS600 activating tool can handle maximum of 20 MX-Sensors at the same time. (TS608 only programs 16 MX-Sensors.) ITS600 reset tool is designed with 4 options for program the MX-Sensors and users can choose the appropriate method to obtain the ID according to the actual situation of the original sensor.

Copy by OBD: If the IDs retrieved from sensor activation and those registered to the TPMS ECU are different, ITS600 TPMS scanner will program the sensor IDs retrieved from the ECU to the new MX-Sensors.

Copy by Activation: If the original sensor still can be activated, you can use the ITS600 activating tool to trigger it, obtain the original IDs, and then write them into the new MX-Sensors.

Manual Input: If the original sensor is completely broken or can’t be activated, you can find the old ID from the label, and manually input it to new MX-Sensors.

Auto Create: If the original sensor cannot be activated or the original sensor ID cannot be obtained, you can use the ITS600 TPMS scan tool to automatically create a new random ID to MX-Sensor.

Autel ITS600(E)= TPMS Tool + Diagnostic Scanner:

ITS600 diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600 relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.

EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
