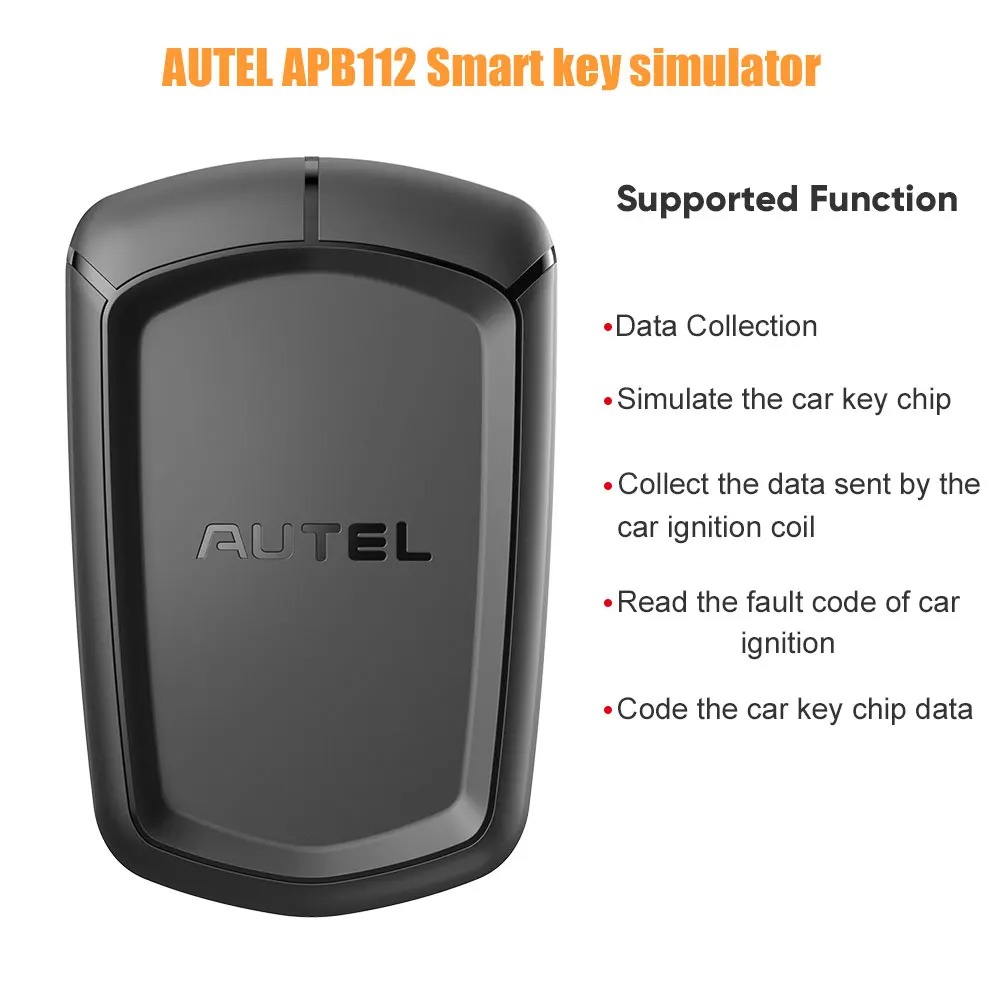

Autel APB112 Smart Key Simulator Emulator for 46 4D Data Collection Support For Toyota 8A H

Product Description:

The APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip. Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.

Product Feature:

Smart key simulator

Compatible with IM608, IM508, and MX808IM

Compact but would need to be used with the XP400

Cannot be used with the XP200

46, 4D data collection

46 smart key password calculation

46 chip simulation

Toyota 4D (94/D4, 98) smart key simulation

Toyota H (88/A8, A9, 39) smart key simulation

Collects data from the ignition coil

Identify ignition coil troubles

Decode vehicle key chip data

Simulate vehicle key chip (ex - 4D chip)

Must be used with an Autel diagnostic tool

Toyota/Lexus smart key all key lost

Chip decoding (Hyundai 46)

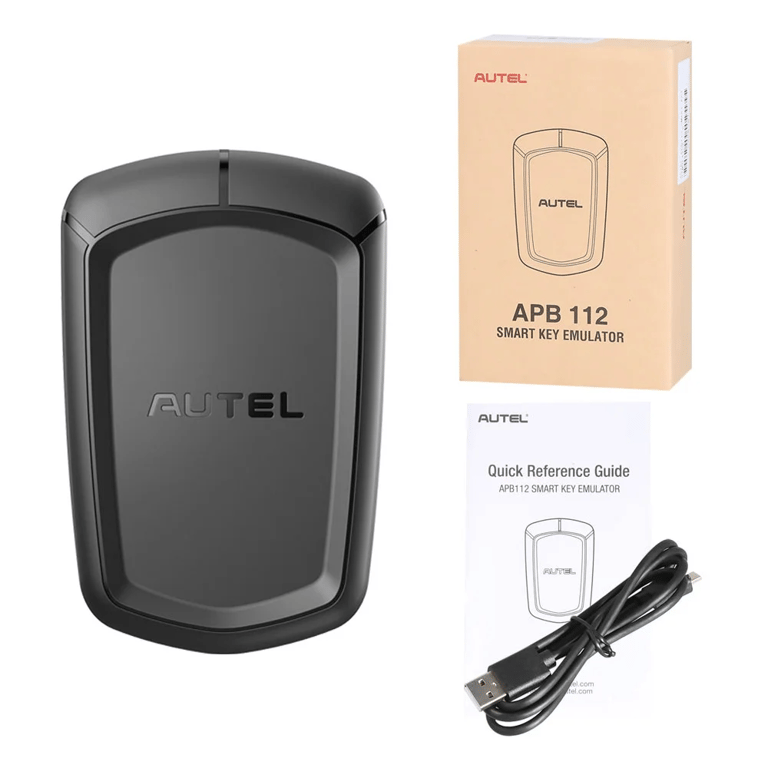

Includes: APB112 Smart Key Simulator, USB Cable, Quick Reference Guide

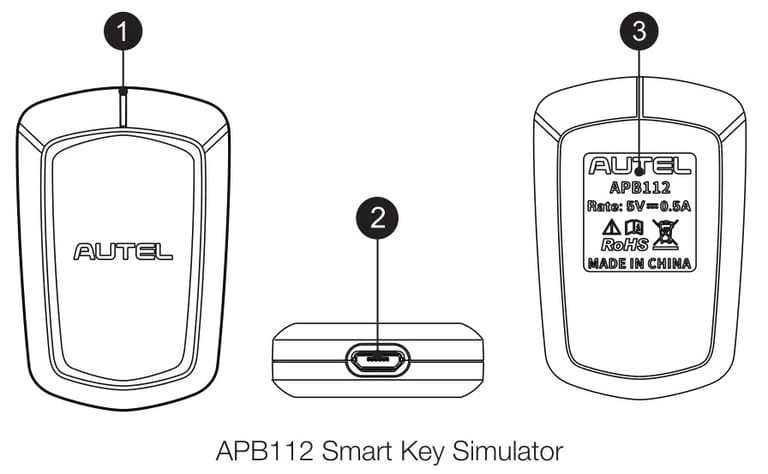

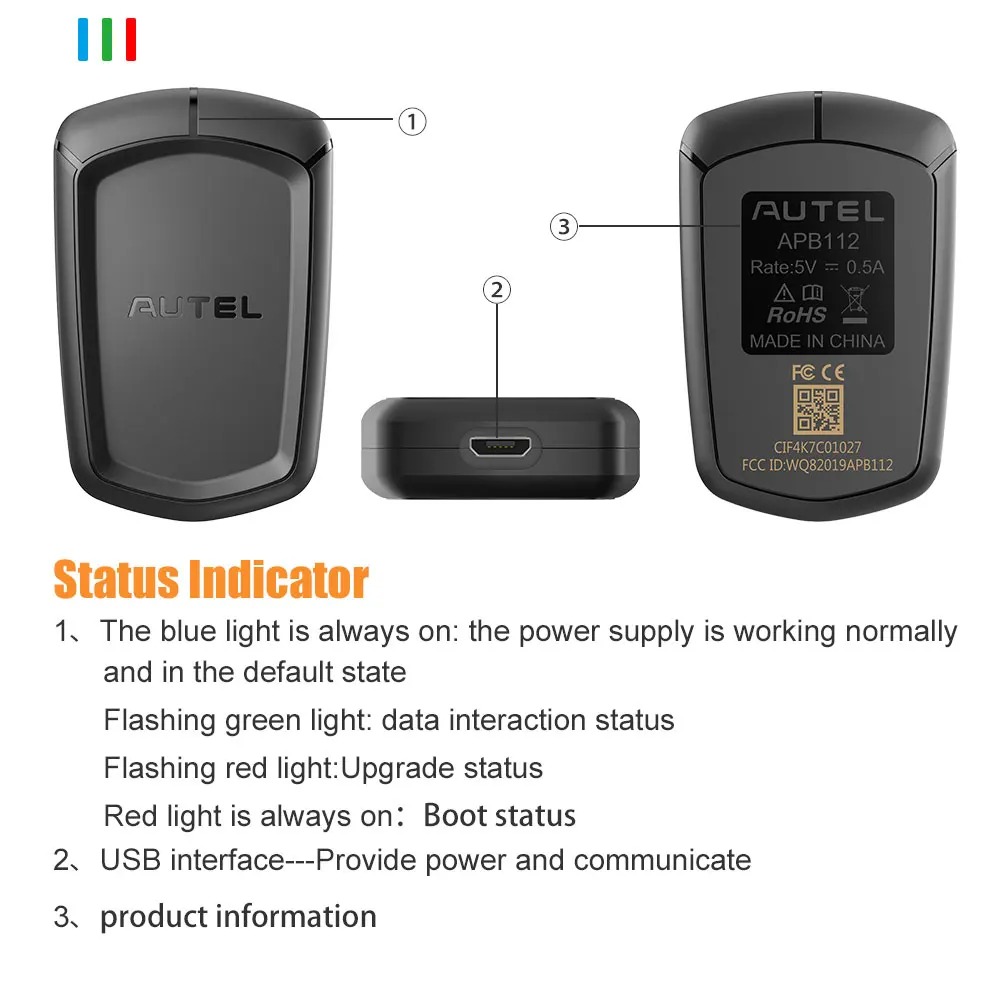

APB112 Smart Key Simulator

1. Status Indicator - Indicates The Current Status
1) Lights Solid Blue - the power supply is working properly and in default state;
2) Falshes Green - the data interaction status;
3) Flashes Red - the status of upgrading;
4) Lights Solid Red - the boot status

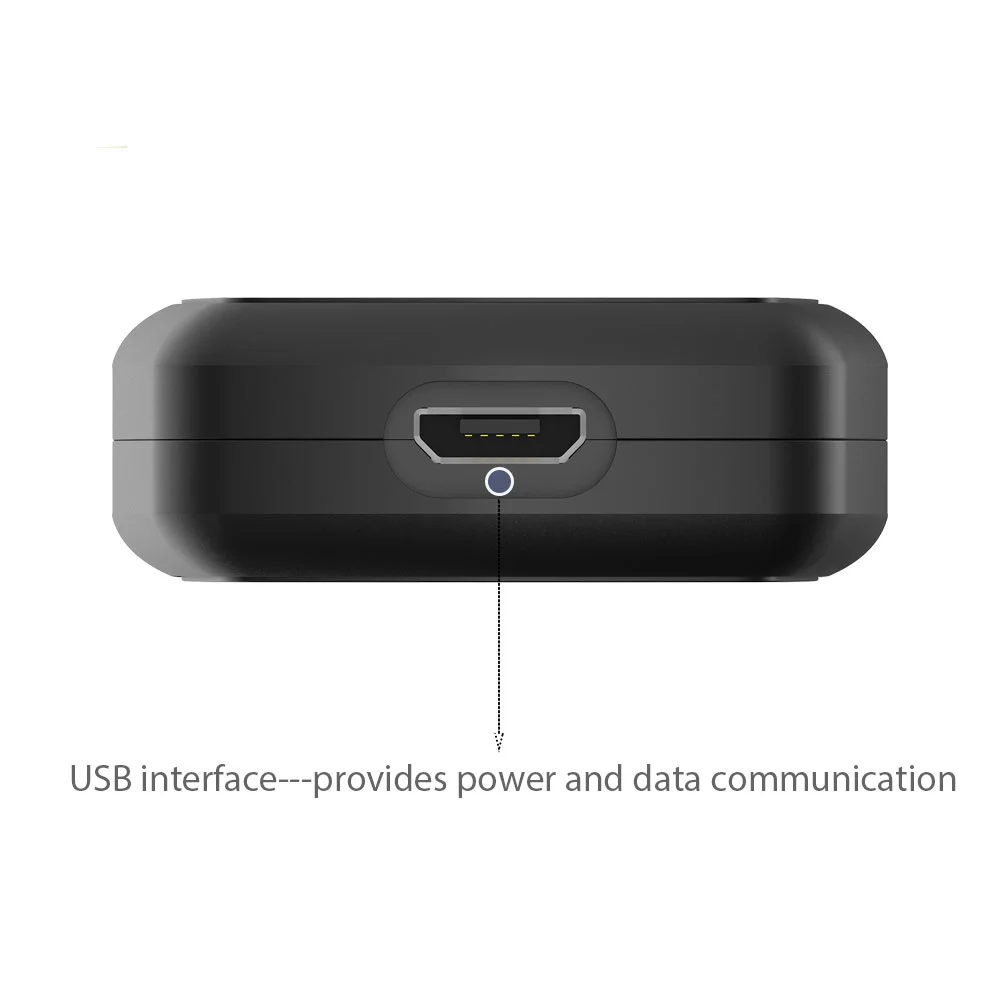

2. USB Interface - Provides power and data communication

How to Use Autel APB112?
1. Connect the APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.
2. After connection, the status indicator lights solid blue,indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.
3. The APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.
4. Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip.After decoding, the original car chip data can becopied.
5. The emulator key chip can generate various types ofkey chips with subsequent upgrades according to requirements.

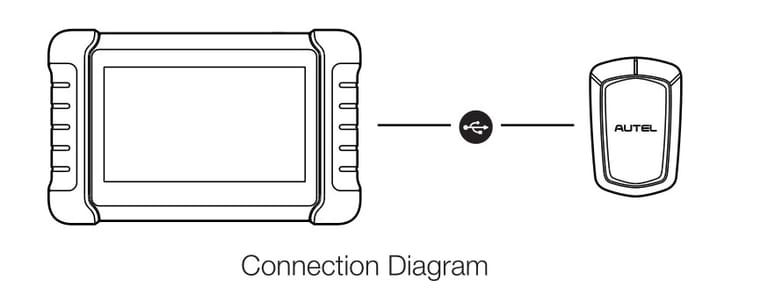

Connection diagram

1. Not work alone, but works together with any of the Autel Diagnostic Device i.e MaxiIM IM608, Autel MaxiIM IM508, and MX808IM

2. Compact but would need to be used with the XP400, not with XP200.

3. Do Not disconnect the USB Cable when use

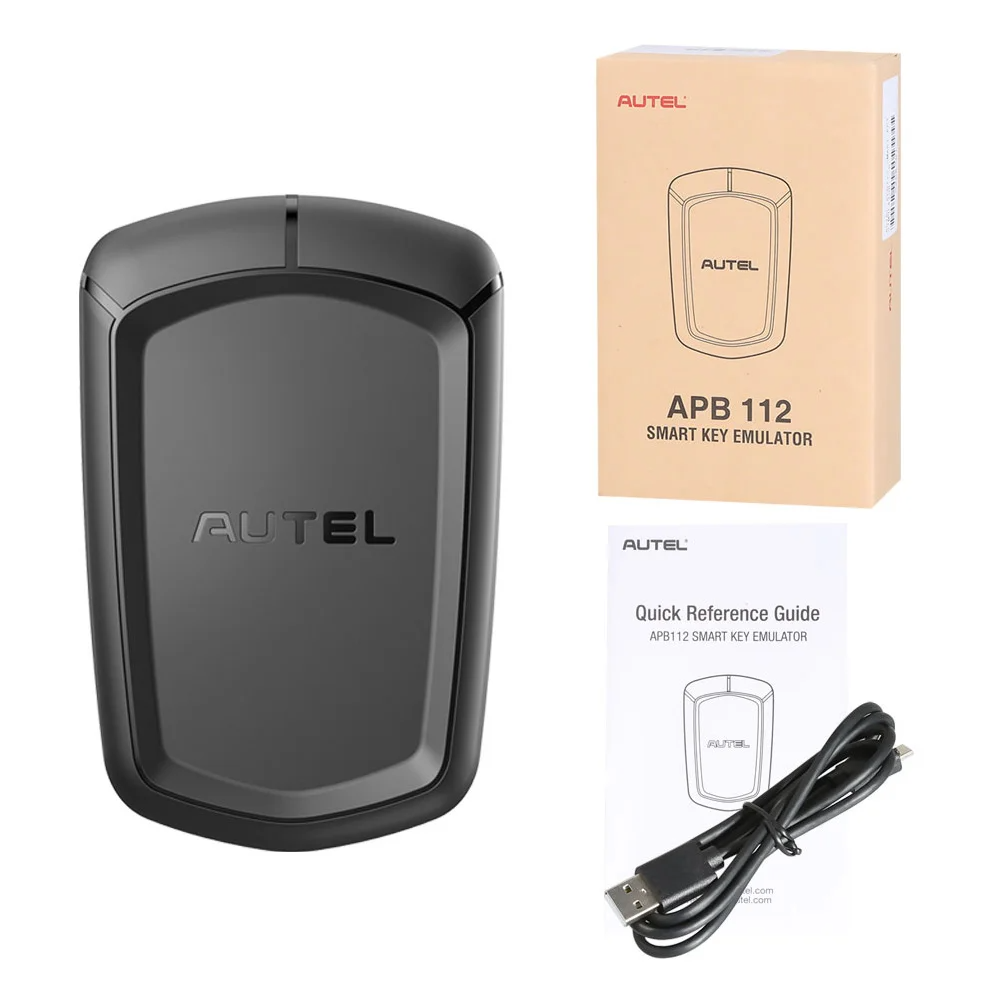

Package includes:

1pc x AUTEL APB112 Main Unit

1pc x USB Cable
