5Pcs/lot DUOYI DY26A Ultrasonic Leak Detector Ultrasonic Flaw Detector Transmitter Sealing Flaw Stethoscope Gas Water Leak Pressure Vacuum Probes Location

DUOYI DY26A Ultrasonic Leak Location Determine Meter Car Window Sealing Flaw Gas Vaccum Pressure Locator Sound Light Alarm Gas Water Leak Pressure Vacuum Ultrasonic Flaw Detector Stethoscope Auto Car Repair Tool

   DY26A is designed to locate leaks in pressure and vacuum system.

It can be used to detect and locate the source of the ultrasonic emission generated by gas or liquid f1owing through a small restrictive opening.

lt uses the advanced ultrasonic sensing technique and features small size, light weight;reliable detection, easy use and utility.

Senses pressurized leaks, detects electrical arcing, and finds falling solenoids, valves and bearings.

Detects any pressurized leaking gas, including chlorofluoro carbon(CFCs),hydrofluoro carbon(HFCs), nitrogen(N), carbon dioxide(CO2) and steam.

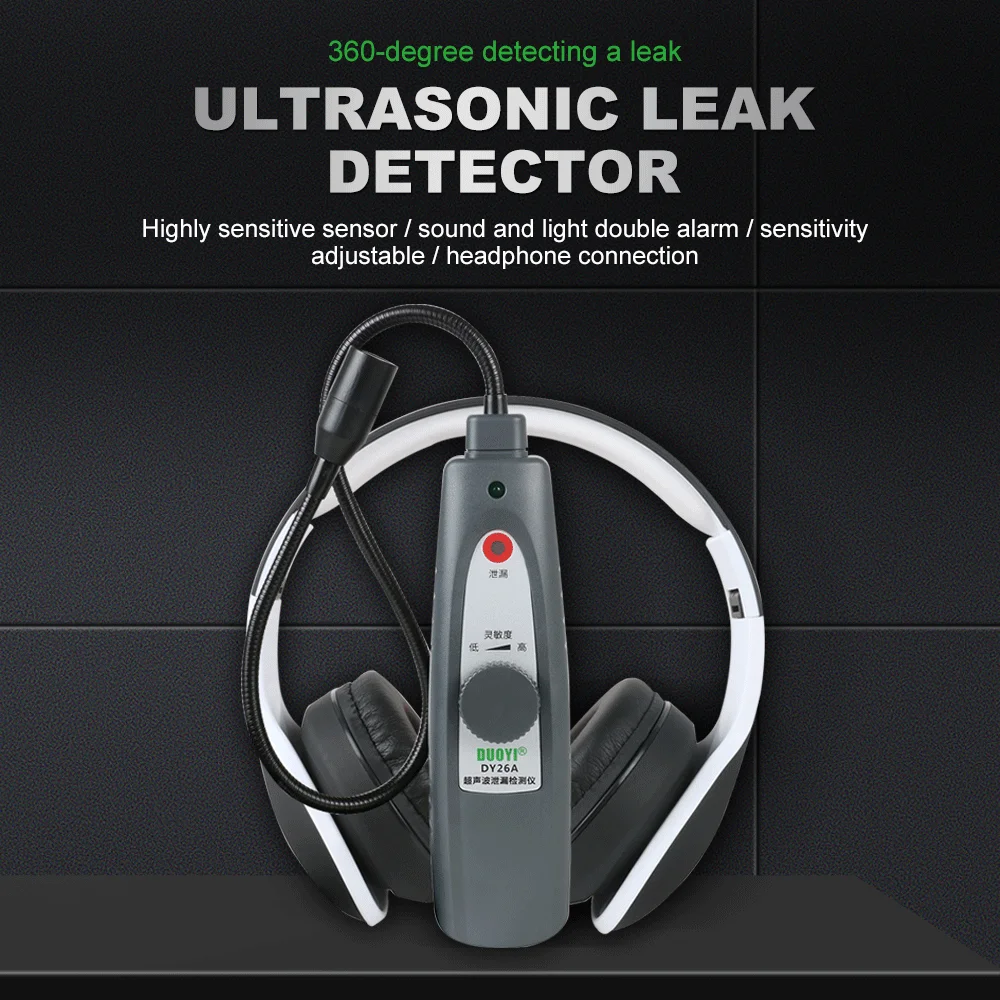

360 degree detecting leak
   Sensitvity adjustable : High and low ajustment according to the detected enviroment

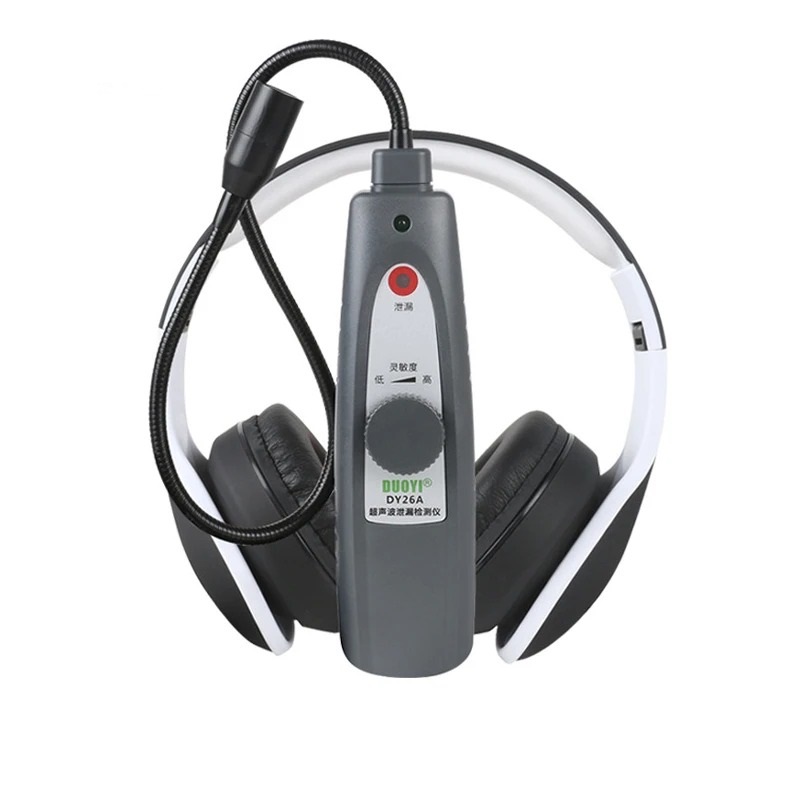

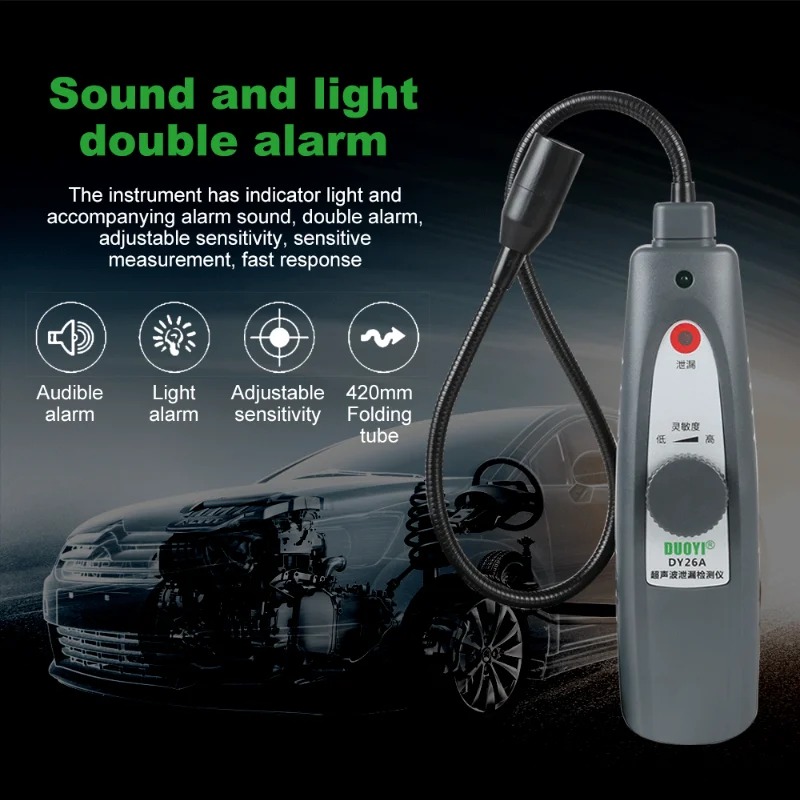

Highly sensitive sensor / sound and light double alarm / sensitivity adjustable / headphone connection
DY26A is designed to locate leaks in pressure and vacuum system.
It can be used to detect and locate the source of the ultrasonic emission generated by gas or liquid f1owing through a small restrictive opening.
lt uses the advanced ultrasonic sensing technique and features small size, light weight;reliable detection, easy use and utility.
   The instrument uses ultrasonic sensing technology, which is small in size and light in weight.
It is a reliable, easy to use, practical and portable tool.
By using this instrument, you can quickly and accurately locate leaks in any pressure and vacuum system.
It is very suitable for detecting cracks in pipes, valves, etc.
It is very suitable for tightness inspection of cabins, aircrafts, cabinets, refrigerators, freezers, fuel tanks and other sealed compartments.
   In addition, it can be used to detect the discharge of switches, transformers, insulators, circuit breakers, relays, buses, etc. to prevent accidents.

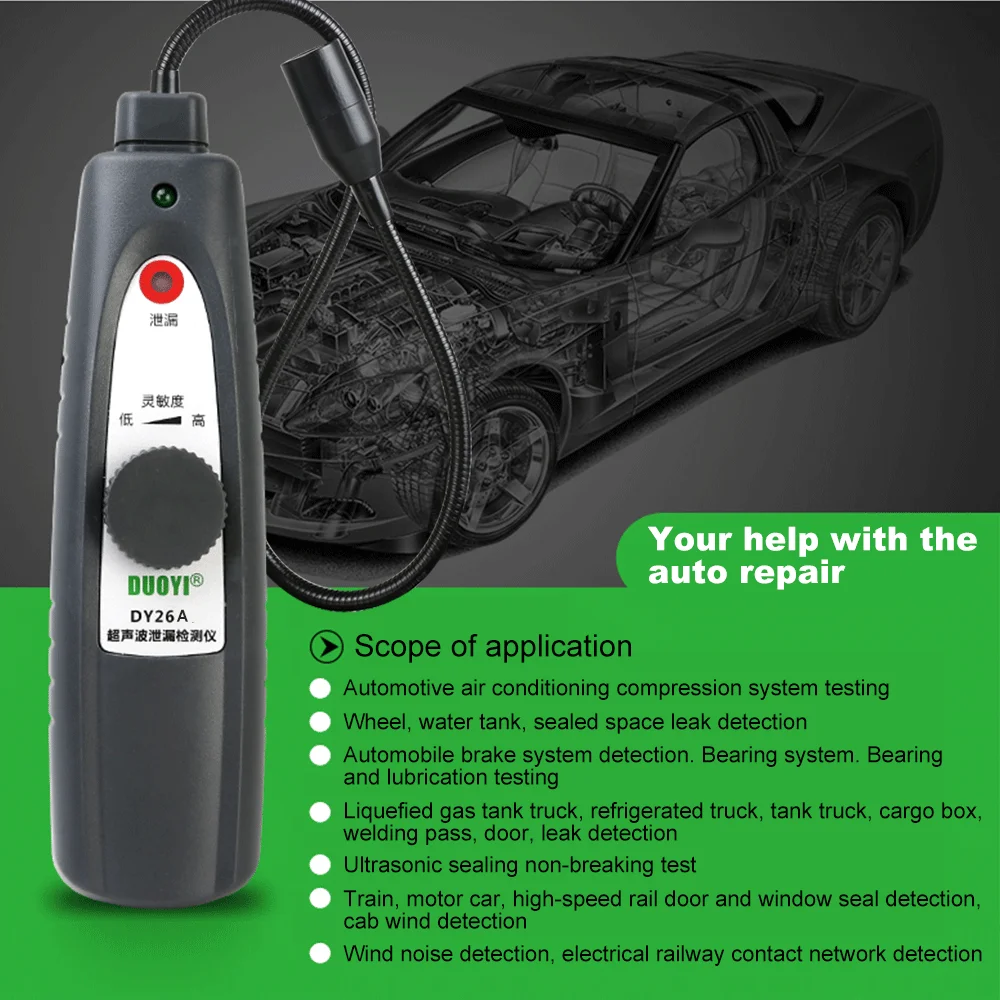

Your help with the auto repair
Scope of application
Automotive air conditioning compression system testing
Wheel, water tank, sealed space leak detection
Automobile brake system detection. bearing system. bearing and lubrication testing
Liquefied gas tank refrigerated tank cargo box, welding pass, door,leak detection
Ultrasonic sealing non-braking test
Train,motor car, hgh-speed rail door and window seal detection, cab wind detection
Wind noise detecion, electrical railway contact net-work detection

Features:

1. Sense pressurized leaks, detects electrical arcing, and finds falling solenoids, valves and bearings .

2. Comes with a transmitter that emits an ultrasonic frequency to help locate leaaks that are not pressurized.Enough to emit frequencies the detector can pick up.(Only DY26)

3. Detects any pressurized leaking gas, including chlorofluoro carbon(CFCs), hydrofluoro carbon(HFCs),nitrogen(Ni), carbon dioxide(CO2) and steam.

Specification:

Alarm Indication: The''LEAK'' LED lights and the''ticking tone'' increases in frequency.

Frequency Response: 40kHz ± 2kHz

Operating Condition: temperature:0°C - 40°C

Relative humidity: <80%

Battery: 9V, 6F22 or equivalent

Size: 171*43*38mm

Weight: about 240g

Note :

1.There are many factors involved in the ultrasonic leak detection, such as the pressure within the vessel under test,hole shape, hole size, temperature etc. In some cases, the ultrasonic sound caused by leak is very weak,so you should set the DY26A's sensitivity to the highest level at the beginning of leak detection.

2.If the detected ultrasonic sound is too intense so that it is impossible to pinpoint the leak because the'' ticking tone''is too high in frequency, you should decrease the sensitivity with the sensitivity knob.

3.In noisy environments, you can decrease the sensitivity appropriately to exclude the disturbance caused bynoise.

4.When DY26A detects ultrasonic sound, move its probe around the suspected leak to determinewhether the detected ultrasonic sound is from the suspected leak or from other areas.

5.Because ultrasonic sound attenuates rapidly when it travels over distance, move the probe of DY26Aas close as possible to the suspected leak, remember to decrease the sensitivity if necessary.During location, move the probe slowly.

Note:
If you are outside, hold the DY26A along the object to measure the leak, you can find the leak location
If you are in a sealed container, you should check if the container is leaking. Choose DY26

Package included:
5 Set DY26A Ultrasonic Flaw Detector
