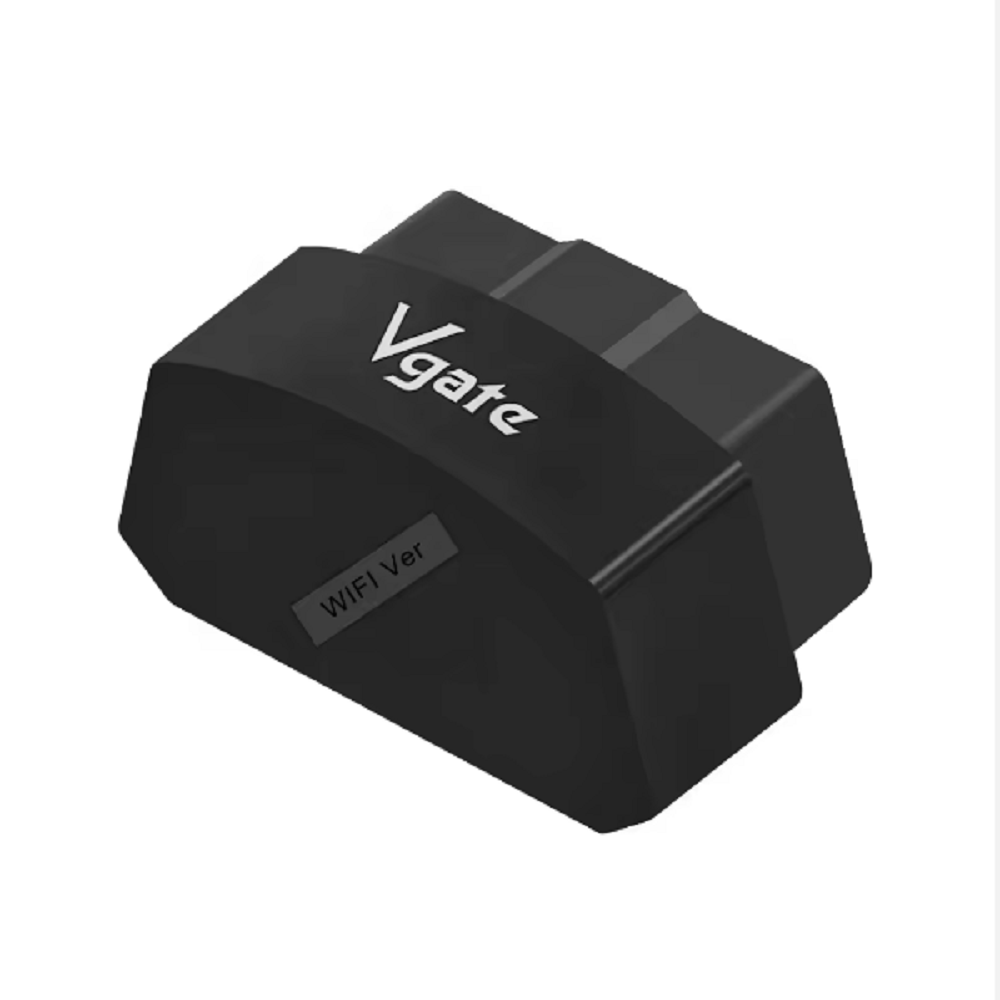

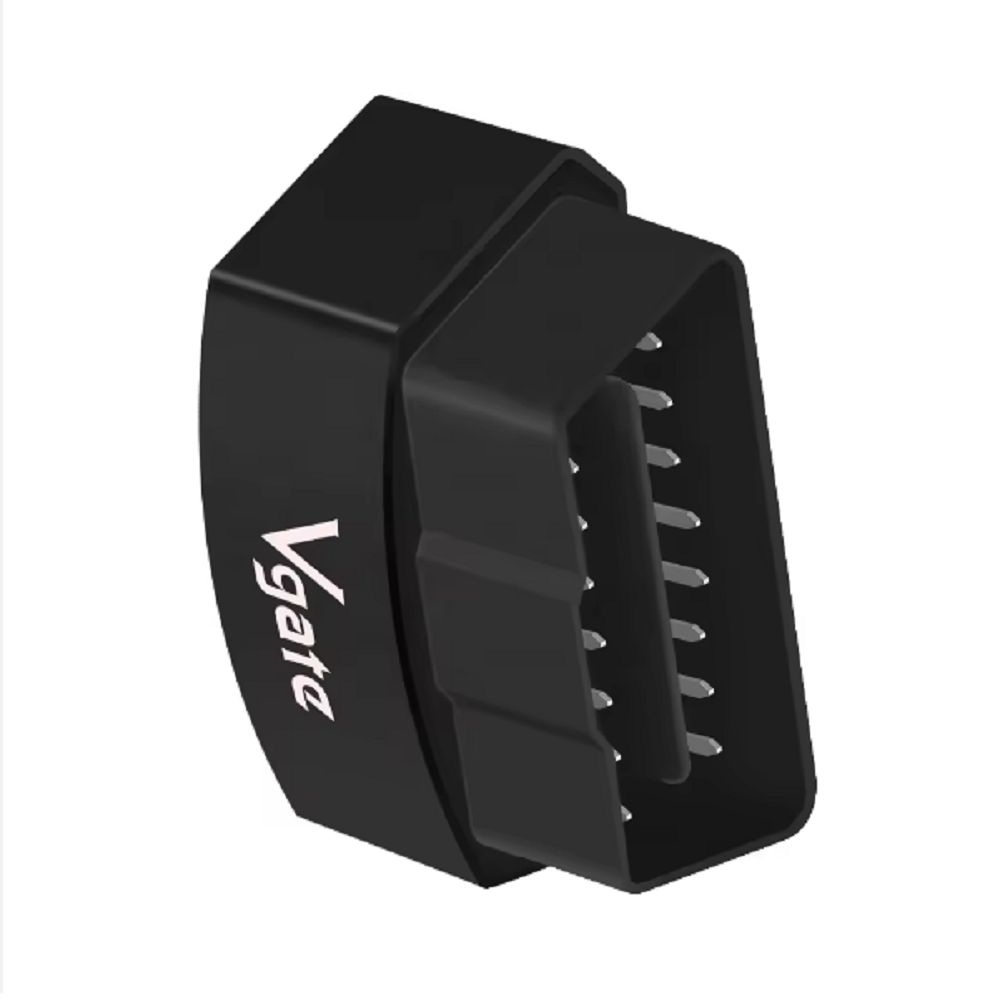

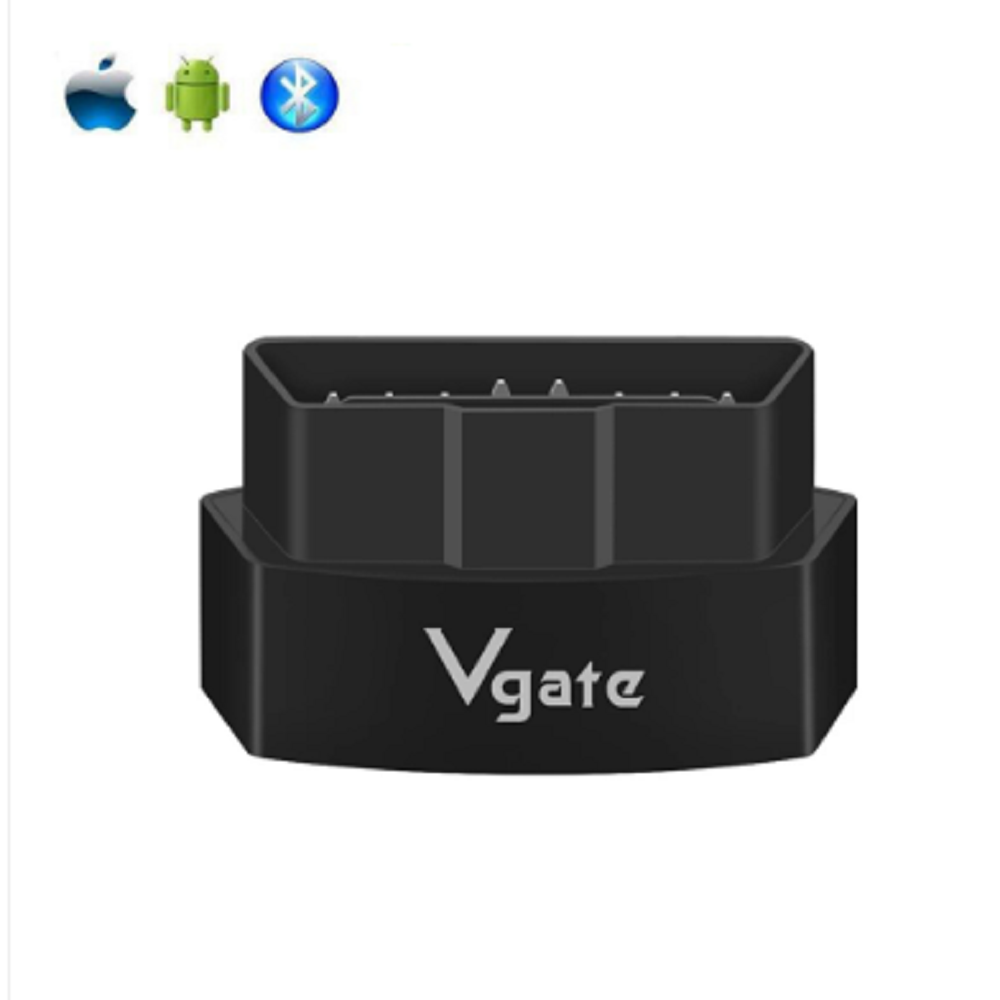

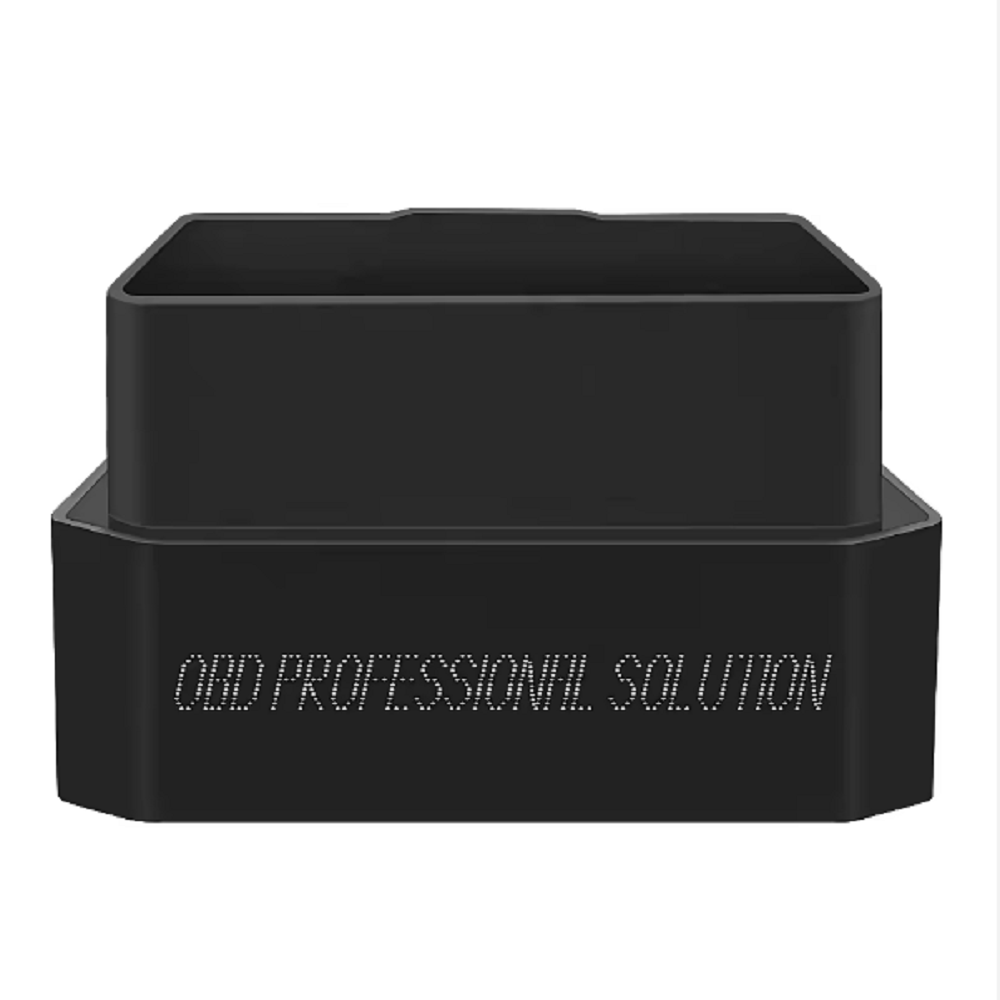

10Pcs/lot Vgate iCar3 WIFI/BT 3.0 OBDII OBD2 Code Reader ELM327 icar 3 Diagnostic Interface for IOS Android

ICAR 3 Bluetooth Features:

1.Supply voltage(VDD):12V 16 PIN diesel /gasoline car

2. Support Tablet : Android phone/PC

3.Support application : Torque/ OBD Car Doctor

4.OBD Functions: Supports OBD2 protocols

ICAR 3 Bluetooth OBD2 Scanner Functions:

1.Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.

2.Measure the fuel consumption.

3.Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

4.Turn off the MIL (signal Check Engine).

5.Download data to external media in a variety of formats for later printing.

6.Record various parameters, display graphics in real time, and more OBD-II protocols Automatic.

Vgate ICAR 3 Bluetooth Scanner OBDII Protocols:

1.sae j1850 pwm (41.6kbaud)

2.sae j1850 vpw (10.4kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250 Kbaud)

B.USER1 CAN(11 bit ID,125  Kbaud)

C.USER2 CAN(11xbit ID,50 x kbaud)
