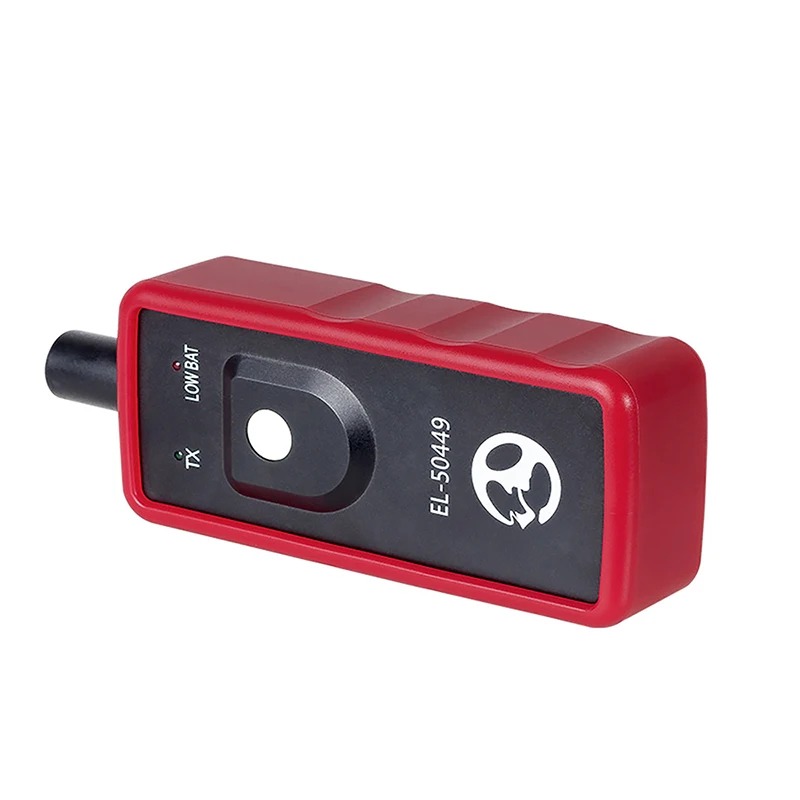

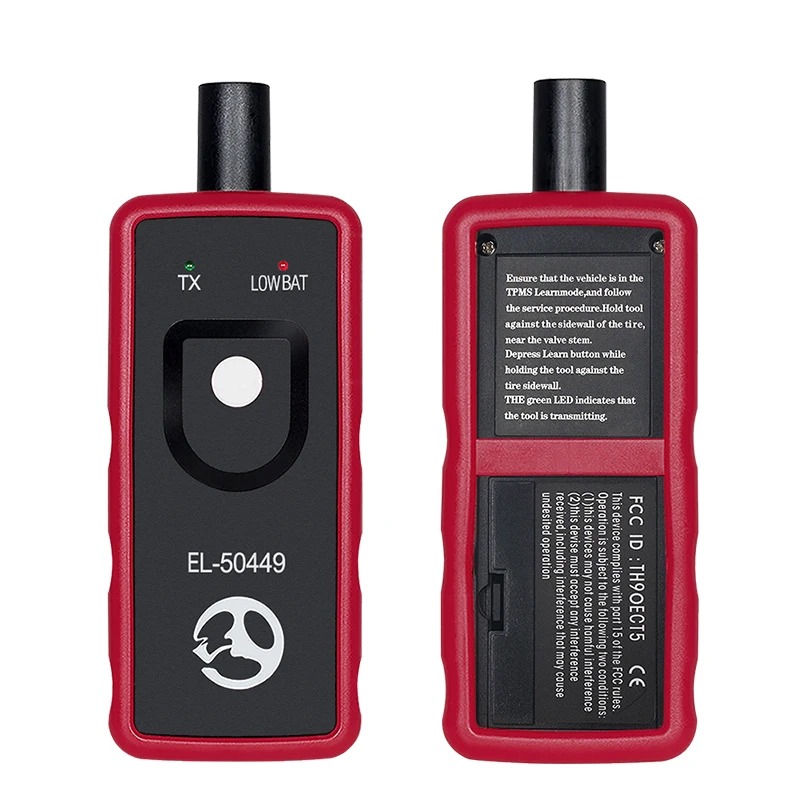

10Pcs/lot El-50449 TPMS Tire Pressure Monitor Sensor Scanner El 50448 EL50449 Tpms Activation Tool For G-m For Opel El 50449

Warm Tips

The package does not include the charger and battery, do not have retail carton box.

EL-50449 Description

Most of For G.M vehicles equipped with a 315 or 433 MHz (TPMS) Tire Pressure Monitoring system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using EL-50448 special tire pressure tool. EL-50448 works on 2014 For G-M models too.

Using Tips

The tire pressure sensor on models in and after 2012 can be read, only with some specified diagnostic tools. Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor. After replacing a tire or wheel speed sensor.

Please refer to the specific methods as follows

Step 1

Enter leaning mode

Set the gearshift lever to "P"

Put the ignition switch to “ON”

Enter the interface of tire pressure display by DIC

DIC shows "Press Set / Ctrl to re-learn"

Press “Set / Ctrl”

The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode

Step 2

Read tire pressure sensor information

Start from the front-left wheel,

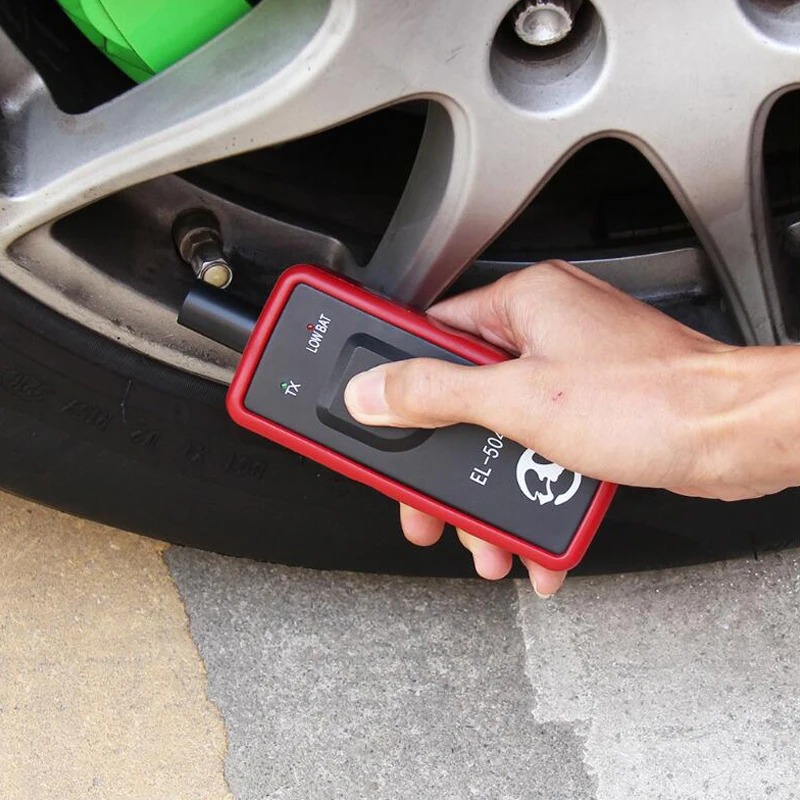

Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall

El-50448 tire pressure tool starts by the start switch

Successful to read the tire pressure sensor information when the horn bleeps once

Step 3

Same method to read other tire pressure information

Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.

Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.

Supported Vehicle List (As Reference)

2010 9-5

2010 for Acadia, forEnclave, OUTLOOK, forTraverse (VIN R/V)

2010 for Allure, forLaCrosse (VIN G)

2010 for Antara, forCaptiva, forTerrain, forWinstorm

2010 for Avalanche, forEscalade, forSuburban, forTahoe, forYukon (VIN C/K)

2010 for Aveo, G3, forBarina (VIN S/T)

2010 for Buick Excelle

2010 for Buick Regal (China)

2010 for Camaro (VIN F)

2010 for Canyon, forColorado (VIN S/T)

2010 for Cobalt, G5 (VIN A)

2010 for Corvette (VIN Y)

2010 for Cruze (China)

2010 for Cruze

2010 for CTS (VIN D)

2010 for Daewoo Lacetti

2010 for DTS (VIN K)

2010 for Equinox, forTerrain (VIN L)

2010 for Express, forSavana (VIN G/H)

2010 for G6 (VIN Z)

2010 for H3/H3T (VIN N)

2010 for HHR (VIN A)

2010 for Impala (VIN W)

2010 for Insignia

2010 for LaCrosse (China)

2010 for Lucerne (VIN H)

2010 for Malibu (VIN Z)

2010 for Opel/forVauxhallAstra

2010 for Sierra, forSilverado (VIN C/K)

2010 for SKY, forSolstice (VIN M)

2010 for SRX (VIN N)

2010 for STS (VIN D)

2010 for VE/WM - Sedan, forSportwagon, forUte, forLumina, forCaprice, HSV

2010 for VUE (VIN Z), forCaptiva Sport

2011 for Acadia, forEnclave, forTraverse (VIN R/V)

2011 for Alpheon

2011 for Antara, forCaptiva

2011 for Astra

2011 for Avalanche, forEscalade, forSuburban, forTahoe, forYukon (VIN C/K)

2011 for Aveo, forBarina (VIN S/T)

2011 for Buick Excelle

2011 for Buick Regal (China)

2011 for Camaro (VIN F)

2011 for Canyon, forColorado (VIN S/T)

2011 for Caprice PPV

2011 for Captiva Sport

2011 for Corvette (VIN Y)

2011 for Cruze

2011 for CTS (VIN D)

2011 for DTS (VIN K)

2011 for Equinox, forTerrain (VIN L)

2011 for Express, forSavana (VIN G/H)

2011 for HHR (VIN A)

2011 for Impala (VIN W)

2011 for Insignia

2011 for LaCrosse (China)

2011 for Lucerne (VIN H)

2011 for Malibu (VIN Z)

2011 for Orlando

2011 for Regal (VIN G)

2011 for Sierra, forSilverado (VIN C/K)

2011 for SRX (VIN N)

2011 for STS (VIN D)

2011 for VE/WM - Sedan, Ute, forSportwagon, forCaprice, forLumina, forOmega, VXR8

2011 for Volt

2012 for Acadia, forEnclave, forTraverse (VIN R/V)

2012 for Alpheon  (2706)

2012 for Ampera, Volt (VIN R) (Europe)

2012 for Antara, forCaptiva

2012 for Astra-J  (2857)

2012 for Avalanche, forEscalade, forSuburban, forTahoe, forYukon (VIN C/K)

2012 for Aveo Classic, forBarina Classic (VIN T)

2012 for Aveo, Sonic  (2777)

2012 for Barina  (2774)

2012 for Buick Excelle  (2861)

2012 for Camaro (VIN F)

2012 for Canyon, forColorado (VIN S/T)

2012 for Caprice PPV

2012 for Captiva Sport

2012 for Chevrolet Cobalt  (2809)

2012 for Colorado (Other IO), S10 (South America)

2012 for Corvette (VIN Y)

2012 for Cruze  (2863)

2012 for CTS (VIN D)

2012 for Equinox, forTerrain (VIN L)

2012 for Express, forSavana (VIN G/H)

2012 for Impala (VIN W)

2012 for Insignia  (2707)

2012 for LaCrosse (China)  (2710)

2012 for LaCrosse (VIN G)  (2709)

2012 for Malibu (VIN Z)

2012 for Opel Combo-D

2012 for Optra, forViva (VIN J)

2012 for Orlando  (2859)

2012 for Regal (China)  (2711)

2012 for Regal (VIN G)  (2708)

2012 for Sierra, forSilverado (VIN C/K)

2012 for Sonic (US/Canada)  (2775)

2012 for SRX (VIN N)

2012 for VE/WM - Sedan, forUte, forSportwagon, forCaprice, forLumina, VXR8

2012 for Verano (US/Canada)  (2816)

2012 for Volt (VIN R)

2012 for Zafira-C  (2860)

2013 for Acadia, forEnclave, forTraverse (VIN R/V)  (3206)

2013 for Alpheon  (3094)

2013 for Ampera, Volt (VIN R) (Europe)  (3211)

2013 for Antara, forCaptiva  (5376555)

2013 for Astra-J Convertible/Coupe  (5376567)

2013 for Astra-J  (5376577)

2013 for ATS (VIN A)  (3086)

2013 for Avalanche, for Escalade, forSuburban, forTahoe, forYukon (VIN C/K)  (3088)

2013 for Aveo, for Sonic (Africa, Middle East, AP, South America, CKD, Mexico)  (5376711)

2013 for Aveo, for Sonic (Europe)  (5376704)

2013 for Barina  (5376837)

2013 for Camaro (VIN F)  (3106)

2013 for Caprice PPV  (3105)

2013 for Captiva Sport  (3101)

2013 for Cobalt  (3107)

2013 for Colorado, for Colorado 7, S10, for Trailblazer  (5392270)

2013 for Combo-D

2013 for Corvette (VIN Y)  (3104)

2013 for Cruze (Global)  (5377099)

2013 for CTS (VIN D)  (3085)

2013 for Encore (China)  (5377162)

2013 for Encore, for Trax (North America)  (5377181)

2013 for Equinox, for Terrain (VIN L)  (3100)

2013 for Excelle  (5377155)

2013 for Express, for Savana (VIN G/H)  (3103)

2013 for Impala (VIN W)  (3102)

2013 for Insignia  (3098)

2013 for LaCrosse (China)  (3095)

2013 for LaCrosse (VIN G) (North America)  (3090)

2013 for Malibu (China)  (3096)

2013 for Malibu (Europe, Other IO and South America)  (2713)

2013 for Malibu (North America)  (3093)

2013 for Mokka, for Trax, for Tracker (Europe)  (5377179)

2013 for Onix  (3166)

2013 for Orlando (Global)  (5377530)

2013 for Regal (China)  (3099)

2013 for Regal (VIN G) (North America)  (3089)

2013 for Sierra, for Silverado (VIN C/K)  (3087)

2013 for Sonic (US/Canada)  (5377994)

2013 for Spark (US/Canada), for Barina Spark (Automatic Transmission)  (5421555)

2013 for Spin

2013 for SRX (VIN N)  (3201)

2013 for Trax, Tracker (Africa, Australia, Middle East, South America)  (5377156)

2013 for VE/WM Ute, for Caprice, for Lumina

2013 for Verano (US/Canada)  (5377996)

2013 for Volt (VIN R) (North America, Holden)  (3210)

2013 for XTS (China)  (3092)

2013 for XTS (North America)  (3091)

2013 for Zafira-Tourer
