10pcs/lot PL Ship WiFi PIC18F25K80 Chip V1.5 ELM327 with Switch OBDII Vehicle Diagnosis for IOS/Android ELM 327 OBD2 Scanner

Description:
Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

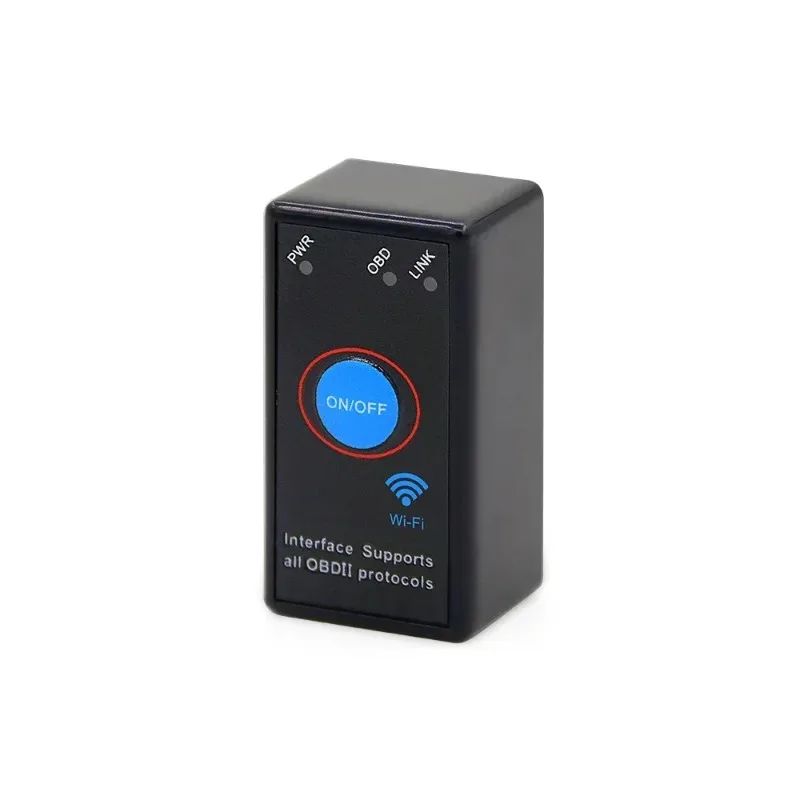

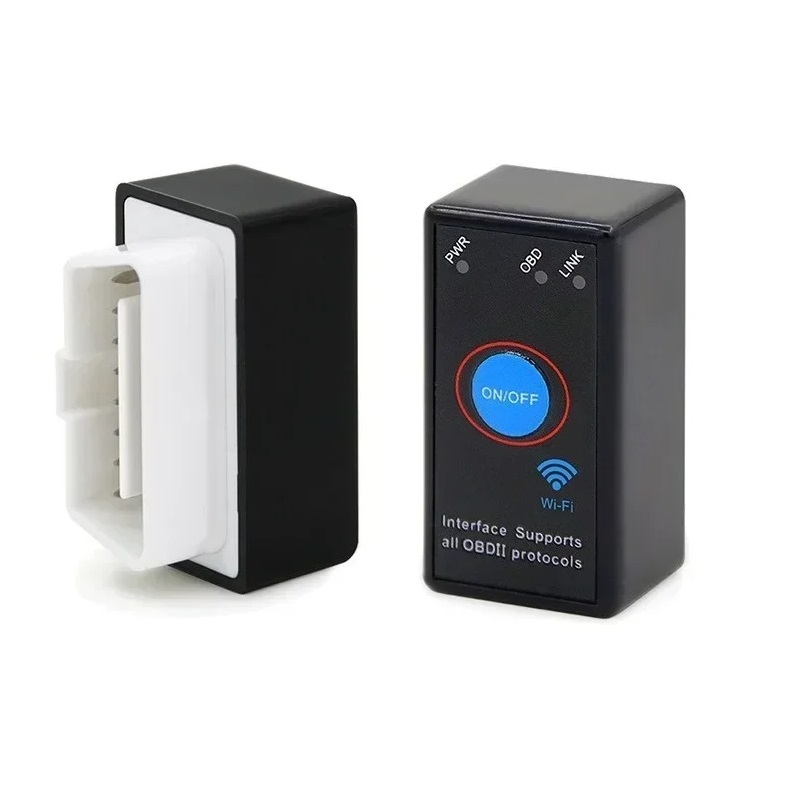

ELM327 With Switch on/off  Wifi With PIC18F25K80 Chip

Note:

This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine:

For USA Car brand,after 1996;

For Europe Car brand(petrol),after 2001;

For Europe Car brand(diesel),after 2004;

For Japan/Korea Car brand,after 2008;

For Chinese Car brand,after 2009;

For Indian Car brand,after 2010;

For Russian Car brand,after 2011;

Fit for Chry-sler ,Fit for Fo-rd ,Fit for G-M ,Fit for Jee-p;
Fit for A-lfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Au-di, Fit for Seat, Fit for Pe-geot ,Fit for Ren-ault, Fit for Bentley ,Fit for Skoda ,Fit for Dae-woo, Fit for Be-nz ,Fit for Daihatsu, Fit for La-nd Ro-ver, Fit for BM-W ,Fit for Vauxhall ,Fit for Cit-roen, Fit for Volvo ,Fit for F-iat ,Fit for VW ,Fit for F-ord ,Fit for Jag-uar;
Fit for KI-A , Fit for Is-uzu ,Fit for Ho-nda ,Fit for Mits-ubishi, Fit for Hy-undai  ,Fit for Dacia  ,Fit for Le-xus ,Fit for M-azda, Fit for Nissan, Fit for Sub-aru , Fit for Su-zuki, Fit for To-yota;......
*For Renault Dacia Logan car model, please don't purchase If your car is before 2009.

Features:
*Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1)
*With chip:  PIC18F25K80  ,supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.

With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note:

Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer's implementation.

Multi-Protocol Support:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

Item Guidance:
Hardware requirements:
PC/for iPhone/for iPod/for iPod Touch/for iPad
Important: Your PC requires wireless LAN router supporting WiFi 802.11 a/b/g for linking.

Software Requirements:
- All ELM327 based software
- For iOS base software in Apple store: Rev / FUZZYCar / DashCmd / SpeedPORT / Nova Scan
Attention:For iOS base software are not included you must buy from Apple App Store! we only offer PC version software &  Instructions manual (on the CD)

Technical Specifications:
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

Packing list:
5 x ELM327 obd interface
5 x CD
