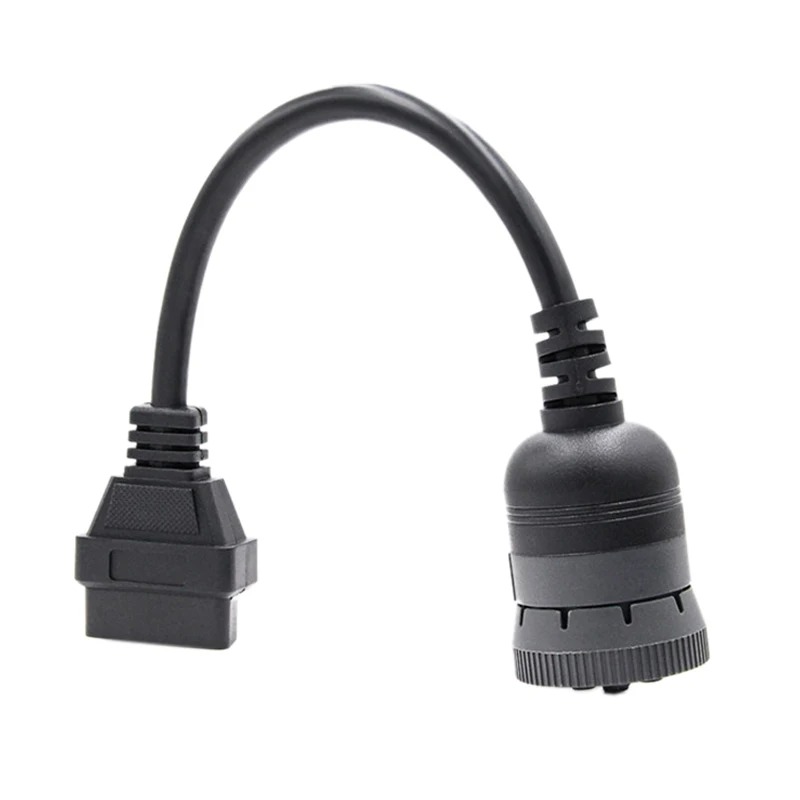

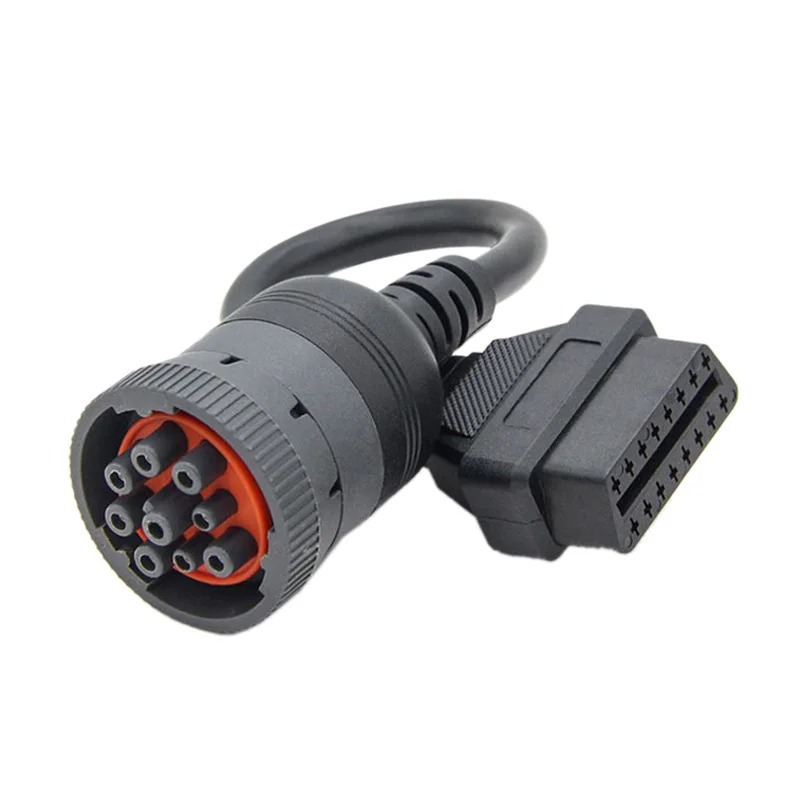

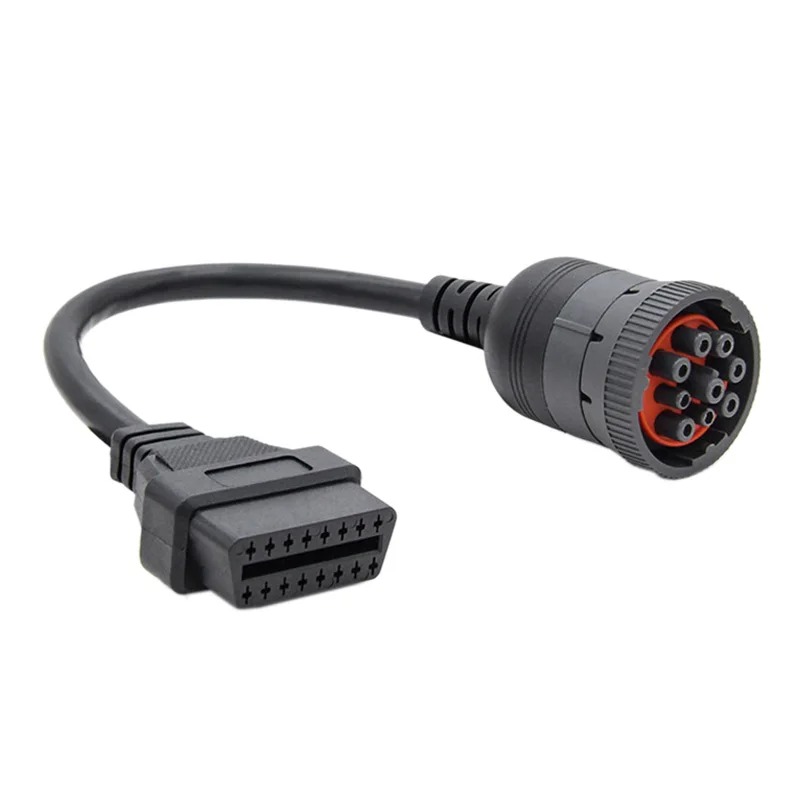

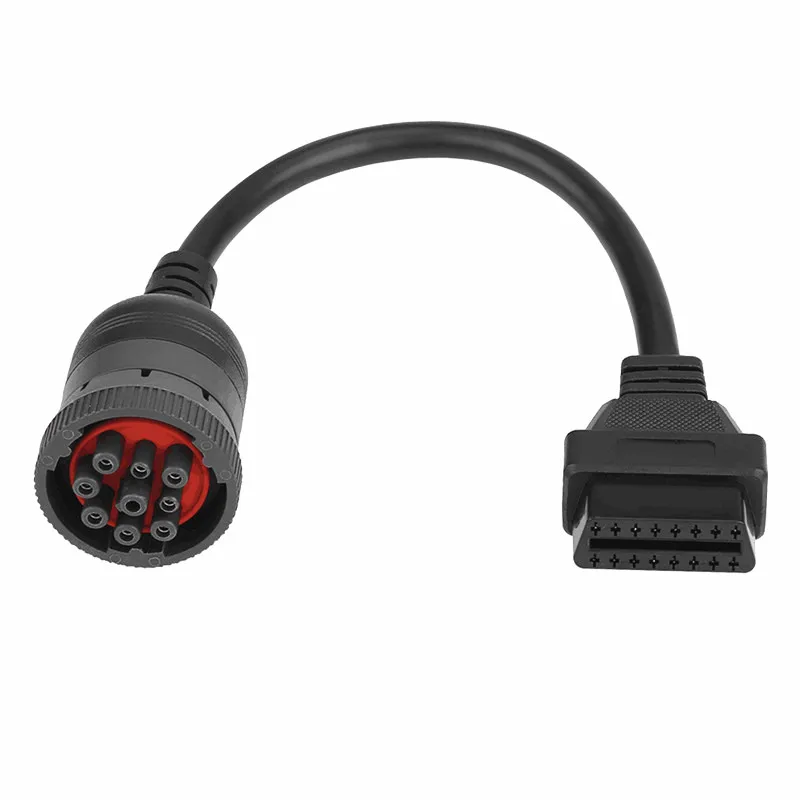

10Pcs/lot J1939 9pin to 16pin OBD 2 Tuck Cable 9 pin 16pin Female Cable OBD2 Connector Truck Line for C-ummins
$111.99$91.99
Out of stock
Description
J1939-9Pin to OBD OBD2 OBDII
It has integrated the basic diagnostic functions of J1939 heavy truck standard communication protocols.
J1939 is the vehicle bus recommended practice used for communication and diagnostics among vehicle components.
Deutsch 9 pin female connector can now be found in a range of diesel-powered applications: vehicles (on- and off-road), marine propulsion, power generation and industrial pum pin
Connecting:OBD2 16pin female to J1939-9Pin
AWG:26awg
Pins Definition:
Pin A: Ground
Pin B: Power, 12V or 24V which depends on your trucks/vehicles output.
Pin C: CAN1/J1939+
Pin D: CAN1/J1939-
Pin E: CAN1/J1939 Shield
Pin F: J1708/J1587 High
Pin G: J1708/J1587 Low
Pin H: Nullz
Pin I: Null which is for Port J on trucks/vehicles' socket.
Application:
J1939 CAN BUS diagnostic unit (for trucks);
J1939 body builder CAN bus monitor (for trucks);
J1939 interface industrial engine display unit;
ISOBUS-control devices;
CAN bus Universal Controller;
CAN gateway and bus simulator;
Notice:
1) On trucks/vehicles' socket, the manufacturers design port H and port J for themselves.
So we set pin H and Pin I Null, usually they are not useful. Here Pin I is for port J on trucks/vehicles.
2) Pin B is Power line. The output is 12V 24V or others, which depends on your vehicles' power output.
So please make sure that your devices support your vehicles' voltage.
For example, if your vehicle's voltage is 24V, your GPS tracker or other devices should support 24V too.
Material:Plastic
Color: Black
Package Contents:
10 * Female 16pin to J1939 9pin Tuck Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
